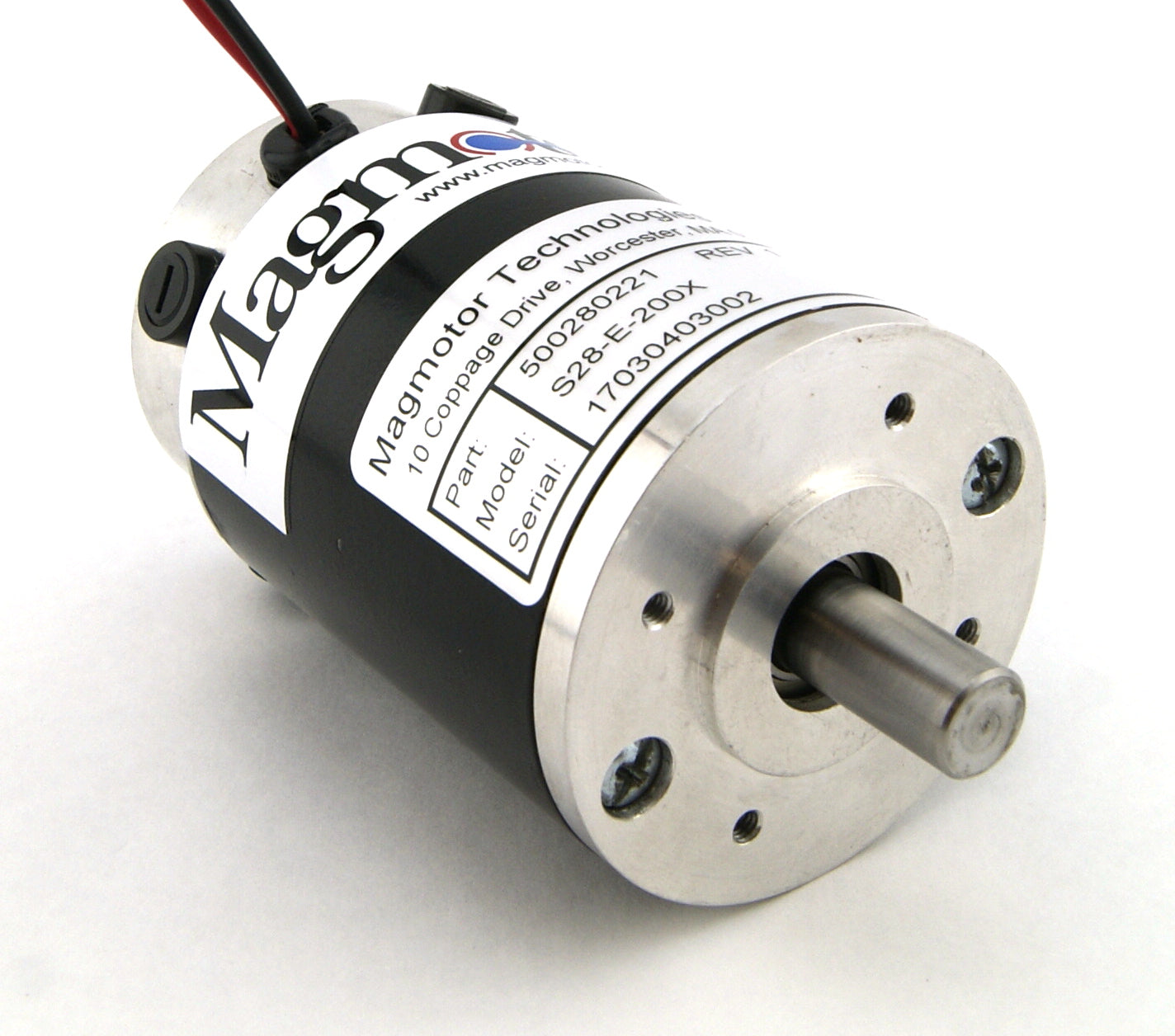

Magmotor S28-E-200X 66 to 110 Volt 4 Pole Brushed Motor Front View

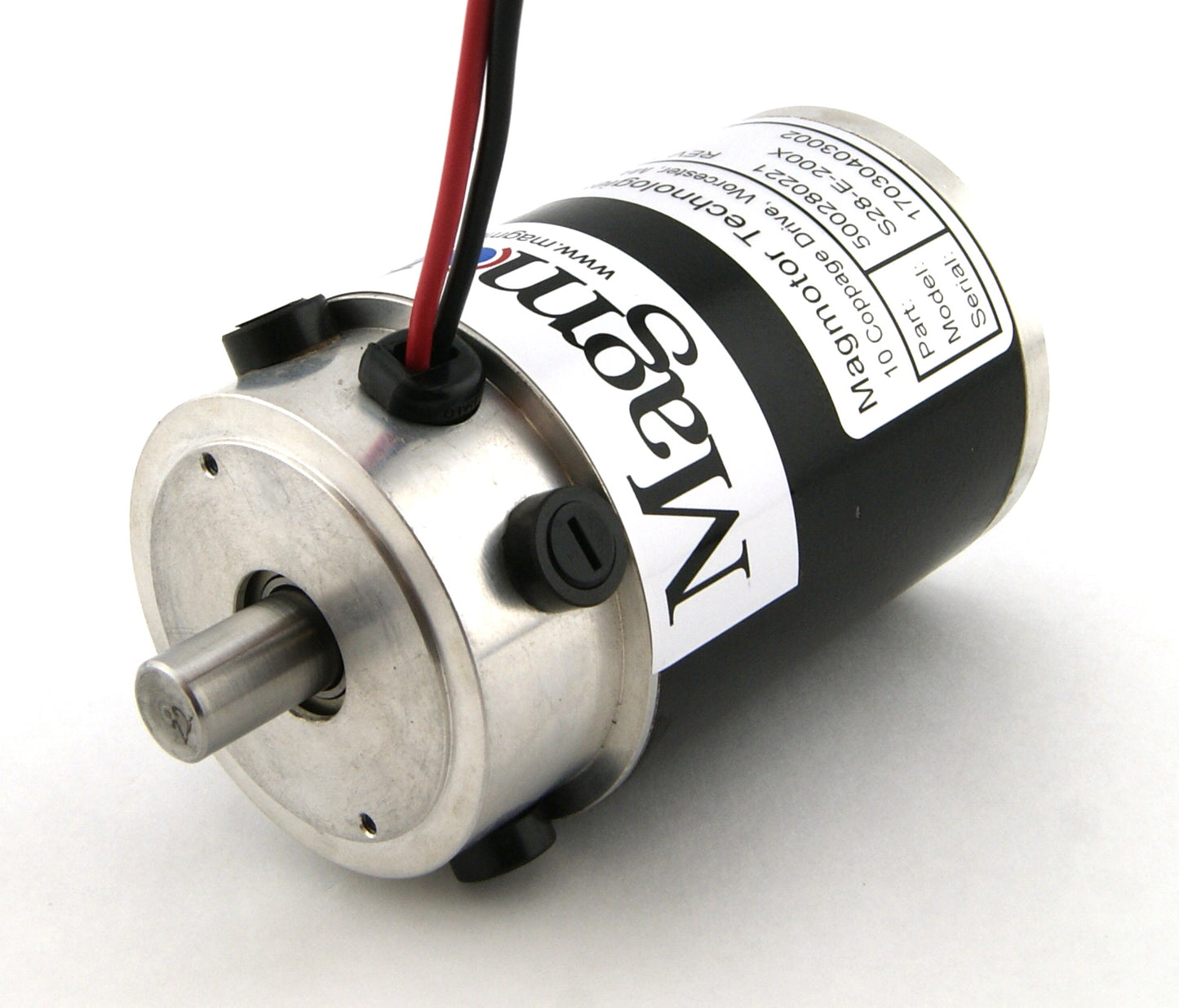

Magmotor S28-E-200X 66 to 110 Volt 4 Pole Brushed Motor Rear View

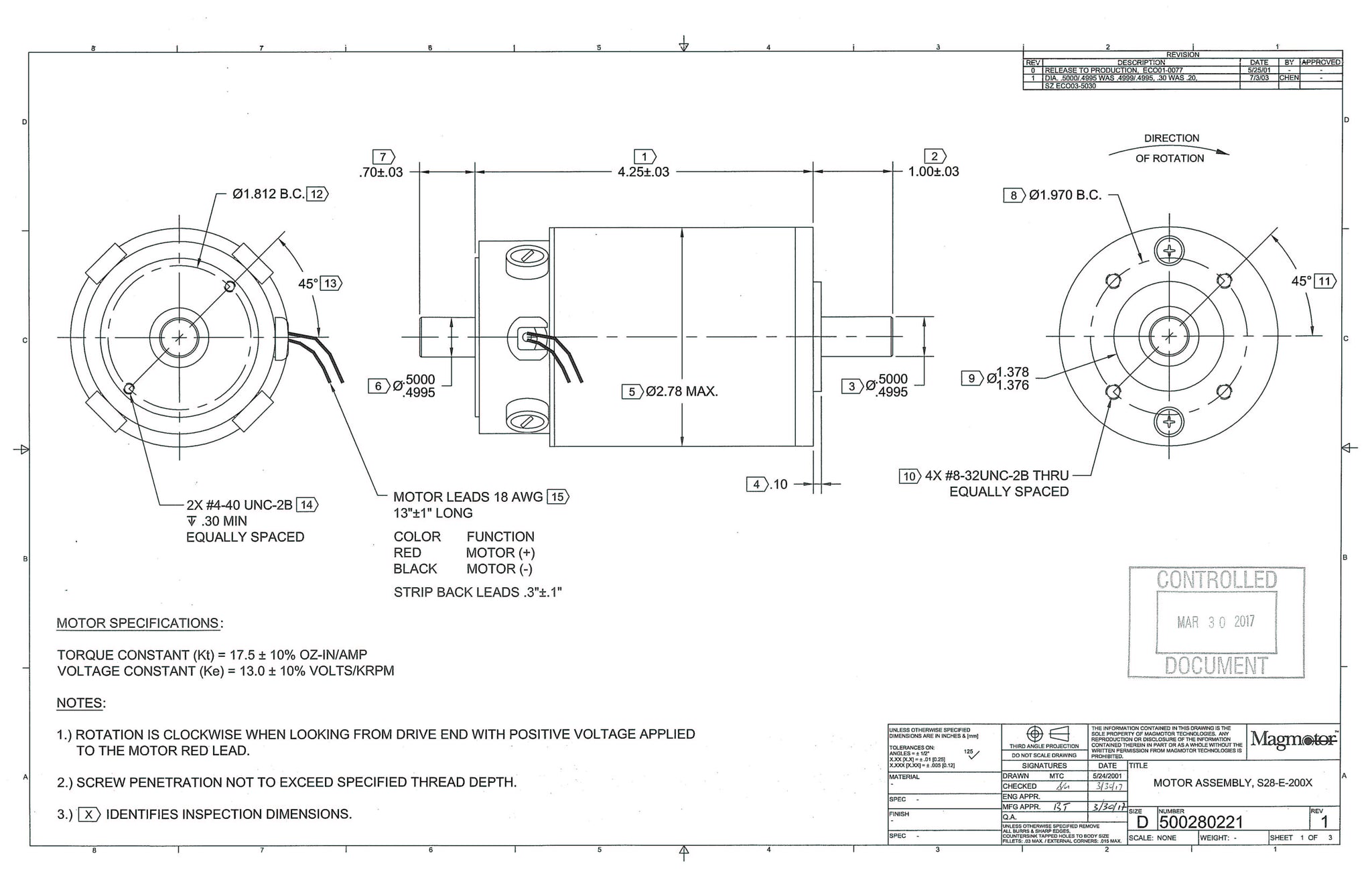

Magmotor S28-E-200X 66 to 110 Volt 4 Pole Brushed Motor Drawing

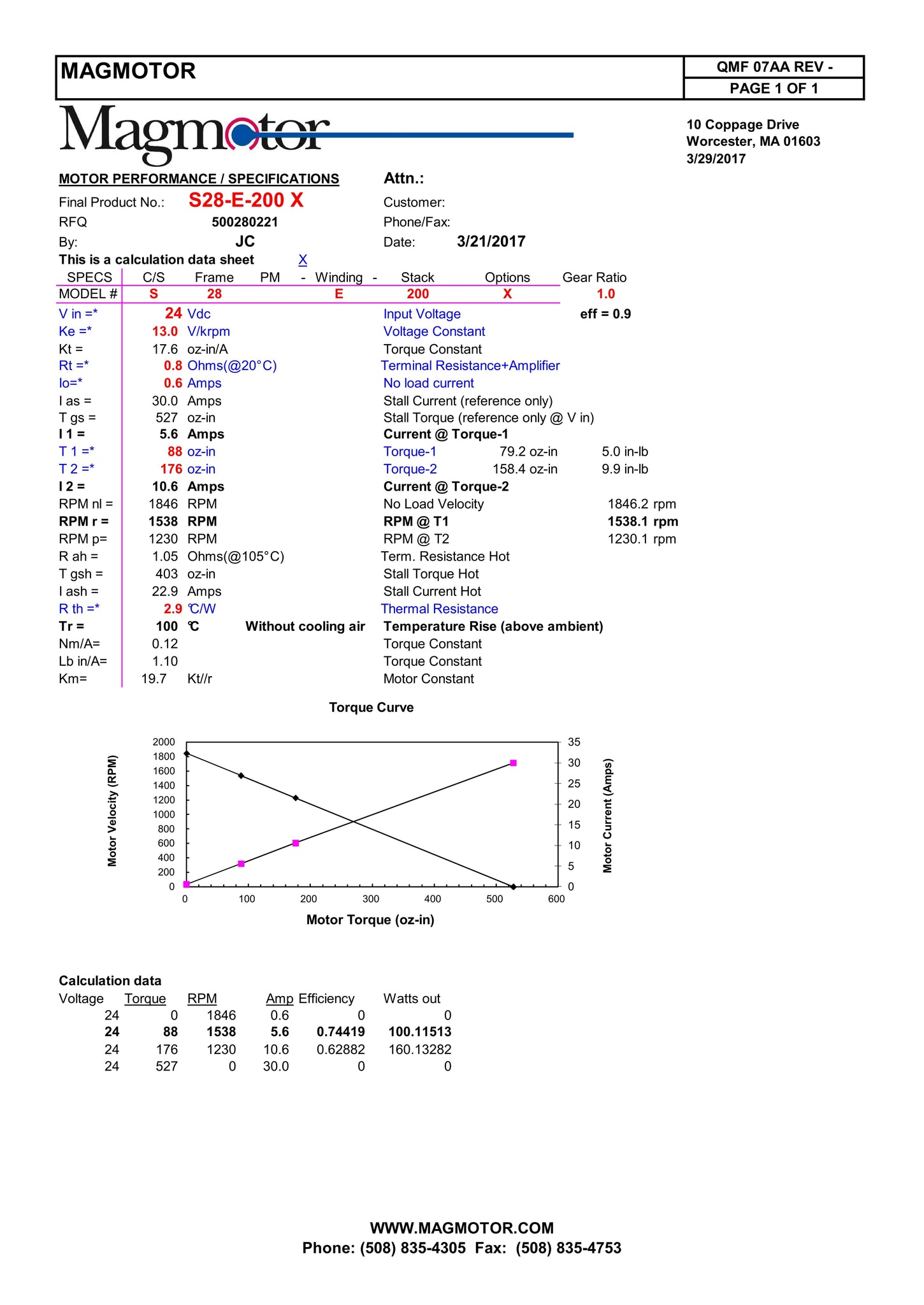

Magmotor S28-E-200X 66 to 110 Volt 4 Pole Brushed Motor Performance Sheet

500280221 - BRUSHED MOTOR - 12 to 30 VDC - 66 to 110 oz-in CONT TORQUE - S28-E-200X

  • Save $95
Shipping calculated at checkout.

DC Motor Specifications:

  • 4 Pole - Brushed DC Motor
  • Voltage Constant (Ke) = 13.0 +/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 17.6 +/- 10% OZ-IN/AMP
  • Encoder Ready
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • 4 Pole - Brushed DC Motor
  • Voltage Constant (Ke) = 13.0 +/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 17.6 +/- 10% OZ-IN/AMP

    This is an Overstock Item - All Sales Are Final

    DOWNLOADS:

    magmotor servo motor drawing with performance sheet PDF download button
