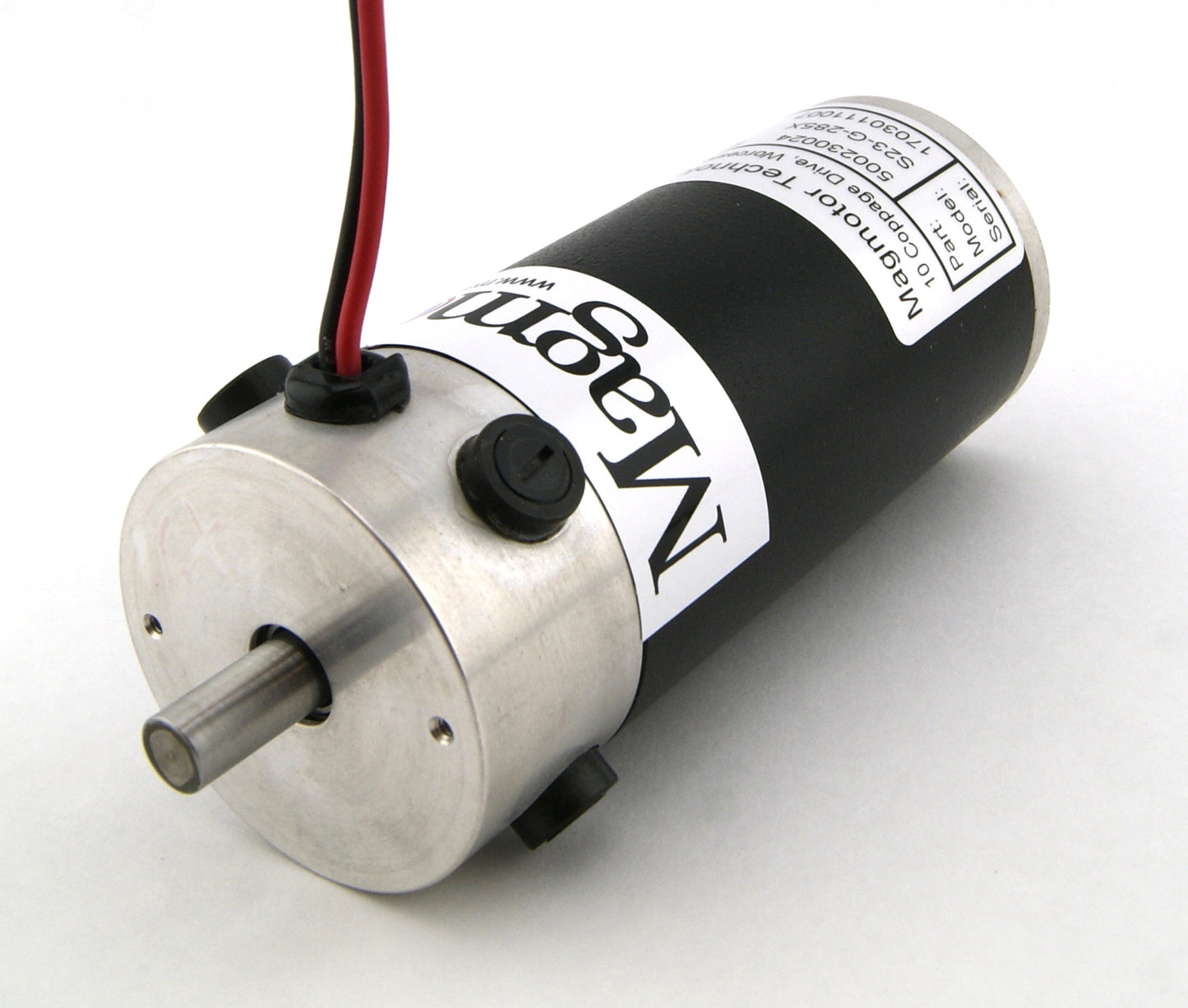

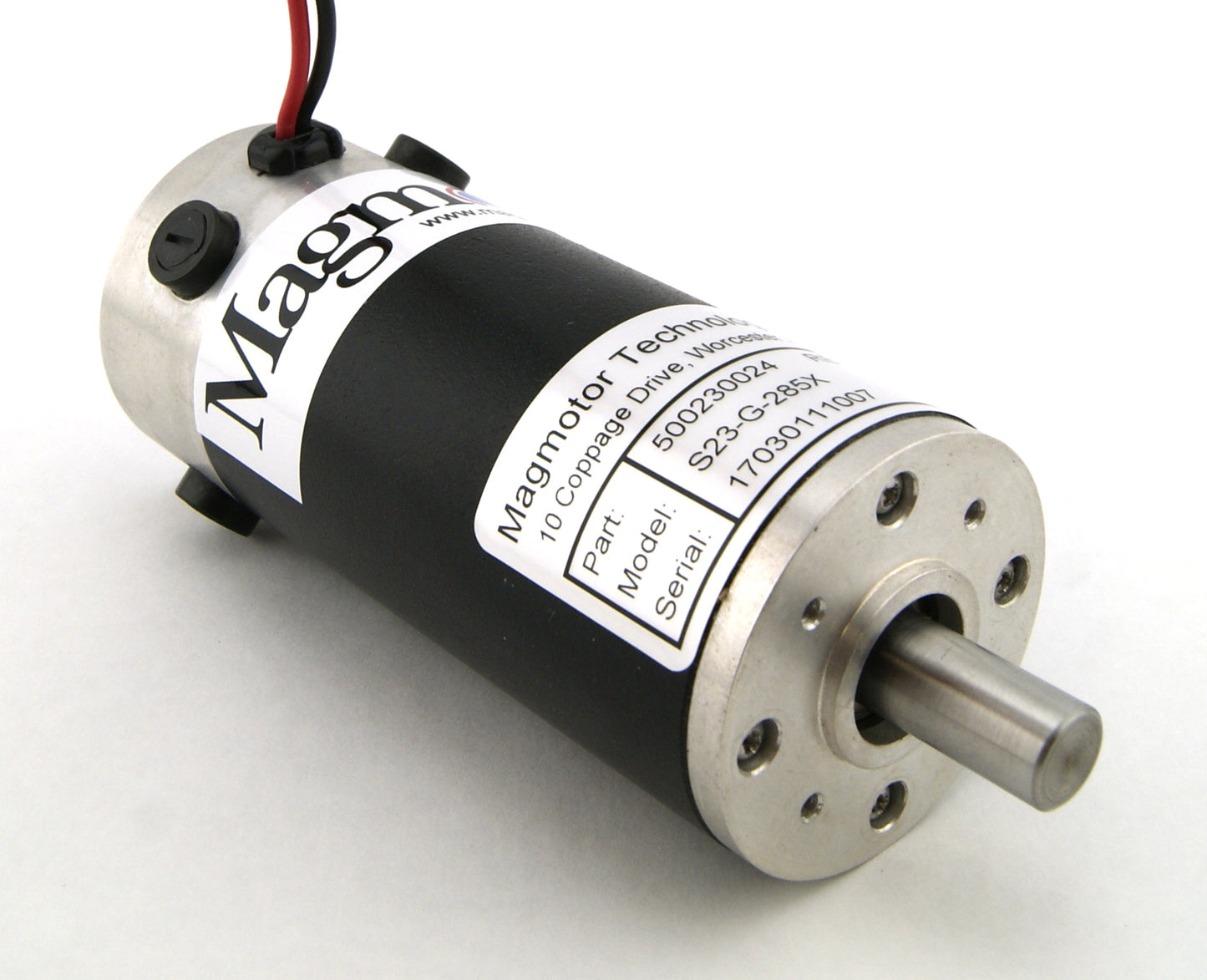

Magmotor S23-G-285X 24 to 24 Volt 4 Pole Brushed Motor Front View
Magmotor S23-G-285X 24 to 24 Volt 4 Pole Brushed Motor Rear View

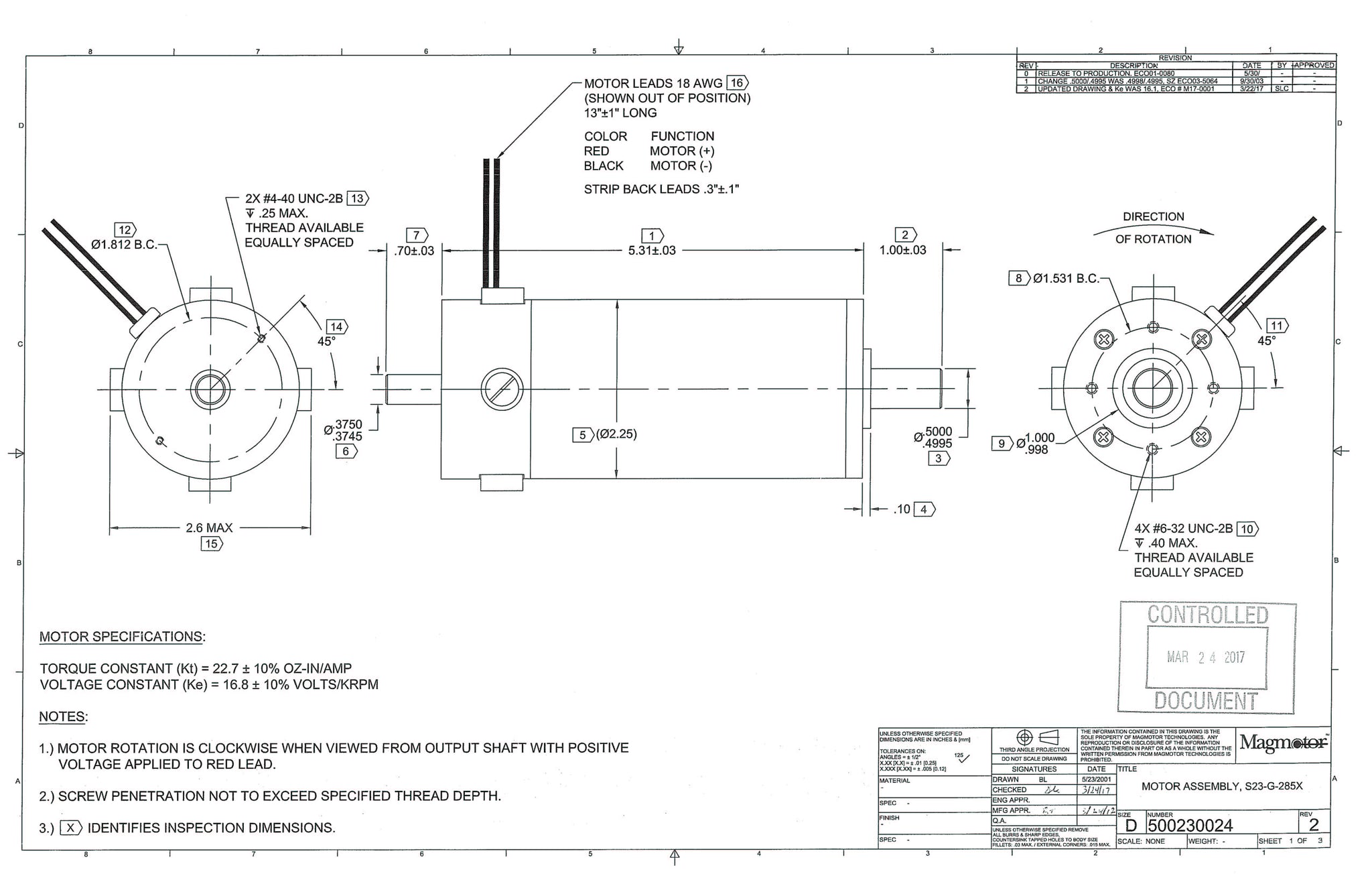

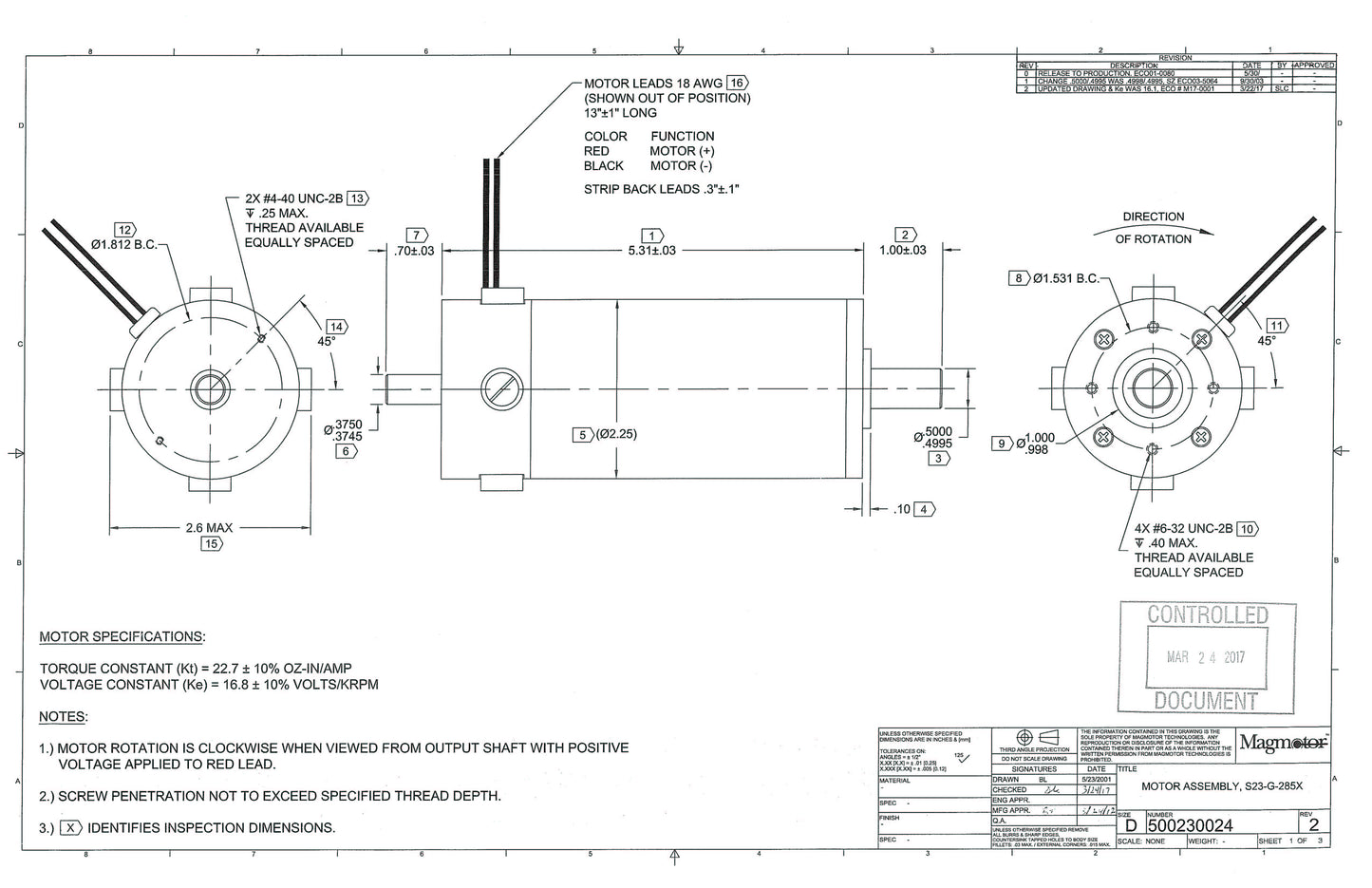

Magmotor S23-G-285X 24 to 24 Volt 4 Pole Brushed Motor Drawing

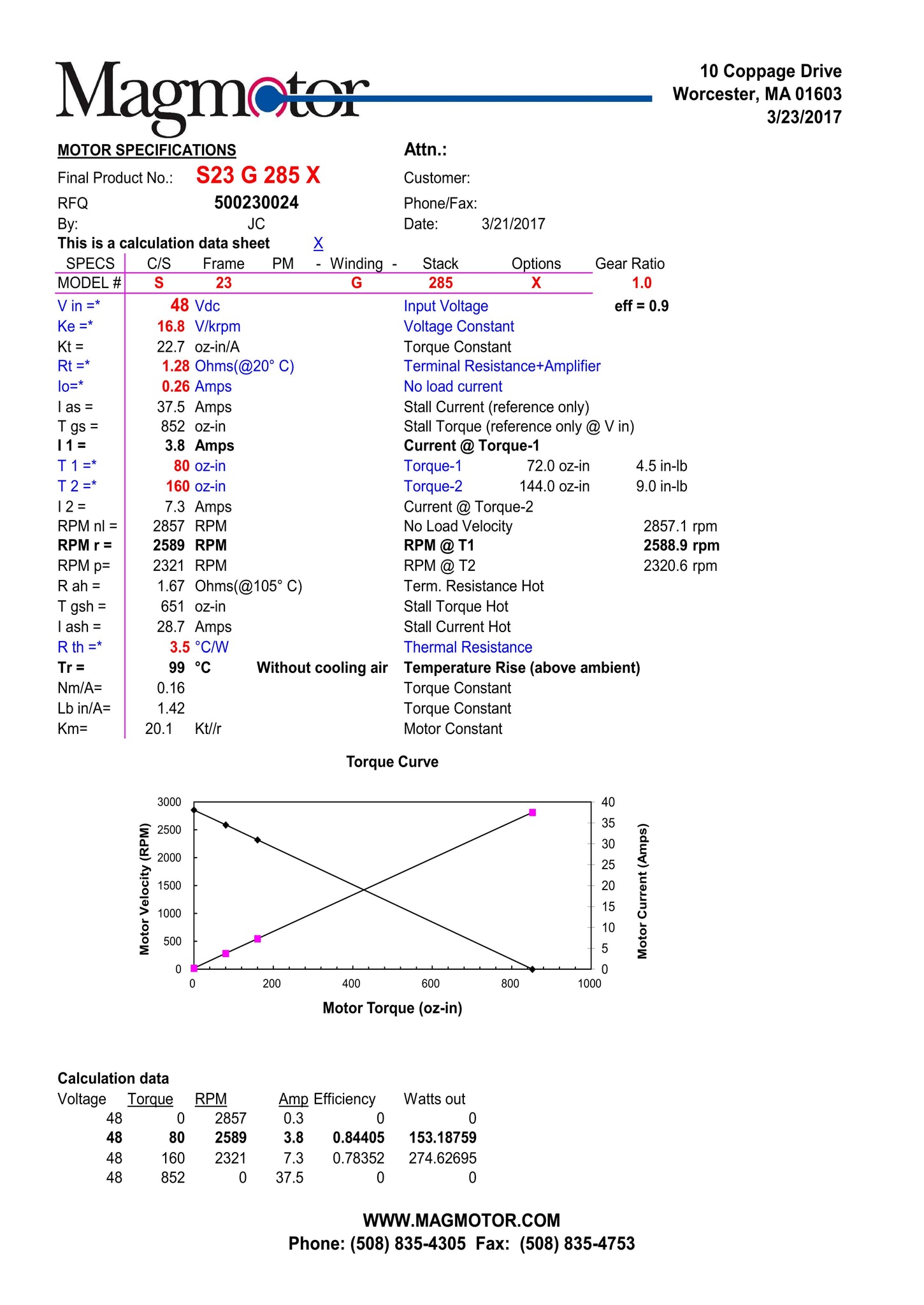

Magmotor S23-G-285X 24 to 24 Volt 4 Pole Brushed Motor Performance Sheet

500230024 - BRUSHED MOTOR - 24 to 48 VDC - 70 to 80 oz-in CONT TORQUE - S23-G-285X

  • Save $86.25
Shipping calculated at checkout.

DC Motor Specifications:

  • 4 Pole - Brushed DC Motor
  • Voltage Constant (Ke) = 16.8 +/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 22.7 +/- 10% OZ-IN/AMP
  • Encoder Ready
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 1177 rpm @ 24VDC with a continuous torque of 78 oz-in
  • Capable of operating at 1880 rpm @ 36VDC with a continuous torque of 75 oz-in
  • Capable of operating at 2590 rpm @ 48VDC with a continuous torque of 70 oz-in

    This is an Overstock Item - All Sales Are Final

    DOWNLOADS:

    magmotor servo motor drawing with performance sheet PDF download button
