500210264 - BRUSHED MOTOR - 9 to 18 VDC - 25 to 35 oz-in CONT TORQUE - C21-B-230X
500210264 - BRUSHED MOTOR - 9 to 18 VDC - 25 to 35 oz-in CONT TORQUE - C21-B-230X
Regular price
$150.00
Regular price
$200.00
Sale price
$150.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- 2 Pole - Brushed DC Motor
- Torque Constant (Kt) = 5.3 +/- 10% oz-IN/AMP
- Voltage Constant (Ke) = 4.0 +/- 10% VOLTS/KRPM
- Reach, RoHS and CE Compliant.
Example Performance Ranges:
- Capable of operating at 1595 rpm @ 9VDC with a continuous torque of 33 oz-in
- Capable of operating at 2424 rpm @ 12VDC with a continuous torque of 29 oz-in
- Capable of operating at 4023 rpm @ 18VDC with a continuous torque of 25 oz-in
This is an Overstock Item - All Sales Are Final
Share

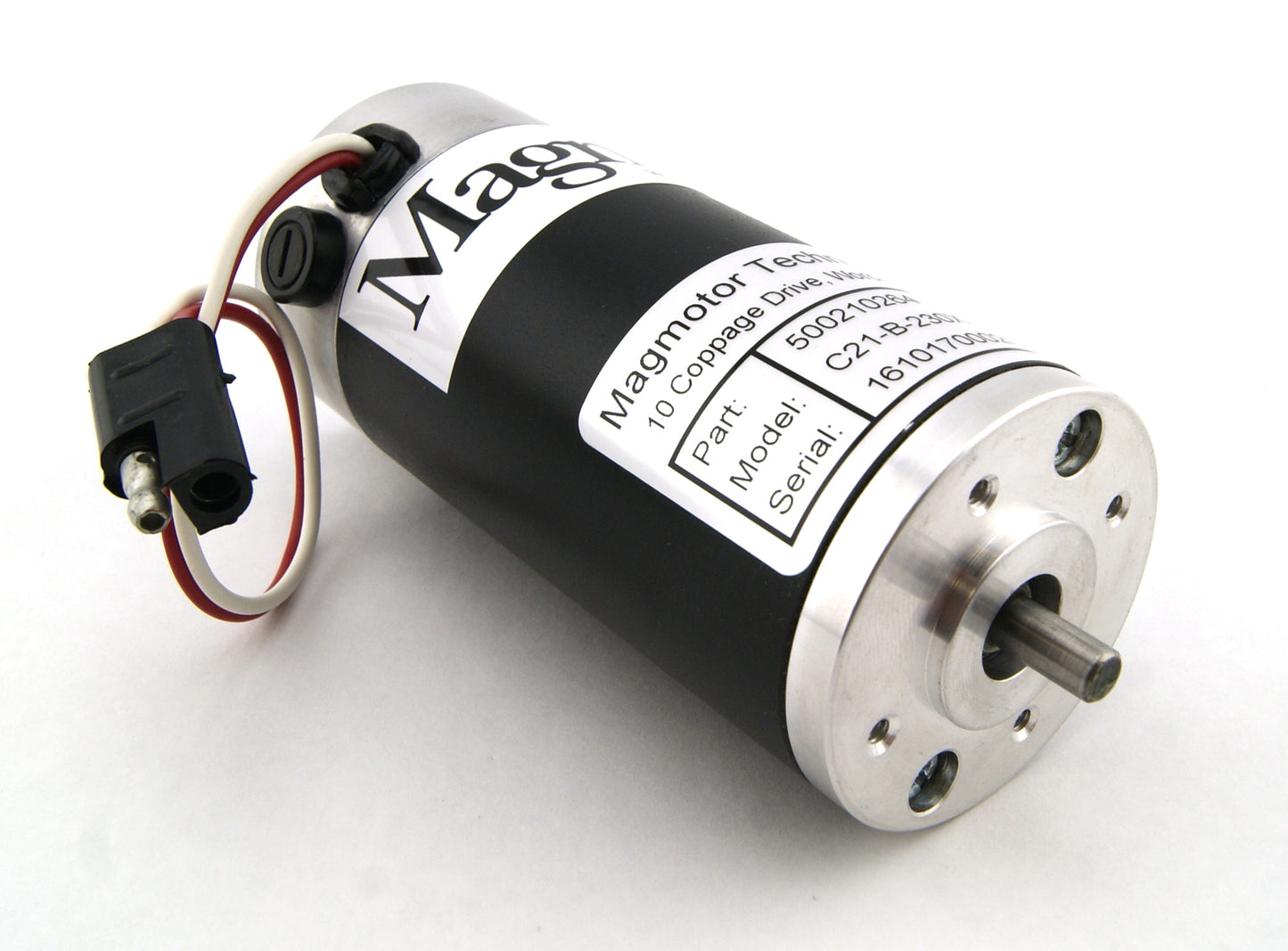

![Magmotor C21-B-230X 9 to 18 Volt 2 Pole Brushed Motor 500210264 Front View](http://magmotorstore.com/cdn/shop/products/magmotor-500210264-c21-b-230x-brushed-servo-01.jpg?v=1626718609&width=1445)

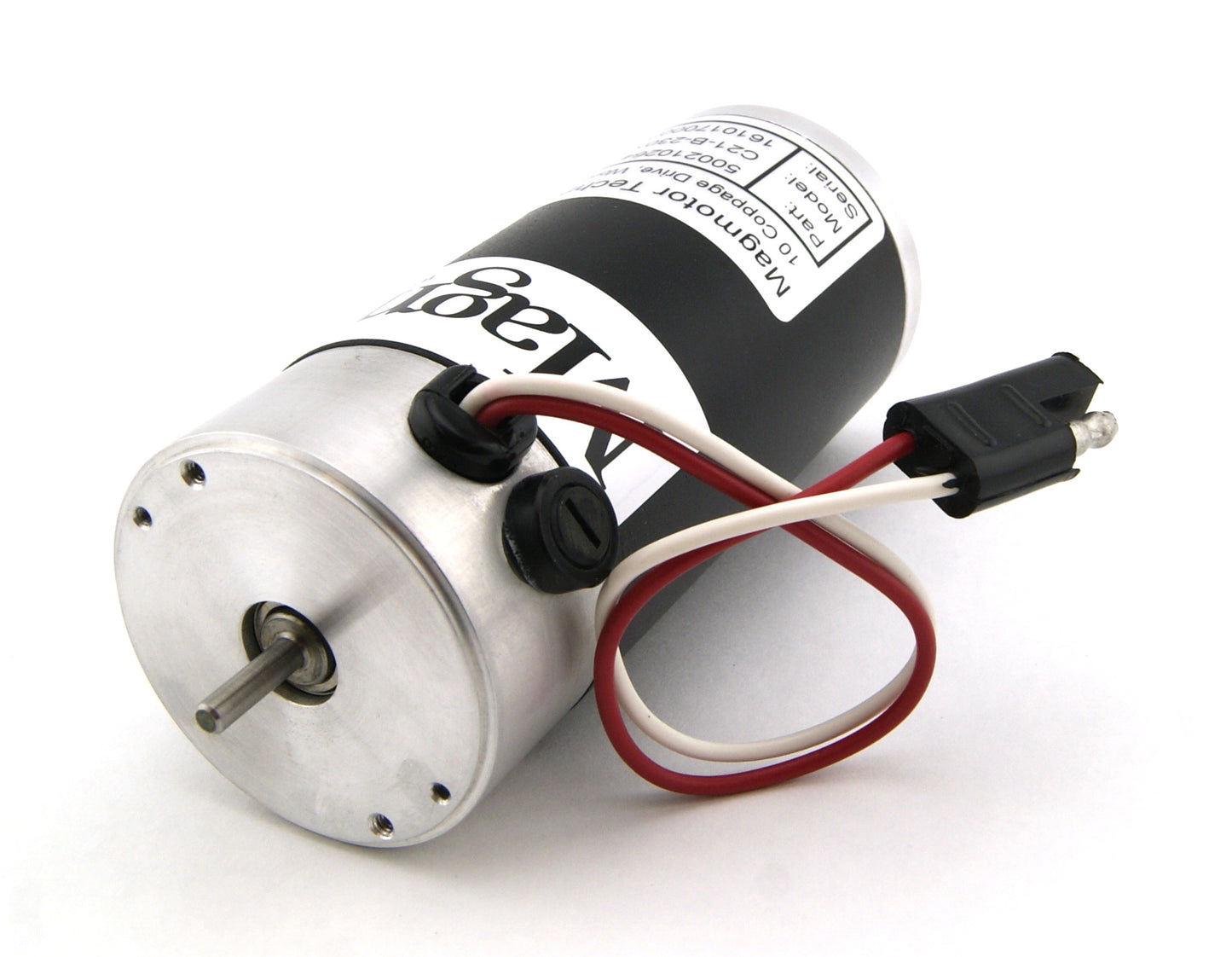

![Magmotor C21-B-230X 9 to 18 Volt 2 Pole Brushed Motor 500210264 Rear View](http://magmotorstore.com/cdn/shop/products/magmotor-500210264-c21-b-230x-brushed-servo-02.jpg?v=1626718620&width=1445)

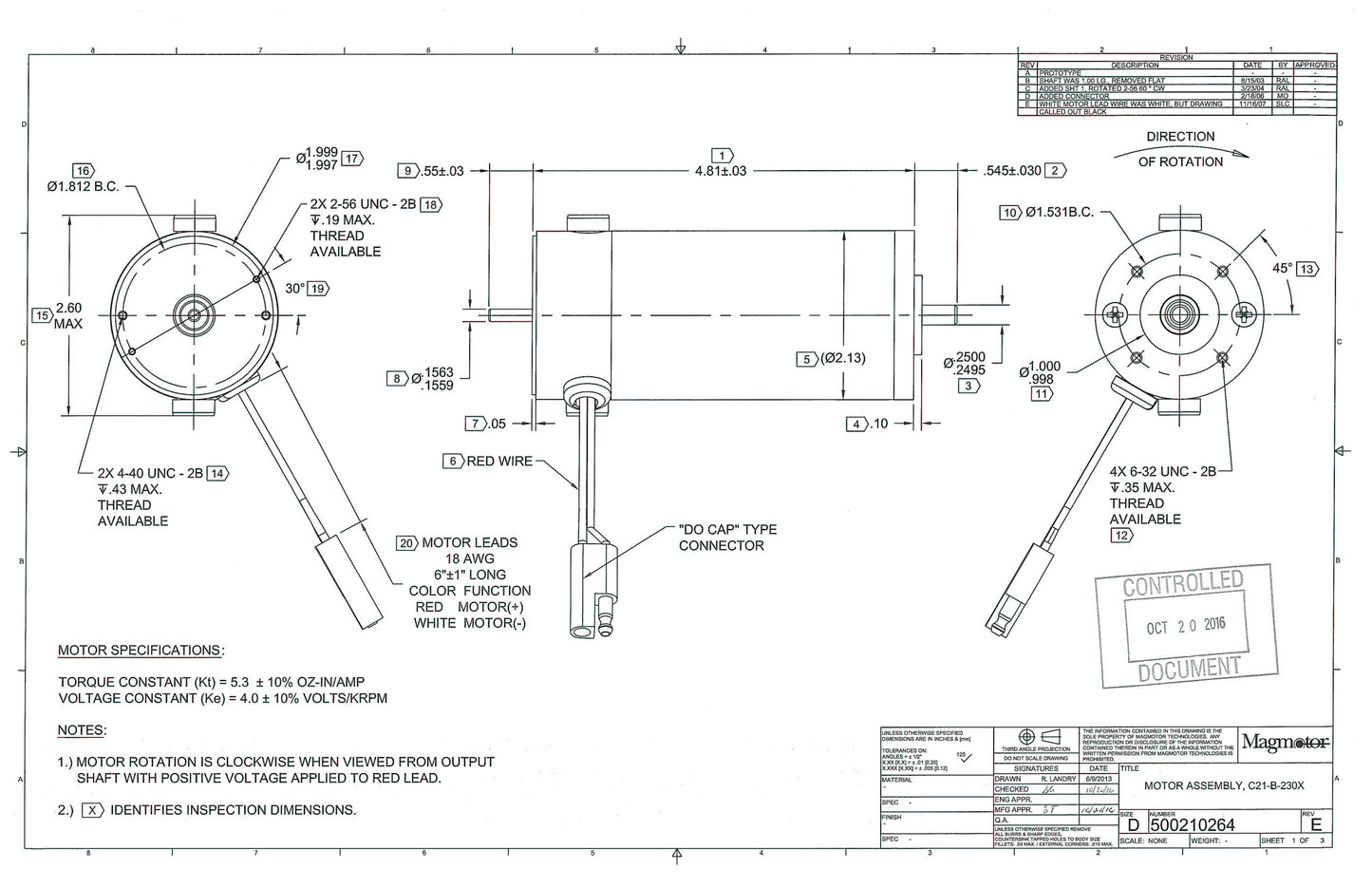

![Magmotor C21-B-230X 9 to 18 Volt 2 Pole Brushed Motor Drawing](http://magmotorstore.com/cdn/shop/products/500210264reve-drawing-motor-brushed-servo.jpg?v=1626718629&width=1445)

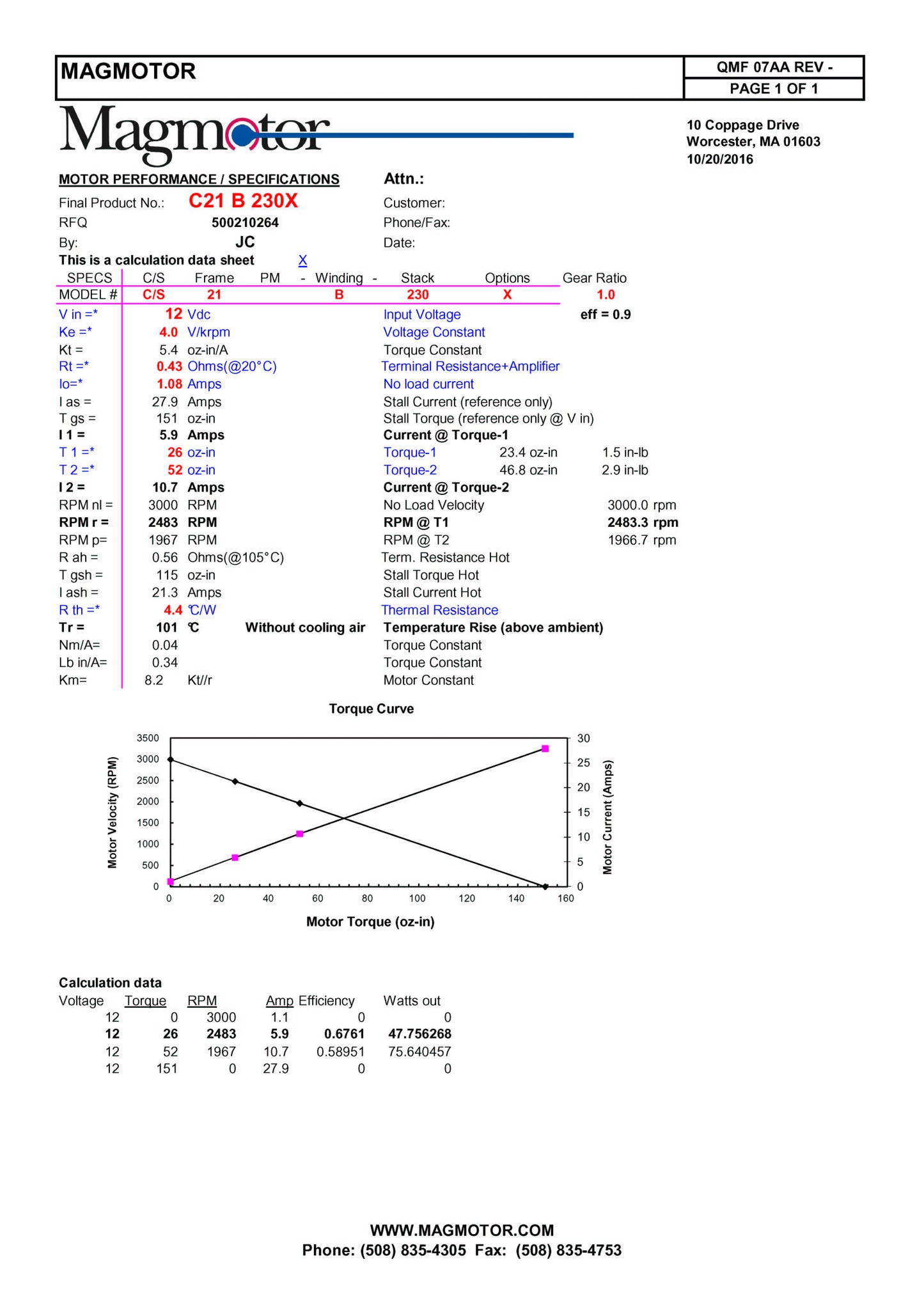

![Magmotor C21-B-230X 9 to 18 Volt 2 Pole Brushed Motor Performance Sheet](http://magmotorstore.com/cdn/shop/products/500210264reve-perfcurve-motor-brushed-servo.jpg?v=1626718643&width=1445)
