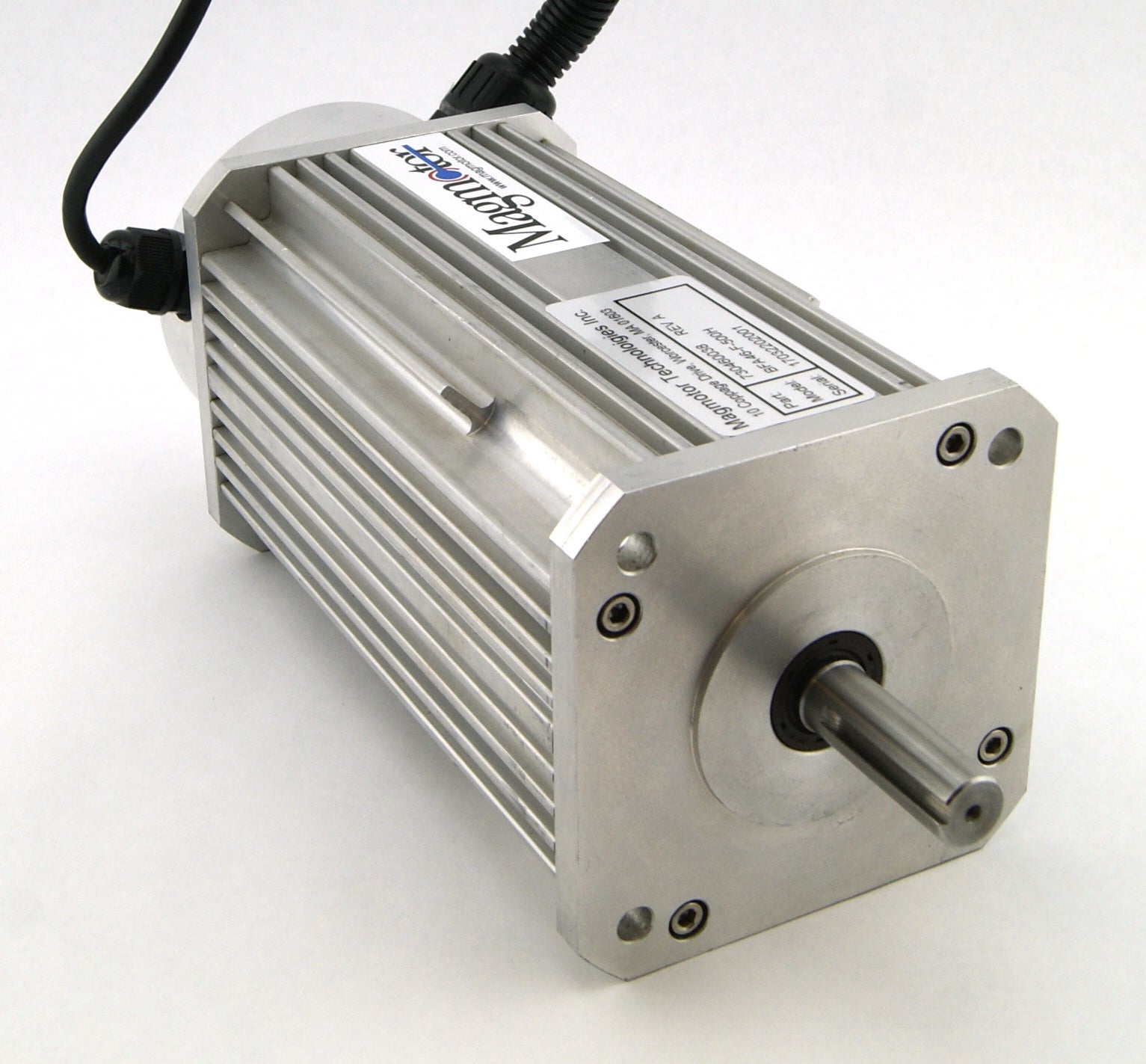

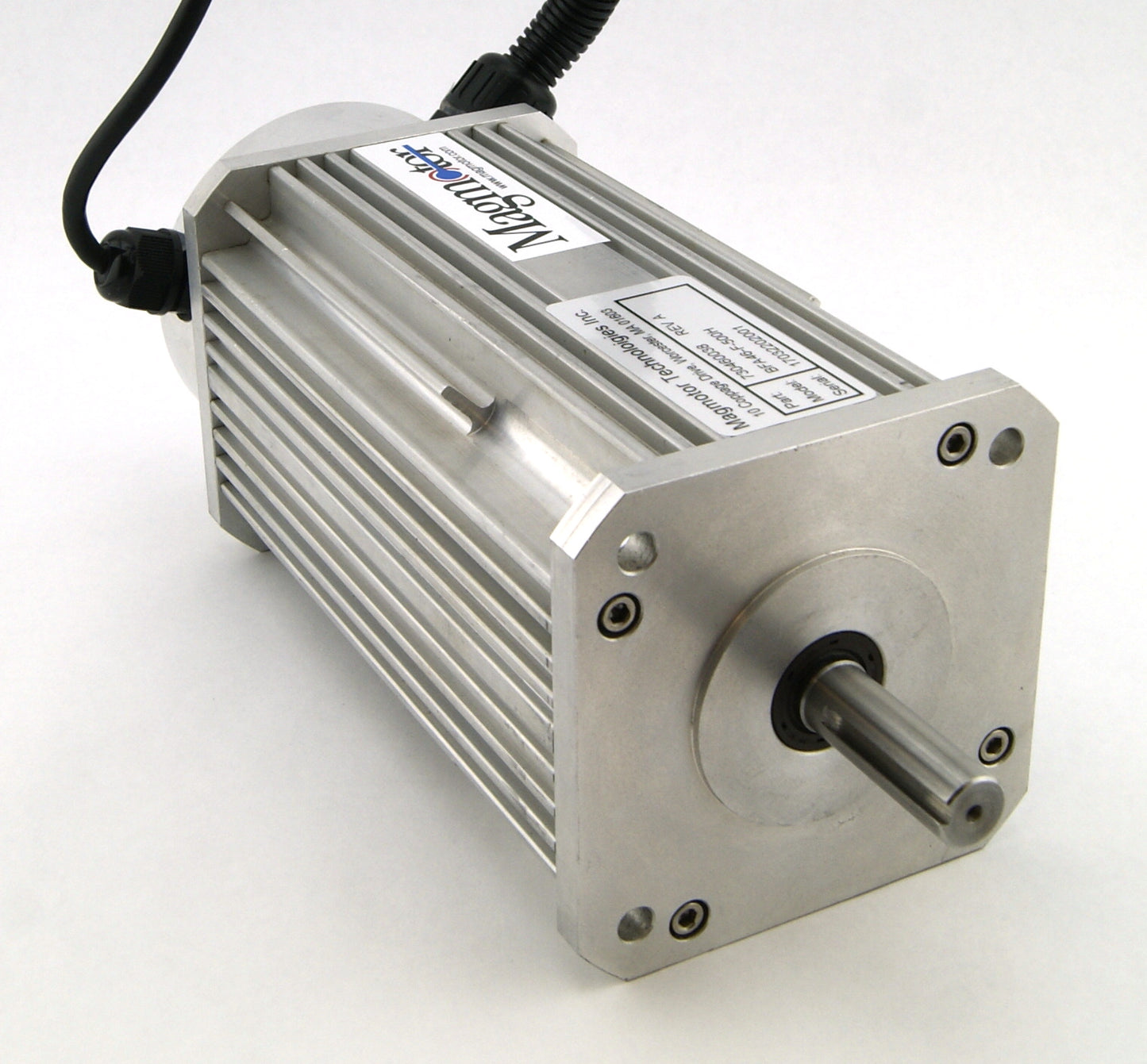

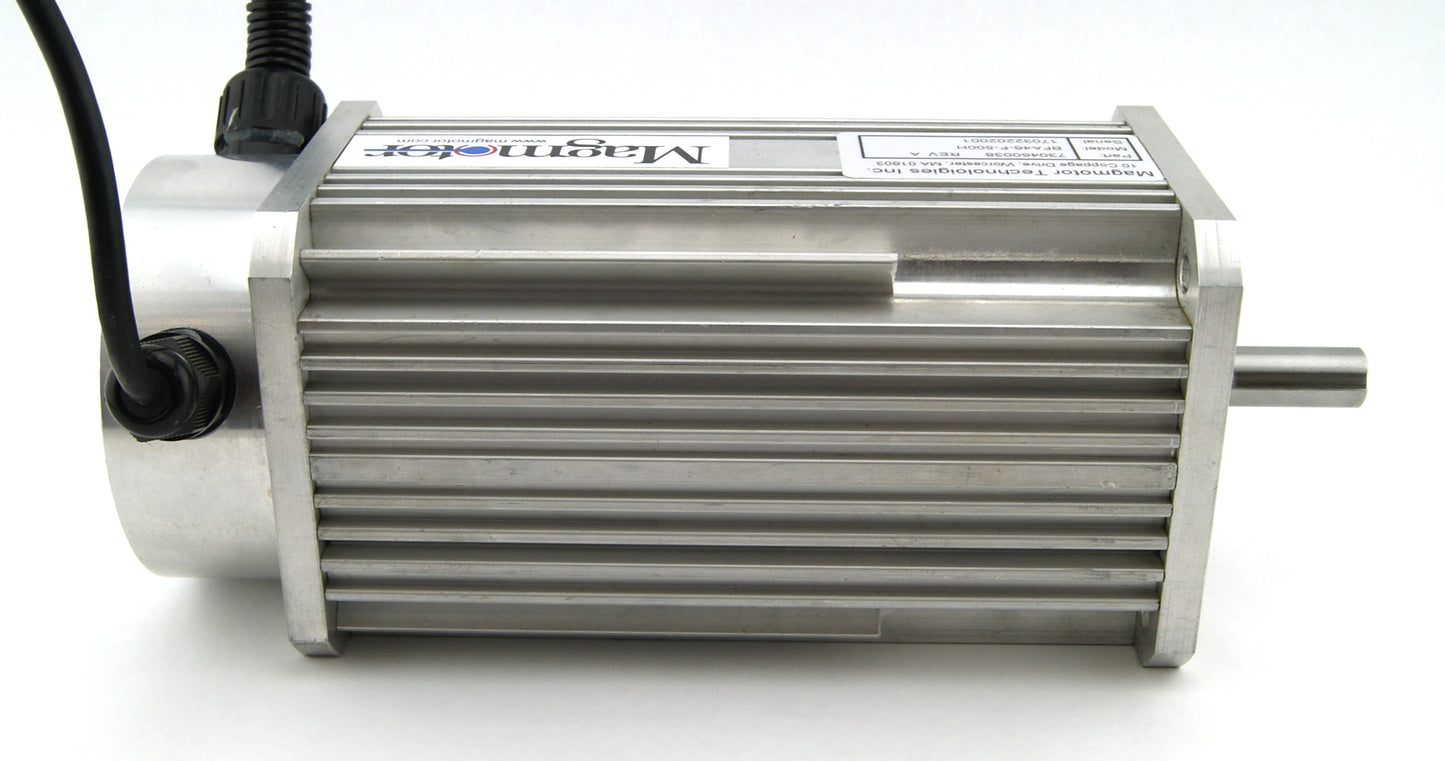

730460038 - BRUSHLESS MOTOR - 100 to 168 VDC - 700 to 1130 oz-in CONT TORQUE - BFA46-F-500H

DOWNLOADS:



DC Motor Specifications:

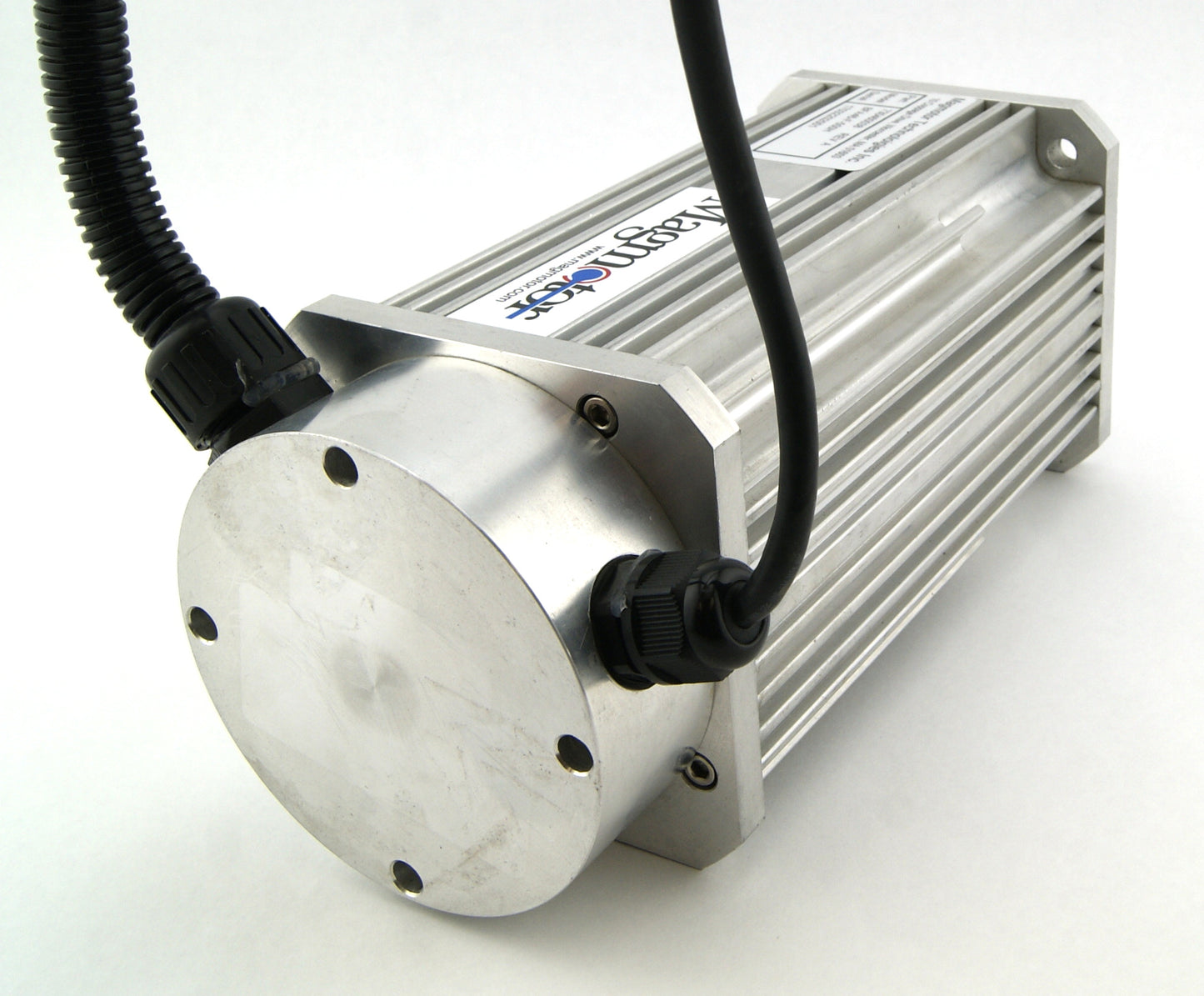

• Sold with a Hall Assembly Installed with Cover
• 8 Pole - Brushless DC Motor
• NEMA 42 Mounting
• Voltage Constant (Ke) = 102.0 +/- 10% VOLTS/KRPM

• Torque Constant (Kt) = 137.9 +/- 10% OZ-IN/AMP
• REACH, RoHS and CE Compliant

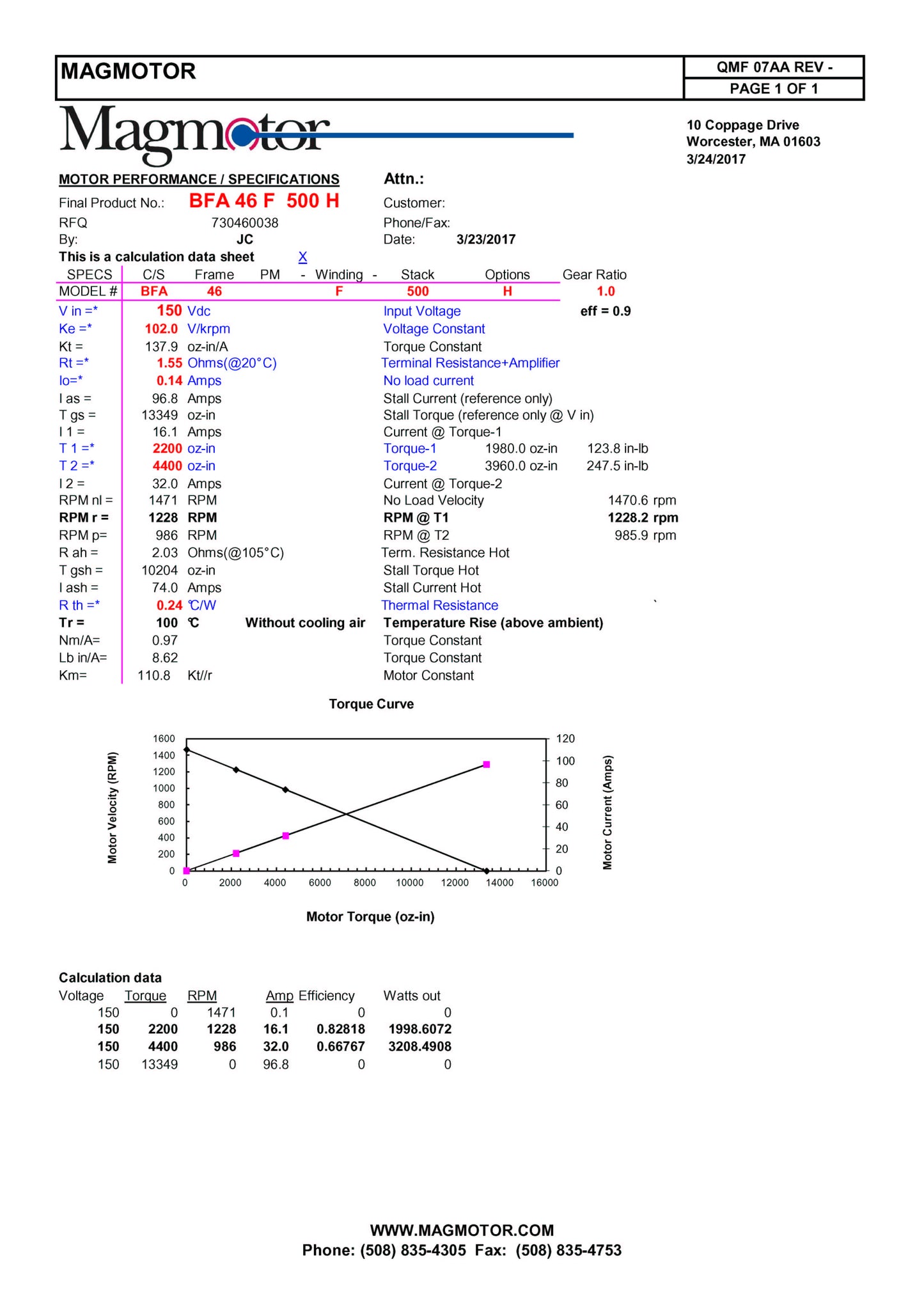

Example Performance Ranges:

• Capable of operating at 930 rpm @ 100VDC with a continuous torque of 1130 oz-in
• Capable of operating at 1132 rpm @ 120VDC with a continuous torque of 1020 oz-in
• Capable of operating at 1375 rpm @ 144VDC with a continuous torque of 870 oz-in
• Capable of operating at 1620 rpm @ 168VDC with a continuous torque of 700 oz-in

This is an Overstock Item - All Sales Are Final
