730420102 - BRUSHLESS MOTOR - 84 to 120 VDC - 1050 to 1125 oz-in Continuous Torque - BFA42-5G-500FE
730420102 - BRUSHLESS MOTOR - 84 to 120 VDC - 1050 to 1125 oz-in Continuous Torque - BFA42-5G-500FE
Regular price
$1,392.00
Regular price
Sale price
$1,392.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
DC Motor Specifications:
-
Sold with a 2000 Line Commutation Encoder Installed with Cover
- 8 Pole - Brushless DC Motor
- NEMA 42 Mounting
-
Voltage Constant (Ke) = 28.0 +/- 10% VOLTS/KRPM
- Torque Constant (Kt) = 37.9 +/- 10% OZ-IN/AMP
- REACH, RoHS and CE Compliant
Example Performance Ranges:
- Capable of operating at 2780 rpm @ 84VDC with a continuous torque of 1820 oz-in
- Capable of operating at 3015 rpm @ 90VDC with a continuous torque of 1800 oz-in
- Capable of operating at 3660 rpm @ 108VDC with a continuous torque of 1760 oz-in
- Capable of operating at 4095 rpm @ 120VDC with a continuous torque of 1720 oz-in
Share
![Magmotor BFA42-5G-500FE 84 to 120 Volt 8 Pole Brushless Motor 730420102 Front View](http://magmotorstore.com/cdn/shop/products/magmotor-brushless-servo-730420102-bfa42-5g-500fe-01.jpg?v=1626791425&width=1445)
![Magmotor BFA42-5G-500FE 84 to 120 Volt 8 Pole Brushless Motor 730420102 Rear View](http://magmotorstore.com/cdn/shop/products/magmotor-brushless-servo-730420102-bfa42-5g-500fe-02.jpg?v=1626791437&width=1445)
![Magmotor BFA42-5G-500FE 84 to 120 Volt 8 Pole Brushless Motor 730420102 Side View](http://magmotorstore.com/cdn/shop/products/magmotor-brushless-servo-730420102-bfa42-5g-500fe-03.jpg?v=1626791448&width=1445)
![Magmotor BFA42-5G-500FE 84 to 120 Volt 8 Pole Brushless Motor Drawing](http://magmotorstore.com/cdn/shop/products/730420102reva-drawing-motor-brushless-servo.jpg?v=1626791458&width=1445)

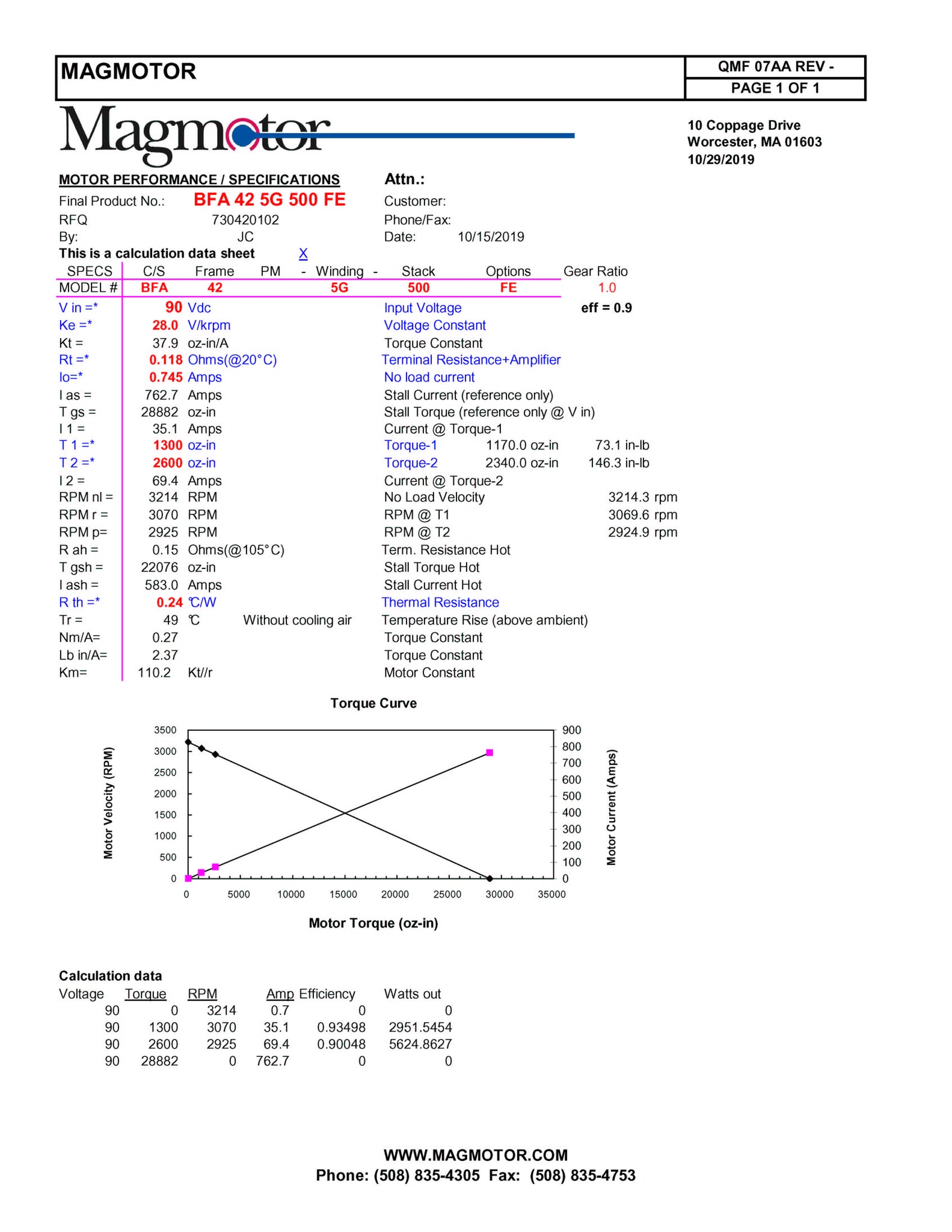

![Magmotor BFA42-5G-500FE 84 to 120 Volt 8 Pole Brushless Motor Performance Sheet](http://magmotorstore.com/cdn/shop/products/730420102reva-perfcurve-motor-brushless-servo.jpg?v=1626791470&width=1445)
