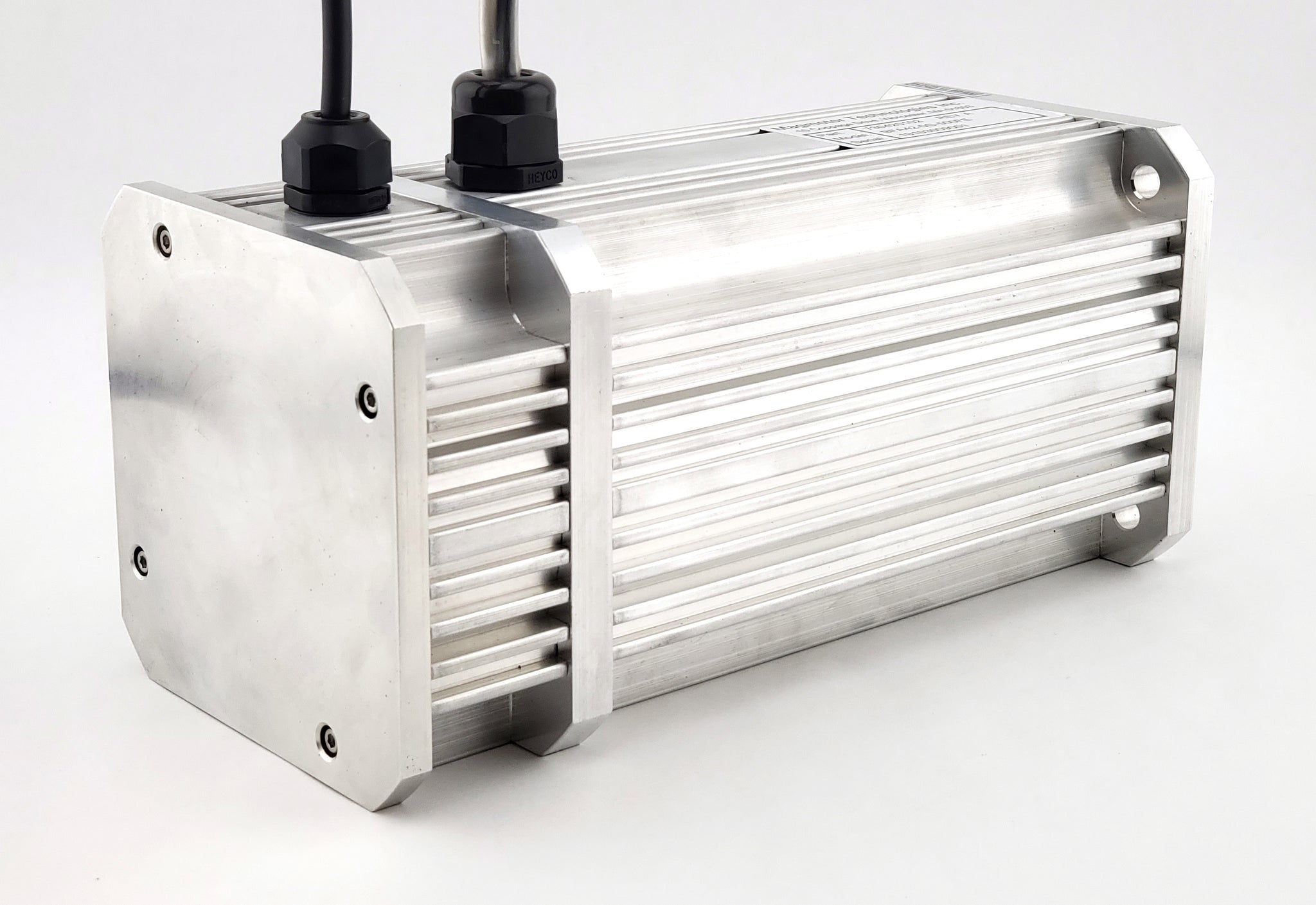

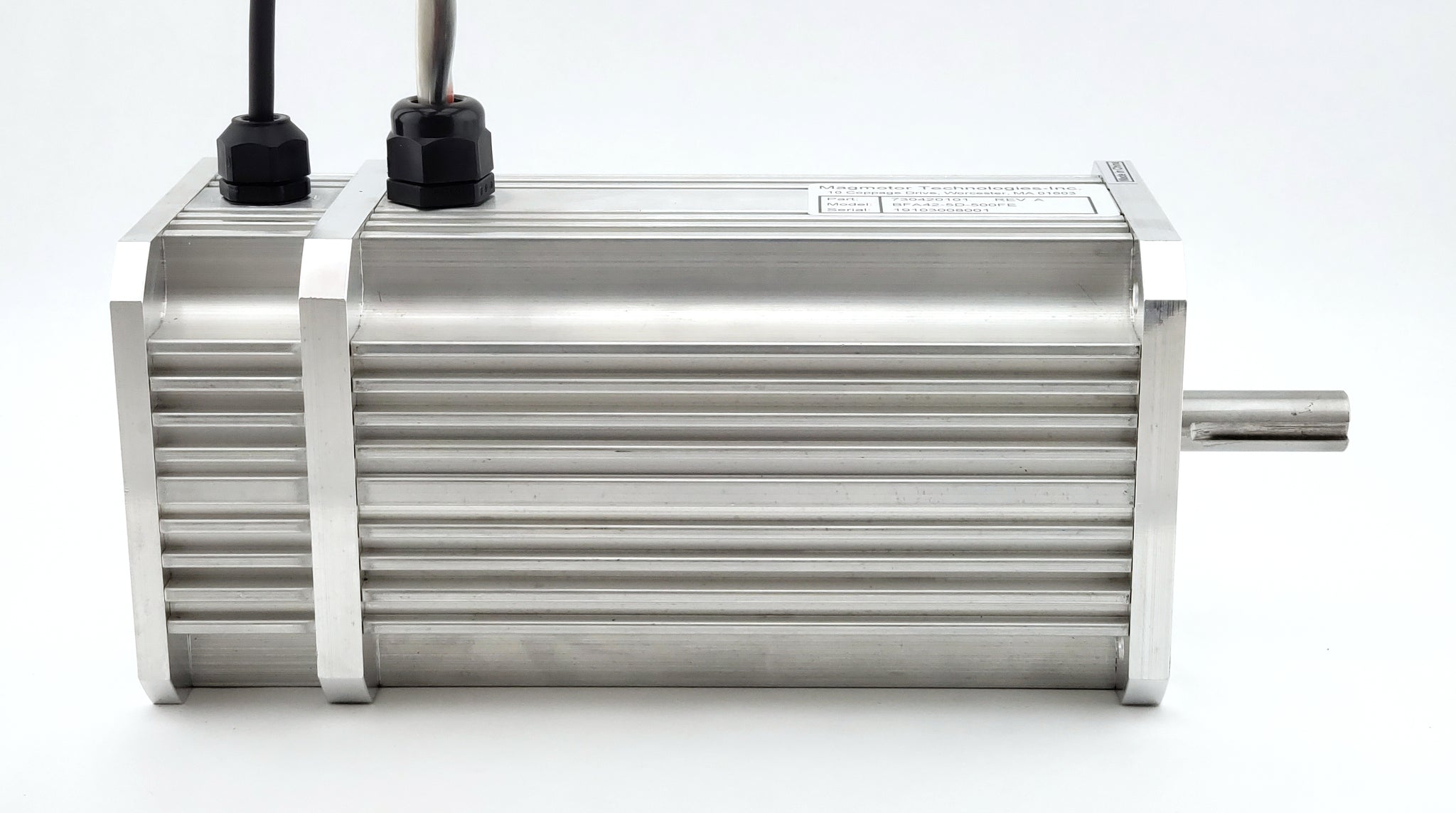

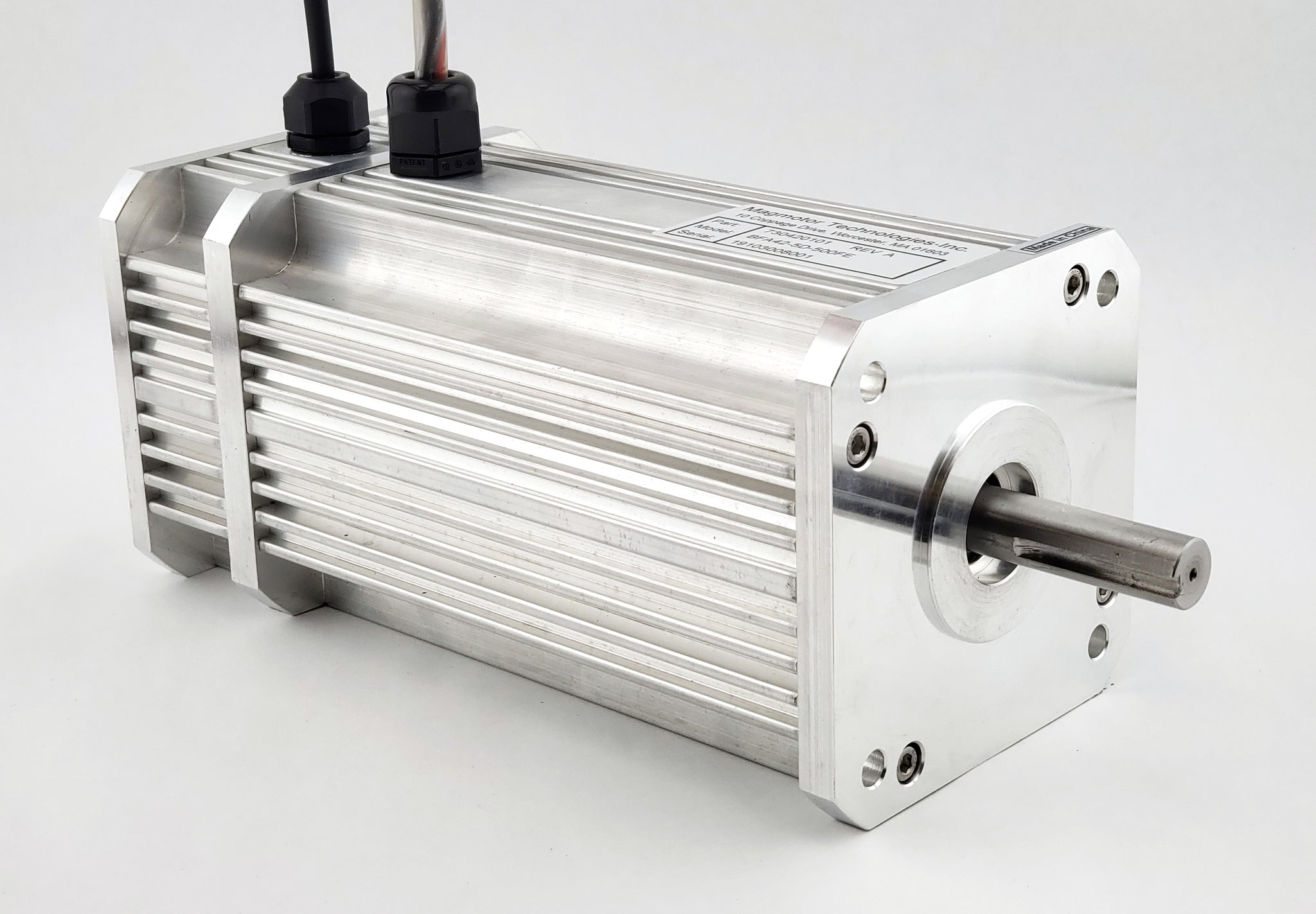

730420101 - BRUSHLESS MOTOR - 36 to 72 VDC - 1050 to 1125 oz-in CONT TORQUE - BFA42-5D-500FE

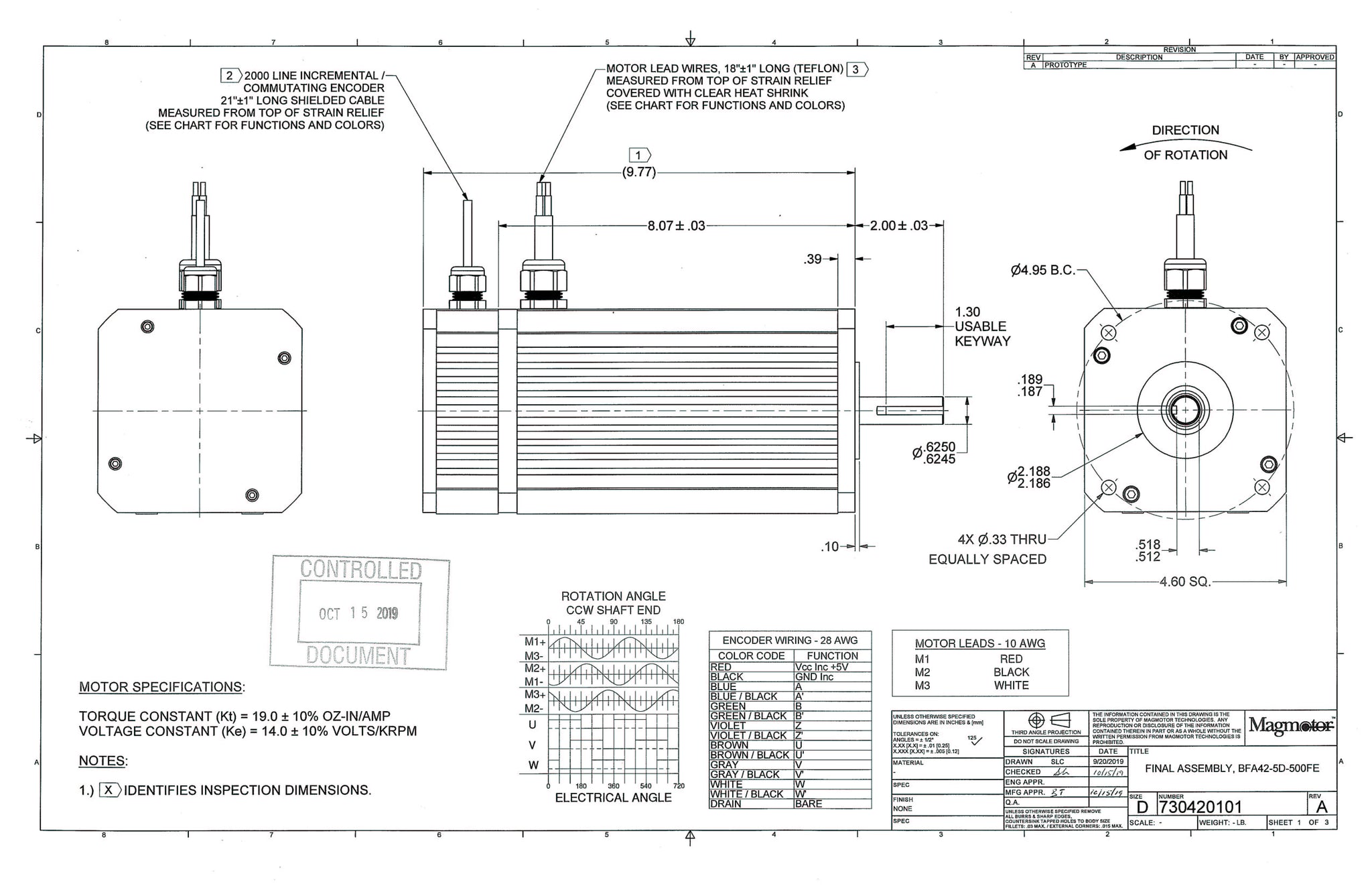

DOWNLOADS:



• Sold with a 2000 Line Commutation Encoder Installed with Cover
• 8 Pole - Brushless DC Motor
• NEMA 42 Mounting
• Voltage Constant (Ke) = 14.0 +/- 10% VOLTS/KRPM

• Torque Constant (Kt) = 19.0 +/- 10% OZ-IN/AMP
• REACH, RoHS and CE Compliant

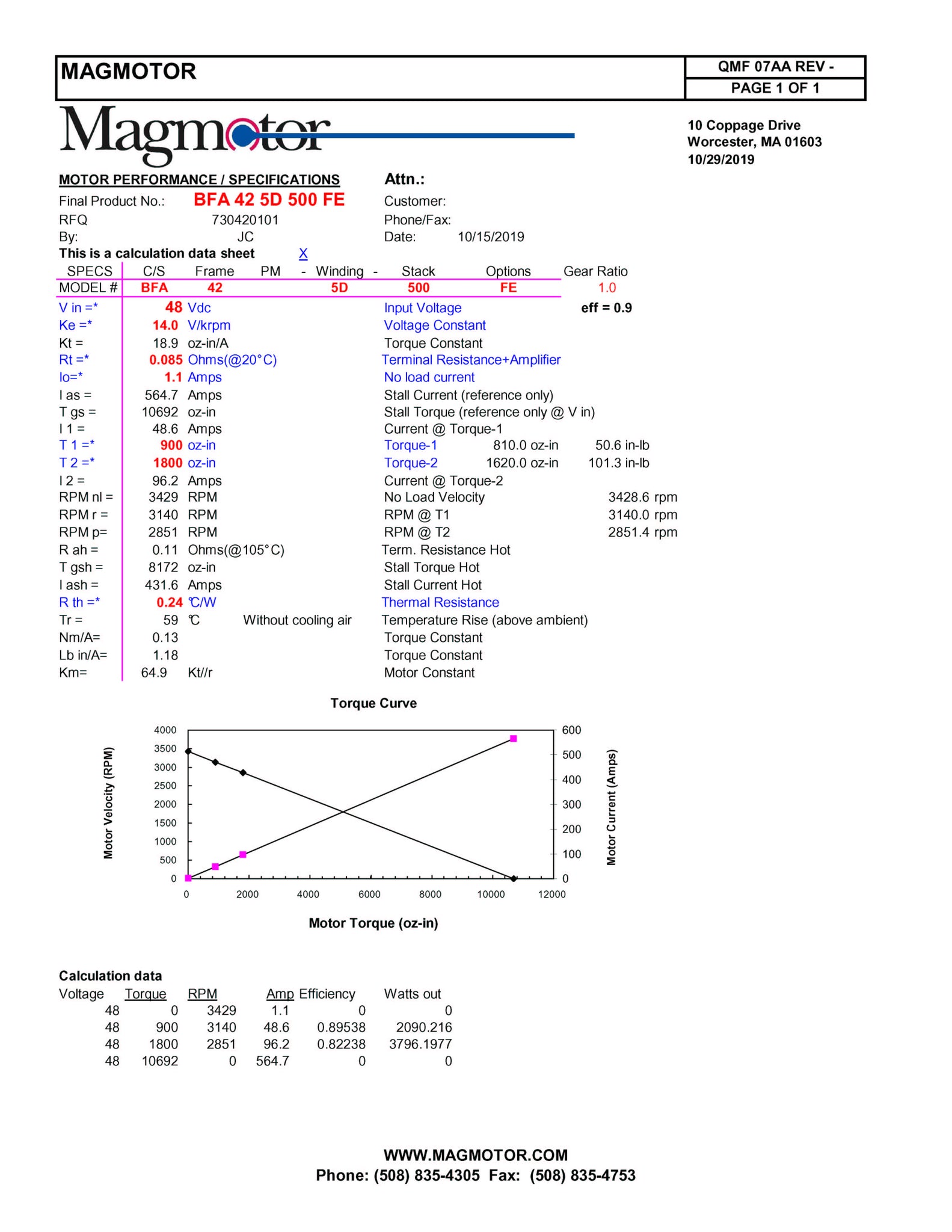

Example Performance Ranges:

• Capable of operating at 2211 rpm @ 36VDC with a continuous torque of 1125 oz-in
• Capable of operating at 3080 rpm @ 48VDC with a continuous torque of 1090 oz-in
• Capable of operating at 3940 rpm @ 60VDC with a continuous torque of 1075 oz-in
• Capable of operating at 4810 rpm @ 72VDC with a continuous torque of 1050 oz-in
