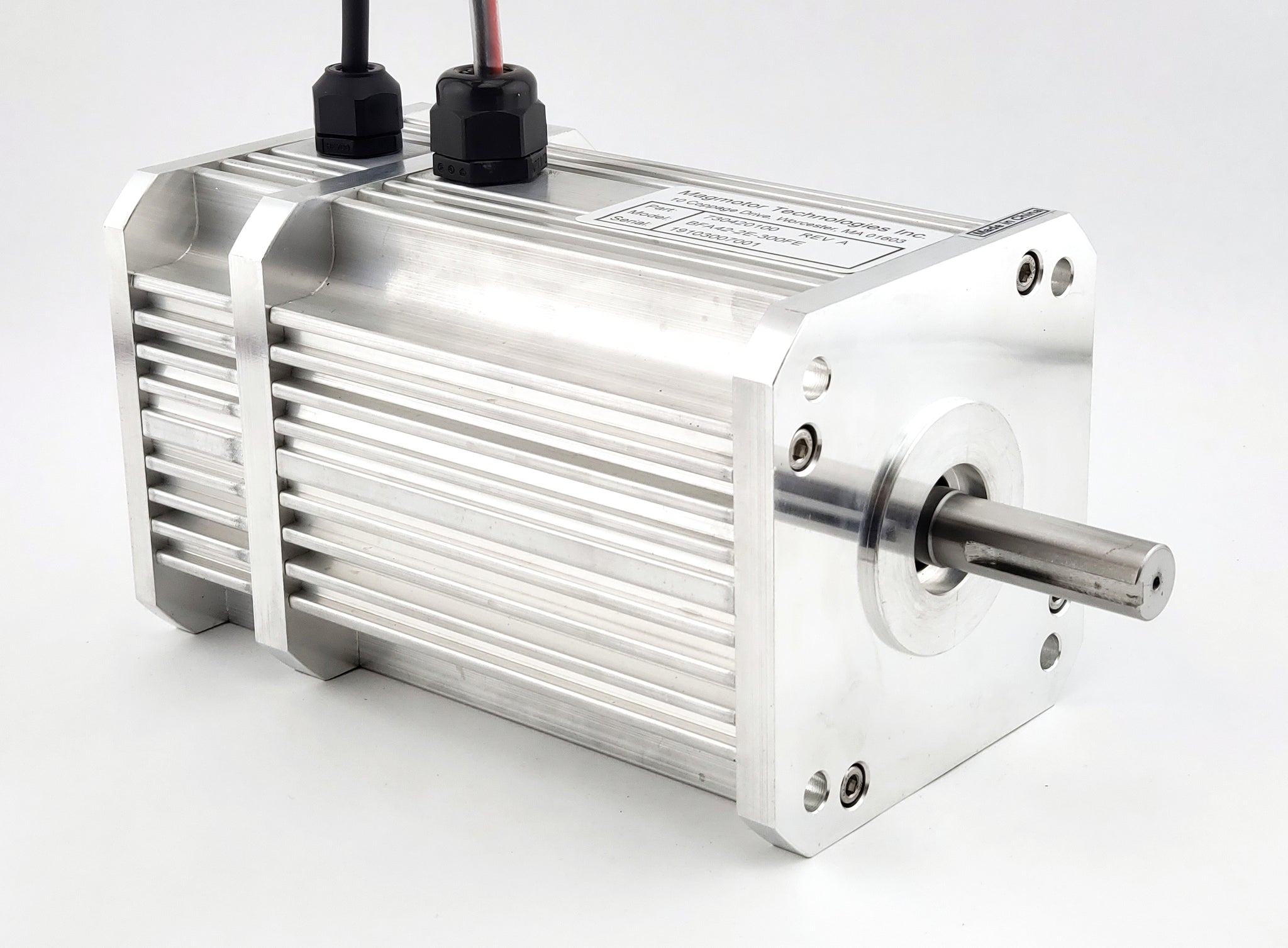

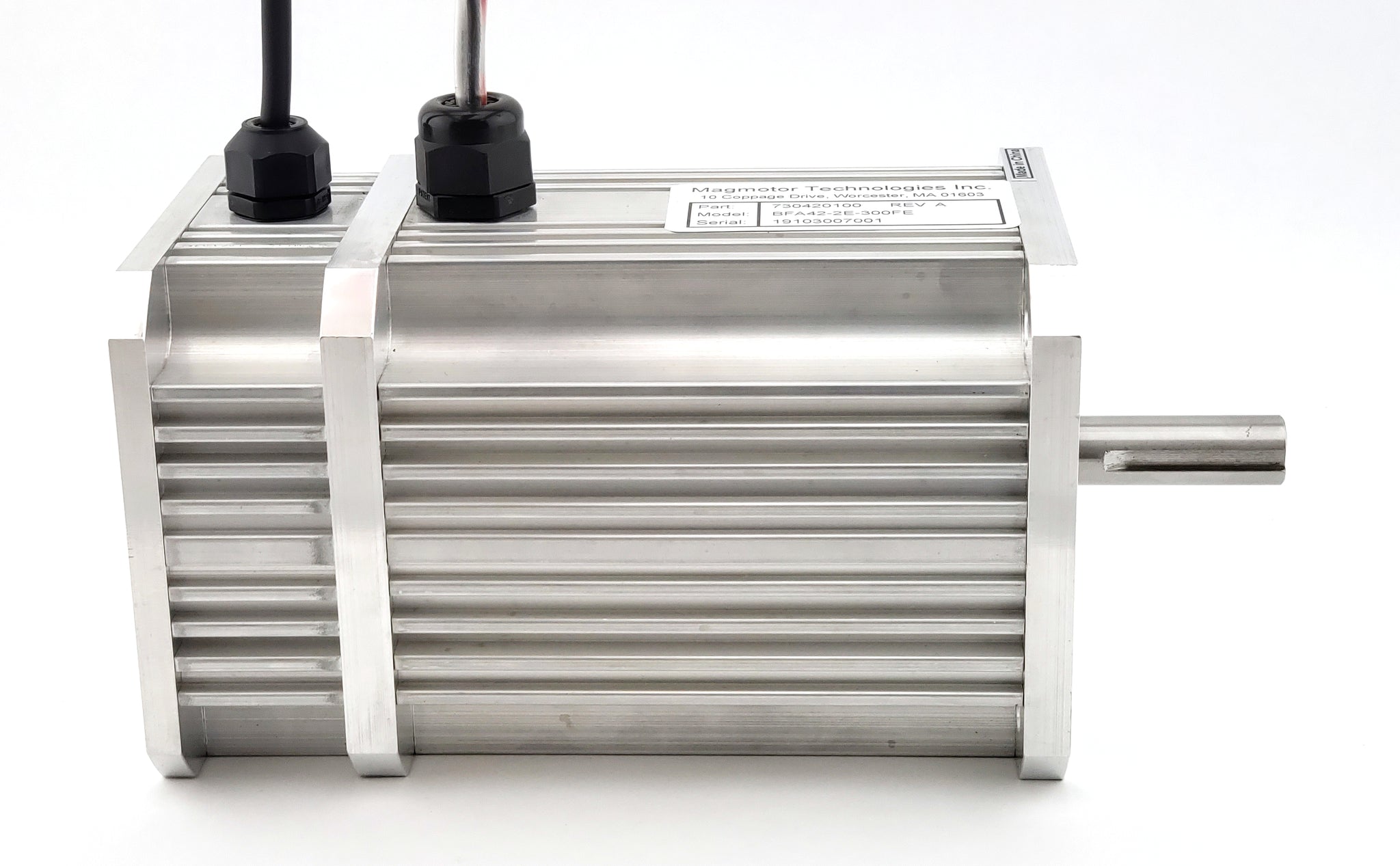

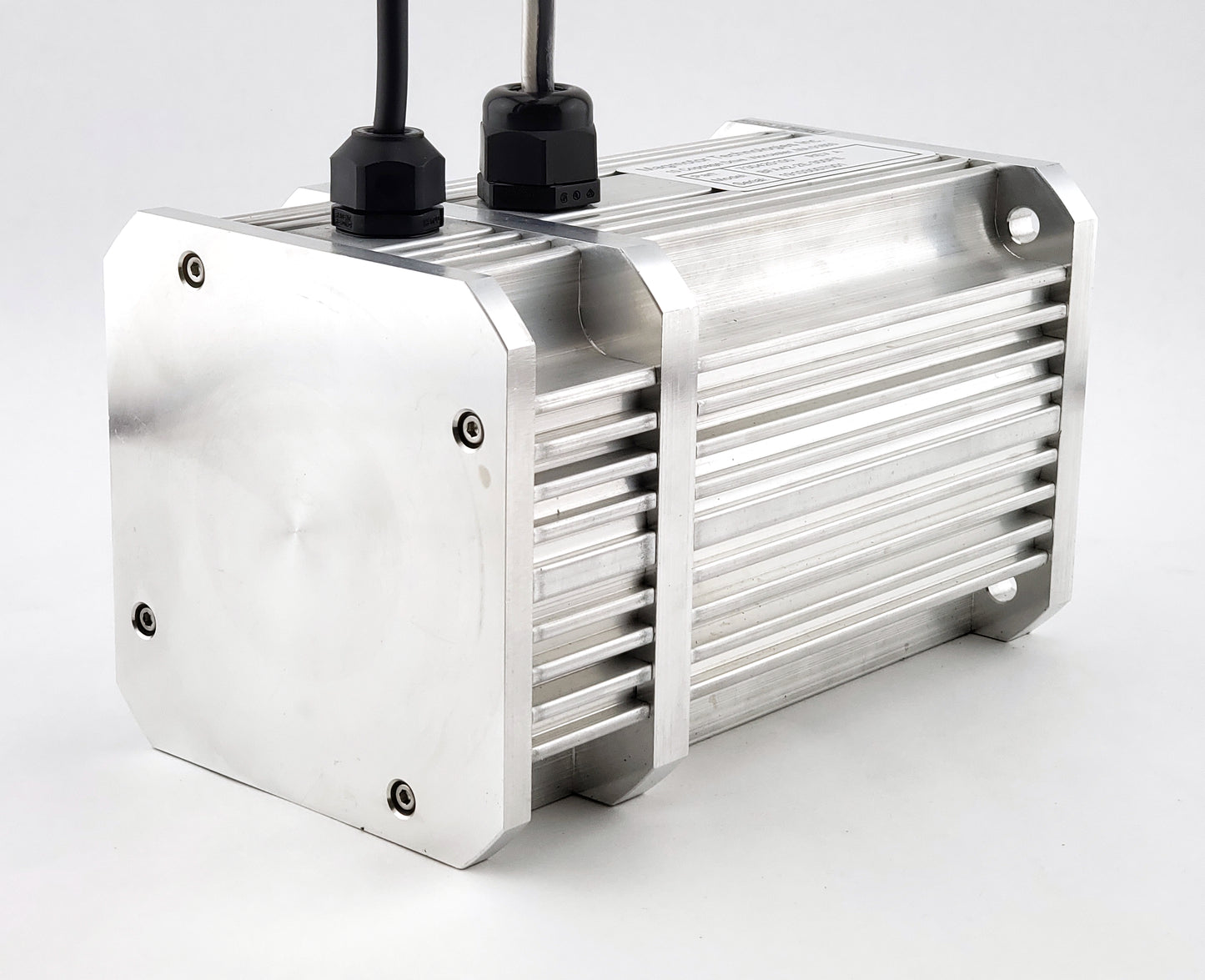

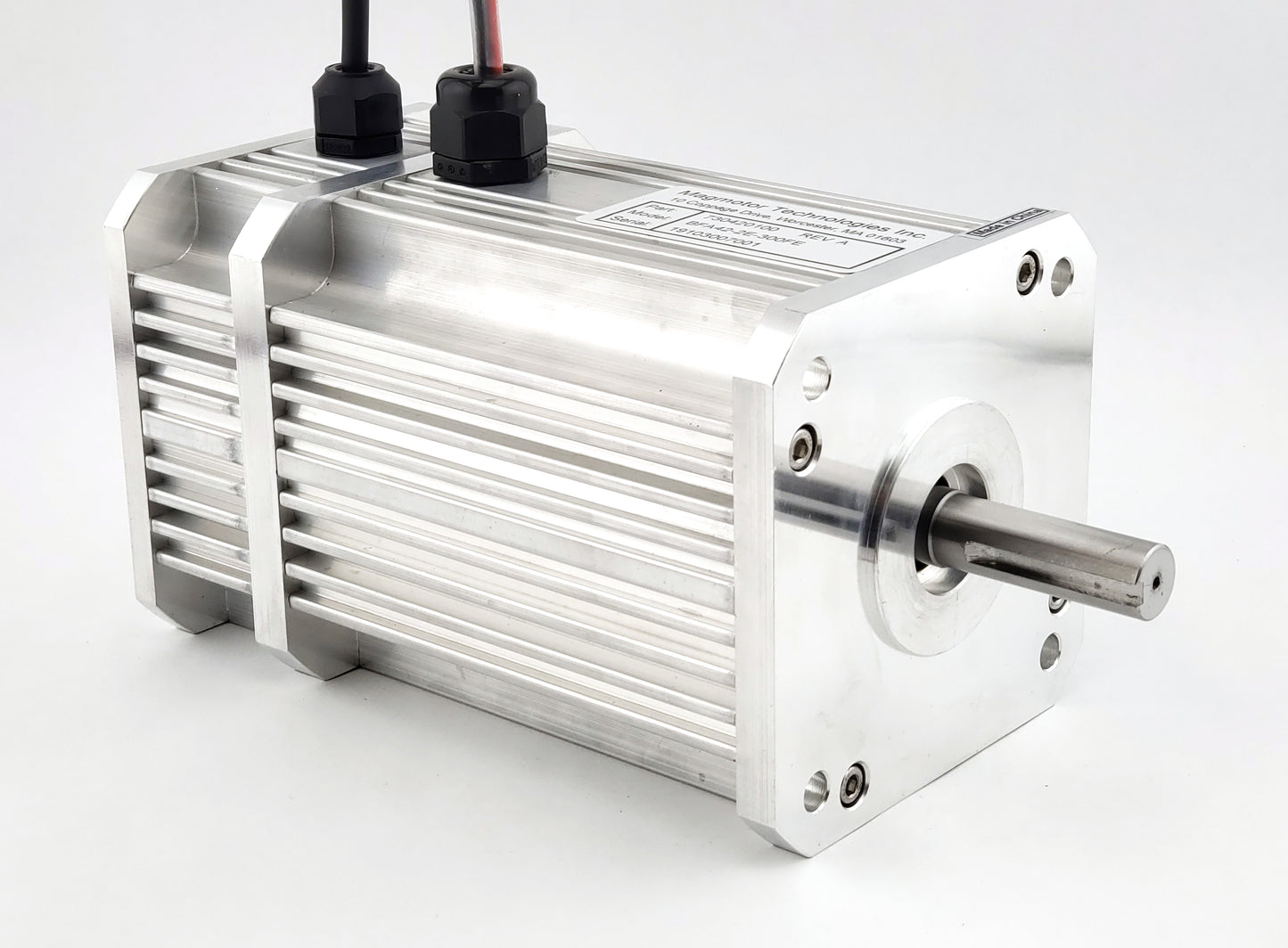

730420100 - BRUSHLESS MOTOR - 48 to 120 VDC - 1245 to 1460 oz-in CONT TORQUE - BFA42-2E-300FE

  • $1,031.00
    Unit price per
Shipping calculated at checkout.


DC Motor Specifications:

  • Sold with a 2000 Line Commutation Encoder Installed with Cover
  • 8 Pole - Brushless DC Motor
  • NEMA 42 Mounting
  • Voltage Constant (Ke) = 27.2 +/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 36.8 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 1560 rpm @ 48VDC with a continuous torque of 1460 oz-in
  • Capable of operating at 2455 rpm @ 72VDC with a continuous torque of 1390 oz-in
  • Capable of operating at 3344 rpm @ 96VDC with a continuous torque of 1325 oz-in
  • Capable of operating at 4240 rpm @ 120VDC with a continuous torque of 1245 oz-in

    DOWNLOADS:

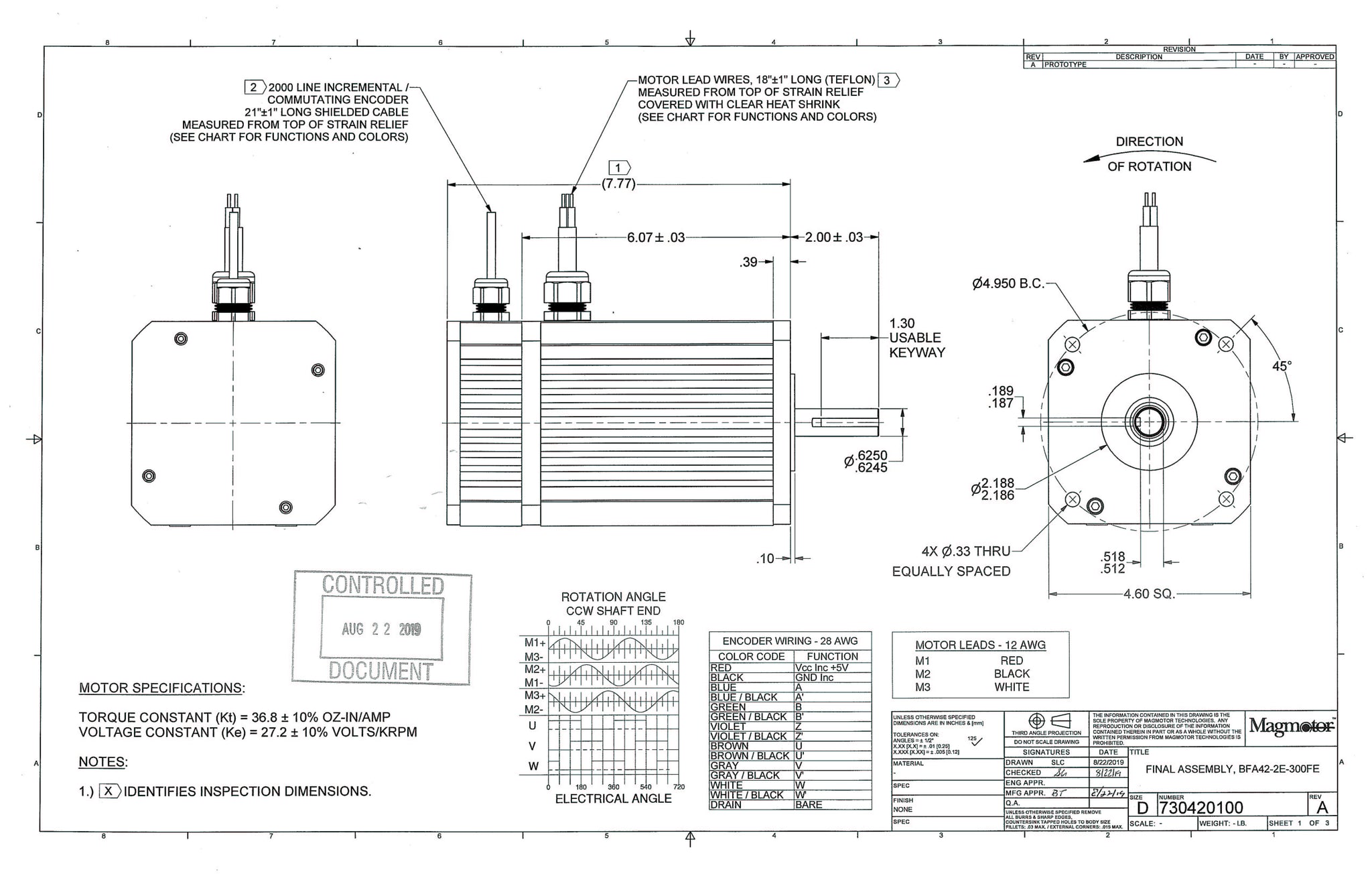

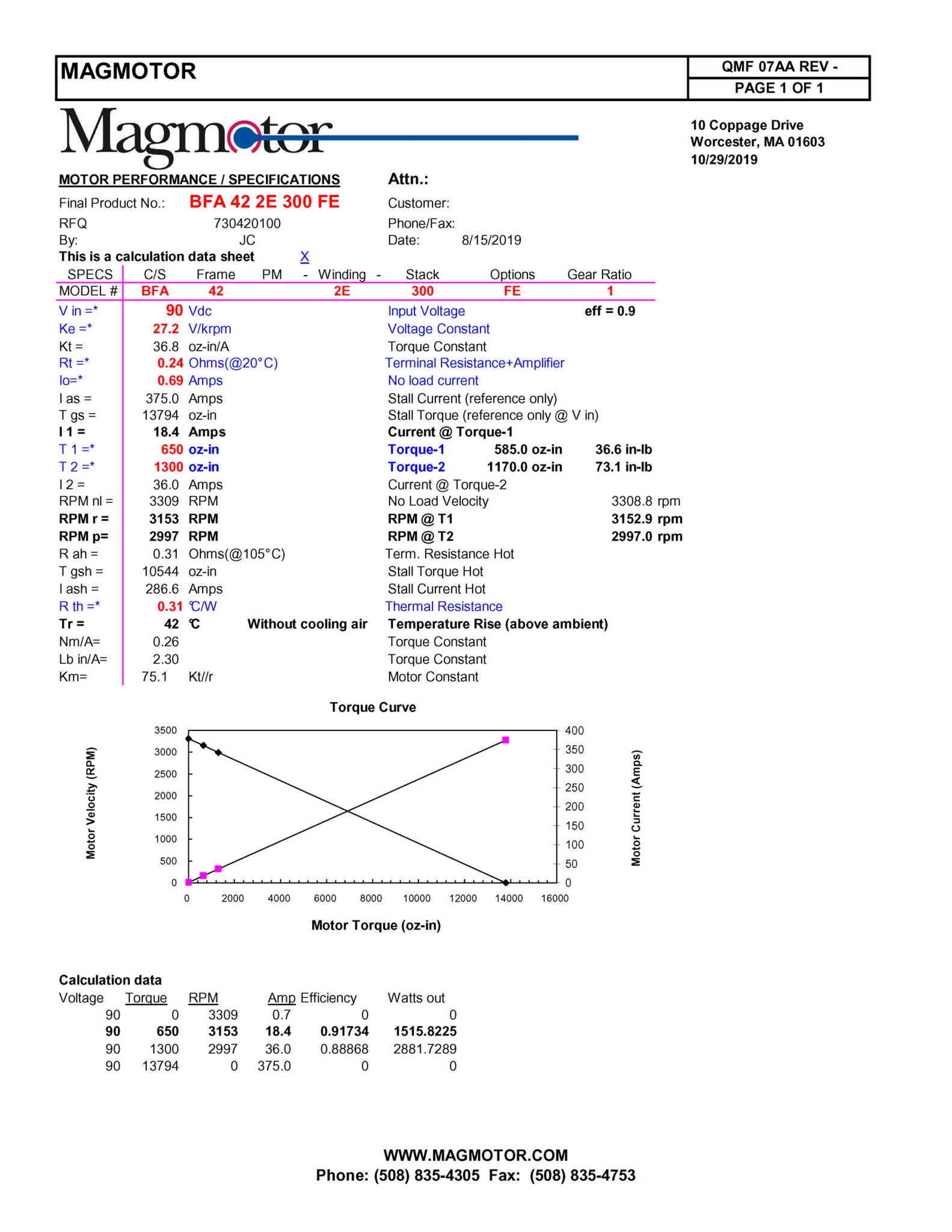

    magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button
