730420094 - BRUSHLESS MOTOR - 12 to 36 VDC - 645 to 790 oz-in CONT TORQUE - BFA42-6D-300FE
730420094 - BRUSHLESS MOTOR - 12 to 36 VDC - 645 to 790 oz-in CONT TORQUE - BFA42-6D-300FE
Regular price
$1,141.00
Regular price
Sale price
$1,141.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
DC Motor Specifications:
-
Sold with a 2000 Line Commutation Encoder Installed with Cover
- 8 Pole - Brushless DC Motor
- NEMA 42 Mounting
-
Voltage Constant (Ke) = 6.7 +/- 10% VOLTS/KRPM
- Torque Constant (Kt) = 9.1 +/- 10% OZ-IN/AMP
- REACH, RoHS and CE Compliant
Example Performance Ranges:
- Capable of operating at 1390 rpm @ 12VDC with a continuous torque of 790 oz-in
- Capable of operating at 3185 rpm @ 24VDC with a continuous torque of 720 oz-in
- Capable of operating at 4985 rpm @ 36VDC with a continuous torque of 645 oz-in
Share

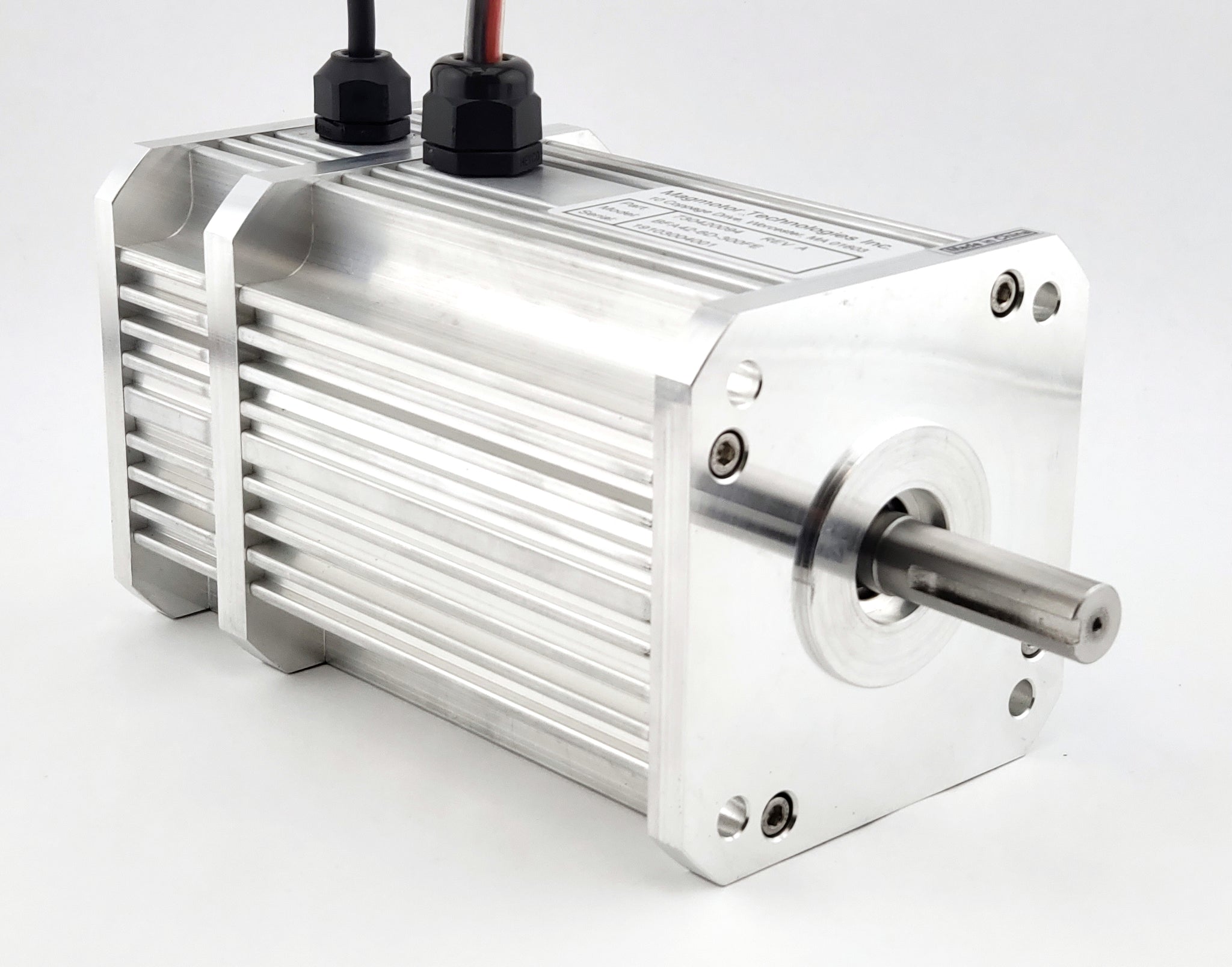

![Magmotor BFA42-6D-300FE 12 to 36 Volt 8 Pole Brushless Motor 73042094 Front View](http://magmotorstore.com/cdn/shop/products/magmotor-brushless-servo-730420094-bfa42-6d-300fe-01.jpg?v=1626787975&width=1445)
![Magmotor BFA42-6D-300FE 12 to 36 Volt 8 Pole Brushless Motor 730420094 Rear View](http://magmotorstore.com/cdn/shop/products/magmotor-brushless-servo-730420094-bfa42-6d-300fe-02.jpg?v=1626790807&width=1445)

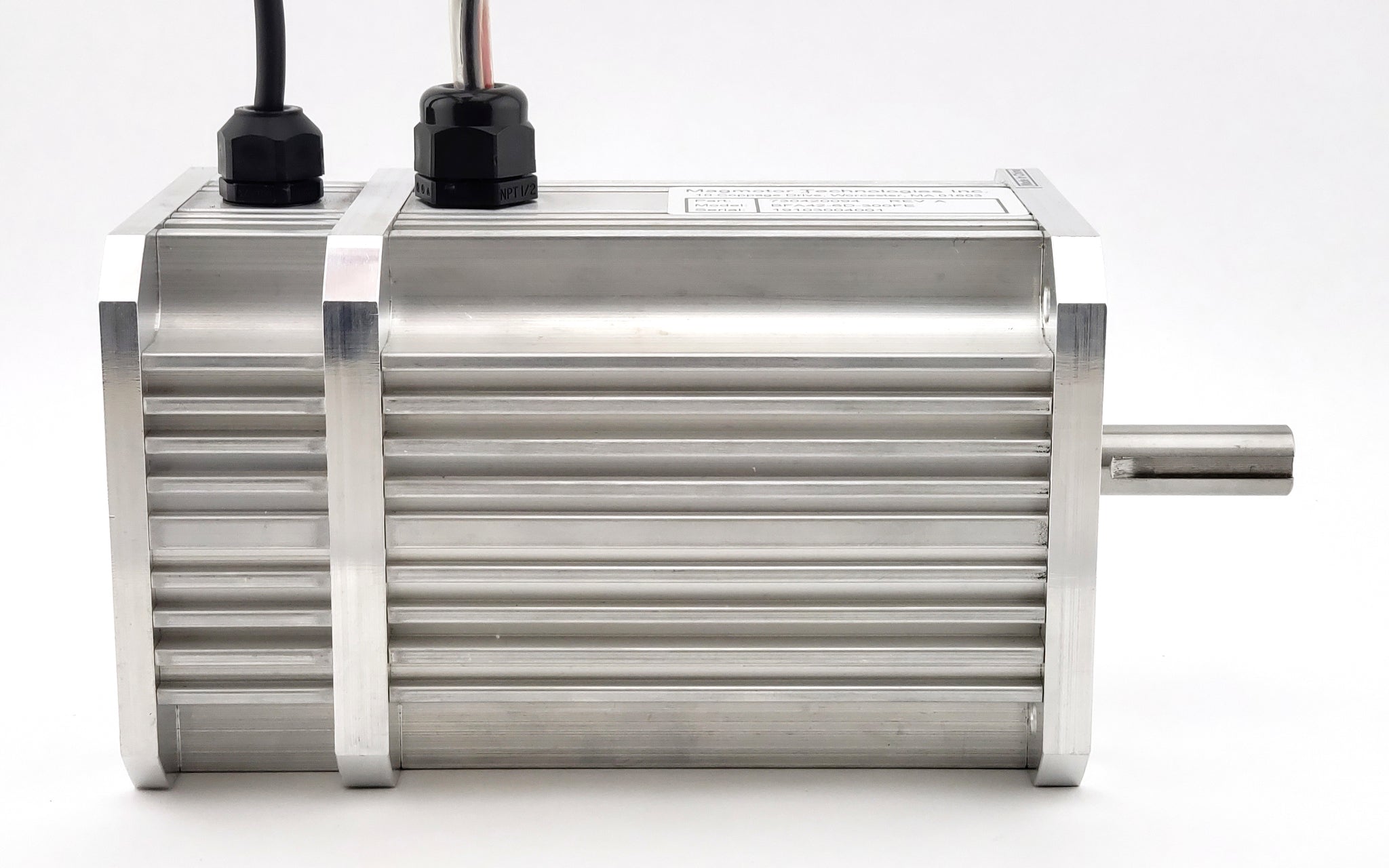

![Magmotor BFA42-6D-300FE 12 to 36 Volt 8 Pole Brushless Motor 730420094 Side View](http://magmotorstore.com/cdn/shop/products/magmotor-brushless-servo-730420094-bfa42-6d-300fe-03.jpg?v=1626790818&width=1445)

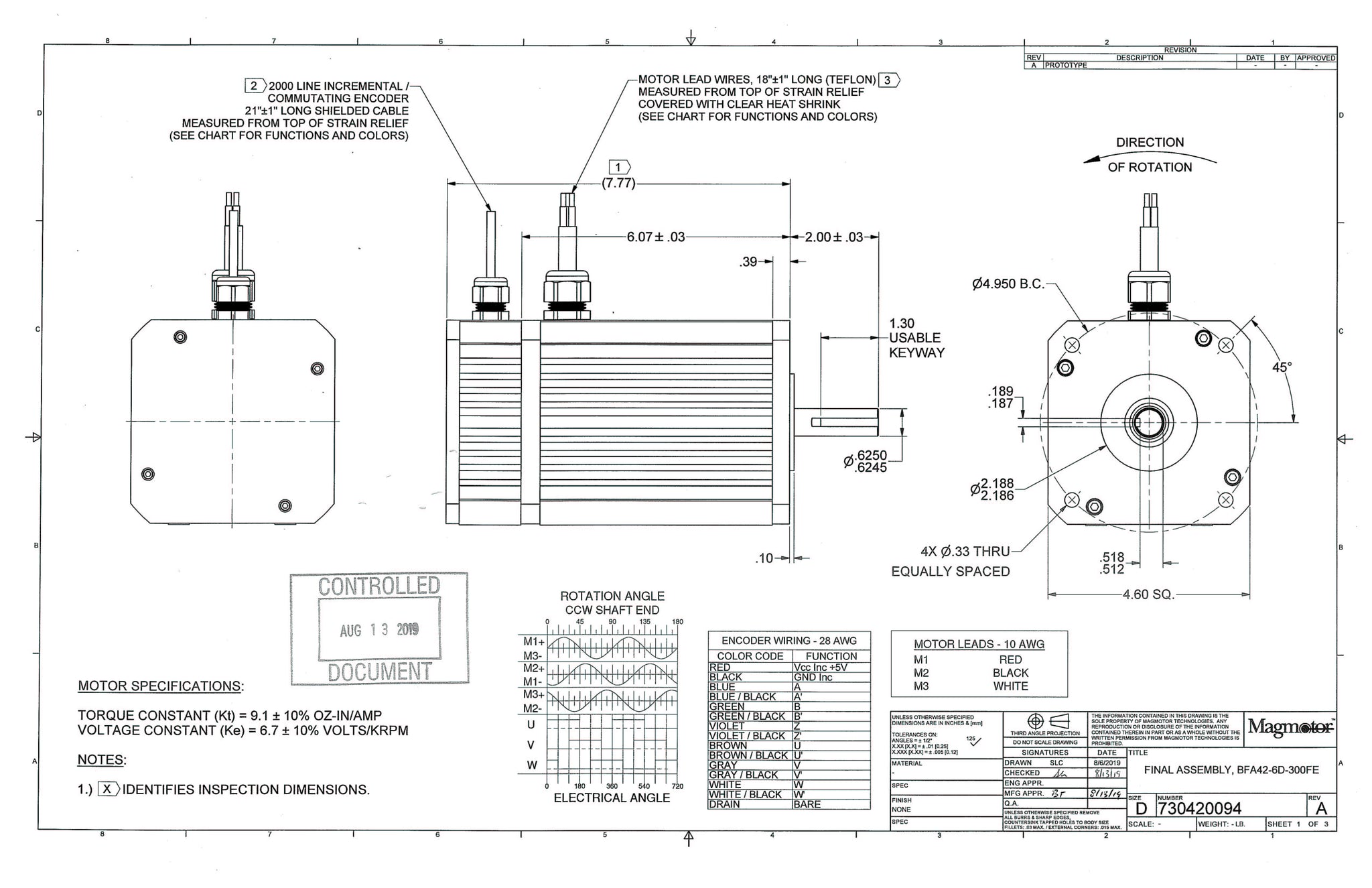

![Magmotor BFA42-6D-300FE 12 to 36 Volt 8 Pole Brushless Motor Drawing](http://magmotorstore.com/cdn/shop/products/730420094reva-drawing-motor-brushless-servo.jpg?v=1626790829&width=1445)

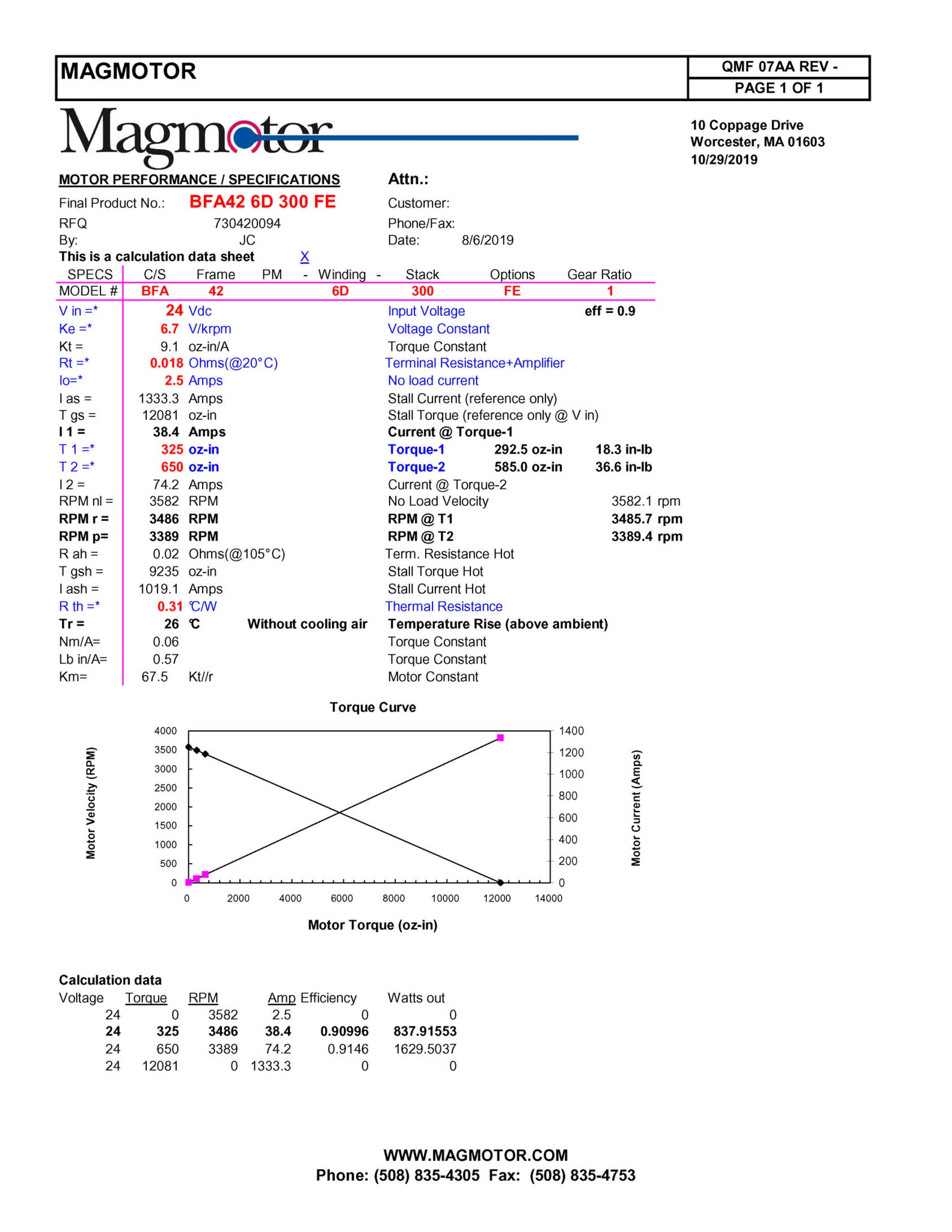

![Magmotor BFA42-6D-300FE 12 to 36 Volt 8 Pole Brushless Motor Performance Sheet](http://magmotorstore.com/cdn/shop/products/730420094reva-perfcurve-motor-brushless-servo.jpg?v=1626791085&width=1445)
