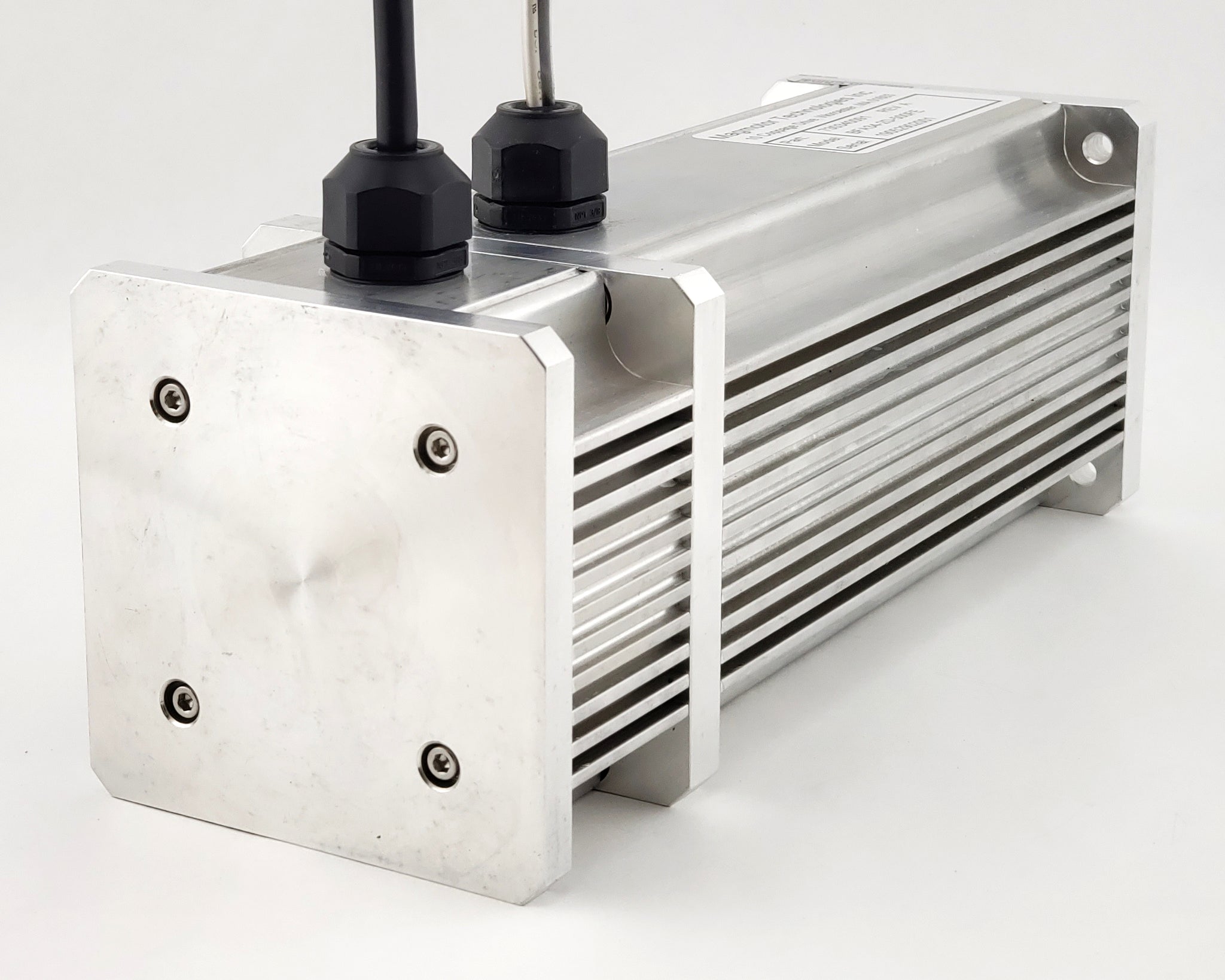

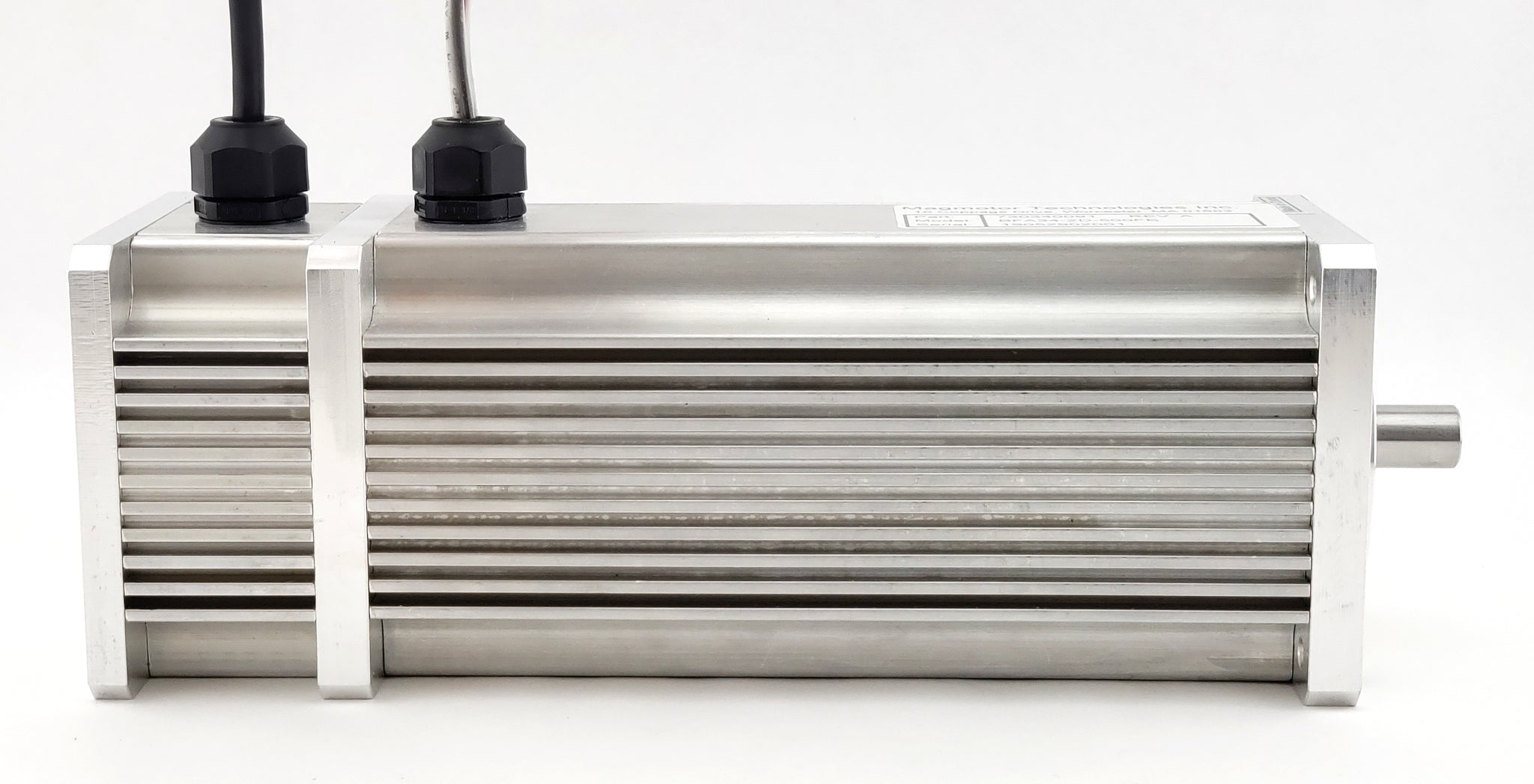

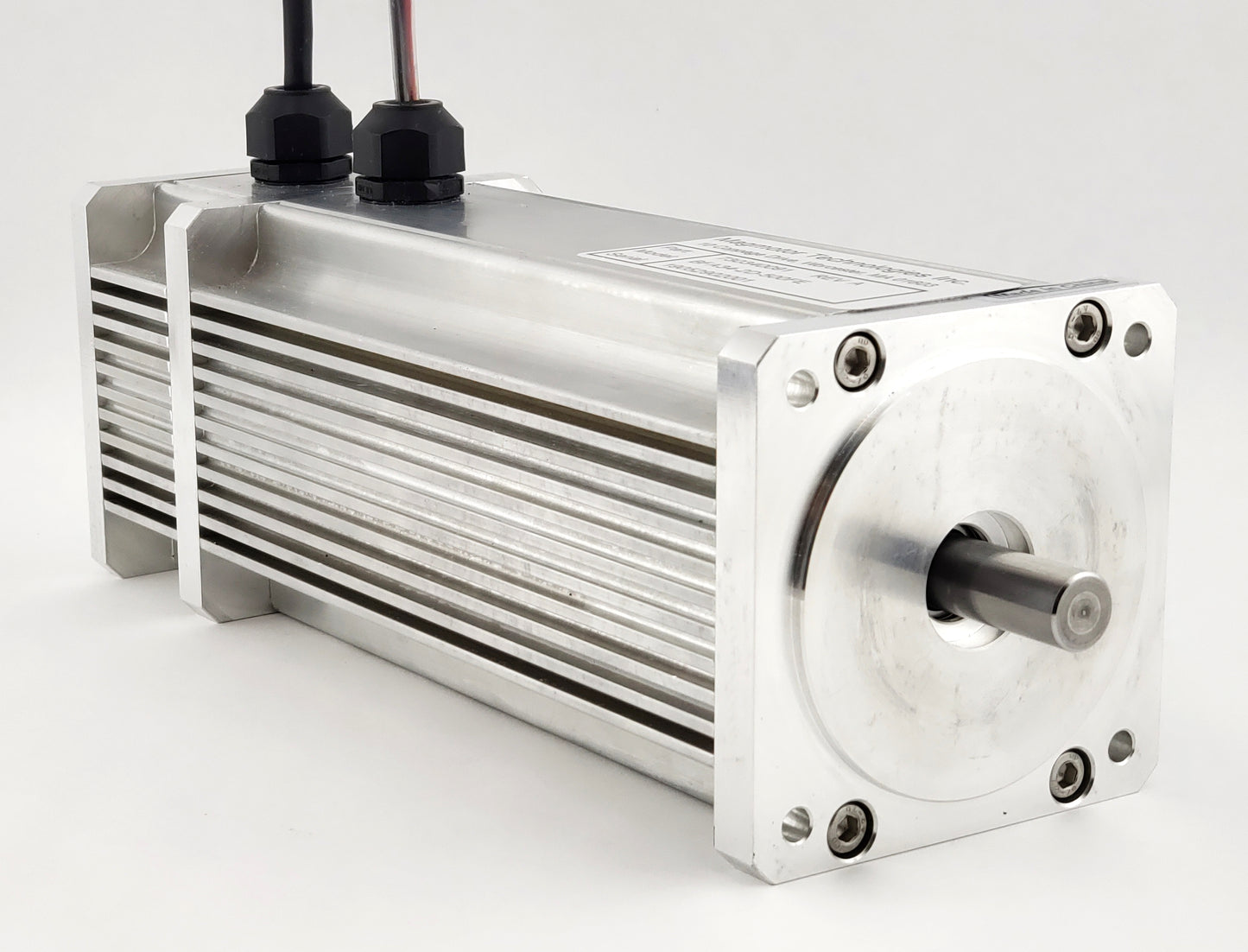

730340091 - BRUSHLESS MOTOR - 36 to 72 VDC - 332 to 362 oz-in CONT TORQUE - BFA34-2D-500FE

  • $849.00
    Unit price per
Shipping calculated at checkout.


DC Motor Specifications:

  • Sold with a 2000 Line Commutation Encoder Installed with Cover
  • 8 Pole - Brushless DC Motor
  • NEMA 34 Mounting
  • Voltage Constant (Ke) = 19.3 +/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 26.1 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 1335 rpm @ 36VDC with a continuous torque of 362 oz-in
  • Capable of operating at 1970 rpm @ 48VDC with a continuous torque of 352 oz-in
  • Capable of operating at 2610 rpm @ 60VDC with a continuous torque of 342 oz-in
  • Capable of operating at 3245 rpm @ 72VDC with a continuous torque of 332 oz-in

    DOWNLOADS:

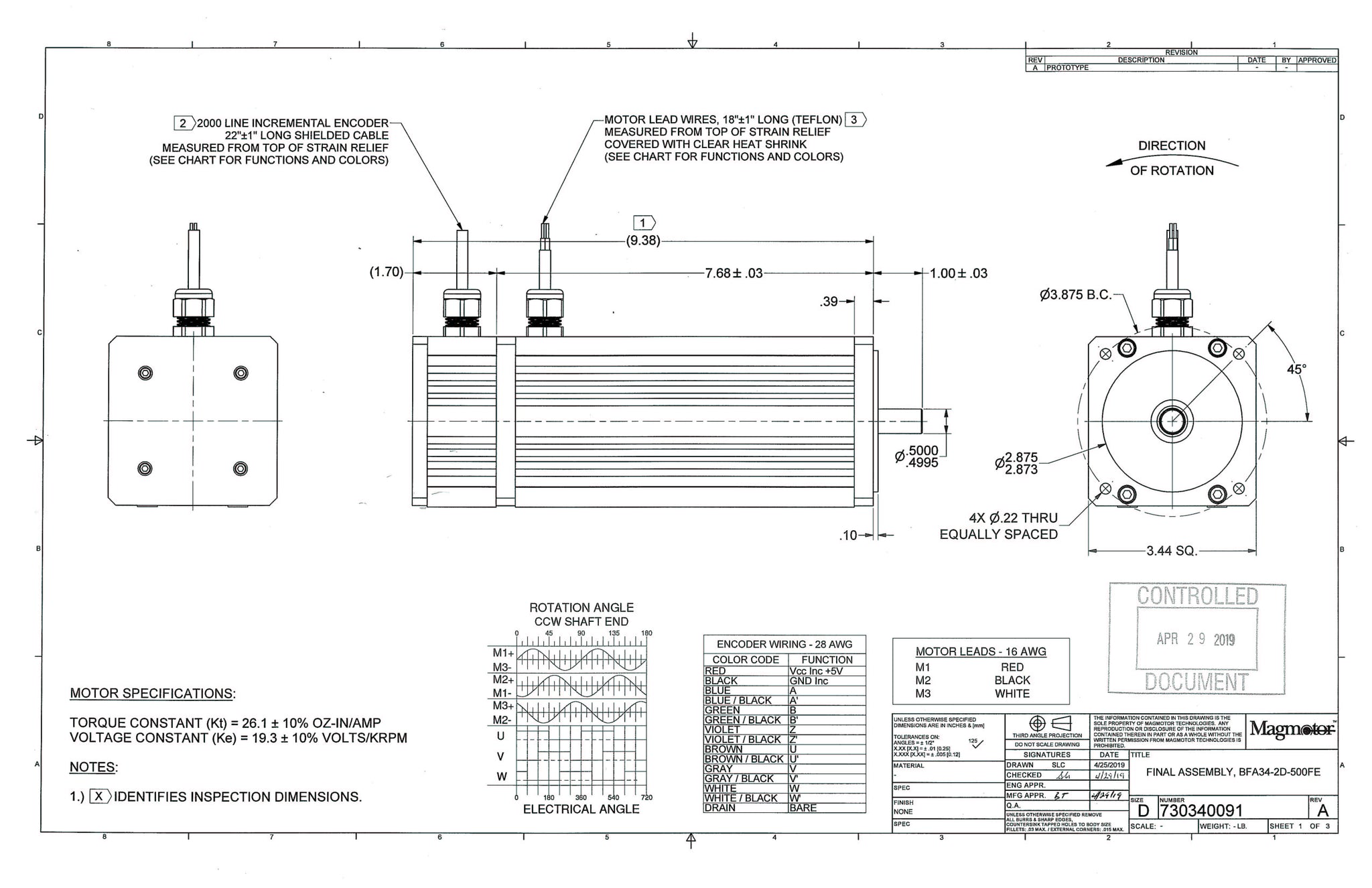

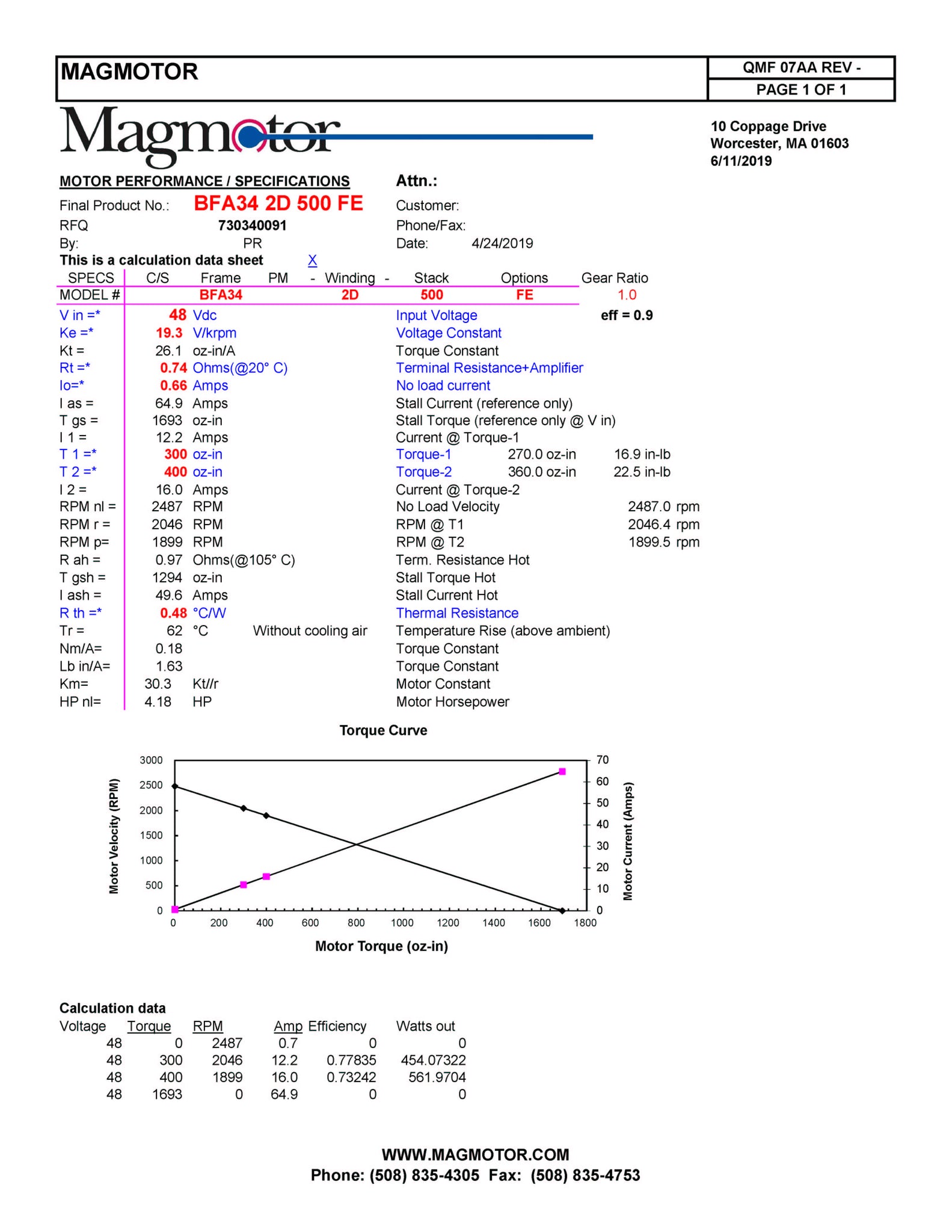

    magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button
