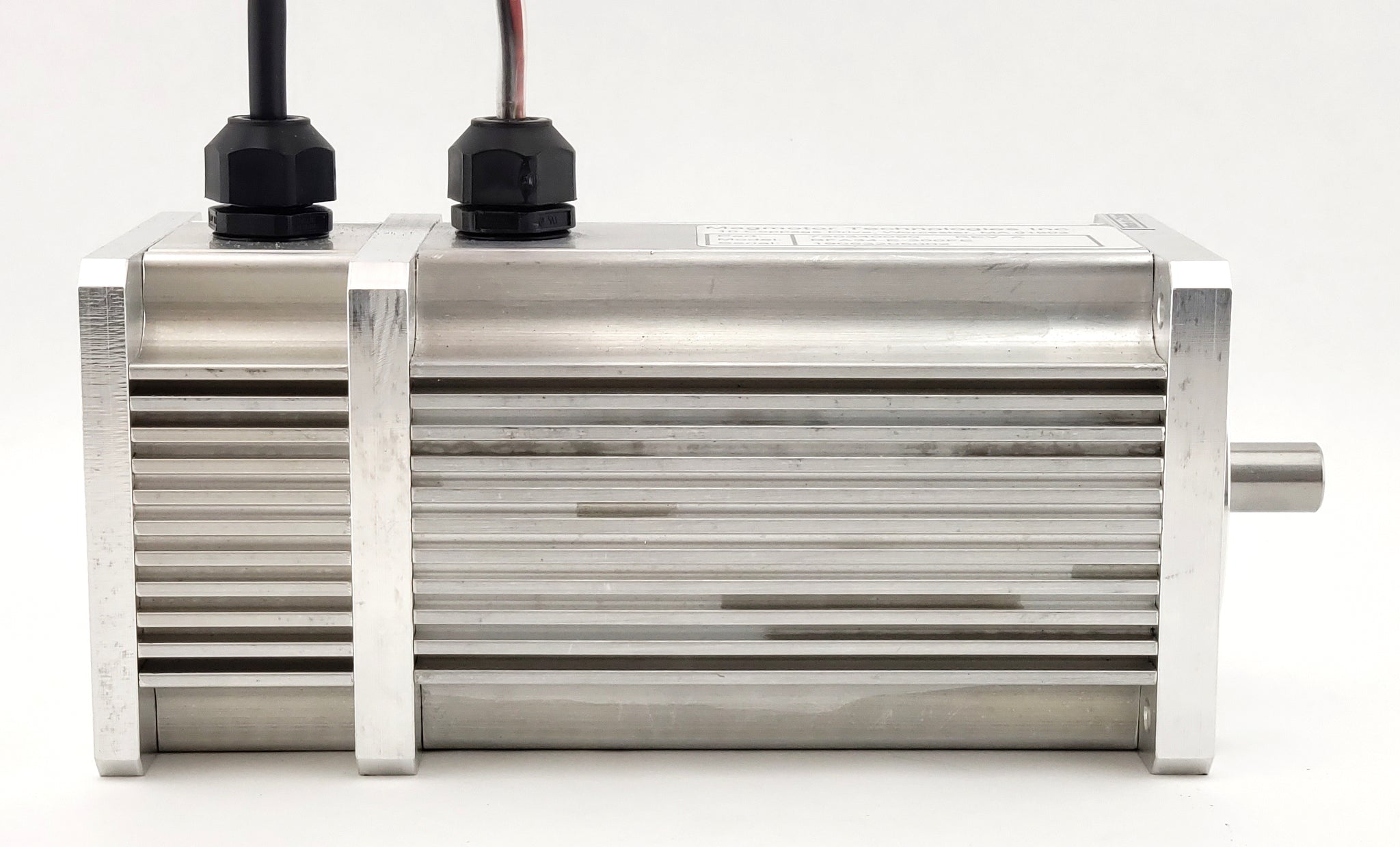

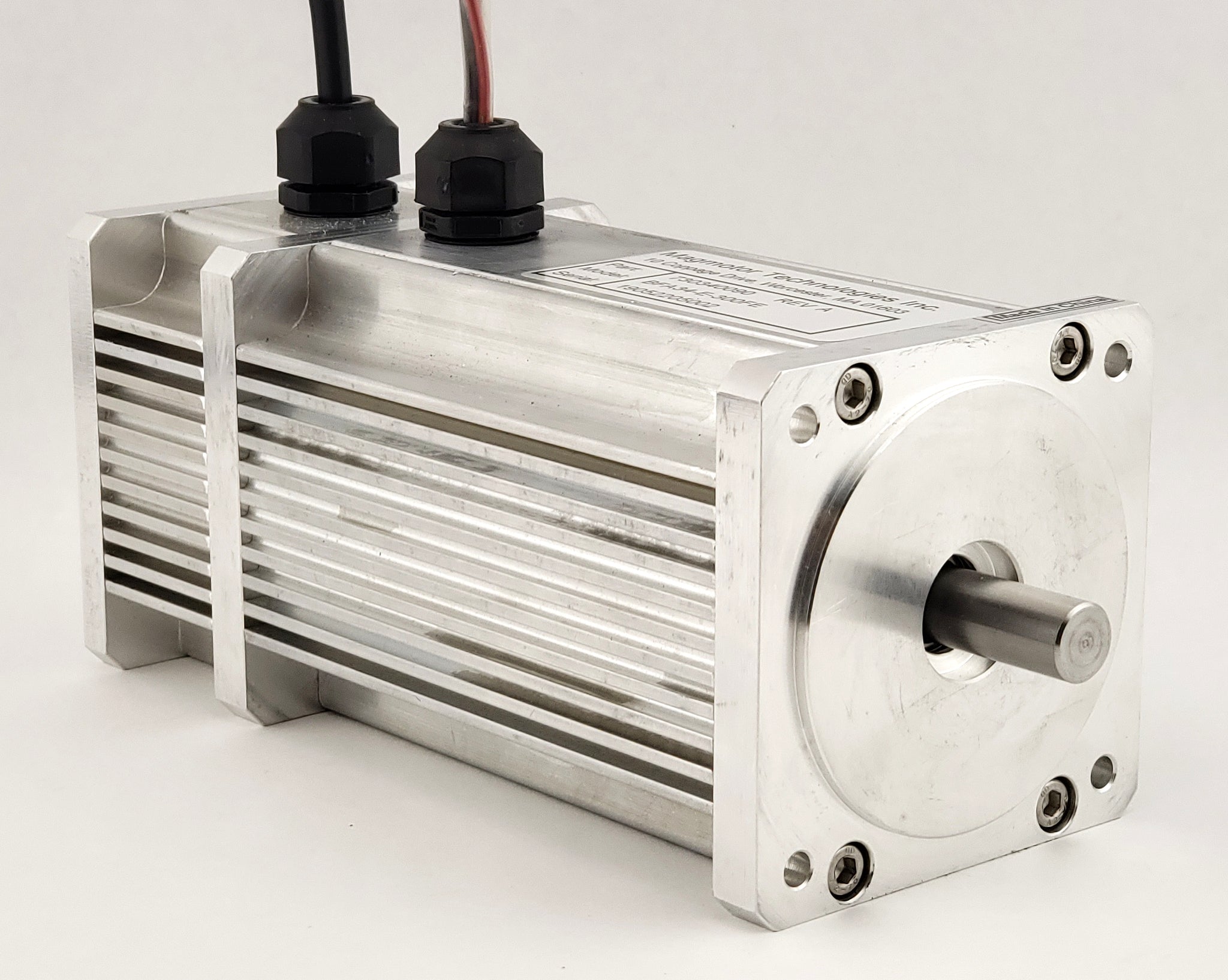

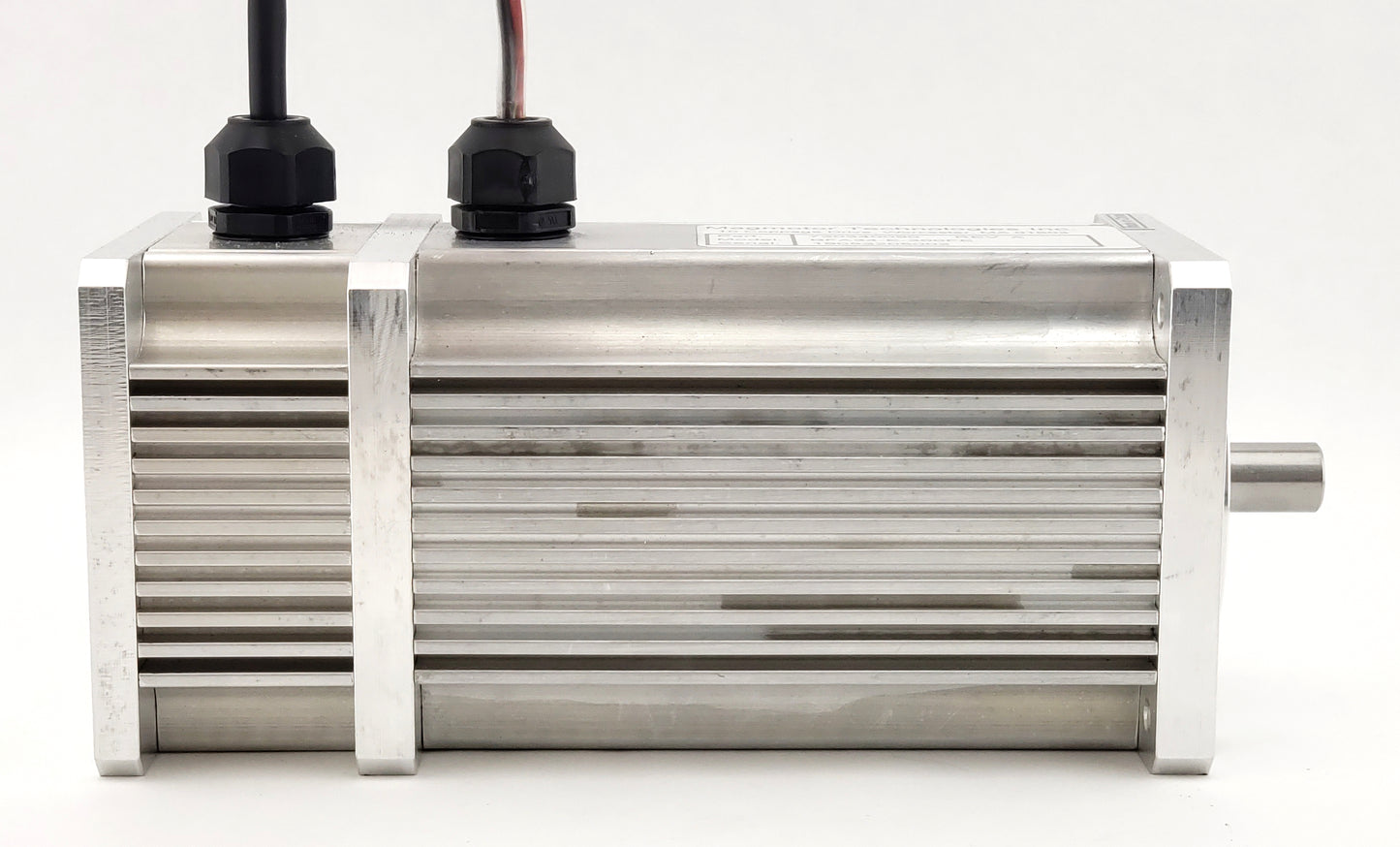

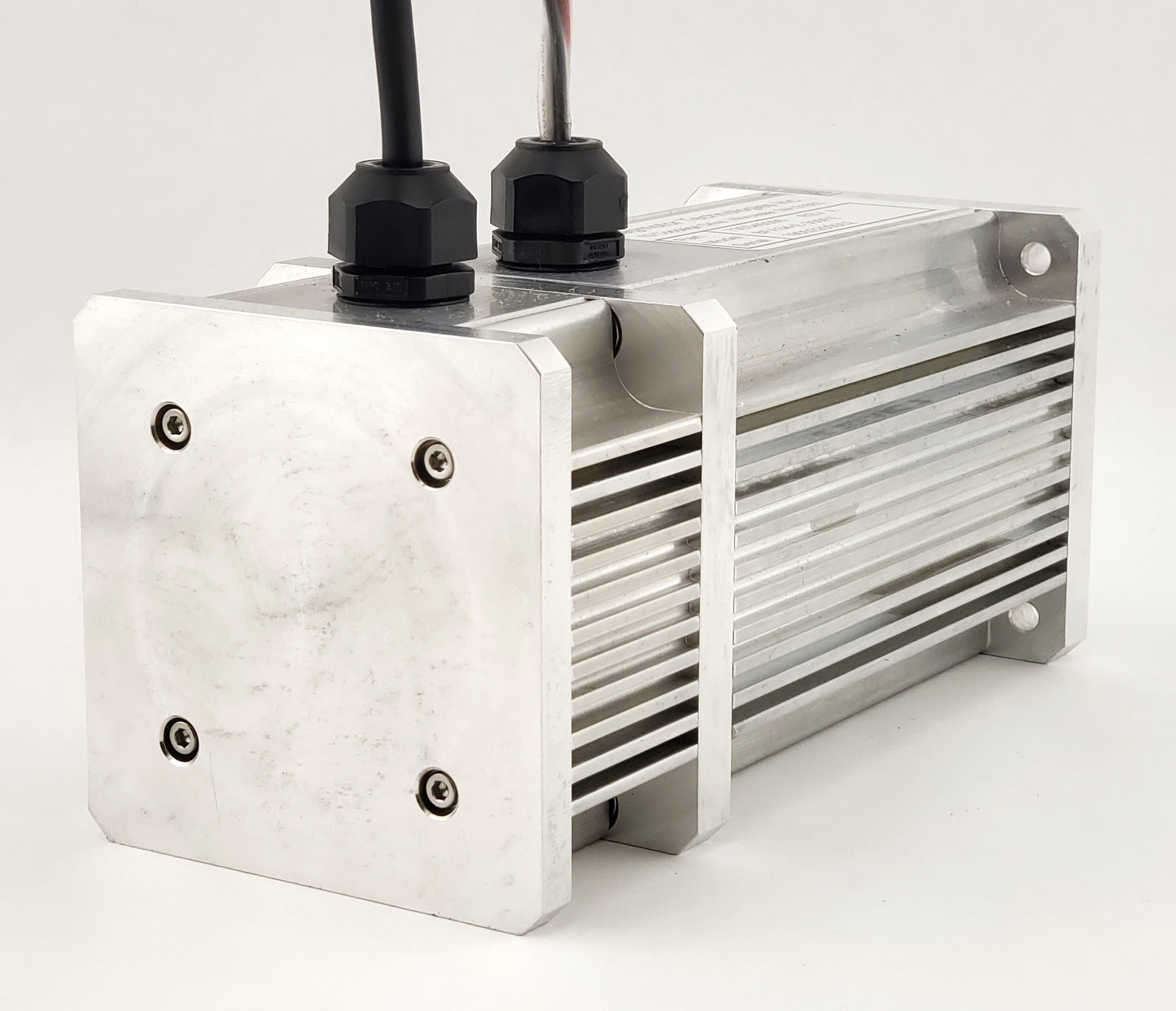

730340090 - BRUSHLESS MOTOR - 48 to 144 VDC - 440 to 490 oz-in CONT TORQUE - BFA34-E-300FE

  • $755.00
    Unit price per
Shipping calculated at checkout.


DC Motor Specifications:

  • Sold with a 2000 Line Commutation Encoder Installed with Cover
  • 8 Pole - Brushless DC Motor
  • NEMA 34 Mounting
  • Voltage Constant (Ke) = 29.3 +/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 39.6 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 1250 rpm @ 48VDC with a continuous torque of 490 oz-in
  • Capable of operating at 2083 rpm @ 72VDC with a continuous torque of 475 oz-in
  • Capable of operating at 2915 rpm @ 96VDC with a continuous torque of 465 oz-in
  • Capable of operating at 3750 rpm @ 120VDC with a continuous torque of 450 oz-Capable of operating at 4580 rpm @ 144VDC with a continuous torque of 438 oz-in

    DOWNLOADS:

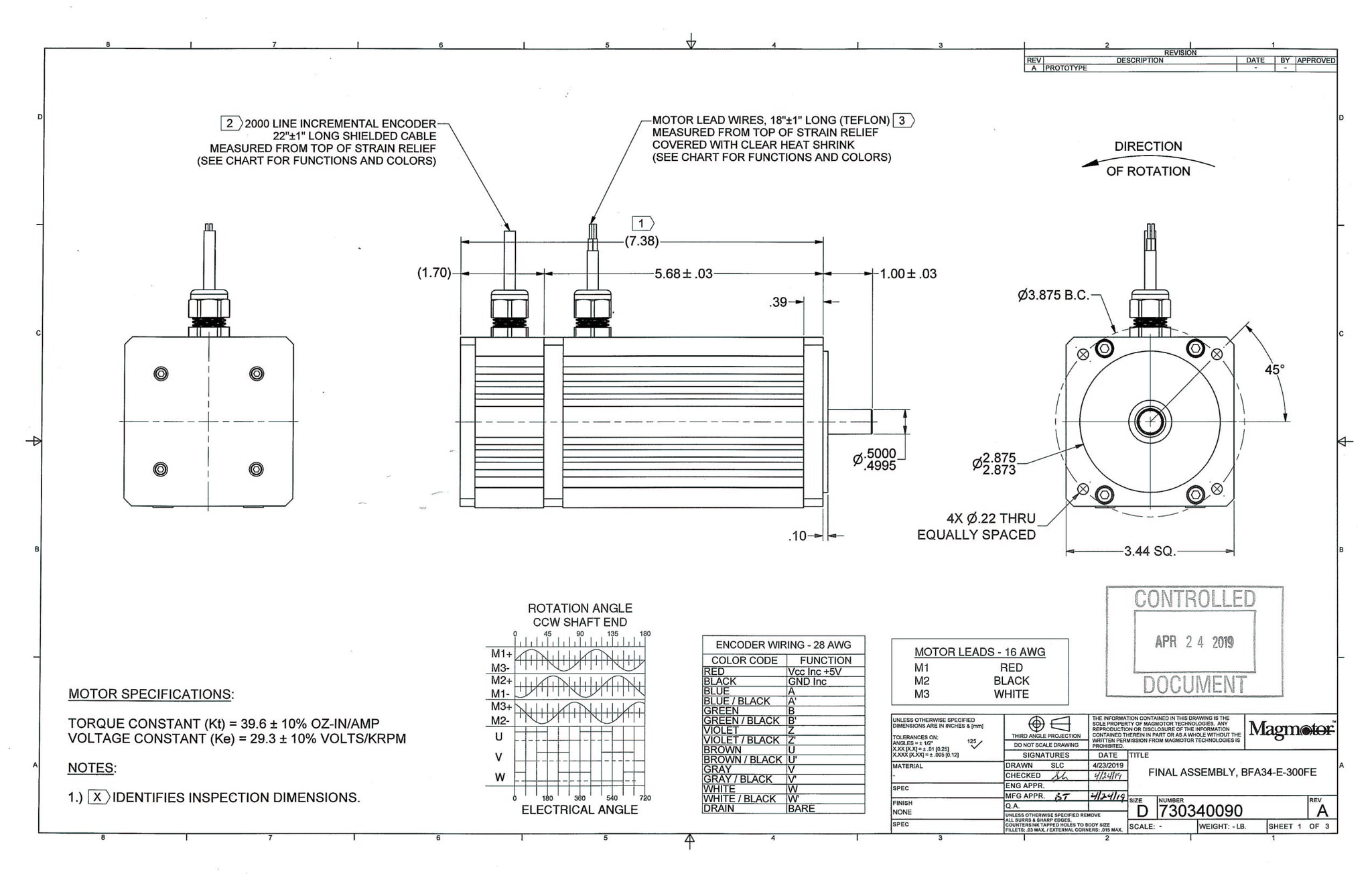

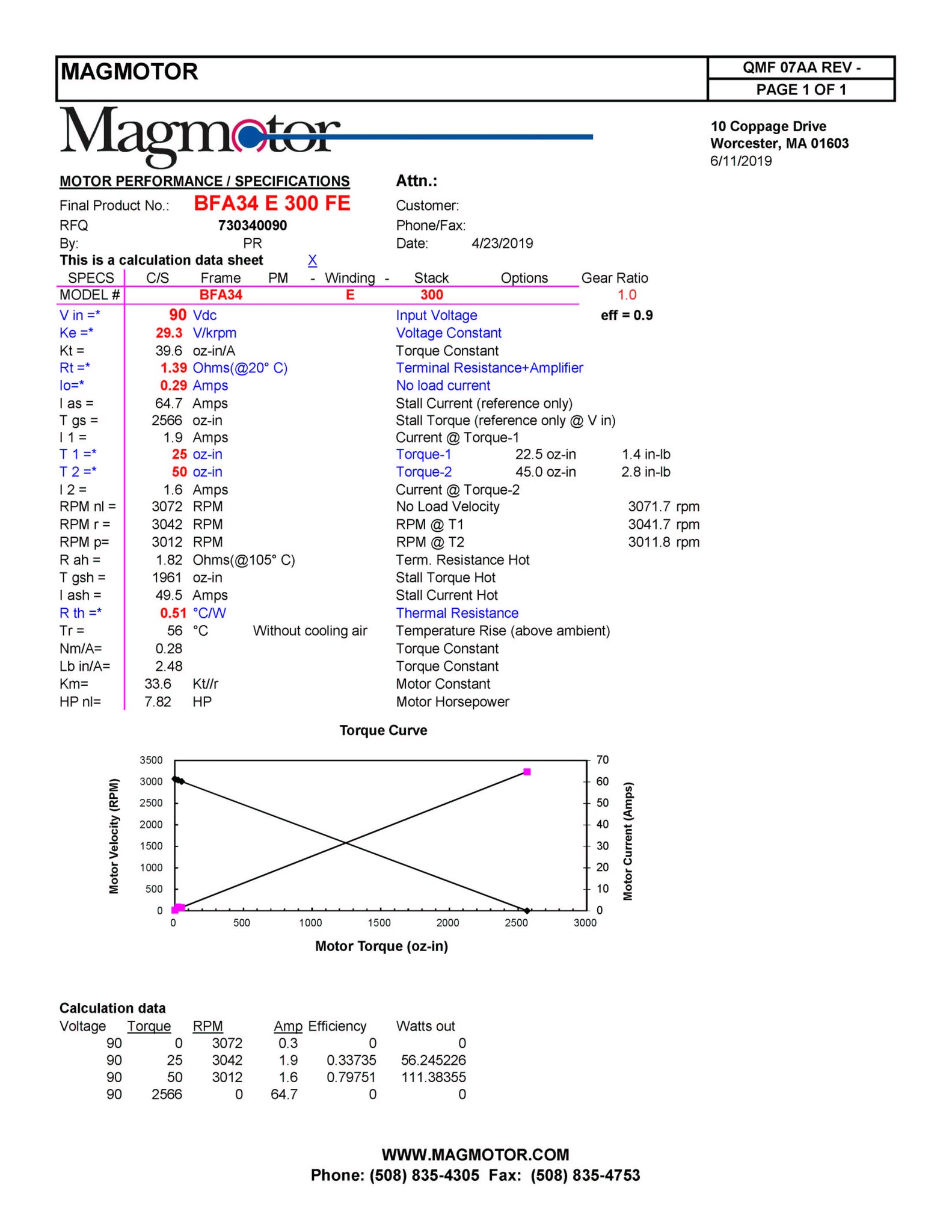

    magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button
