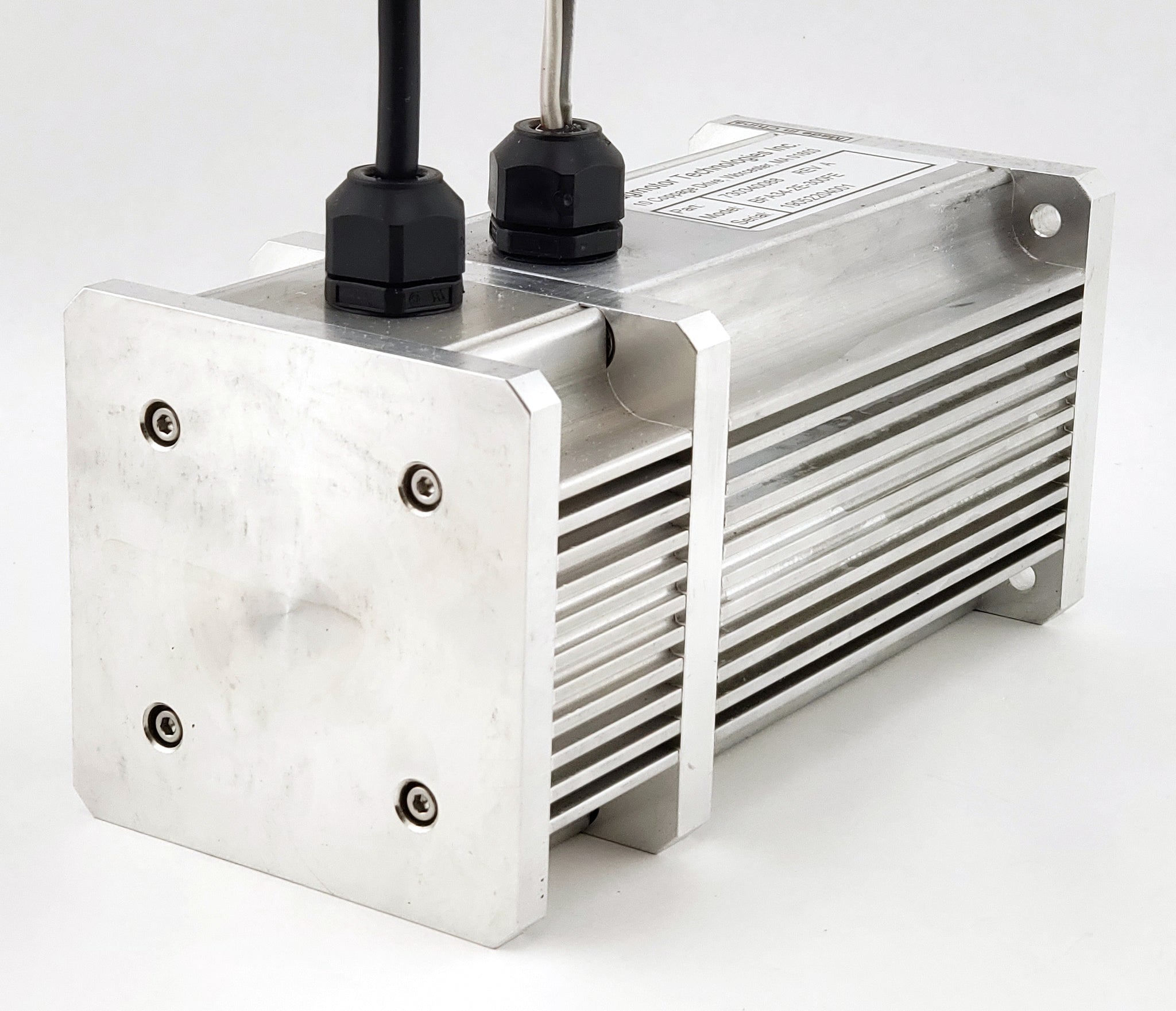

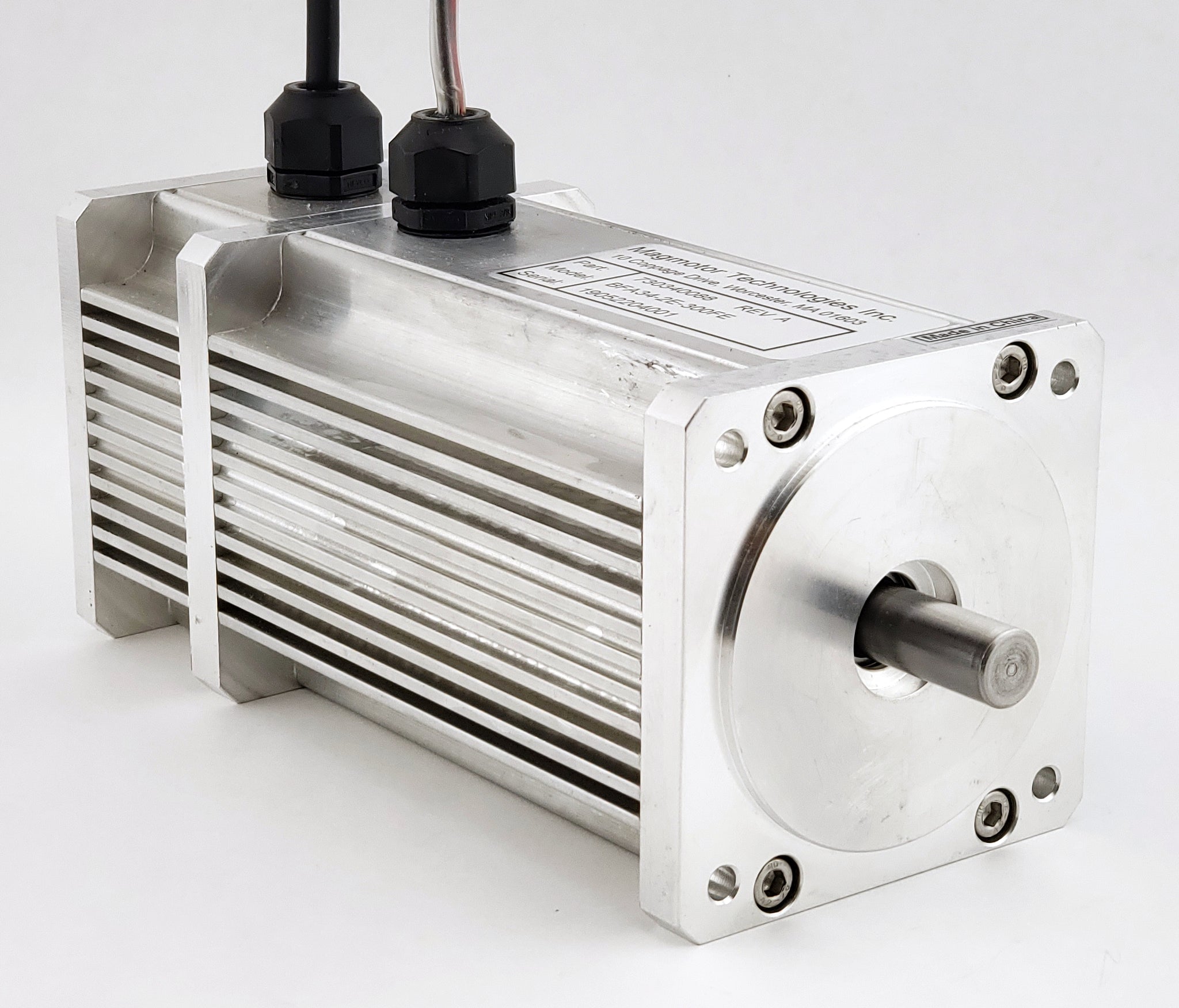

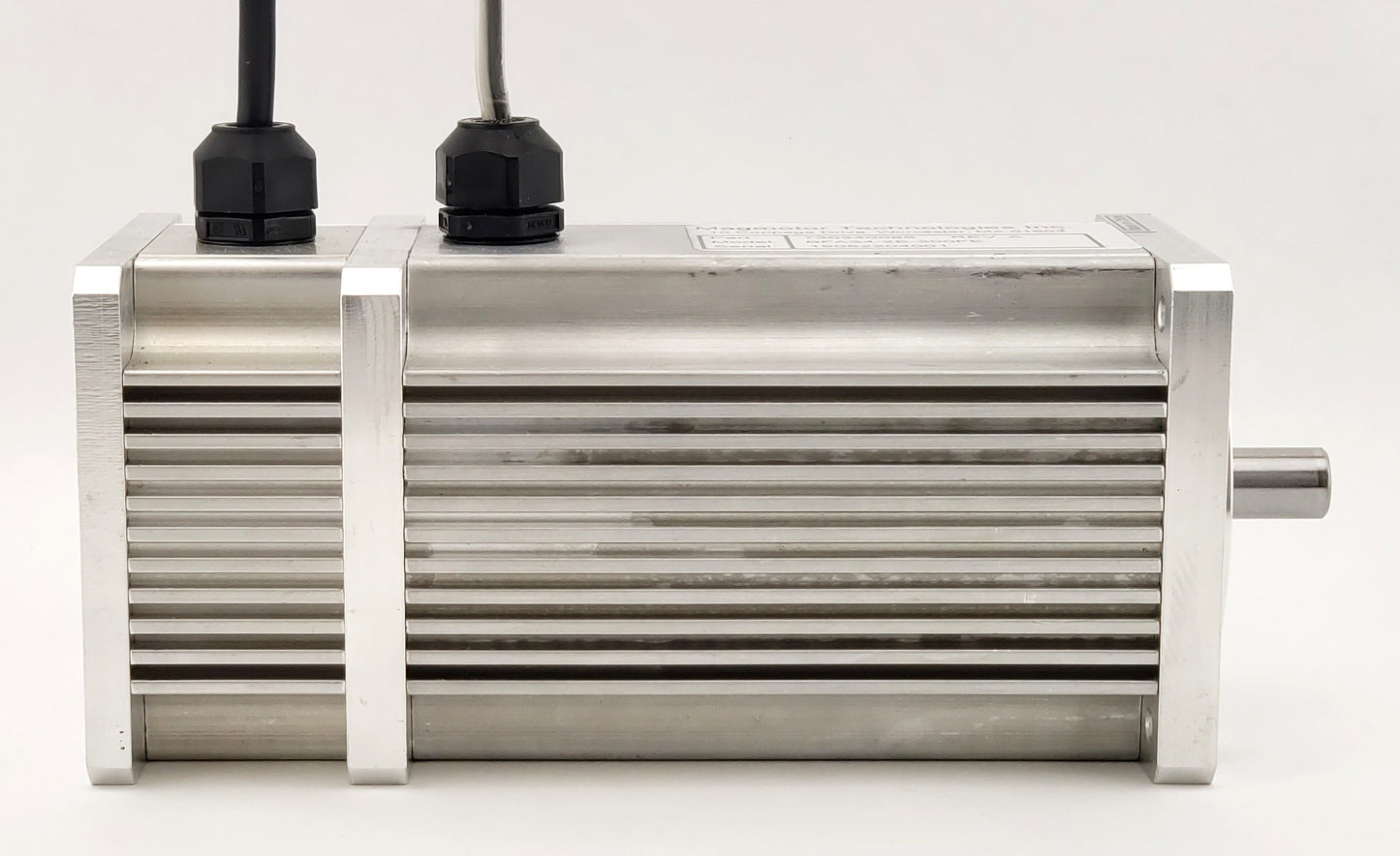

730340088 - BRUSHLESS MOTOR - 36 to 72 VDC - 280 to 325 oz-in CONT TORQUE - BFA34-2E-300FE

DOWNLOADS:



• Sold with a 2000 Line Commutation Encoder Installed with Cover
• 8 Pole - Brushless DC Motor

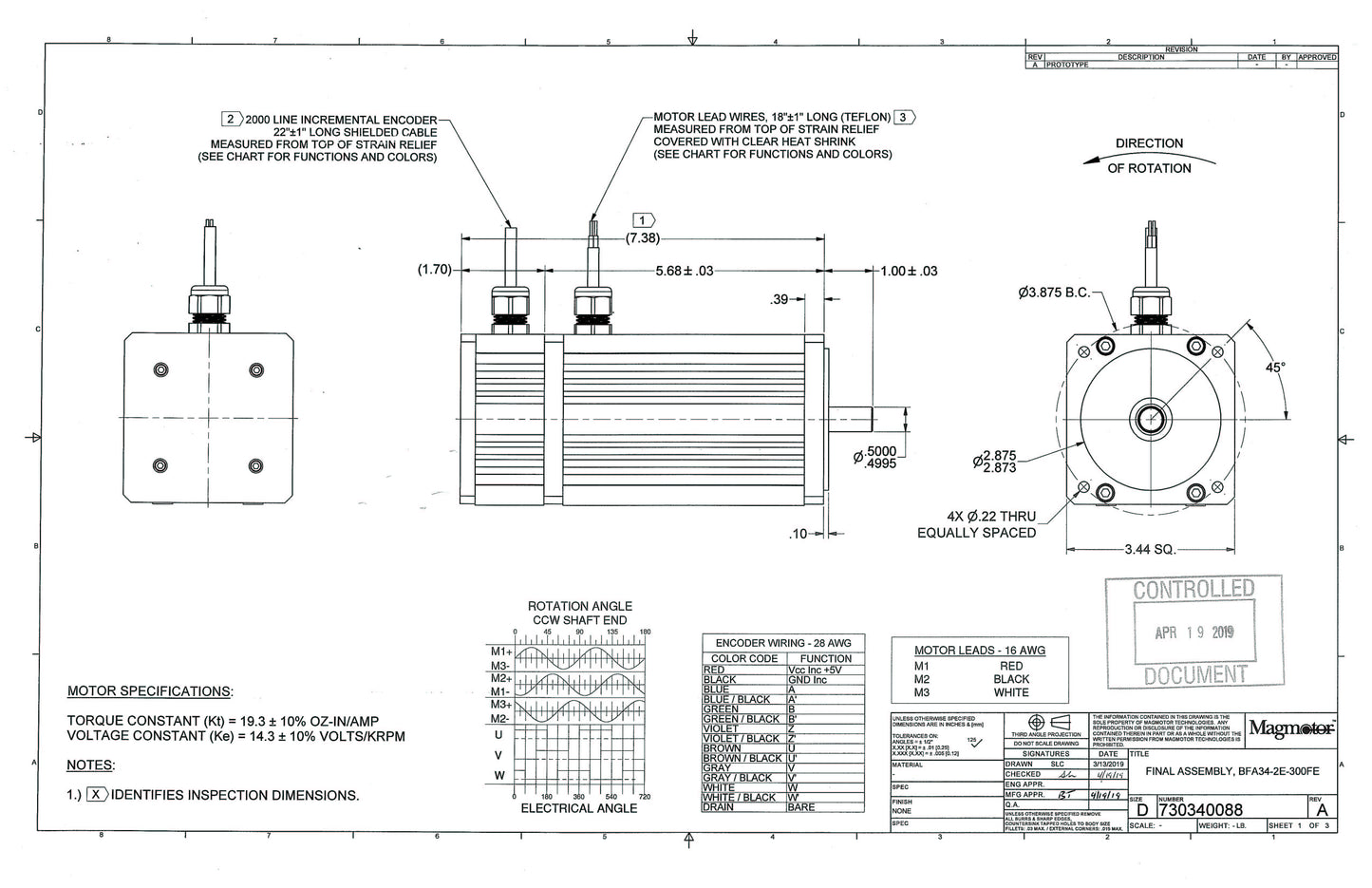

• NEMA 34 Mounting
• Voltage Constant (Ke) = 14.3 +/- 10% VOLTS/KRPM
• Torque Constant (Kt) = 19.3 +/- 10% OZ-IN/AMP
• REACH, RoHS and CE Compliant

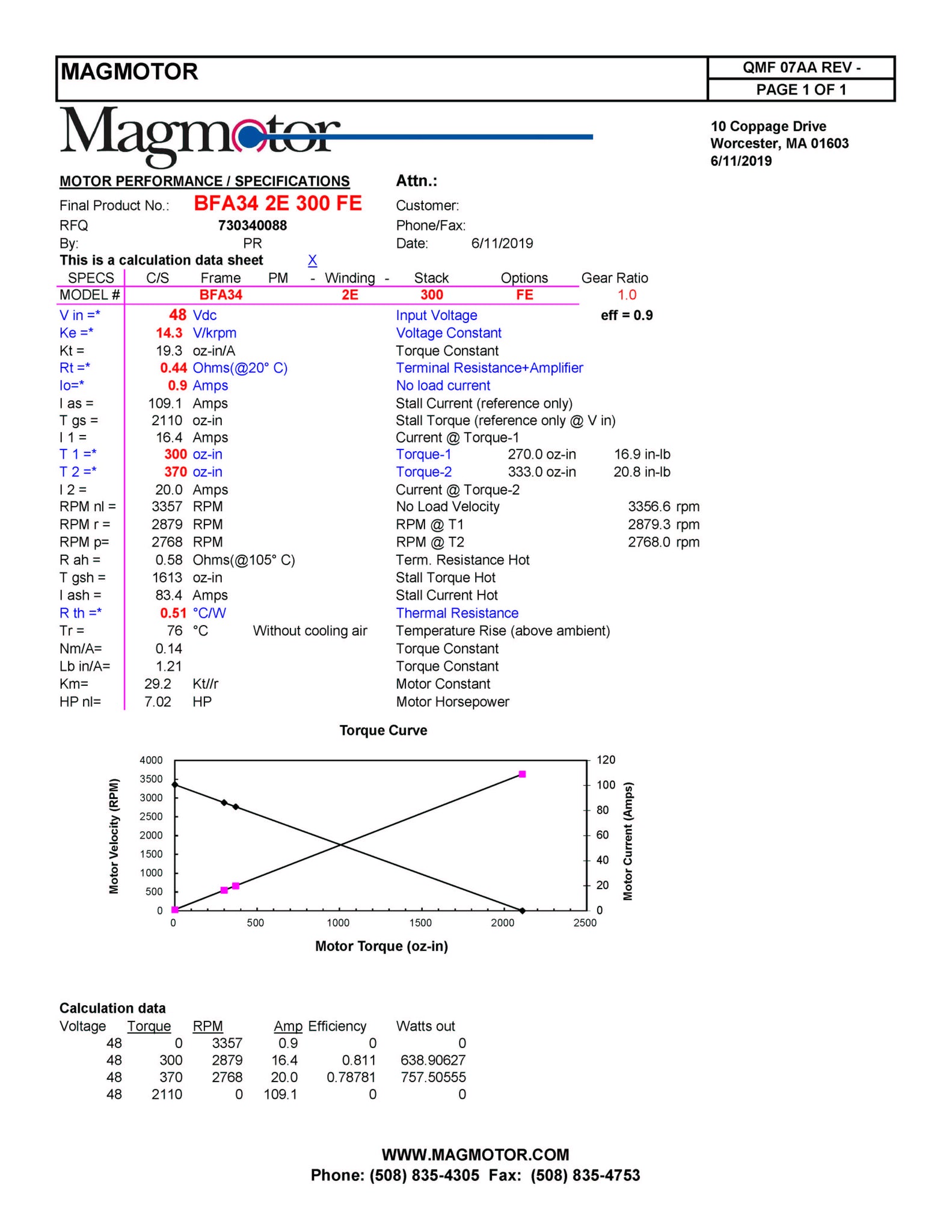

Example Performance Ranges:

• Capable of operating at 2000 rpm @ 36VDC with a continuous torque of 325 oz-in
• Capable of operating at 2865 rpm @ 48VDC with a continuous torque of 310 oz-in
• Capable of operating at 3725 rpm @ 60VDC with a continuous torque of 295 oz-in
• Capable of operating at 4590 rpm @ 72VDC with a continuous torque of 280 oz-in
