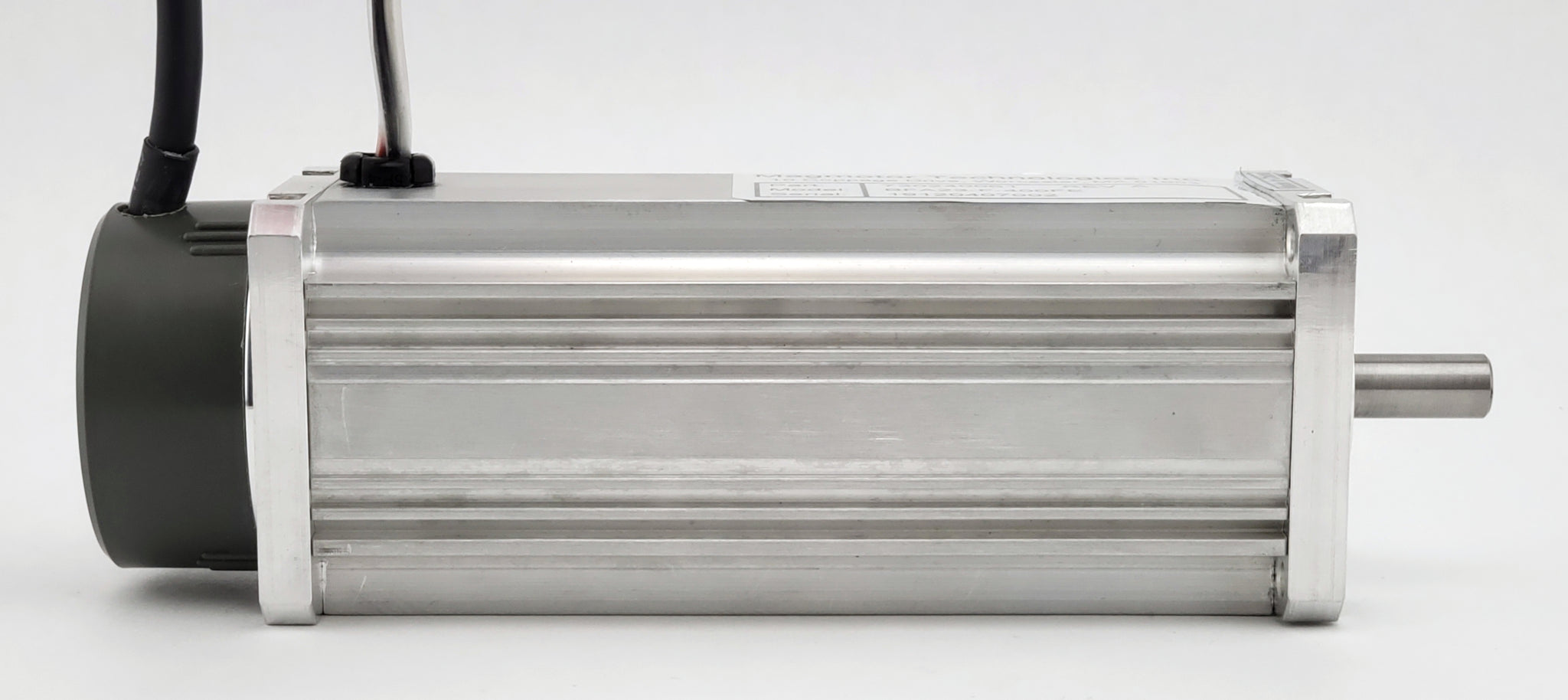

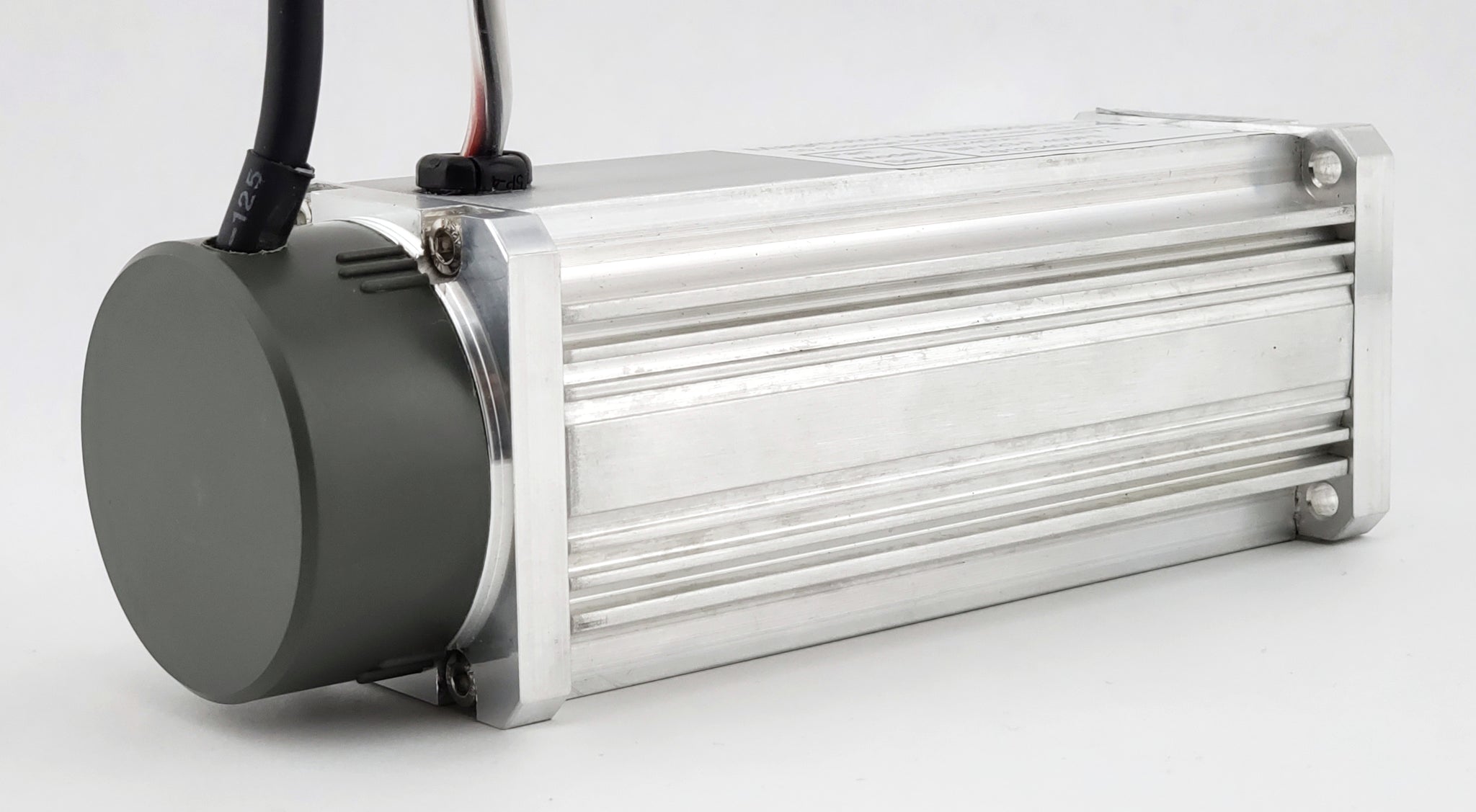

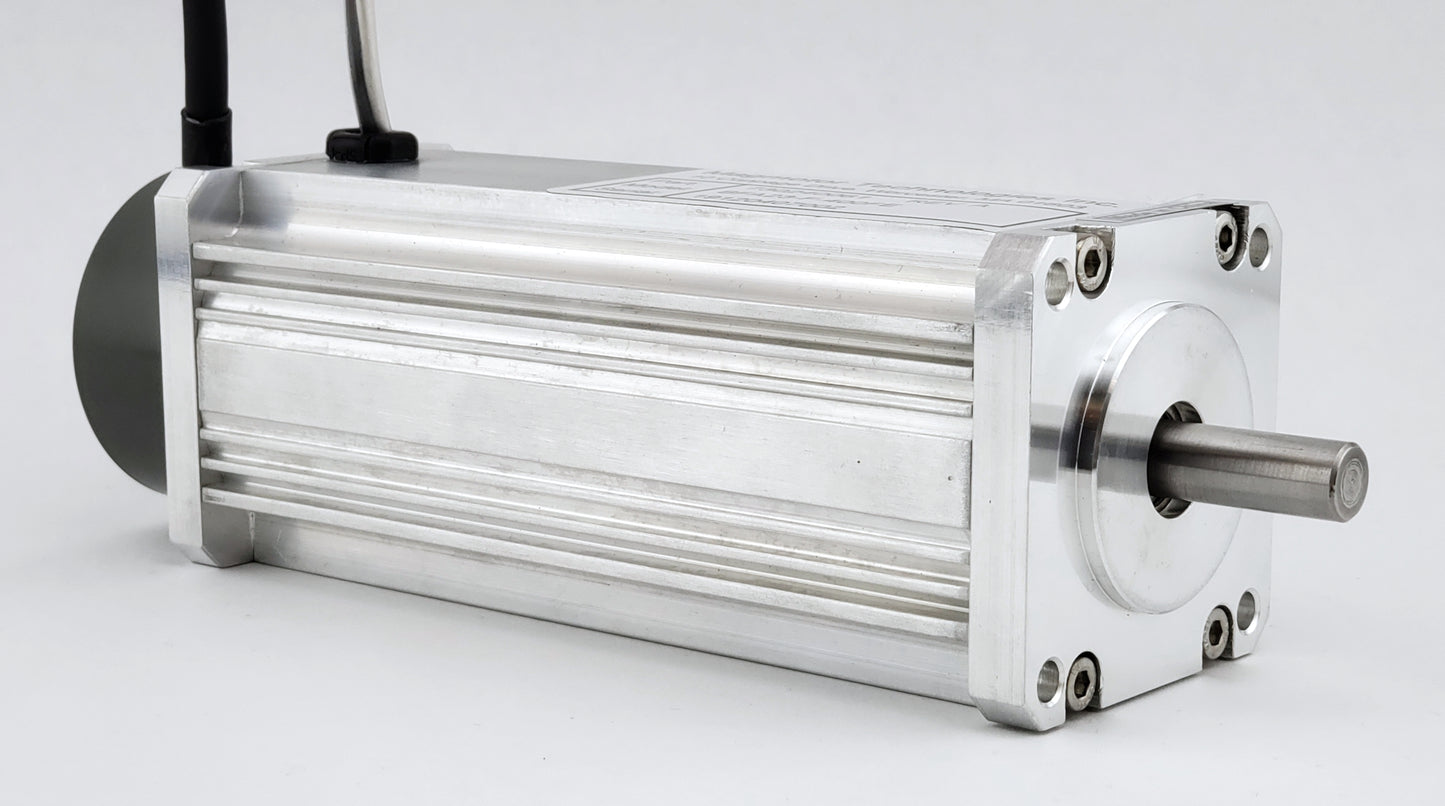

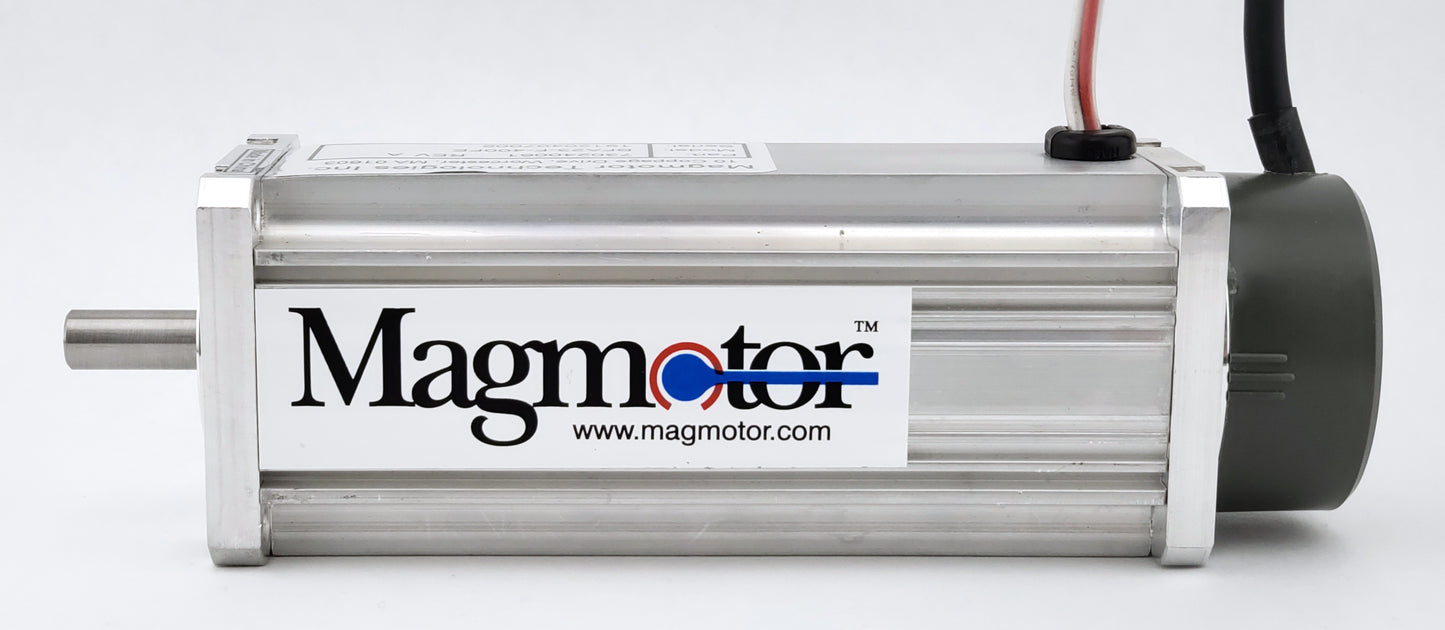

730240061 - BRUSHLESS MOTOR - 48 to 144 VDC - 205 to 245 oz-in CONT TORQUE - BFA23-F-400FE

730240061 - BRUSHLESS MOTOR - 48 to 144 VDC - 205 to 245 oz-in CONT TORQUE - BFA23-F-400FE

Regular price $721.00
Regular price Sale price $721.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

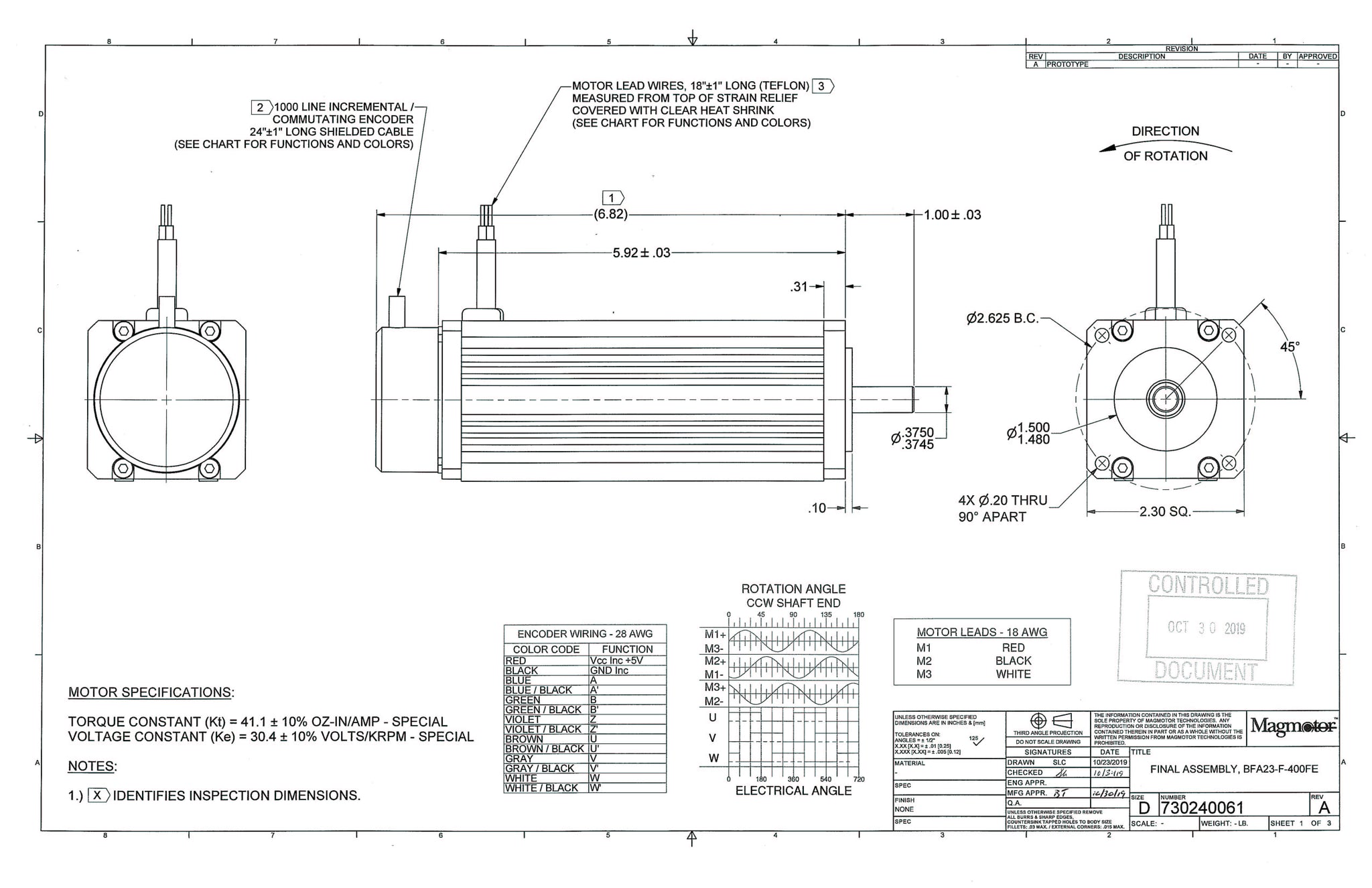

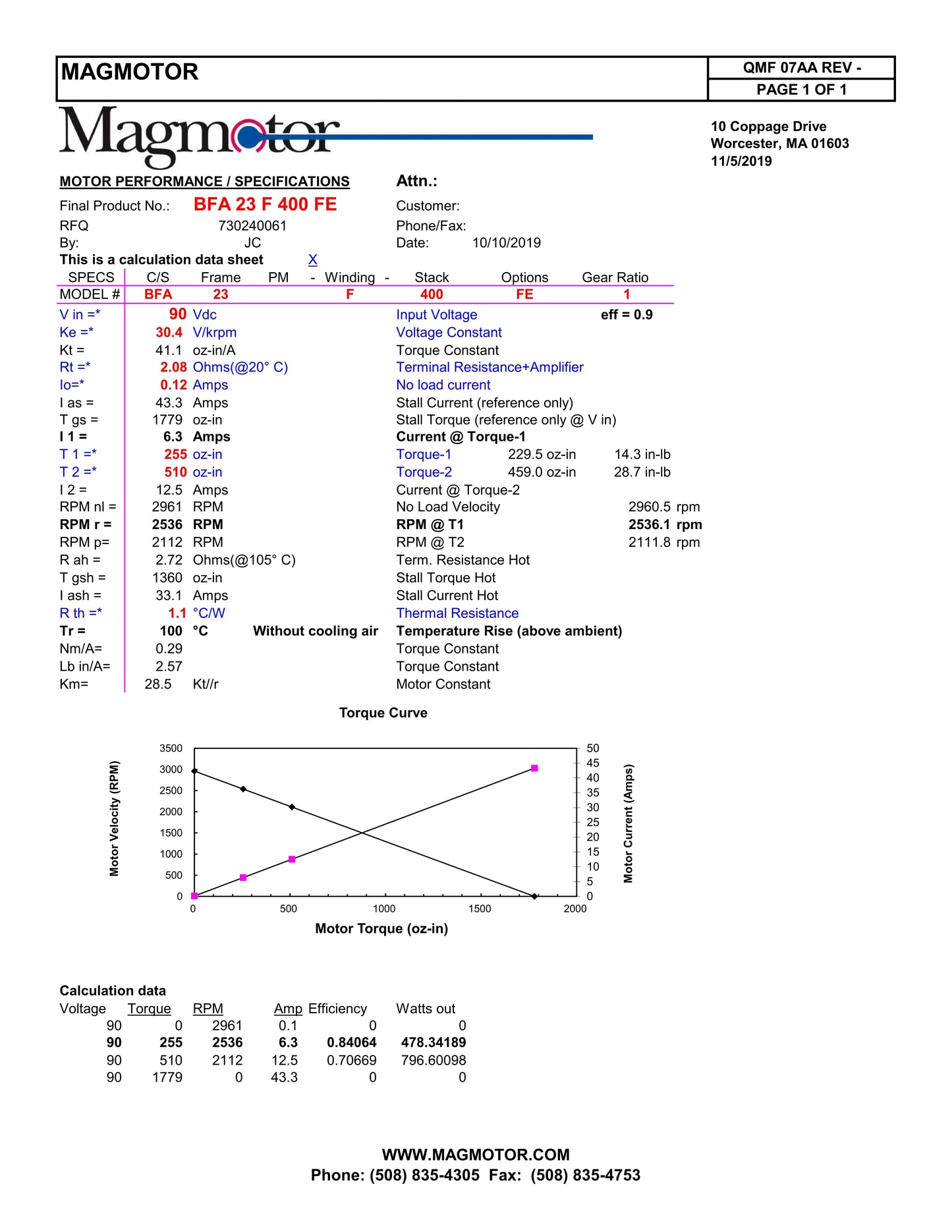

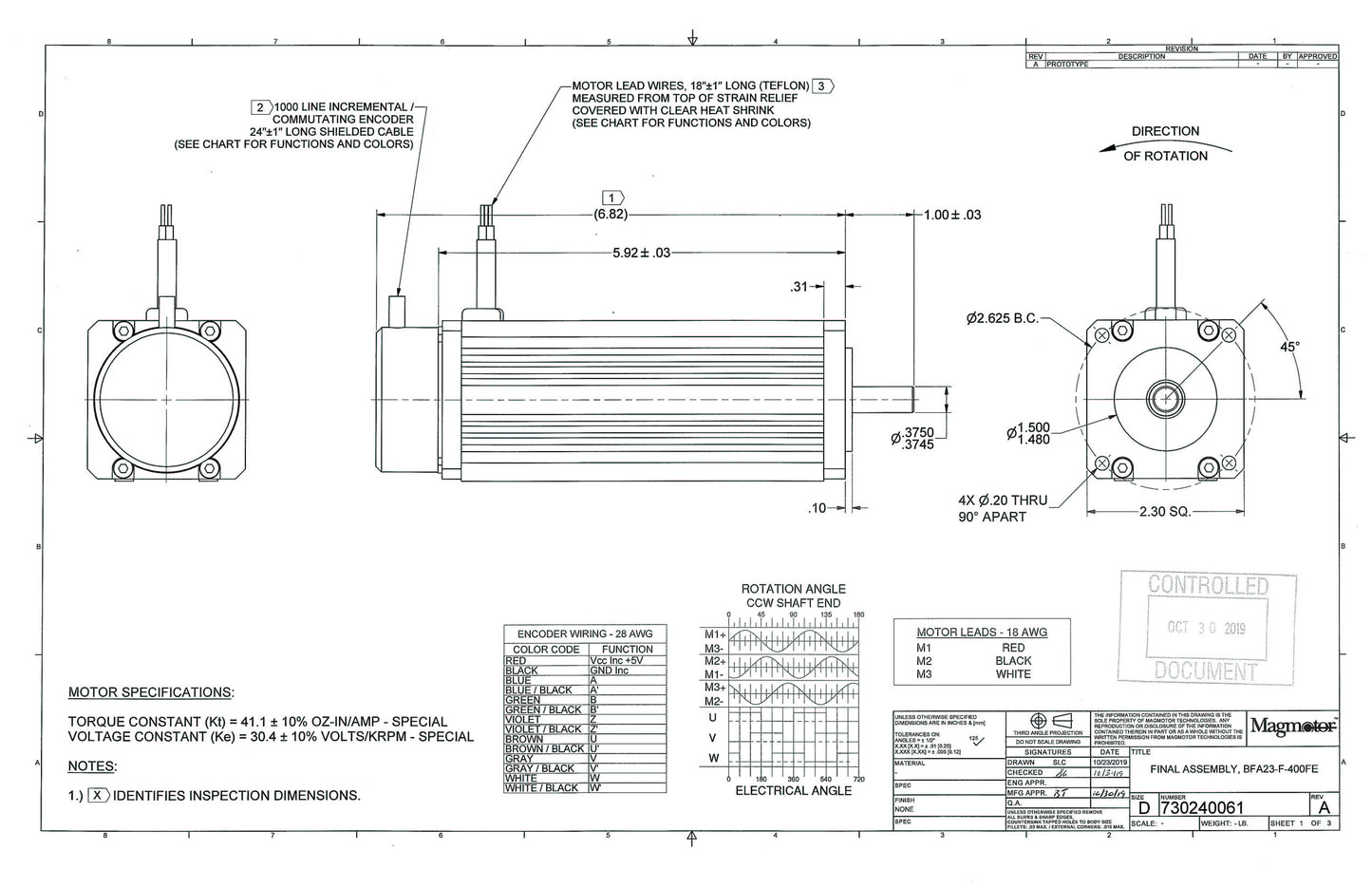

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button


DC Motor Specifications:

  • Sold with a 2000 Line Commutation Encoder Installed
  • 8 Pole - Brushless DC Motor
  • NEMA 23 Mounting
  • Voltage Constant (Ke) = 30.4 +/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 41.1 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 1236 rpm @ 48VDC with a continuous torque of 245 oz-in
  • Capable of operating at 2042 rpm @ 72VDC with a continuous torque of 233 oz-in
  • Capable of operating at 2850 rpm @ 96VDC with a continuous torque of 222 oz-in
  • Capable of operating at 3655 rpm @ 120VDC with a continuous torque of 210 oz-in
  • Capable of operating at 4450 rpm @ 144VDC with a continuous torque of 206 oz-in
