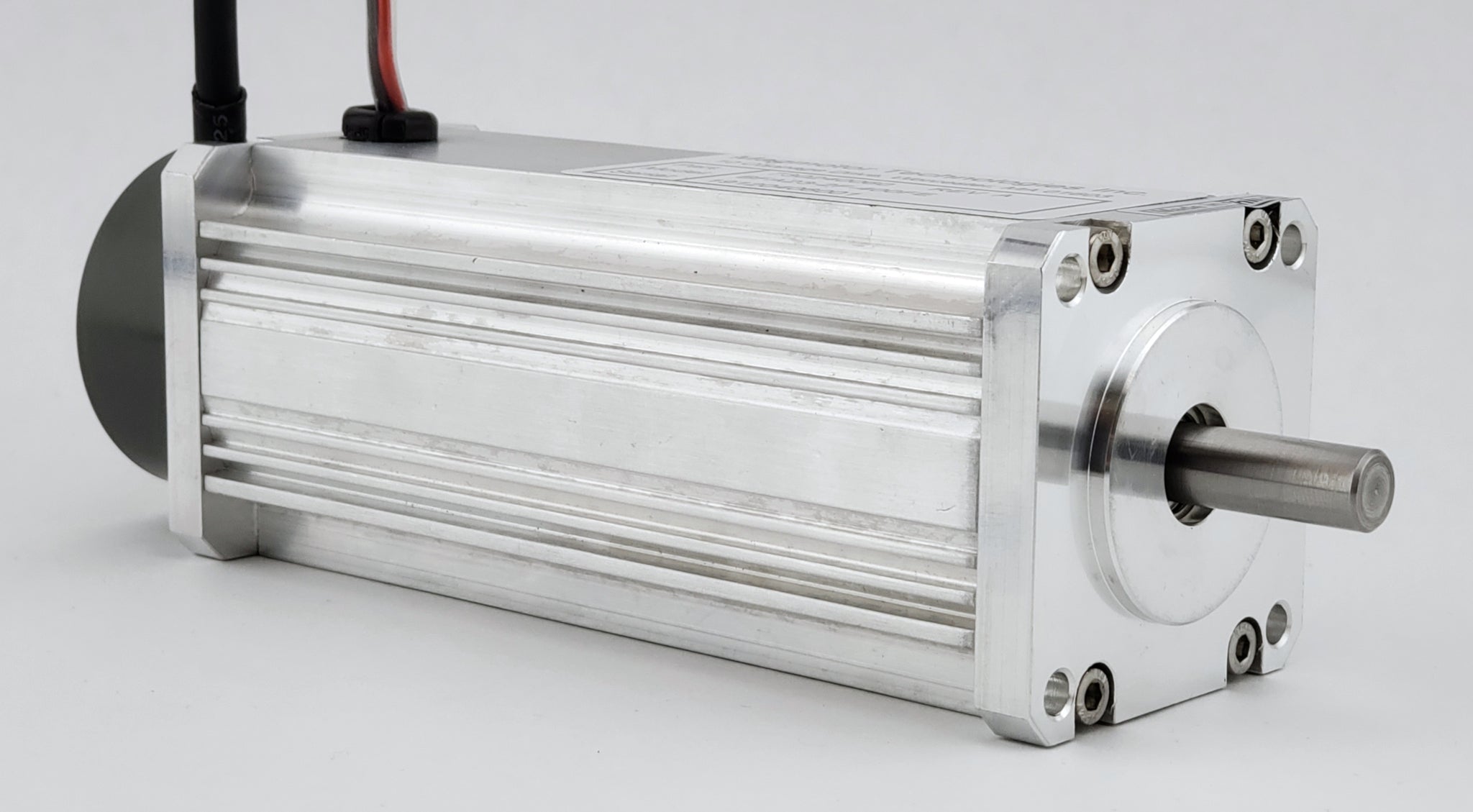

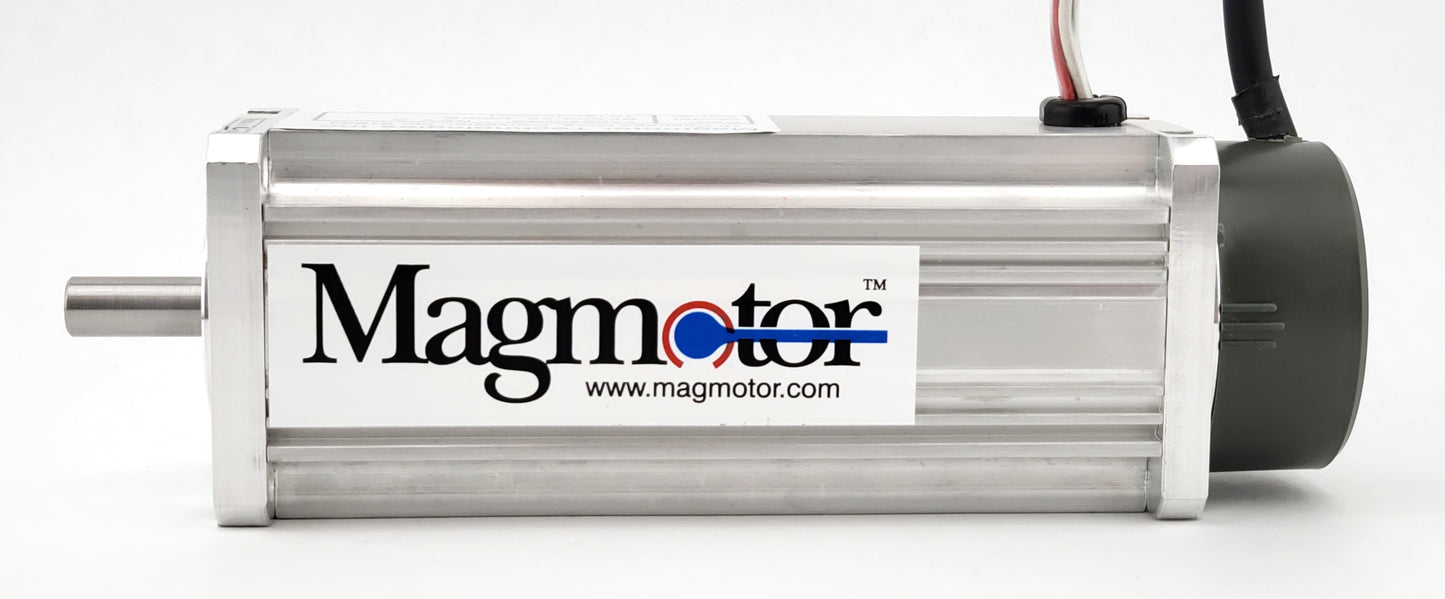

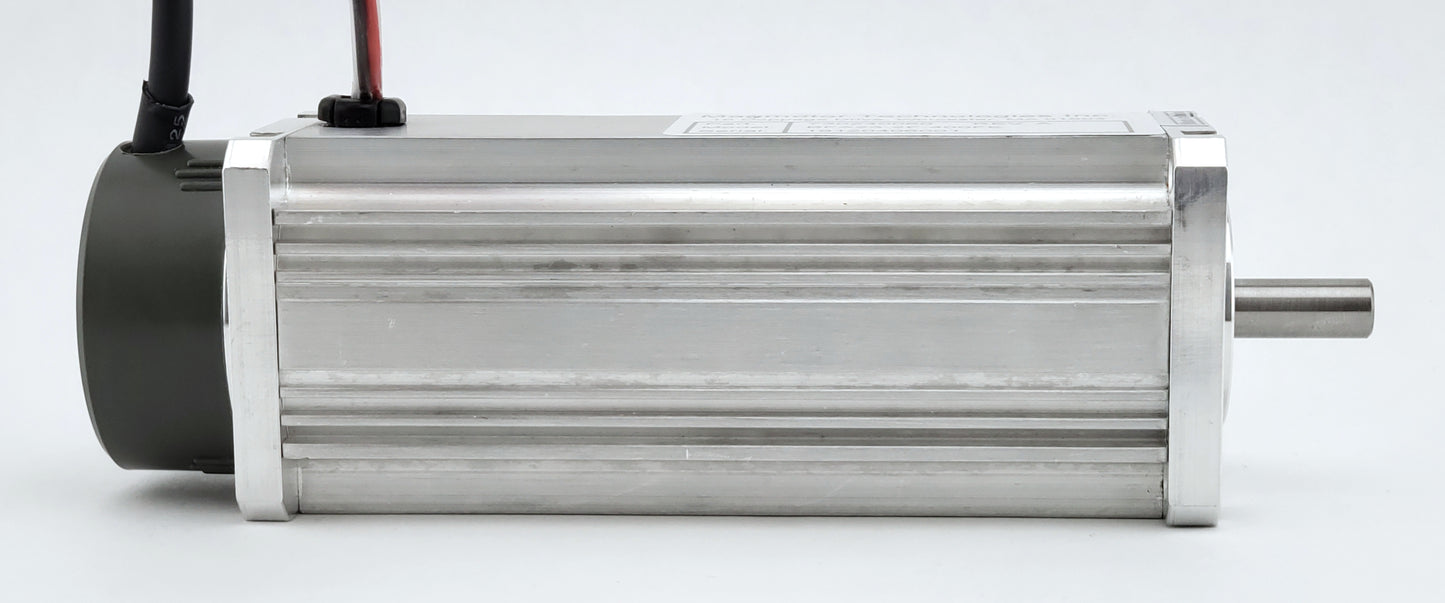

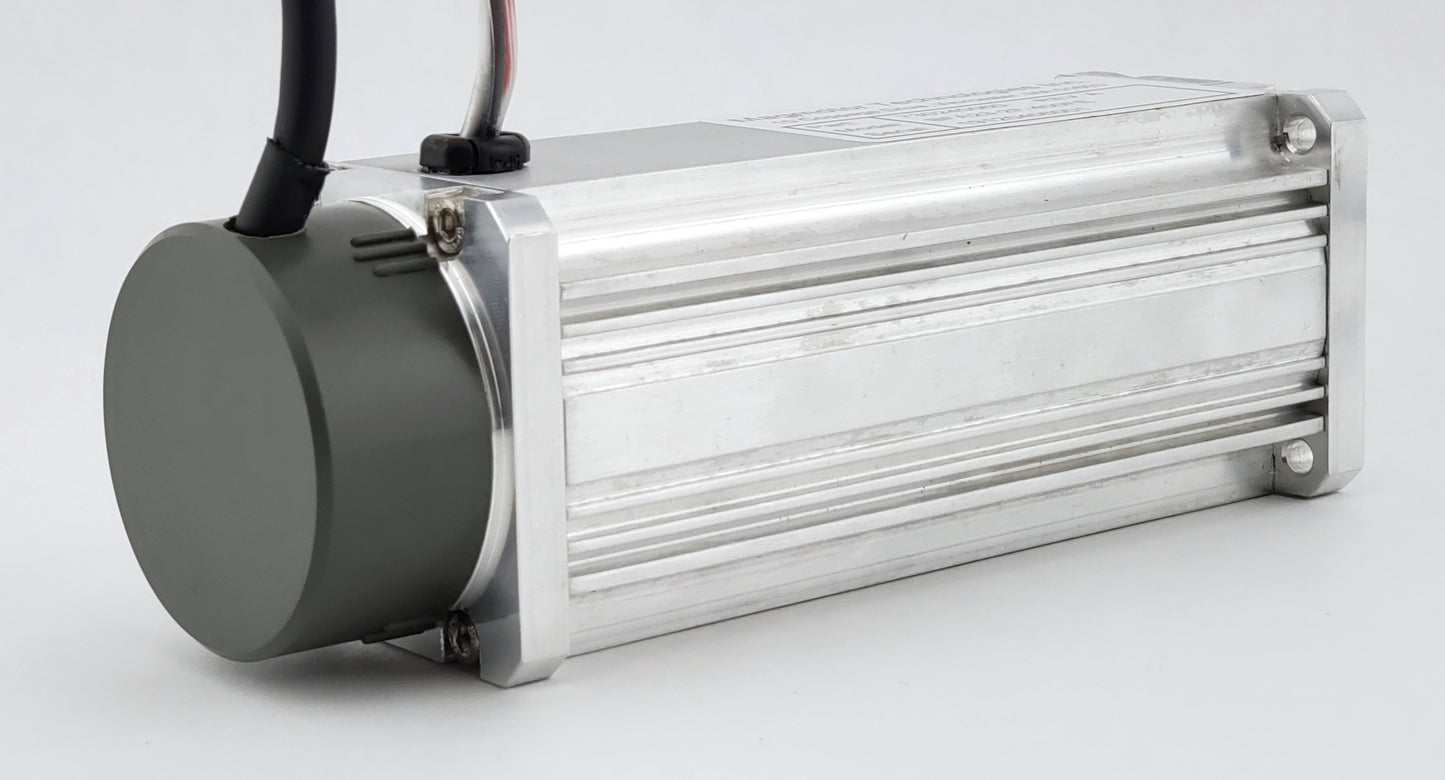

730240060 - BRUSHLESS MOTOR - 24 to 72 VDC - 160 to 210 oz-in CONT TORQUE - BFA23-2F-400FE

  • $656.00
    Unit price per
Shipping calculated at checkout.


DC Motor Specifications:

  • Sold with a 2000 Line Commutation Encoder Installed
  • 8 Pole - Brushless DC Motor
  • NEMA 23 Mounting
  • Voltage Constant (Ke) = 15.2 +/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 20.6 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 1200 rpm @ 24VDC with a continuous torque of 211 oz-in
  • Capable of operating at 2004 rpm @ 36VDC with a continuous torque of 200 oz-in
  • Capable of operating at 2820 rpm @ 48VDC with a continuous torque of 187 oz-in
  • Capable of operating at 3630 rpm @ 60VDC with a continuous torque of 174 oz-in
  • Capable of operating at 4445 rpm @ 72VDC with a continuous torque of 160 oz-in

    DOWNLOADS:

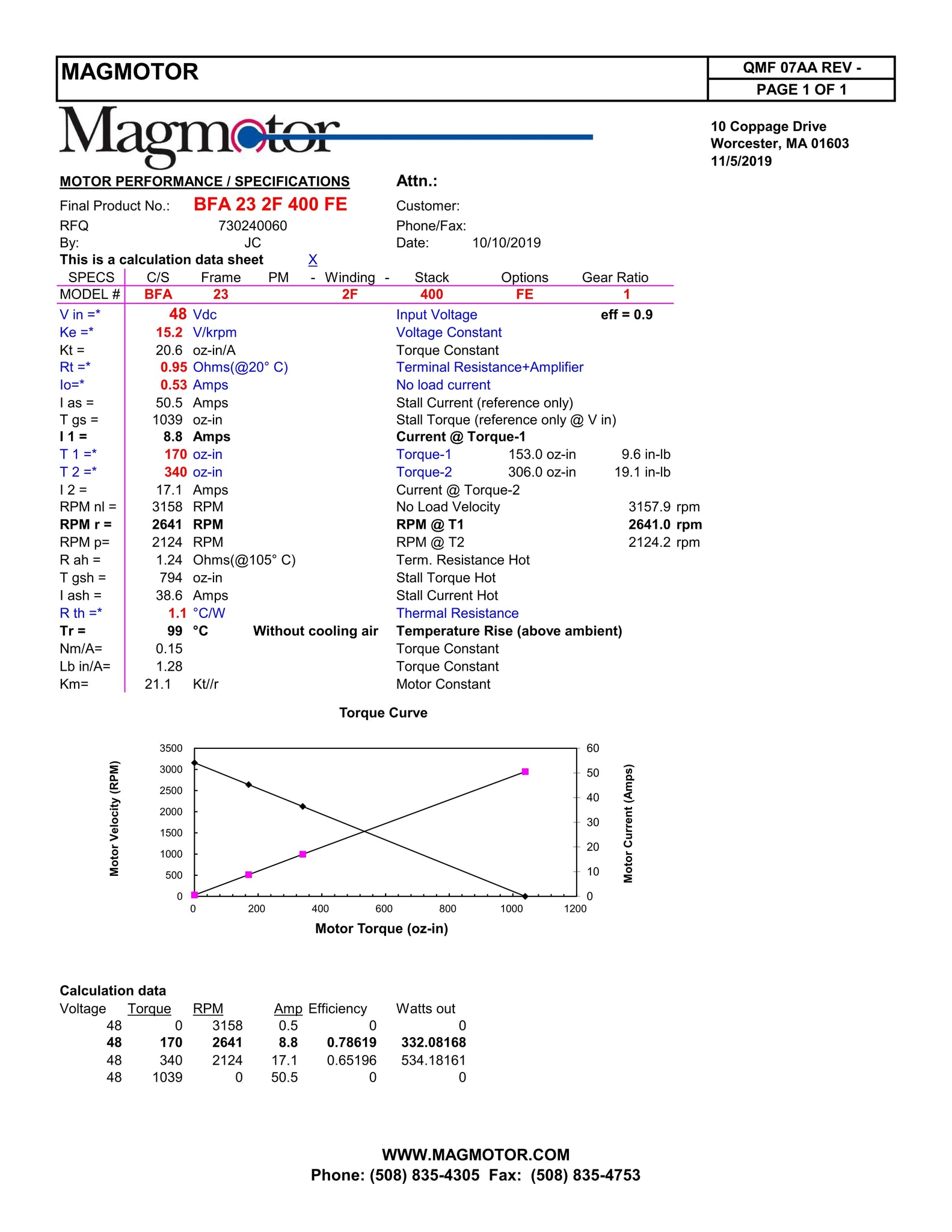

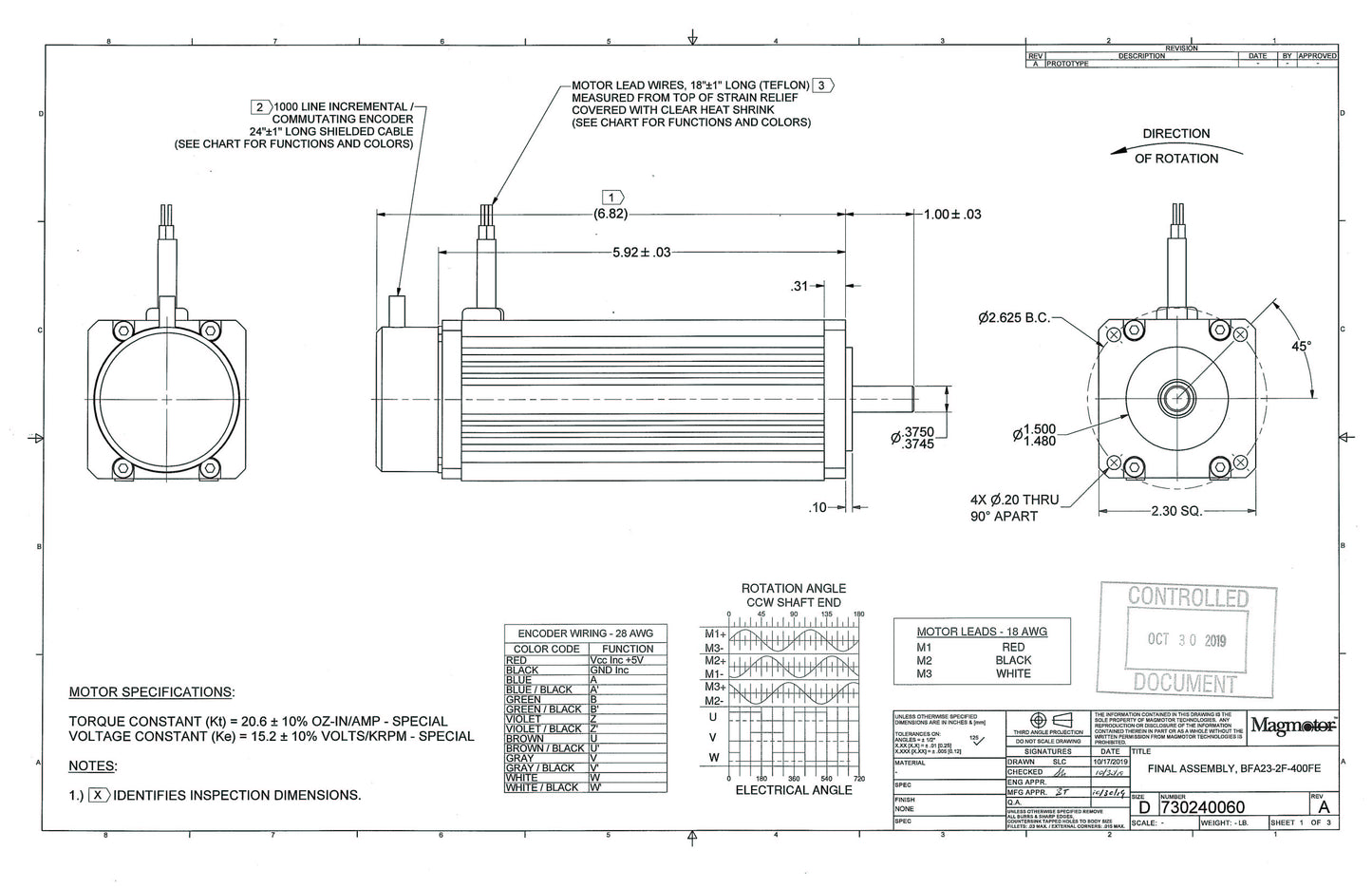

    magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button
