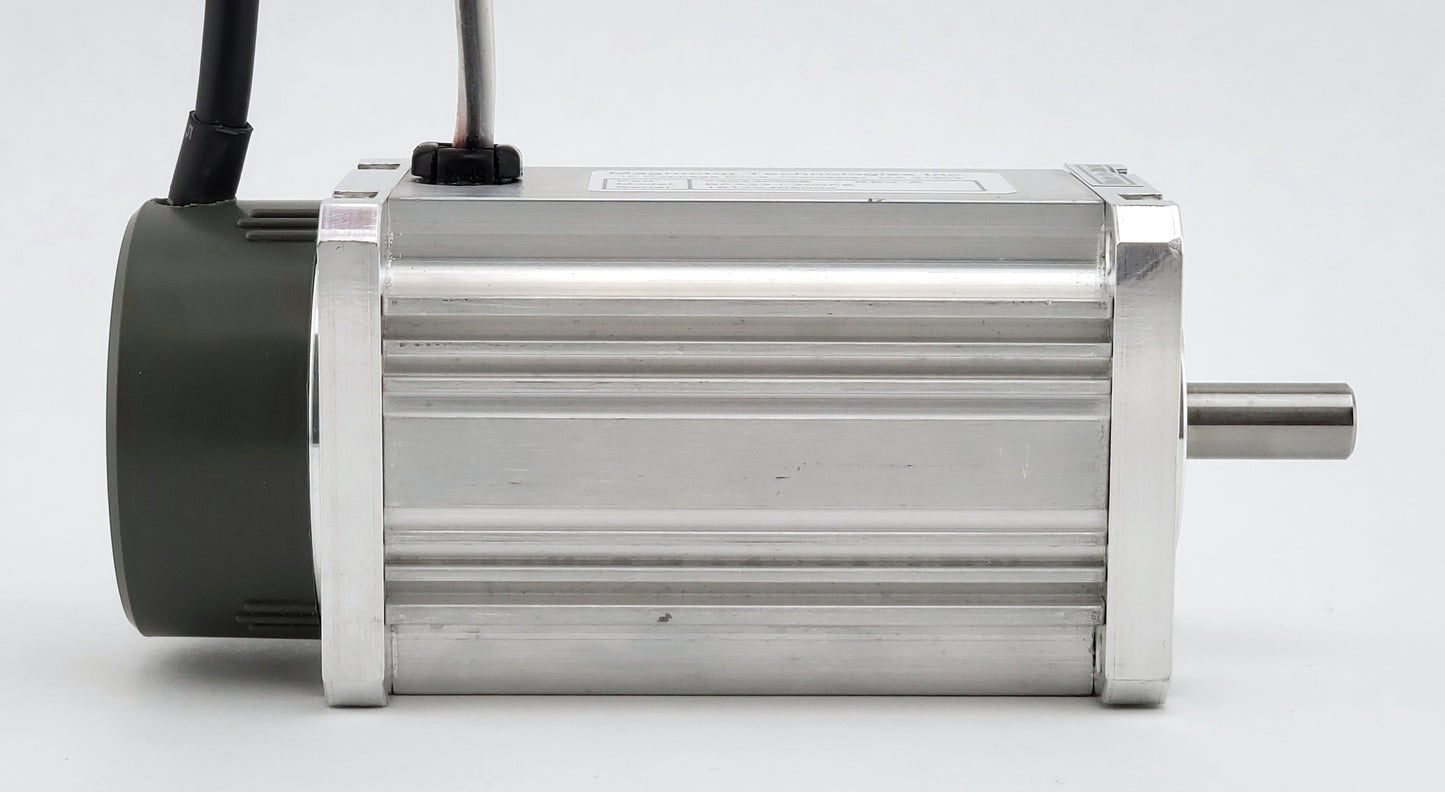

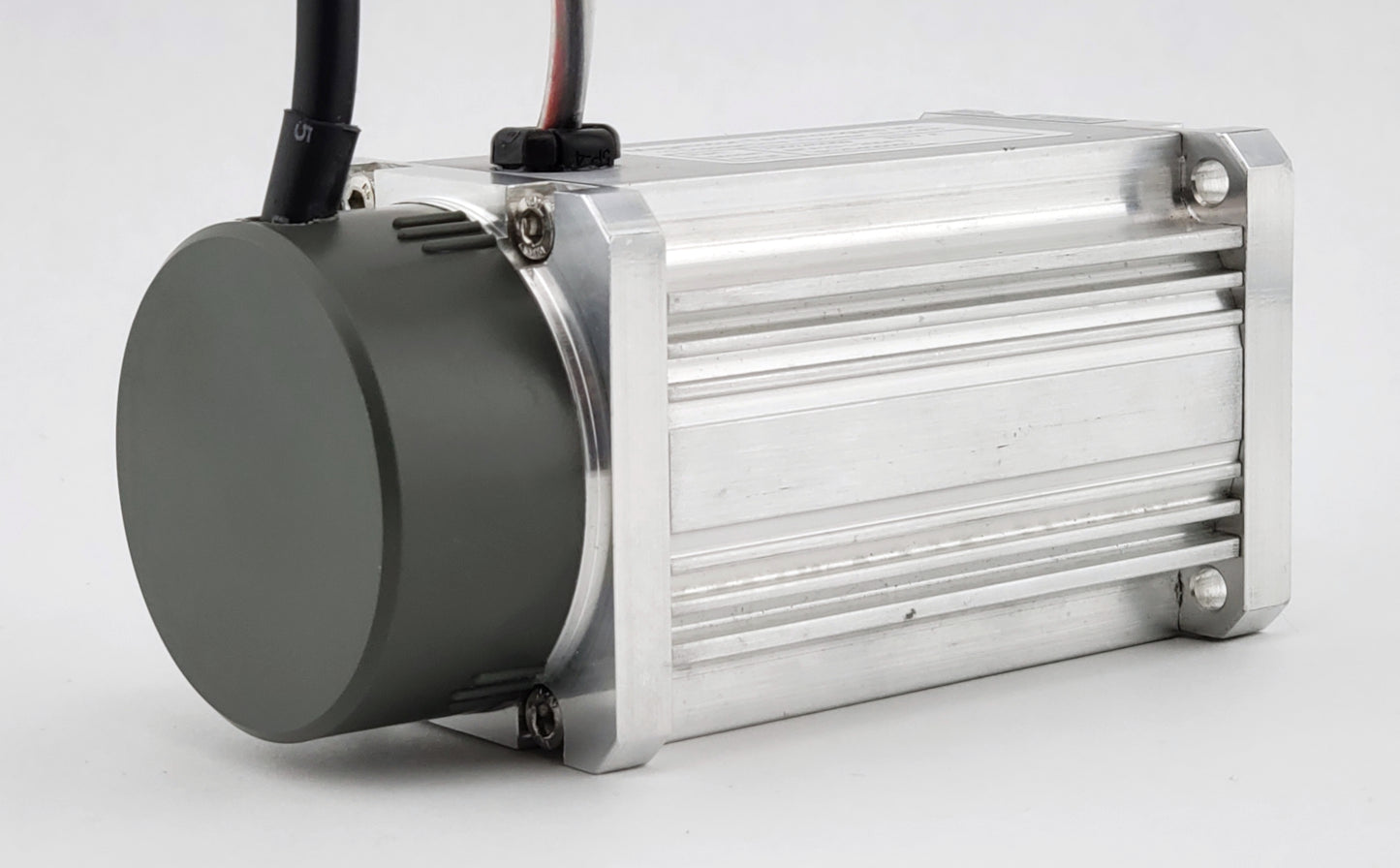

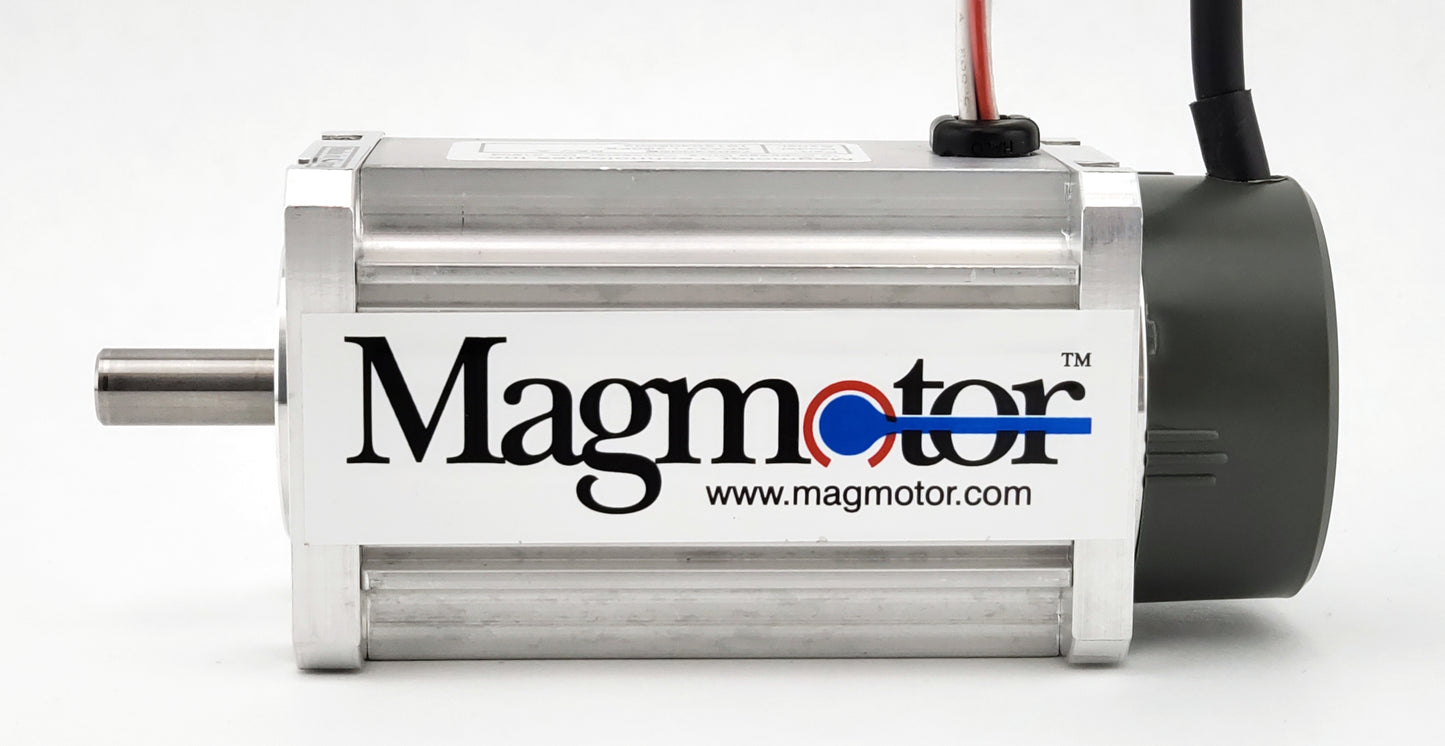

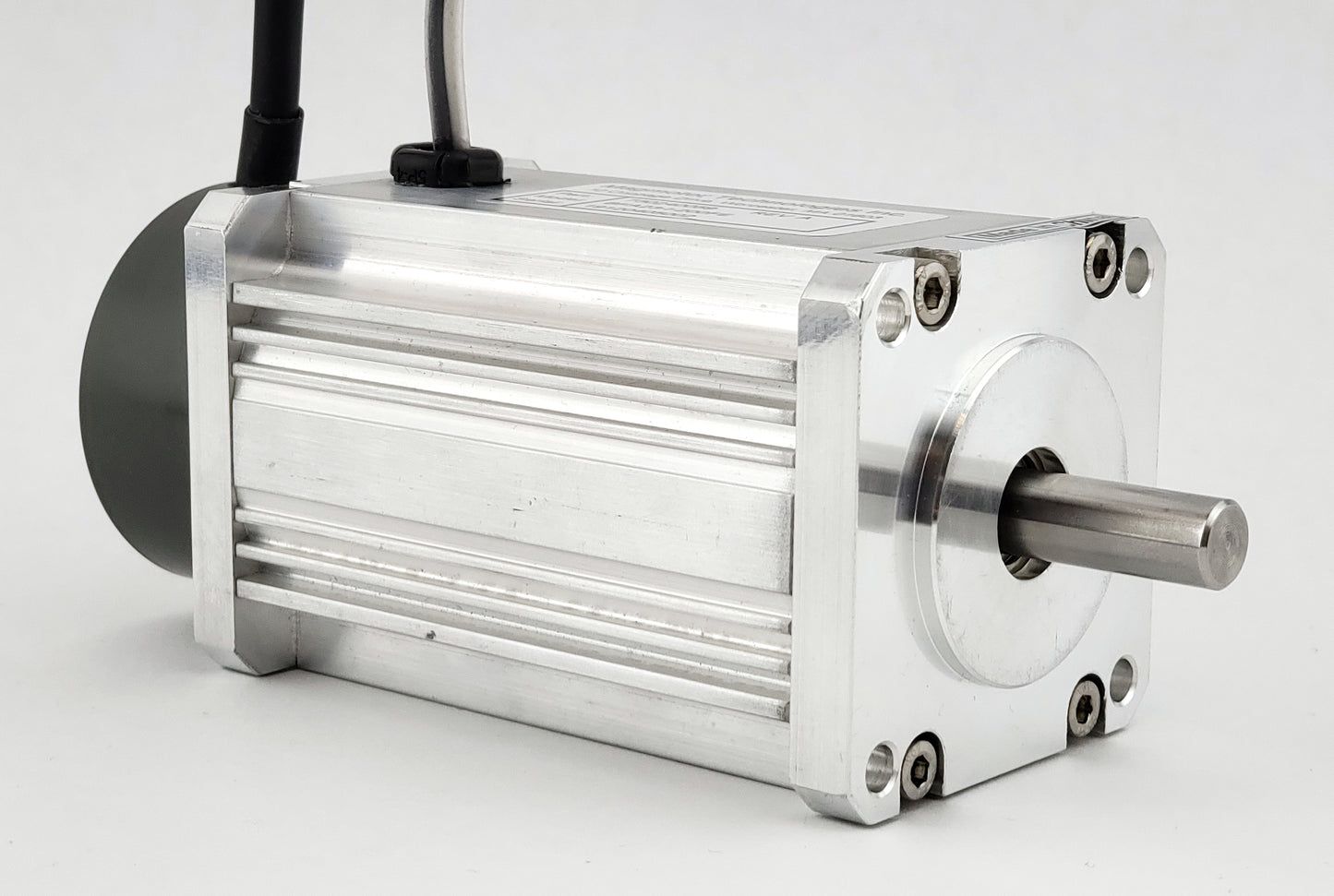

730240059 - BRUSHLESS MOTOR - 48 to 144 VDC - 100 to 120 oz-in CONT TORQUE - BFA23-I-200FE

  • $595.00
    Unit price per
Shipping calculated at checkout.


DC Motor Specifications:

  • Sold with a 2000 Line Commutation Encoder Installed
  • 8 Pole - Brushless DC Motor
  • NEMA 23 Mounting
  • Voltage Constant (Ke) = 29.6 +/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 40.0 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 1210 rpm @ 48VDC with a continuous torque of 116 oz-in
  • Capable of operating at 2030 rpm @ 72VDC with a continuous torque of 113 oz-in
  • Capable of operating at 2855 rpm @ 96VDC with a continuous torque of 109 oz-in
  • Capable of operating at 3680 rpm @ 120VDC with a continuous torque of 105 oz-in
  • Capable of operating at 4505 rpm @ 144VDC with a continuous torque of 101 oz-in

DOWNLOADS:

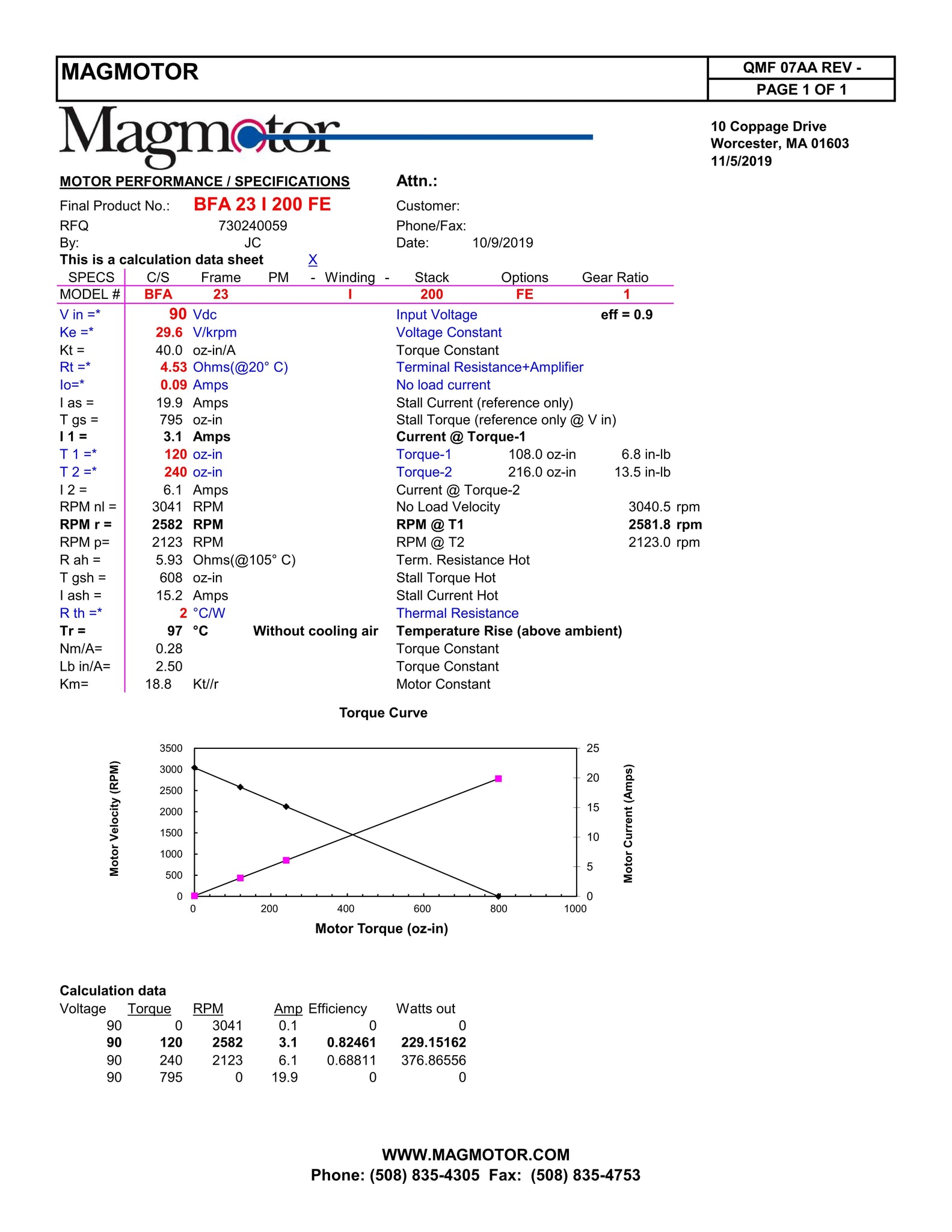

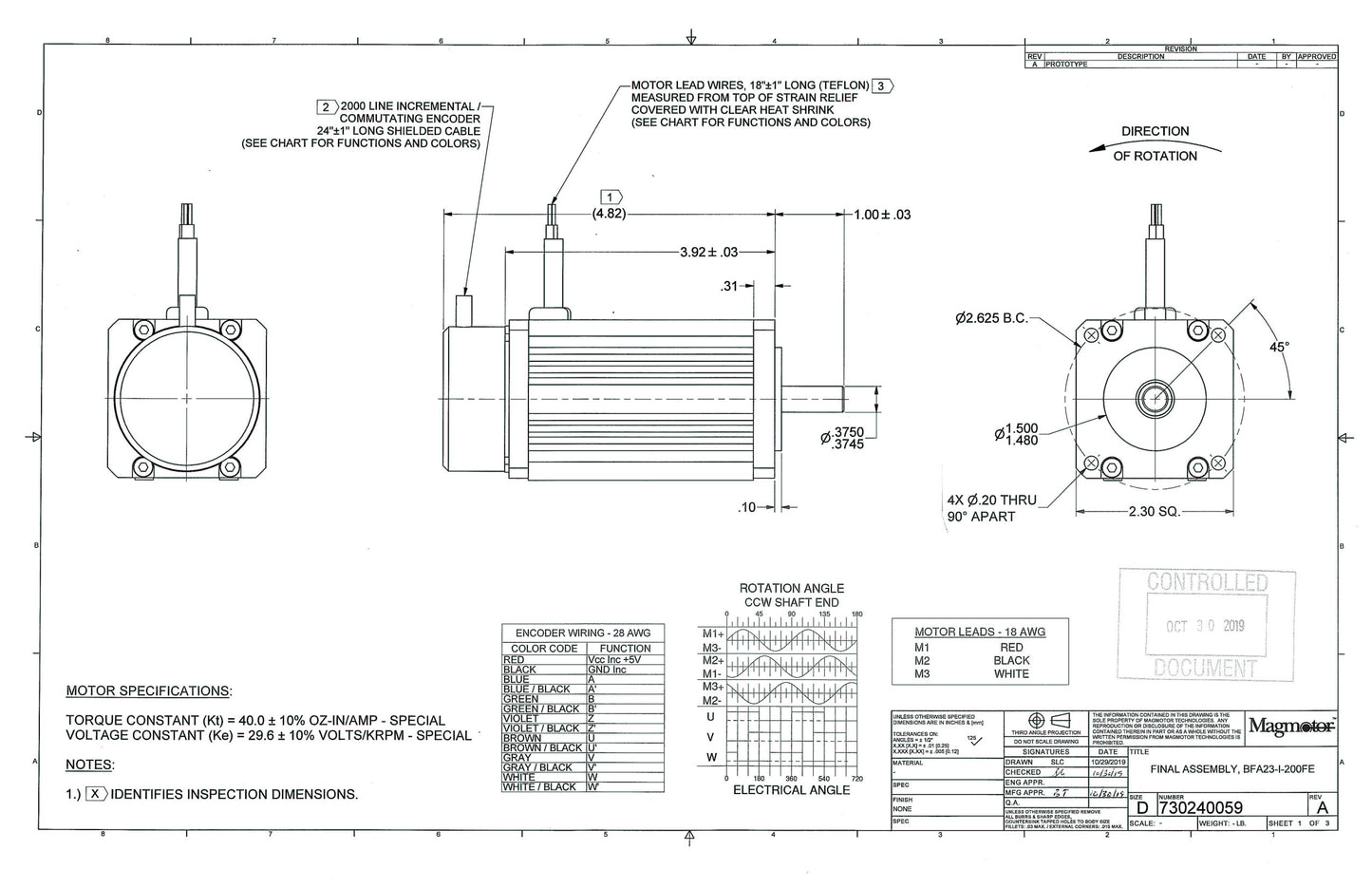

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button
