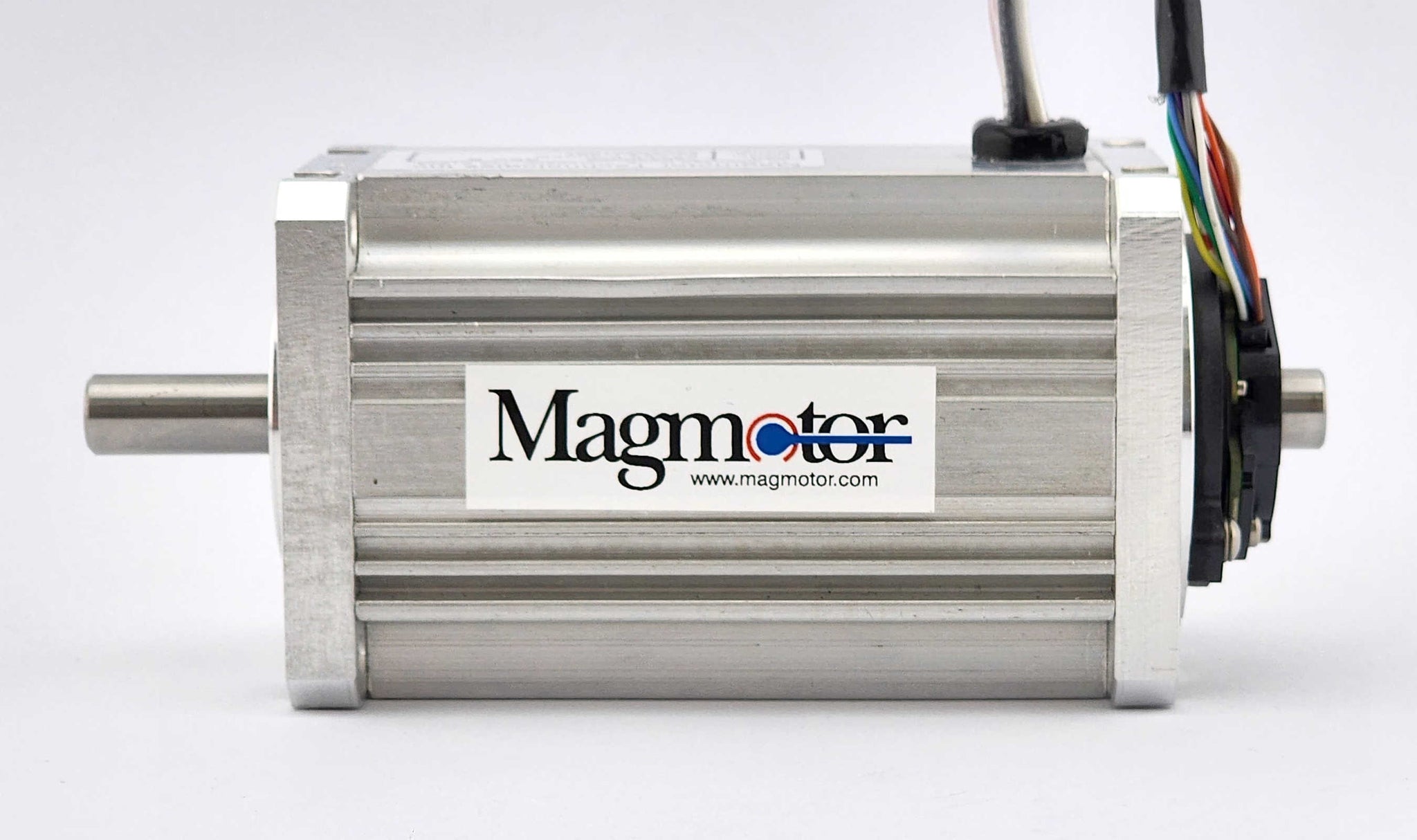

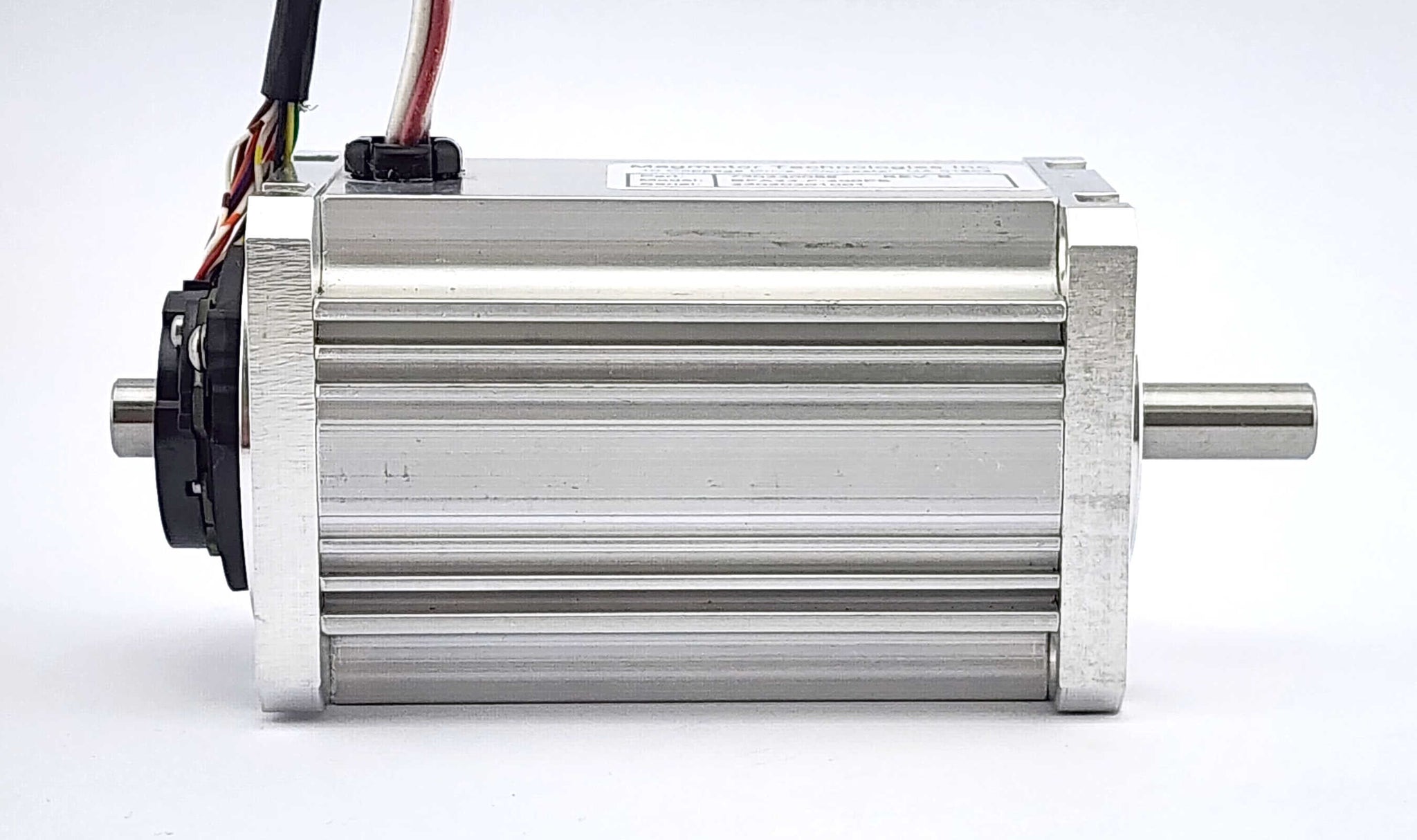

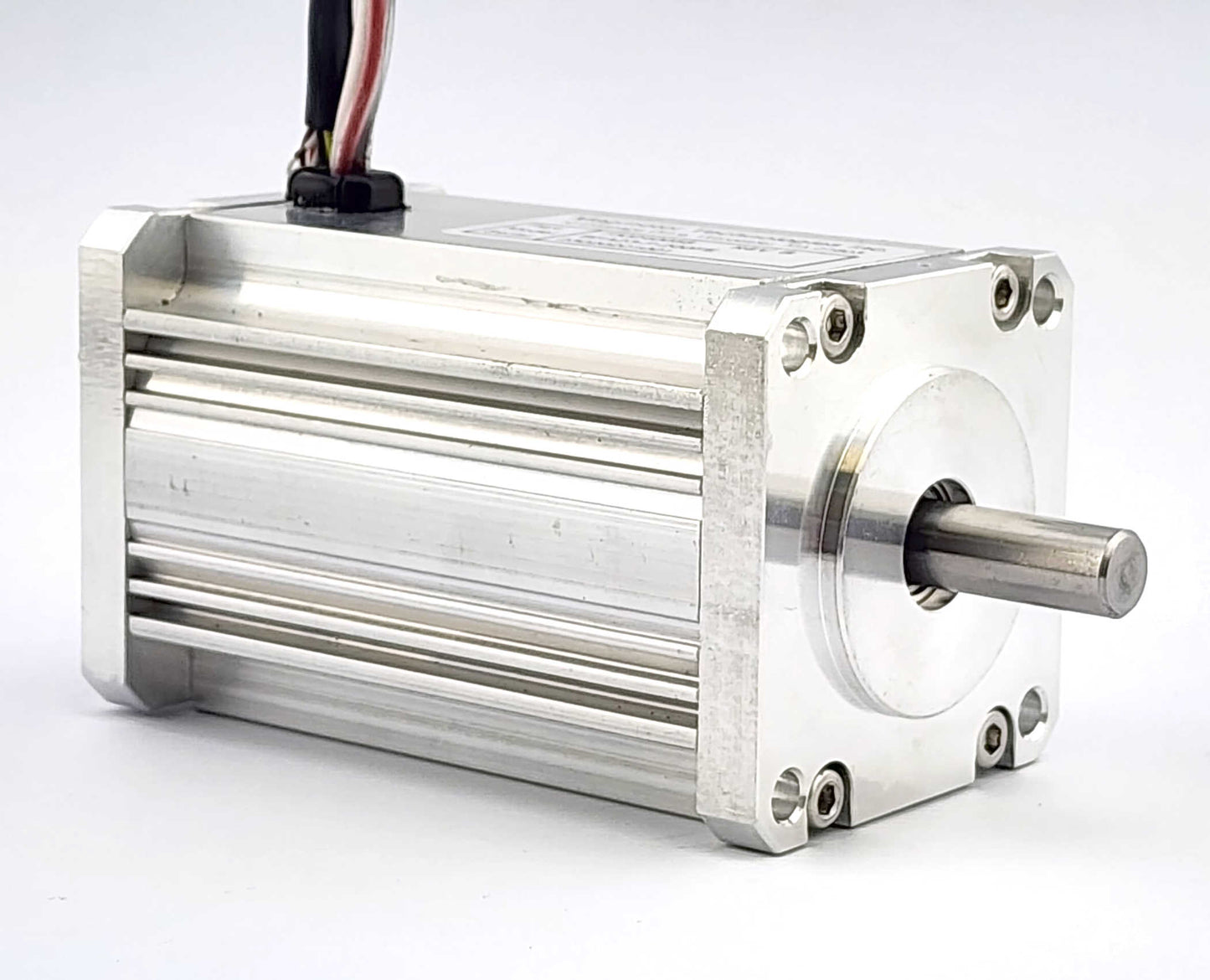

730240058 - BRUSHLESS MOTOR - 24 to 60 VDC - 115 to 120 oz-in CONT TORQUE - BFA23-F-200FE

730240058 - BRUSHLESS MOTOR - 24 to 60 VDC - 115 to 120 oz-in CONT TORQUE - BFA23-F-200FE

Regular price $651.00
Regular price Sale price $651.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button


DC Motor Specifications:

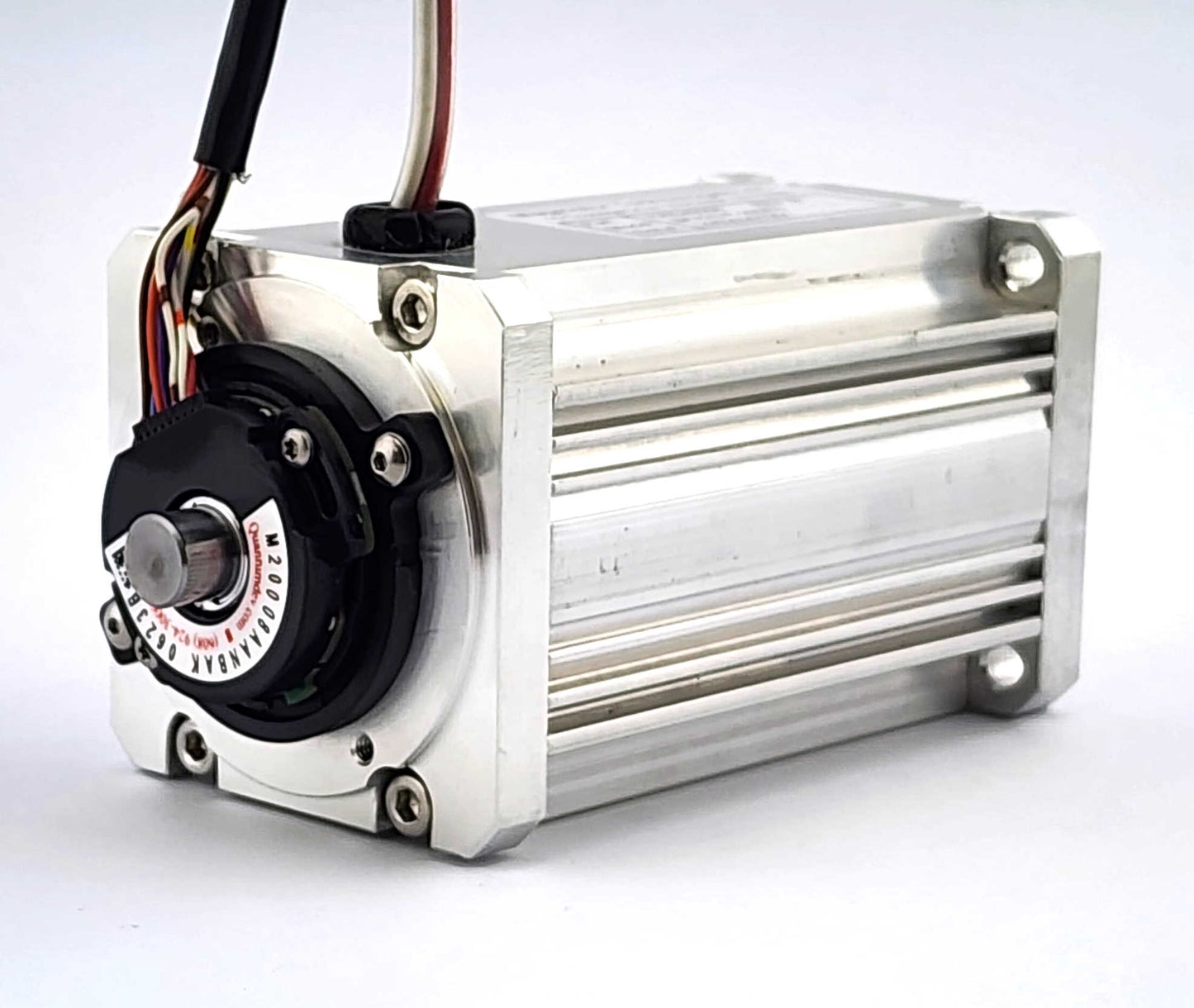

  • Sold with a 2000 Line Commutation Encoder Installed
  • 8 Pole - Brushless DC Motor
  • NEMA 23 Mounting
  • Voltage Constant (Ke) = 7.5 +/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 10.1 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant


Example Performance Ranges:

  • Capable of operating at 1180 rpm @ 24VDC with a continuous torque of 120 oz-in
  • Capable of operating at 1985 rpm @ 36VDC with a continuous torque of 118 oz-in
  • Capable of operating at 2790 rpm @ 48VDC with a continuous torque of 116 oz-in
  • Capable of operating at 3600 rpm @ 60VDC with a continuous torque of 115 oz-in
