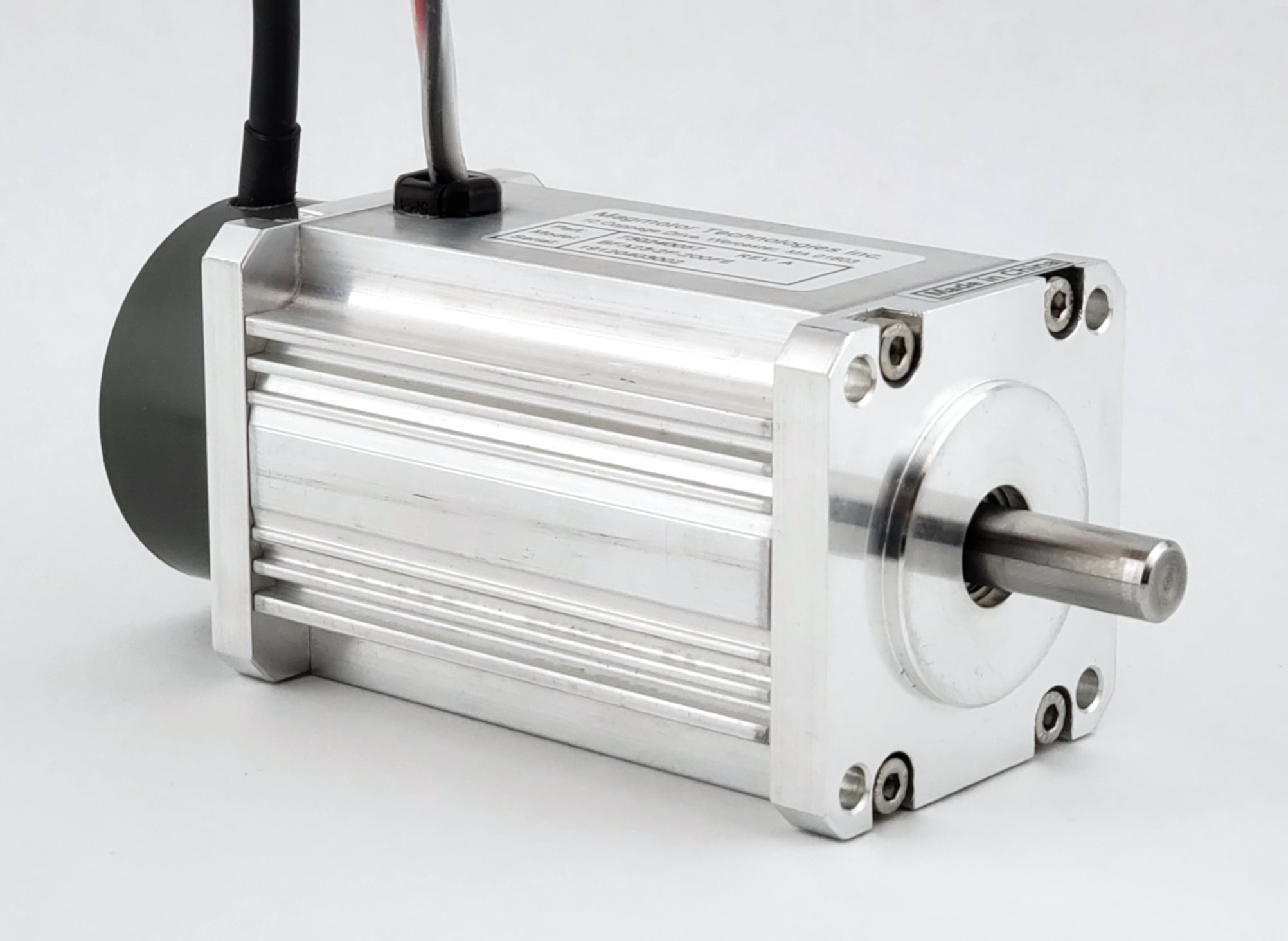

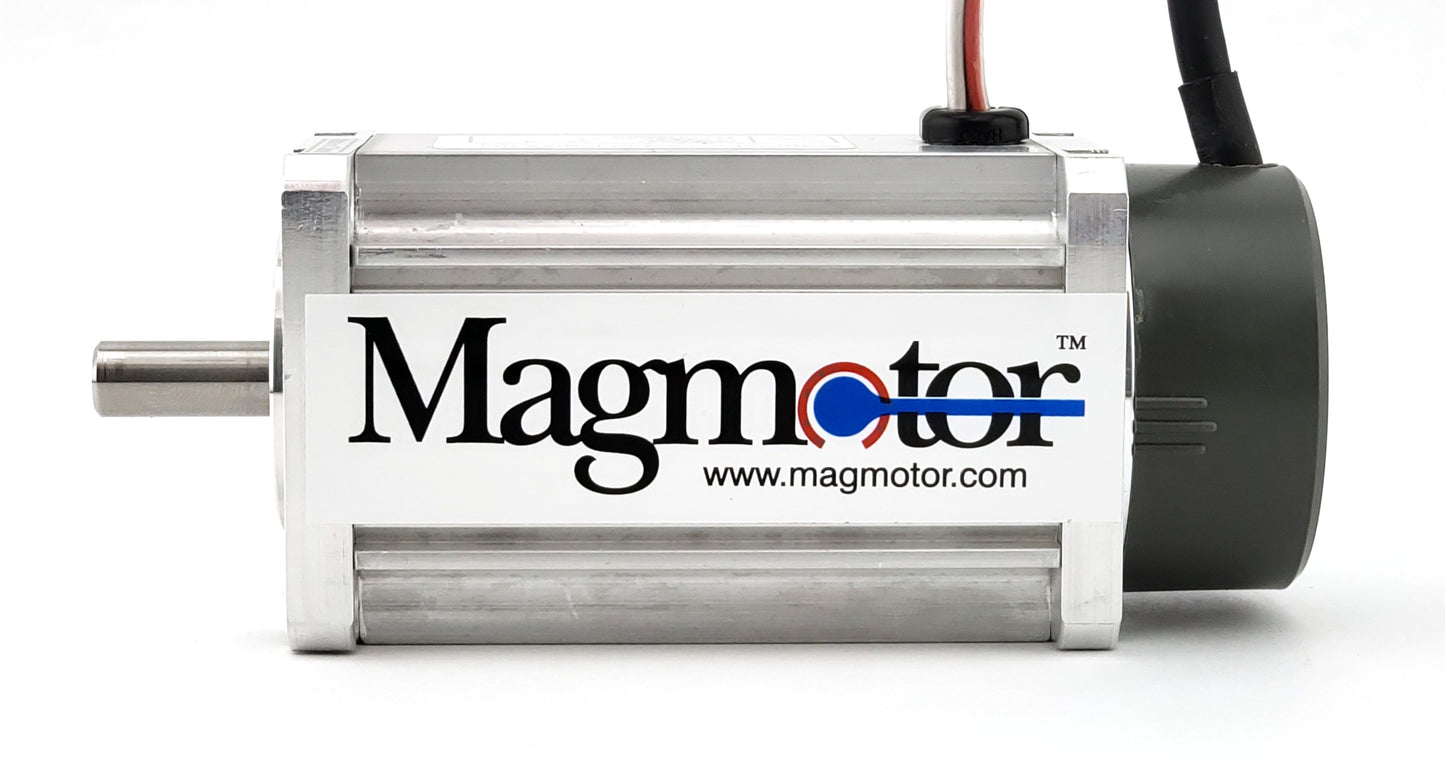

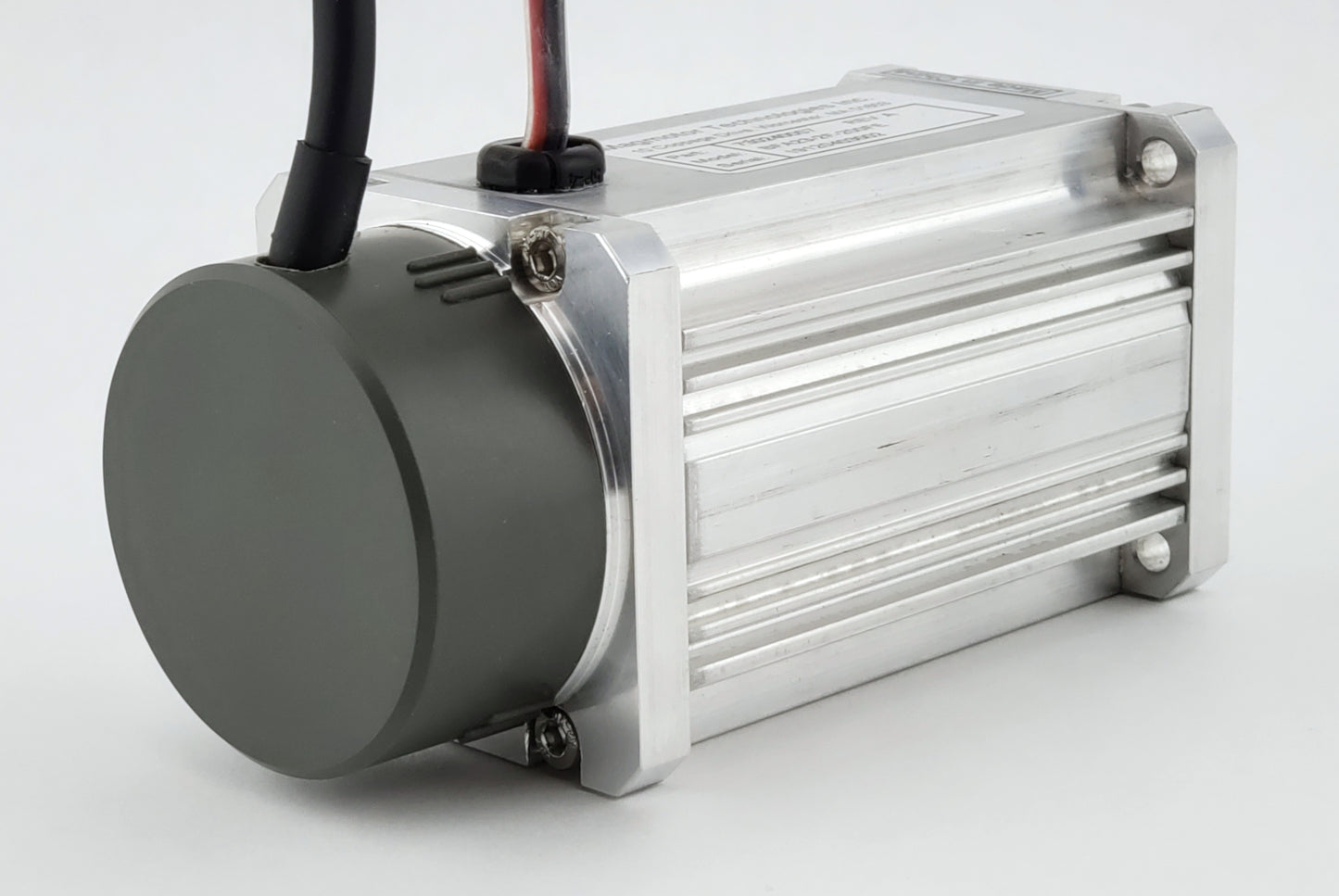

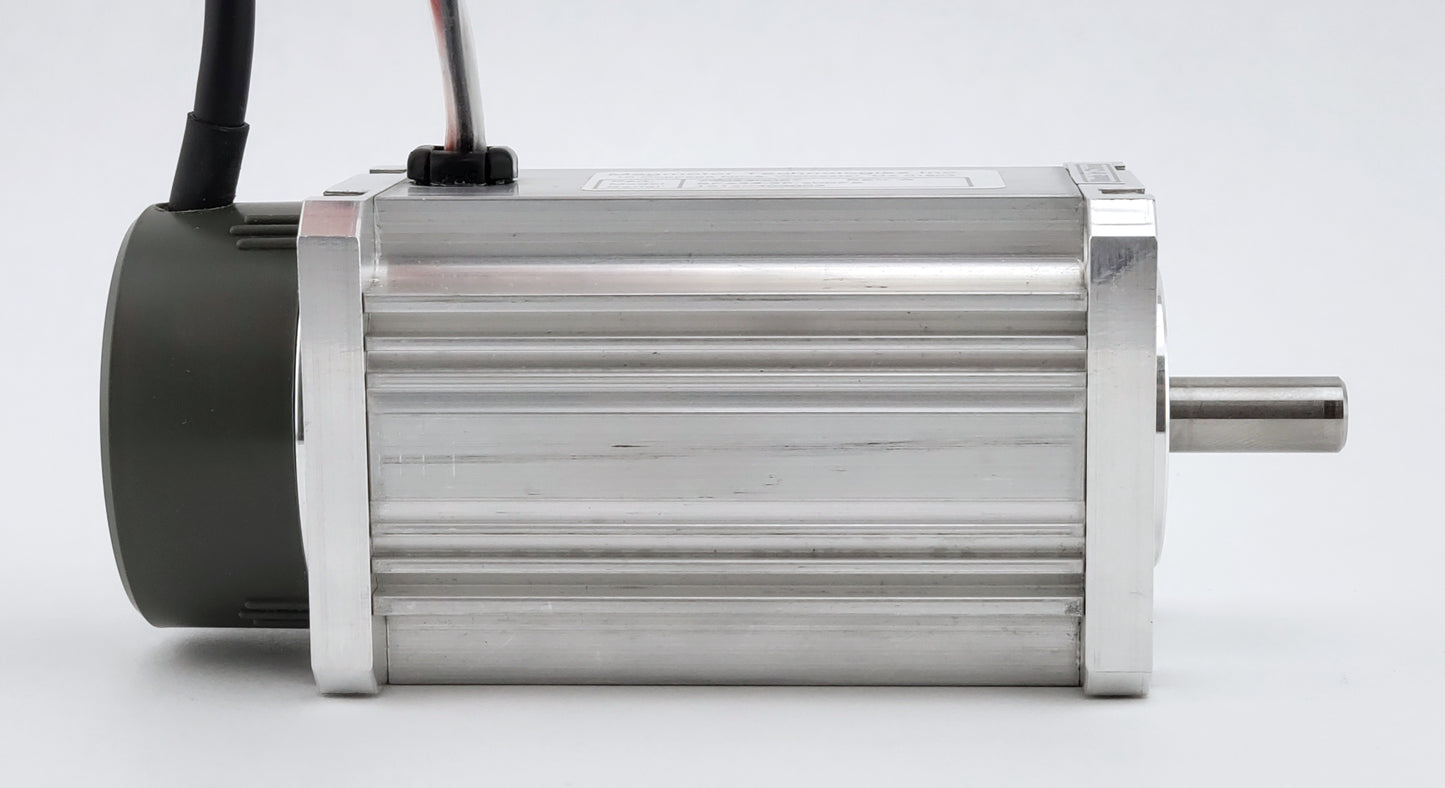

730240057 - BRUSHLESS MOTOR - 18 to 36 VDC - 68 to 77 oz-in Continuous Torque - BFA23-2F-200FE

  • $595.00
    Unit price per
Shipping calculated at checkout.


DC Motor Specifications:

  • Sold with a 2000 Line Commutation Encoder Installed
  • 8 Pole - Brushless DC Motor
  • NEMA 23 Mounting
  • Voltage Constant (Ke) = 7.5 +/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 10.1 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 1825 rpm @ 18VDC with a continuous torque of 77 oz-in
  • Capable of operating at 2650 rpm @ 24VDC with a continuous torque of 74 oz-in
  • Capable of operating at 3468 rpm @ 30VDC with a continuous torque of 71 oz-in
  • Capable of operating at 4290 rpm @ 36VDC with a continuous torque of 68 oz-in

    DOWNLOADS:

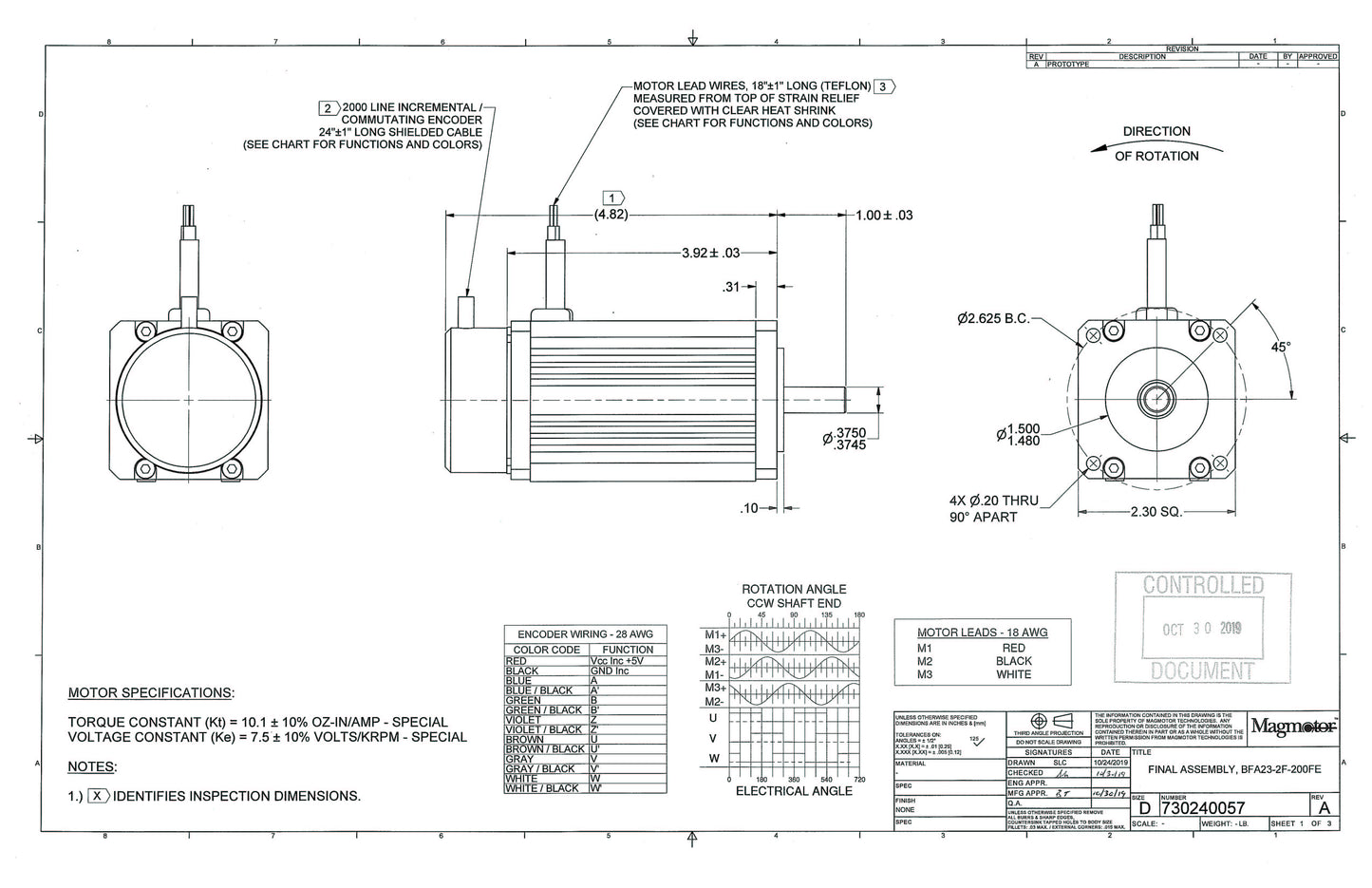

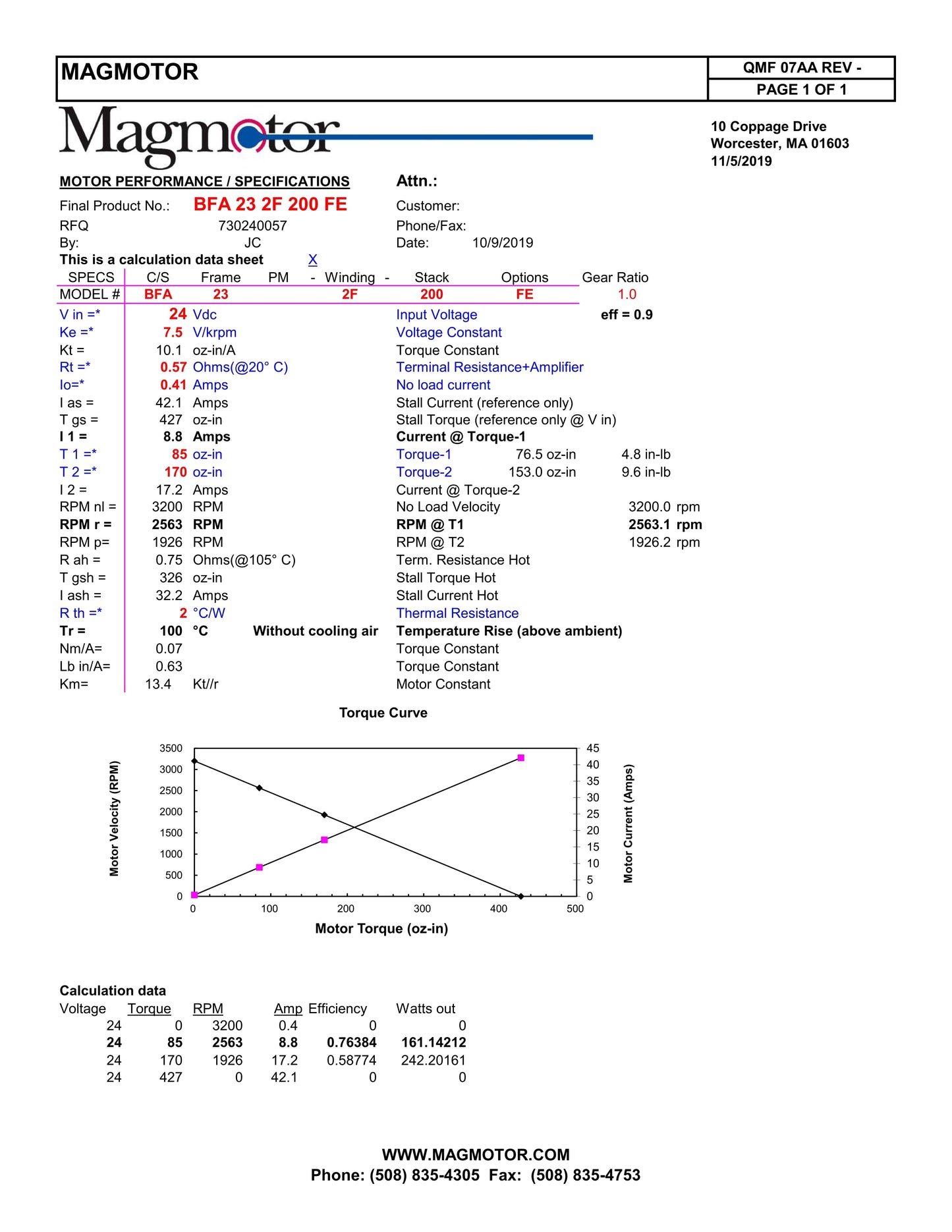

    magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button
