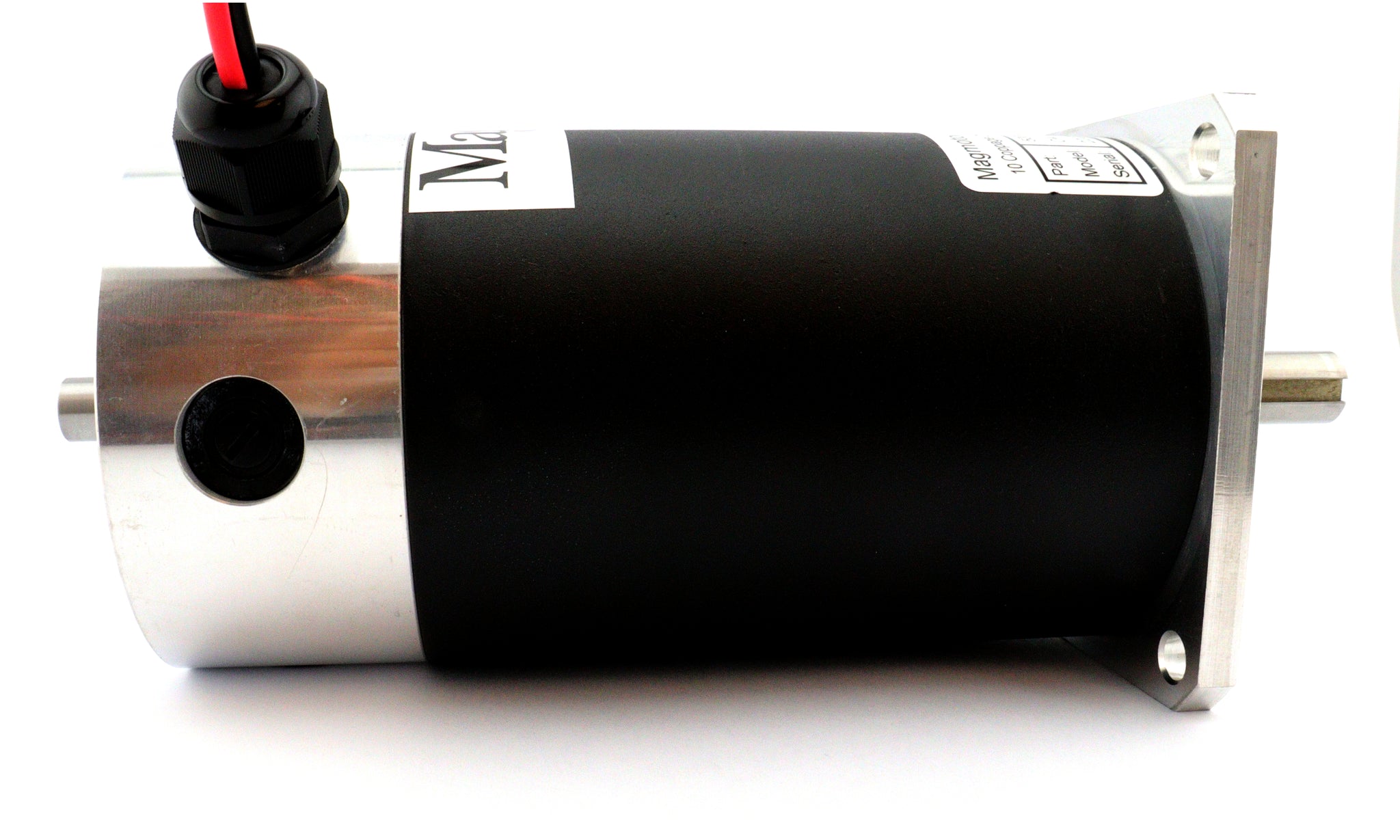

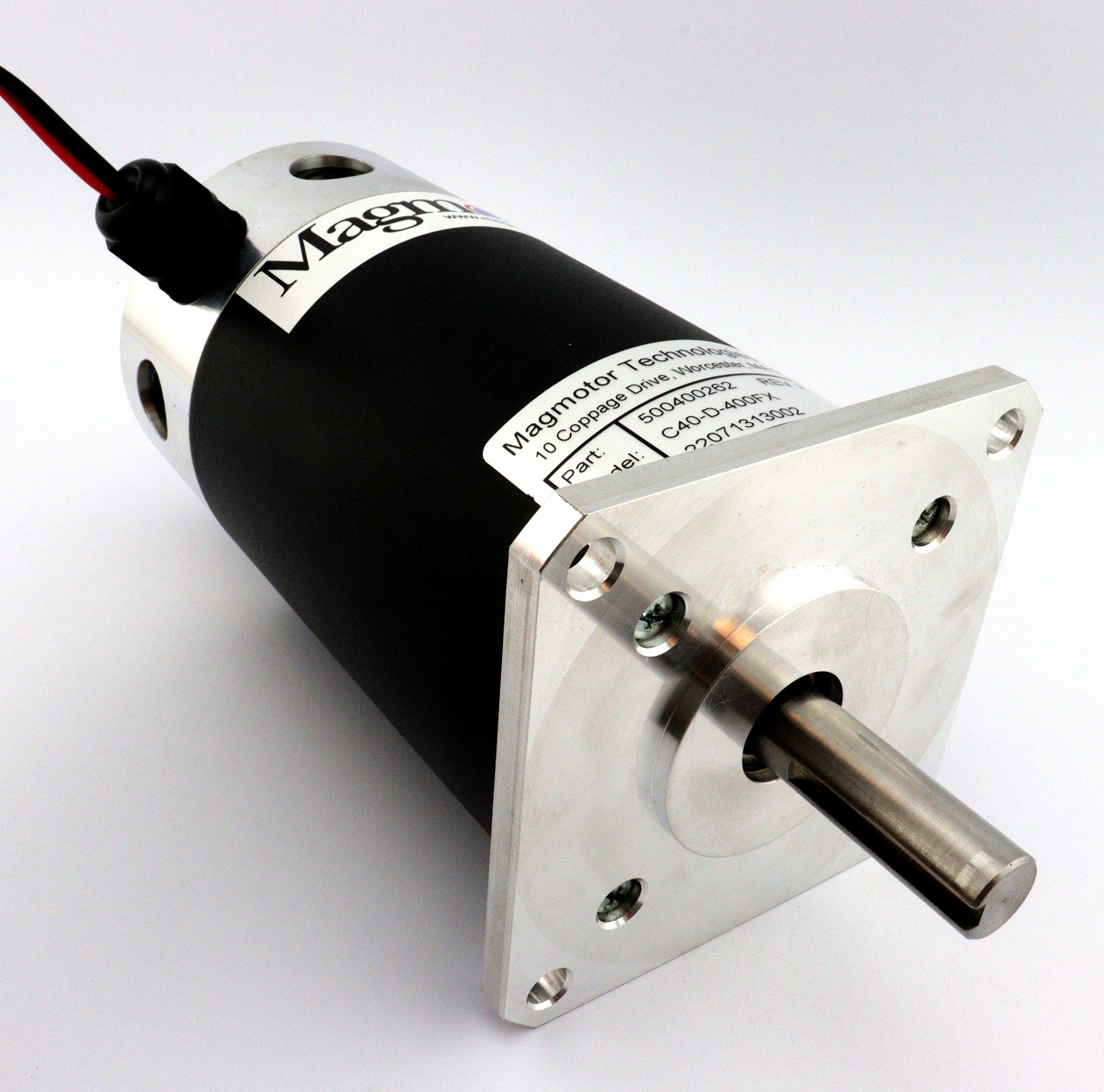

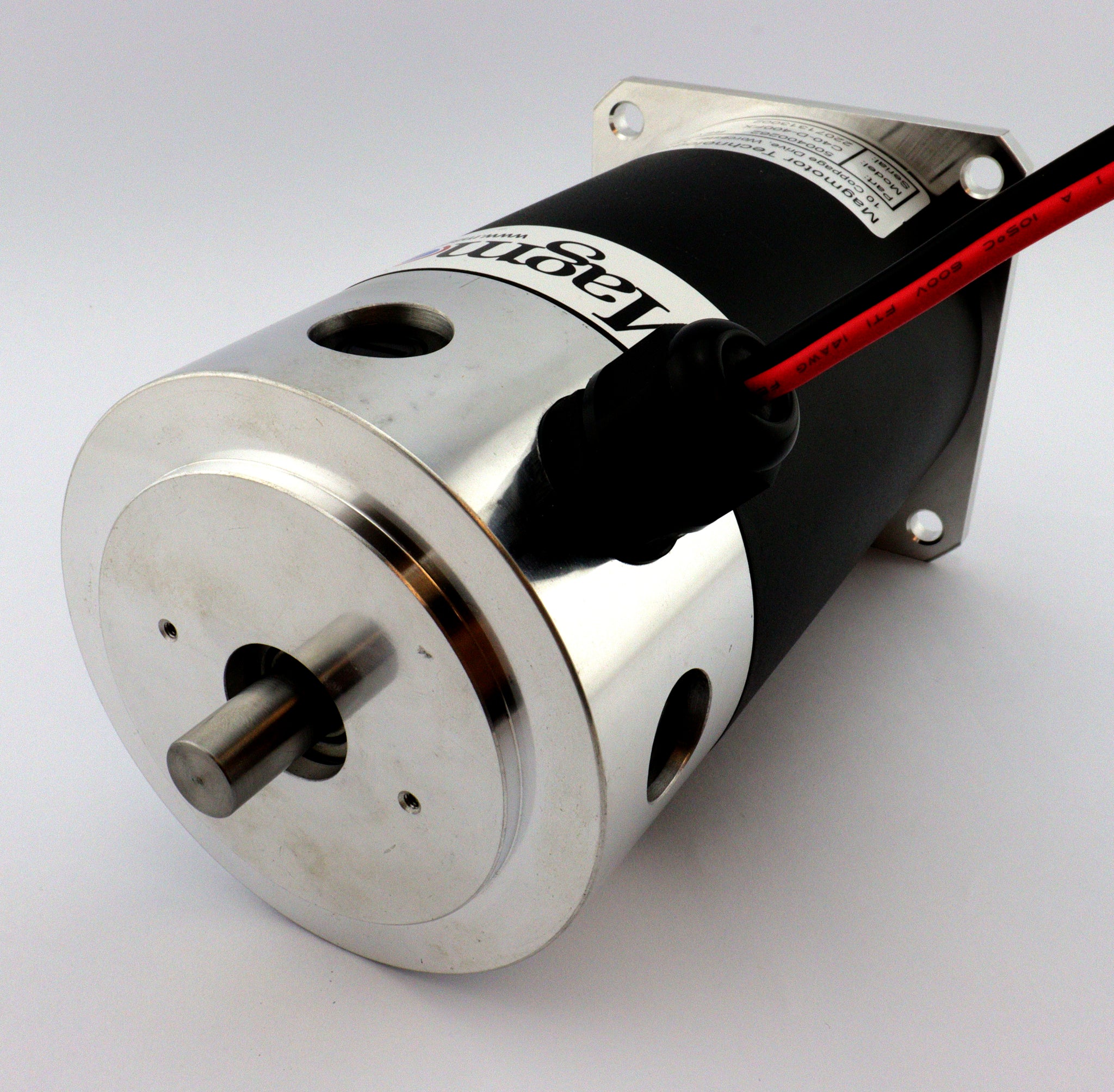

500400262 - BRUSHED MOTOR - 60 TO 120 VDC - 122 TO 336 OZ-IN CONT TORQUE - C40-D-400FX

DOWNLOADS:



DC Motor Specifications:

• 4 Pole - Brushed DC Motor
• NEMA 42 Mounting
• Encoder Ready
• Voltage Constant (Ke) = 44.5+/- 10% VOLTS/KRPM

• Torque Constant (Kt) = 60.2 +/- 10% OZ-IN/AMP
• REACH, RoHS and CE Compliant

Example Performance Ranges:

• Capable of operating at 1773 rpm @ 60VDC with a continuous torque of 336 oz-in
• Capable of operating at 1889 rpm @ 90VDC with a continuous torque of 255 oz-in
• Capable of operating at 2633 rpm @ 120VDC with a continuous torque of 122 oz-in
