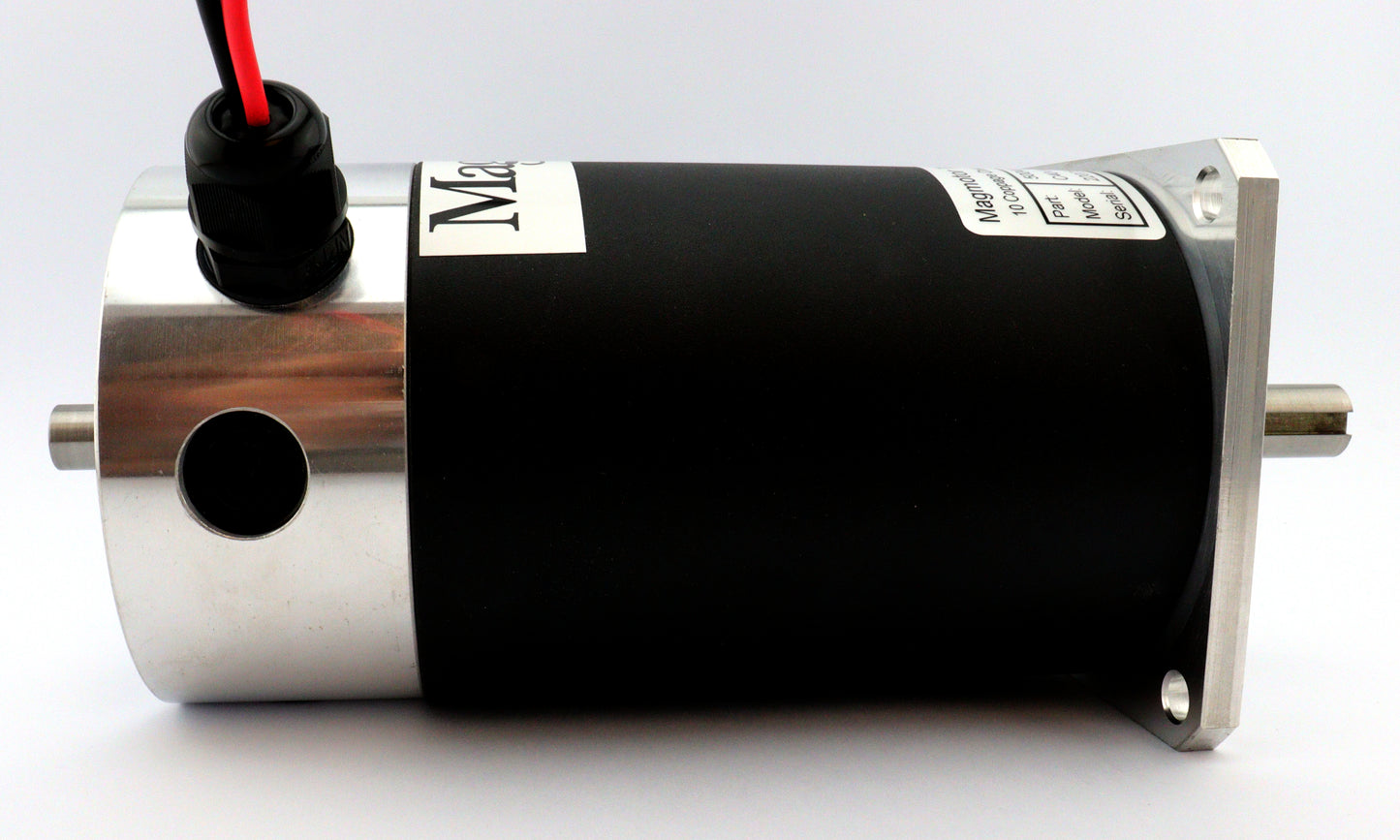

500400261 - BRUSHED MOTOR - 24 TO 90 VDC - 170 TO 325 OZ-IN CONT TORQUE - C40-A-400FX

500400261 - BRUSHED MOTOR - 24 TO 90 VDC - 170 TO 325 OZ-IN CONT TORQUE - C40-A-400FX

Regular price $623.00
Regular price Sale price $623.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button

DC Motor Specifications:

  • 4 Pole - Brushed DC Motor
  • NEMA 42 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 23.5+/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 31.8 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 773 rpm @ 24VDC with a continuous torque of 325 oz-in
  • Capable of operating at 1844 rpm @ 48VDC with a continuous torque of 260 oz-in
  • Capable of operating at 2930 rpm @ 72VDC with a continuous torque of 175 oz-in
  • Capable of operating at 3700 rpm @ 90VDC with a continuous torque of 170 oz-in
