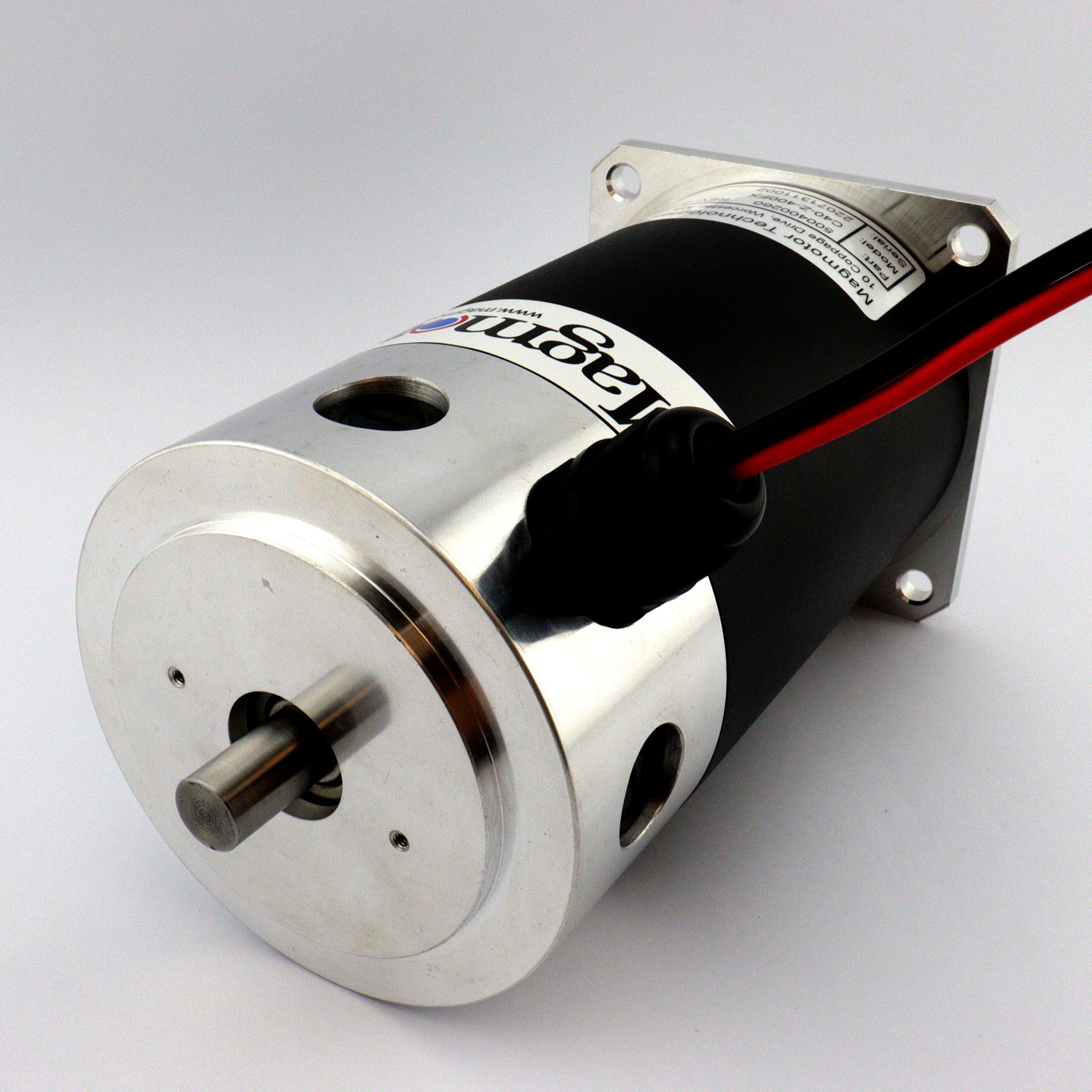

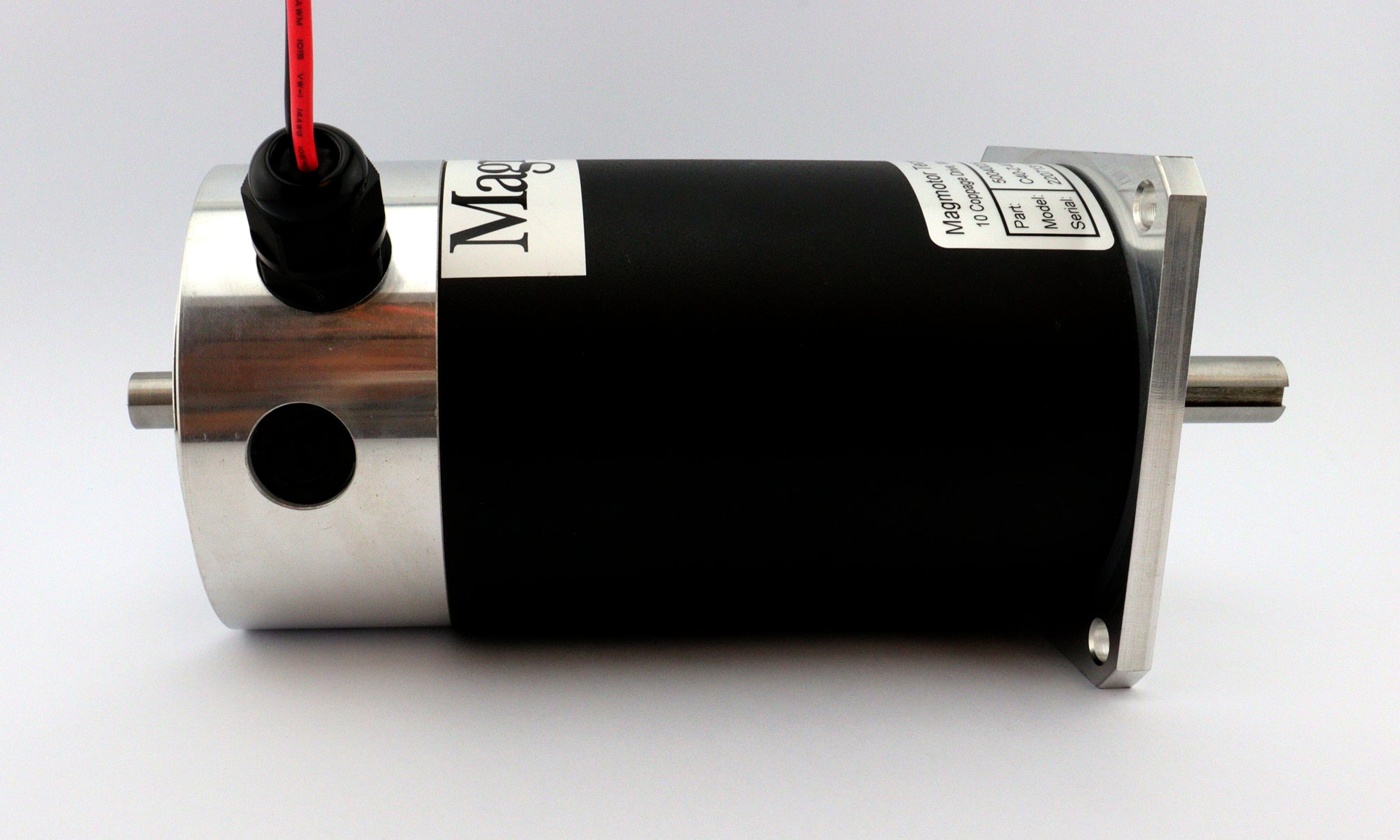

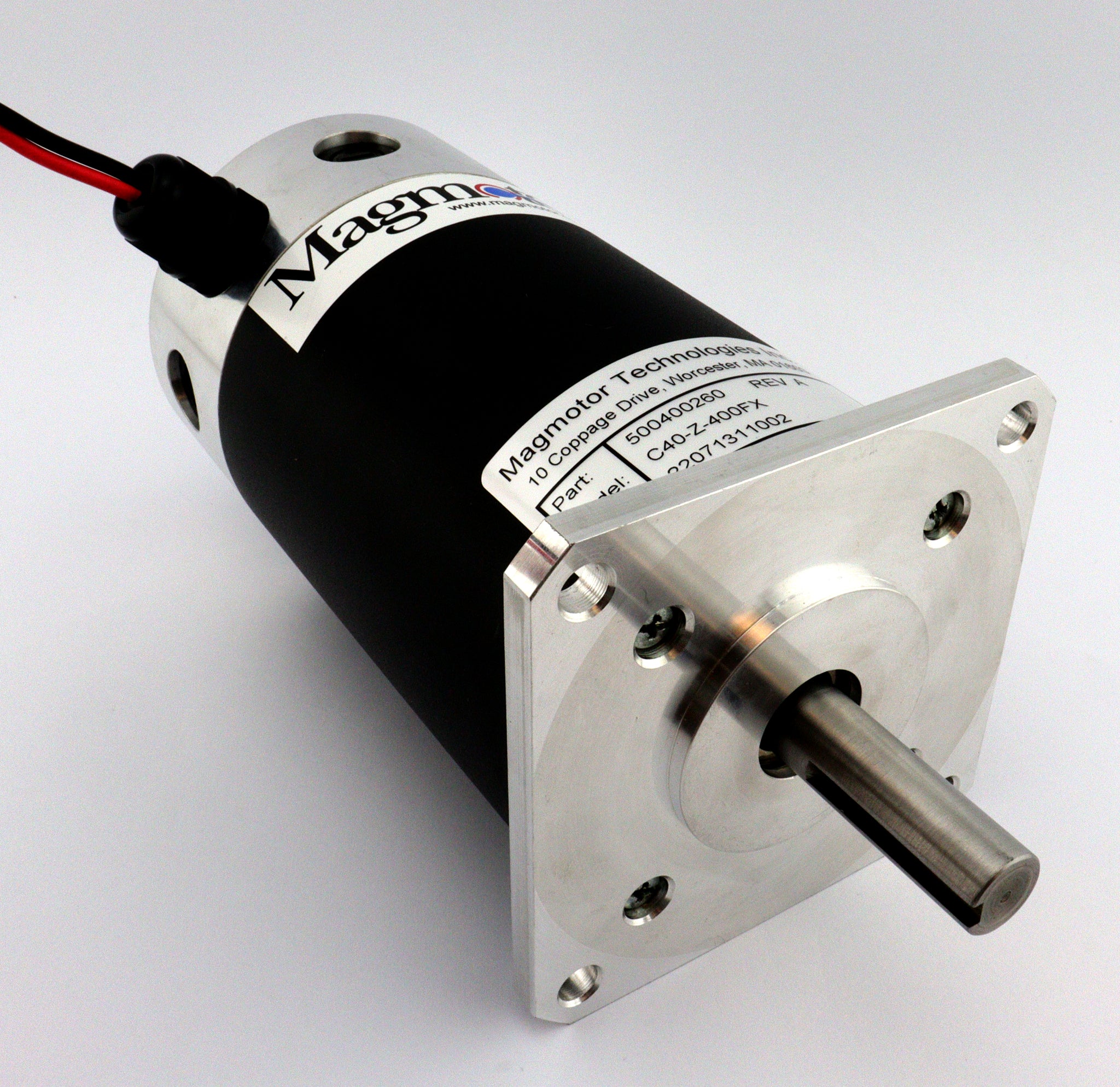

500400260 - BRUSHED MOTOR - 36 TO 48 VDC - 185 TO 308 OZ-IN CONT TORQUE - C40-Z-400FX

DOWNLOADS:



DC Motor Specifications:

• 4 Pole - Brushed DC Motor
• NEMA 42 Mounting
• Encoder Ready
• Voltage Constant (Ke) = 18.8+/- 10% VOLTS/KRPM

• Torque Constant (Kt) = 25.4 +/- 10% OZ-IN/AMP
• REACH, RoHS and CE Compliant

Example Performance Ranges:

• Capable of operating at 1085 rpm @ 24VDC with a continuous torque of 308 oz-in
• Capable of operating at 1771 rpm @ 36VDC with a continuous torque of 230 oz-in
• Capable of operating at 2437 rpm @ 48VDC with a continuous torque of 185 oz-in
