500400259 - BRUSHED MOTOR - 12 TO 36 VDC - 135 TO 238 OZ-IN CONT TORQUE - C40-Z-300FX
500400259 - BRUSHED MOTOR - 12 TO 36 VDC - 135 TO 238 OZ-IN CONT TORQUE - C40-Z-300FX
Regular price
$614.00
Regular price
Sale price
$614.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- 4 Pole - Brushed DC Motor
- NEMA 42 Mounting
- Encoder Ready
-
Voltage Constant (Ke) = 14.5+/- 10% VOLTS/KRPM
- Torque Constant (Kt) = 19.6 +/- 10% OZ-IN/AMP
- REACH, RoHS and CE Compliant
Example Performance Ranges:
- Capable of operating at 568 rpm @ 12VDC with a continuous torque of 238 oz-in
- Capable of operating at 1444 rpm @ 24VDC with a continuous torque of 194 oz-in
- Capable of operating at 2336 rpm @ 36VDC with a continuous torque of 135 oz-in
Share

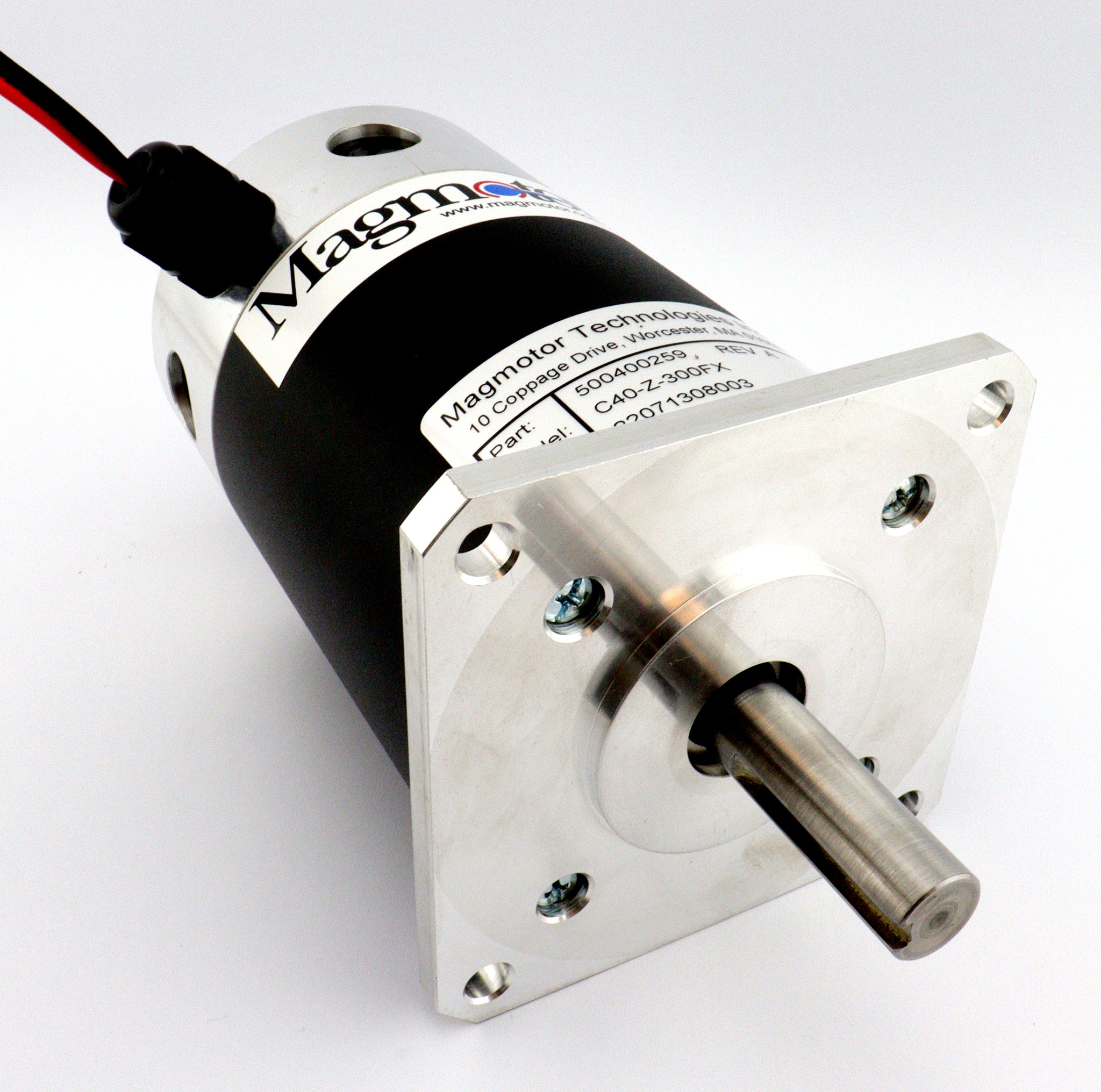

![Magmotor C40-Z-300FX Brushed Motor 500400259 Front View](http://magmotorstore.com/cdn/shop/products/magmotor-500400259-c40-z-300fx-brushed-servo-01.jpg?v=1660246134&width=1445)
![Magmotor C40-Z-300FX Brushed Motor 500400259 Back View](http://magmotorstore.com/cdn/shop/products/magmotor-500400259-c40-z-300fx-brushed-servo-02.jpg?v=1660246133&width=1445)

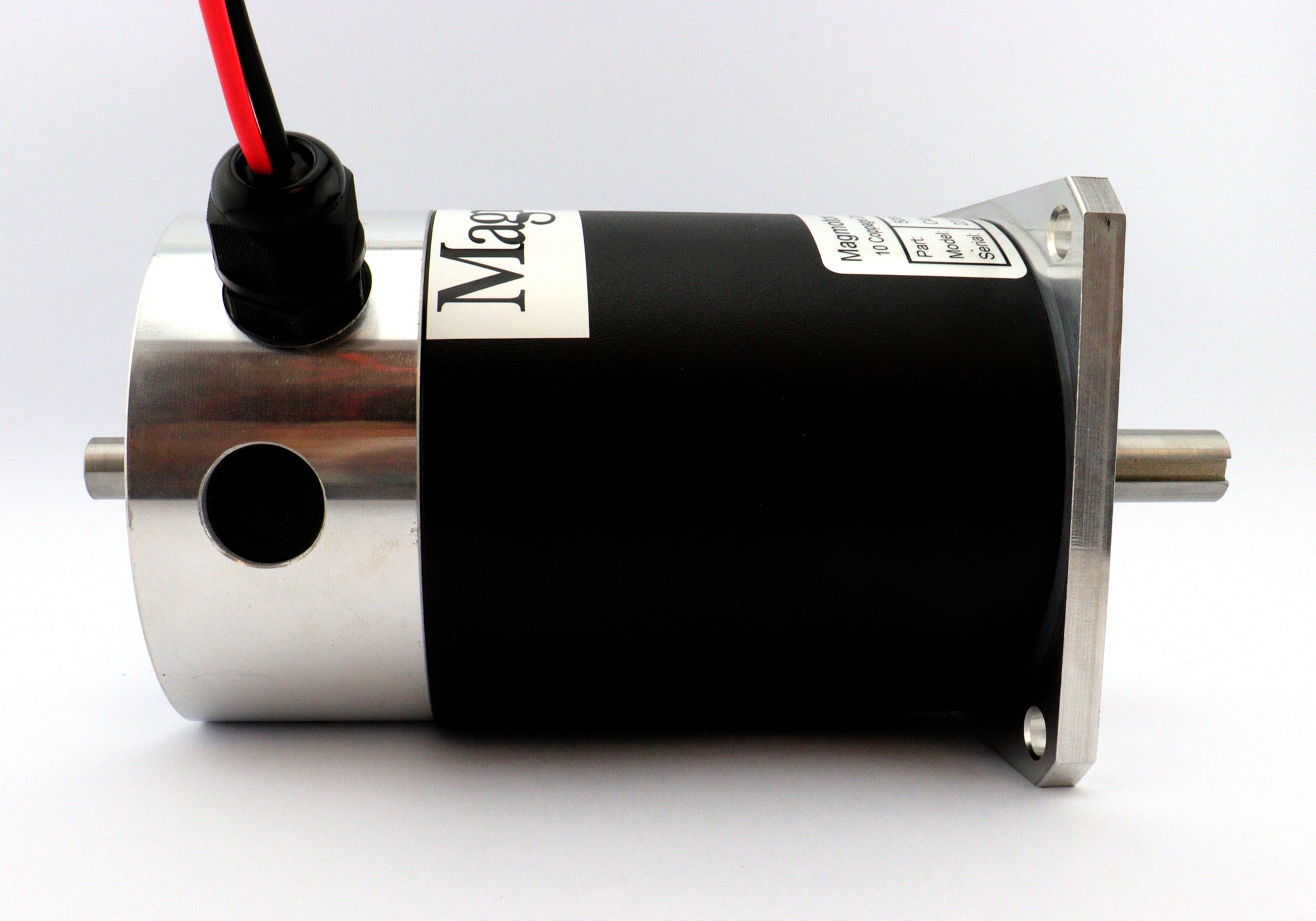

![Magmotor C40-Z-300FX Brushed Motor 500400259 Side View](http://magmotorstore.com/cdn/shop/products/magmotor-500400259-c40-z-300fx-brushed-servo-03.jpg?v=1660246134&width=1445)
