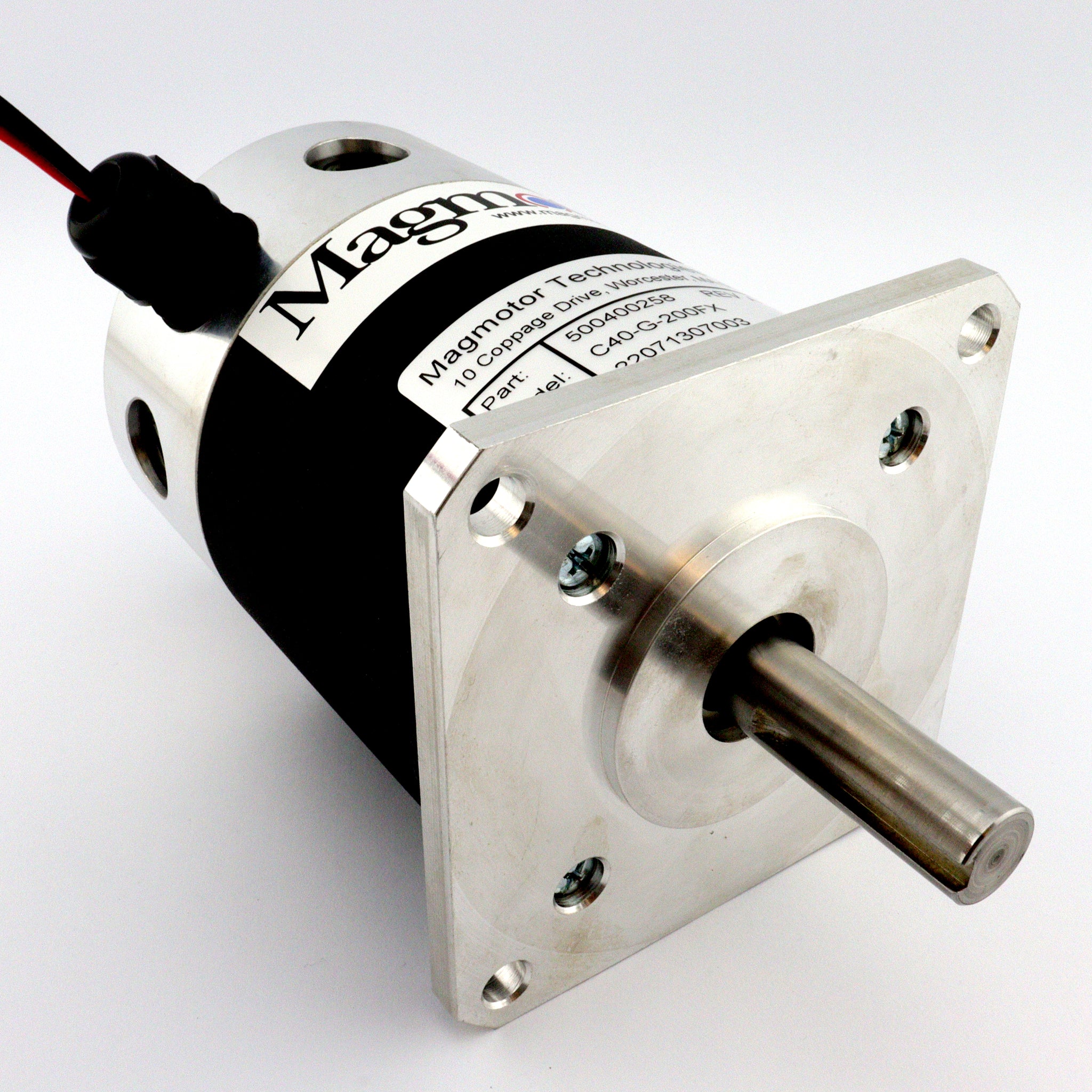

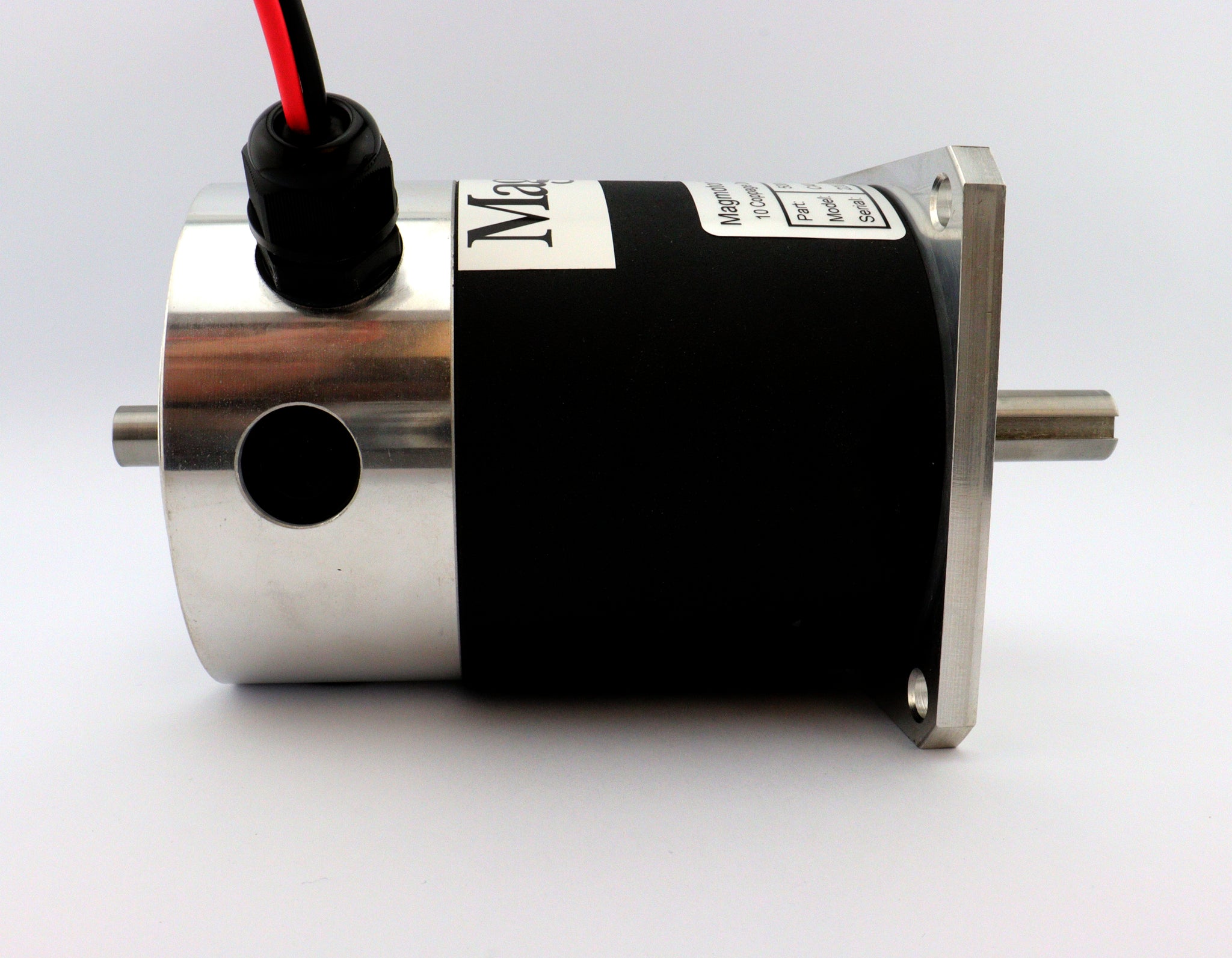

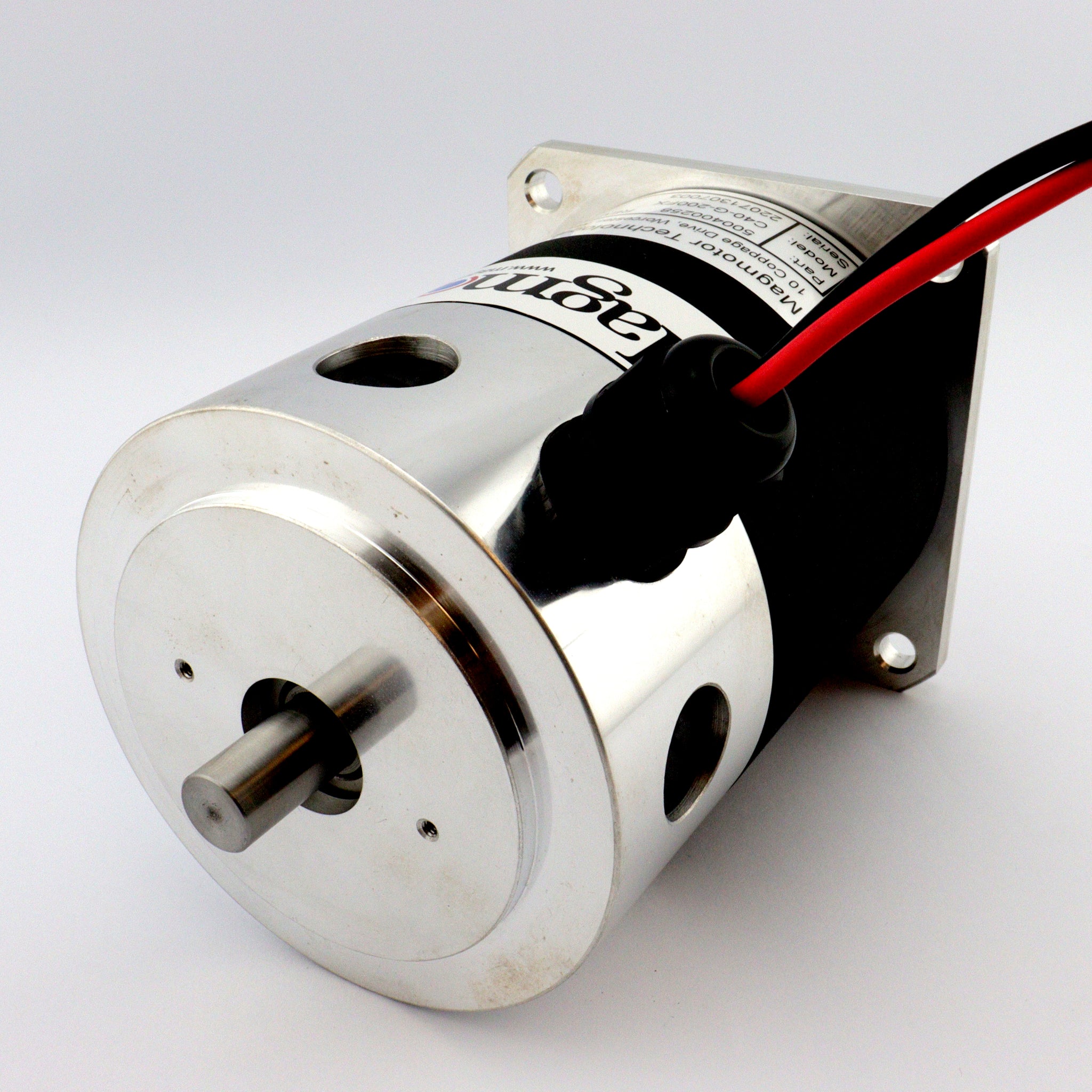

500400258 - BRUSHED MOTOR - 36 TO 120 VDC - 100 TO 200 OZ-IN CONT TORQUE - C40-G-200FX

500400258 - BRUSHED MOTOR - 36 TO 120 VDC - 100 TO 200 OZ-IN CONT TORQUE - C40-G-200FX

Regular price $508.00
Regular price Sale price $508.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button

DC Motor Specifications:

  • 4 Pole - Brushed DC Motor
  • NEMA 42 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 48.1+/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 65.1 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 559 rpm @ 36VDC with a continuous torque of 200 oz-in
  • Capable of operating at 1087 rpm @ 60VDC with a continuous torque of 170 oz-in
  • Capable of operating at 1762 rpm @ 90VDC with a continuous torque of 115 oz-in
  • Capable of operating at 2400 rpm @ 120VDC with a continuous torque of 100 oz-in
