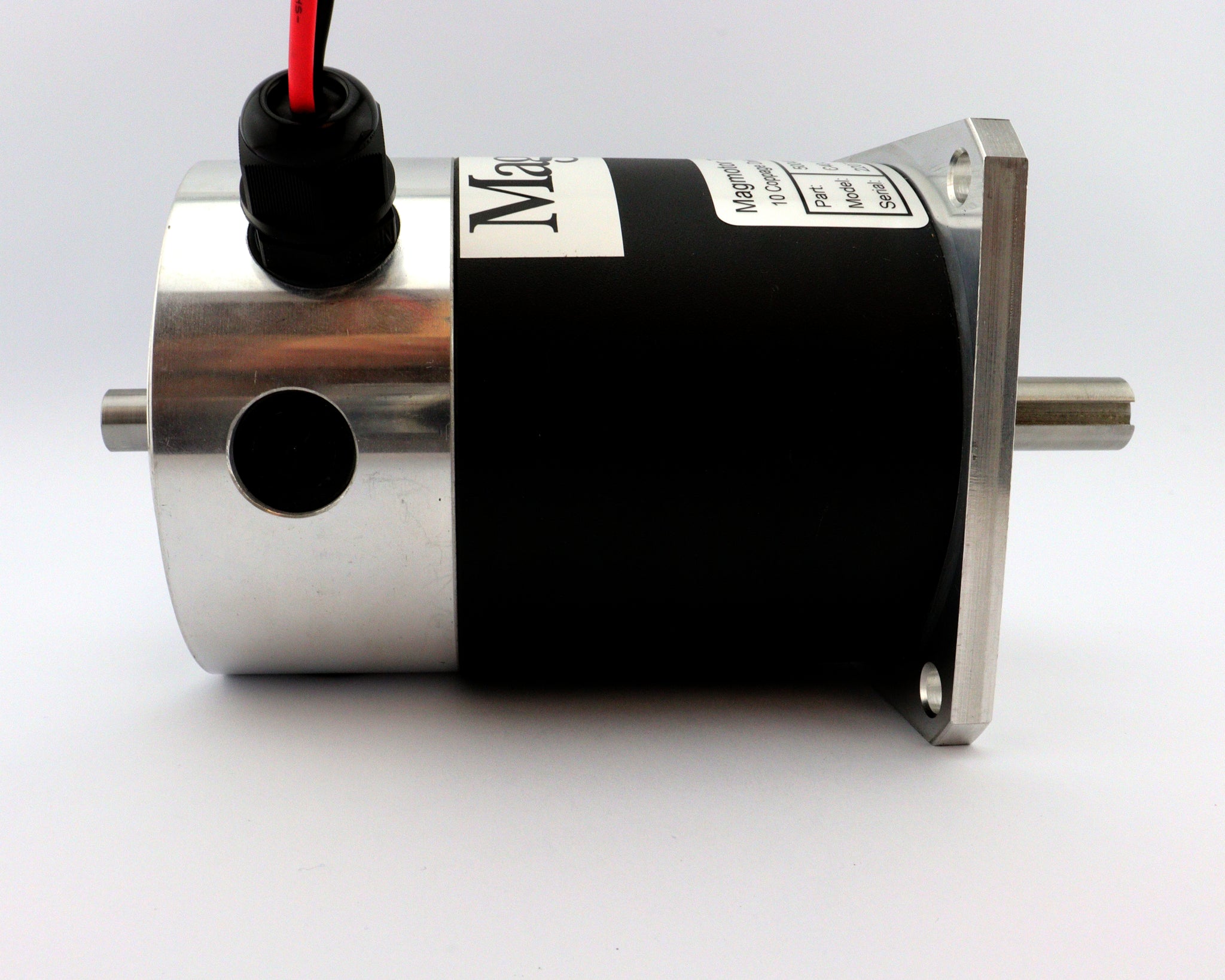

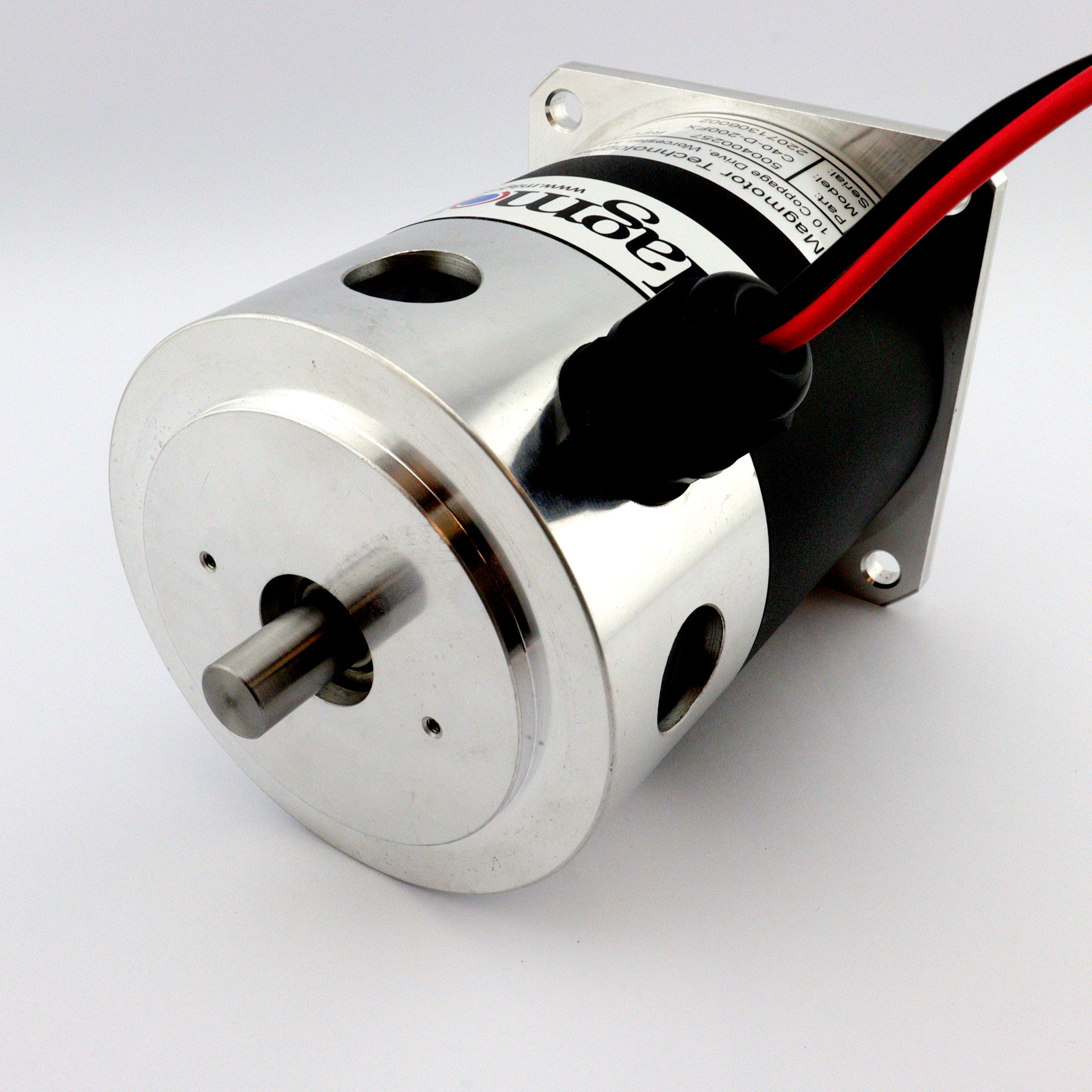

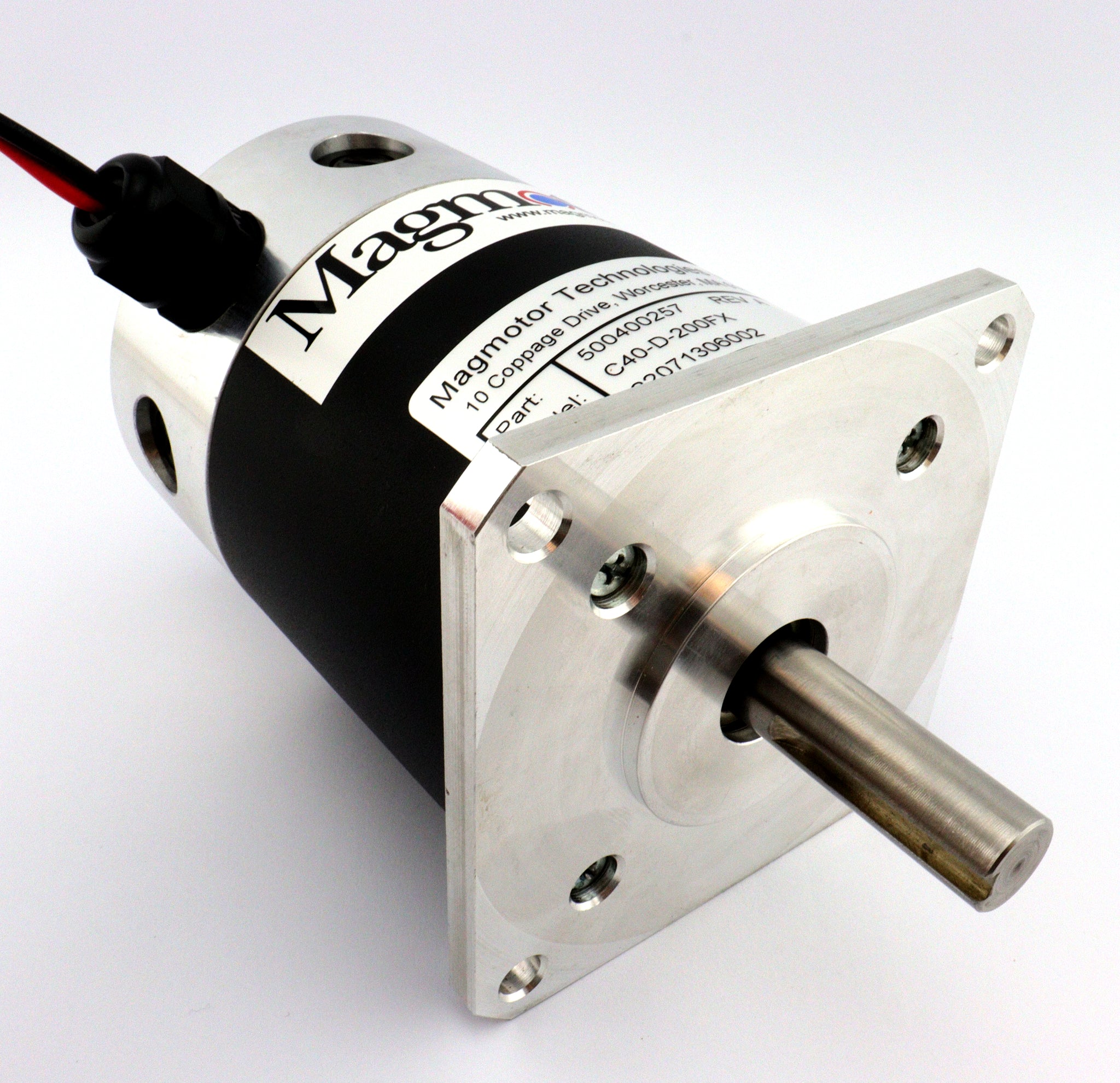

500400257 - BRUSHED MOTOR - 24 TO 60 VDC - 60 TO 110 OZ-IN CONT TORQUE - C40-D-200FX

DOWNLOADS:



DC Motor Specifications:

• 4 Pole - Brushed DC Motor
• NEMA 42 Mounting
• Encoder Ready
• Voltage Constant (Ke) = 24.0+/- 10% VOLTS/KRPM

• Torque Constant (Kt) = 32.5 +/- 10% OZ-IN/AMP
• REACH, RoHS and CE Compliant

Example Performance Ranges:

• Capable of operating at 703 rpm @ 24VDC with a continuous torque of 110 oz-in
• Capable of operating at 1257 rpm @ 36VDC with a continuous torque of 90 oz-in
• Capable of operating at 1830 rpm @ 48VDC with a continuous torque of 63 oz-in
• Capable of operating at 2338 rpm @ 60VDC with a continuous torque of 60 oz-in
