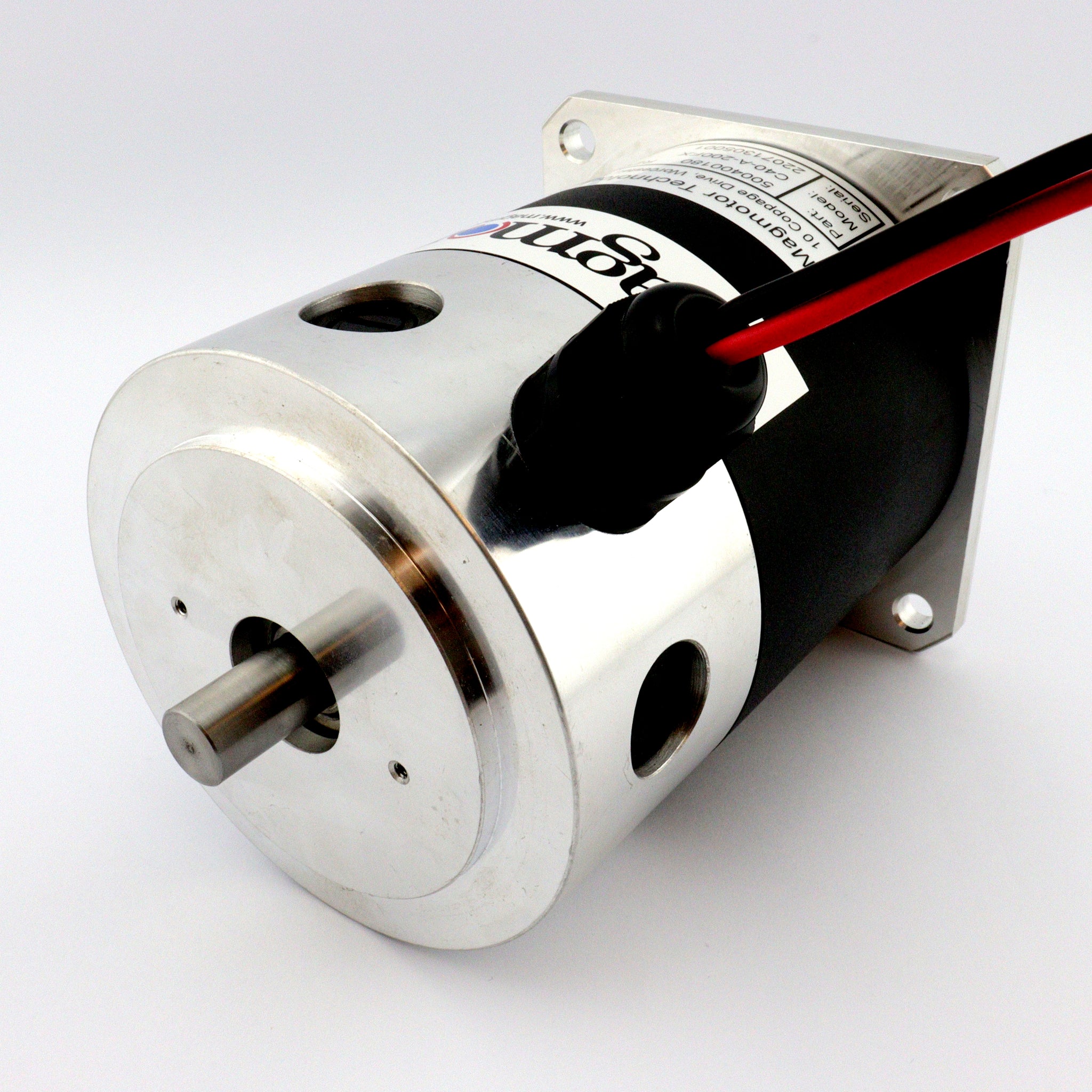

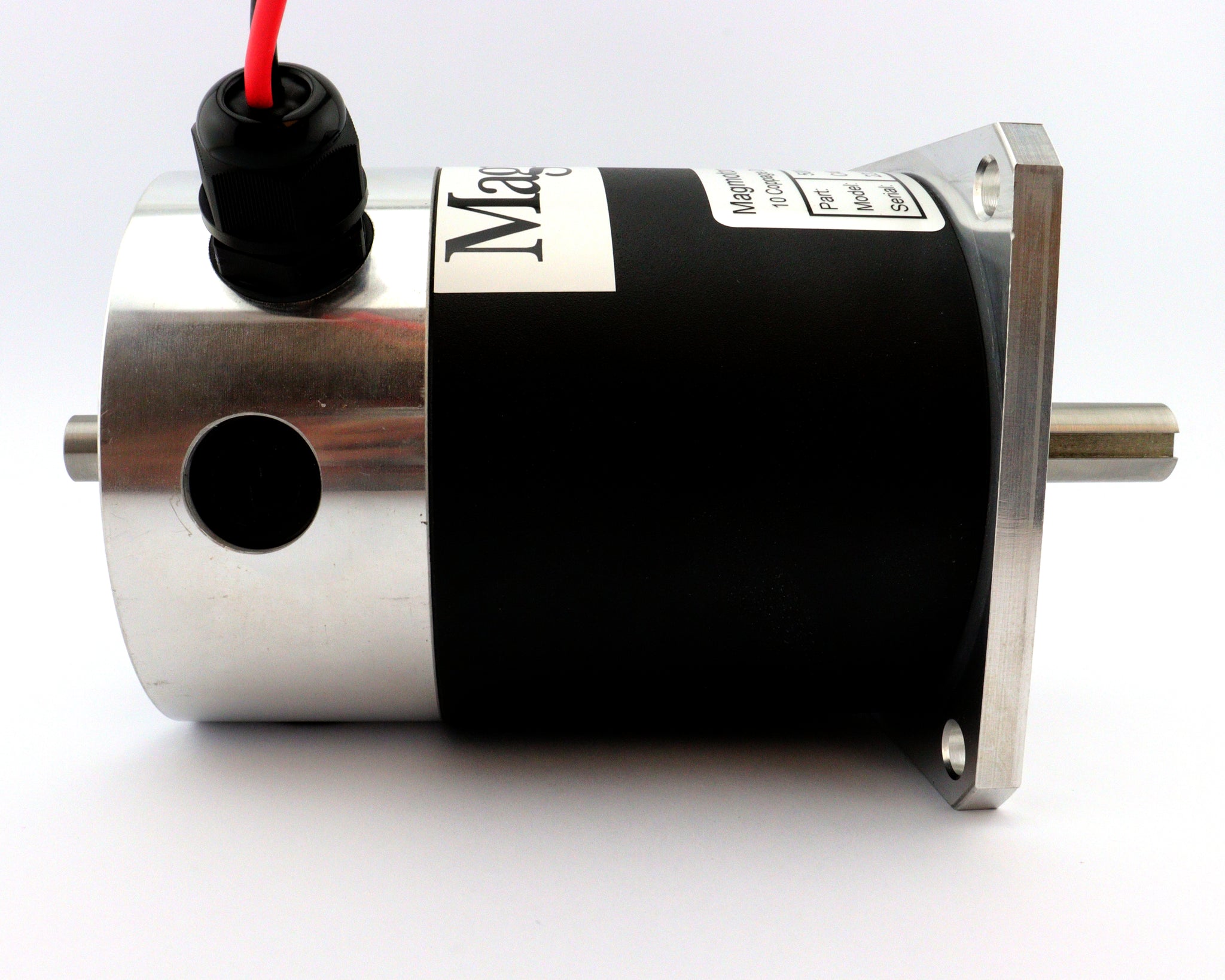

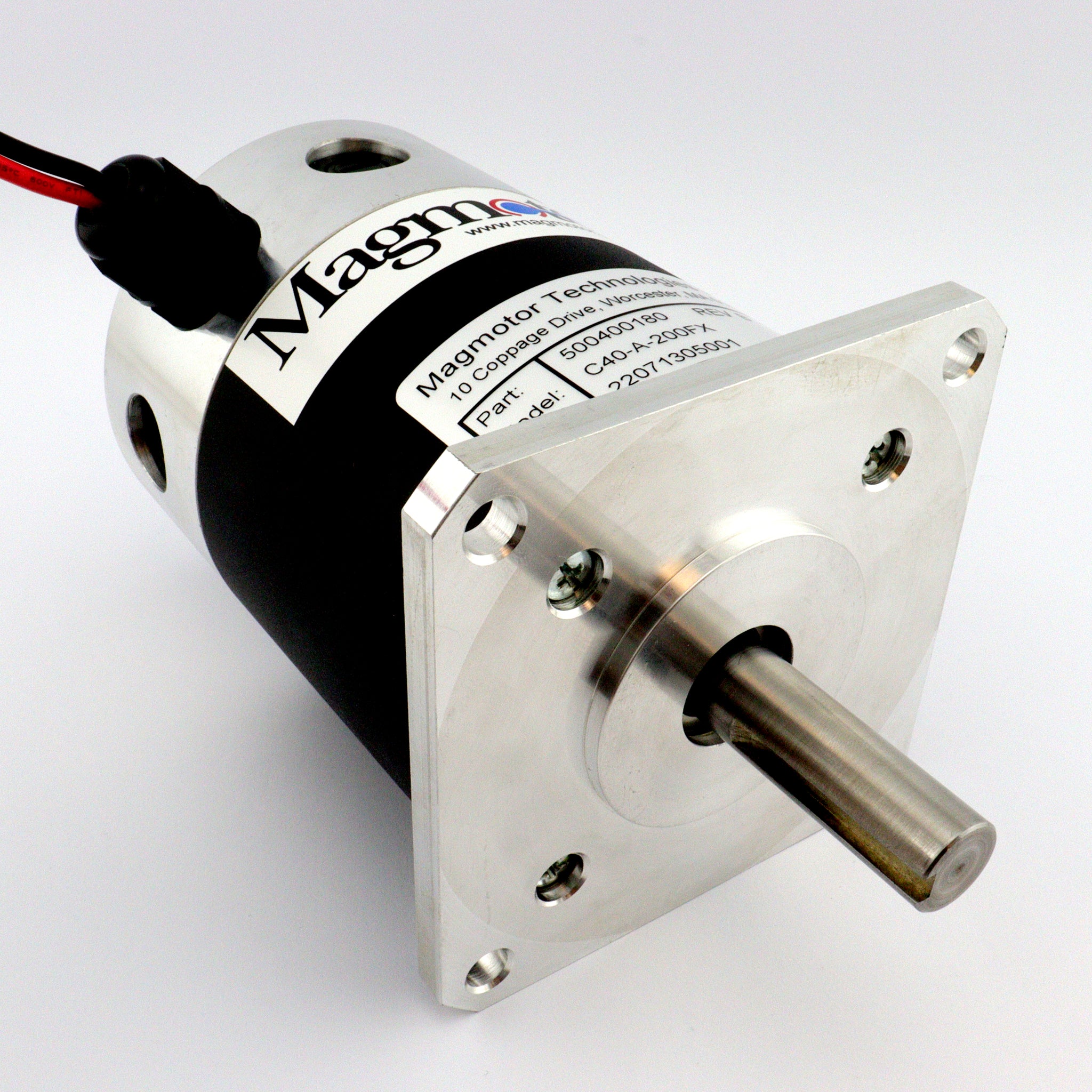

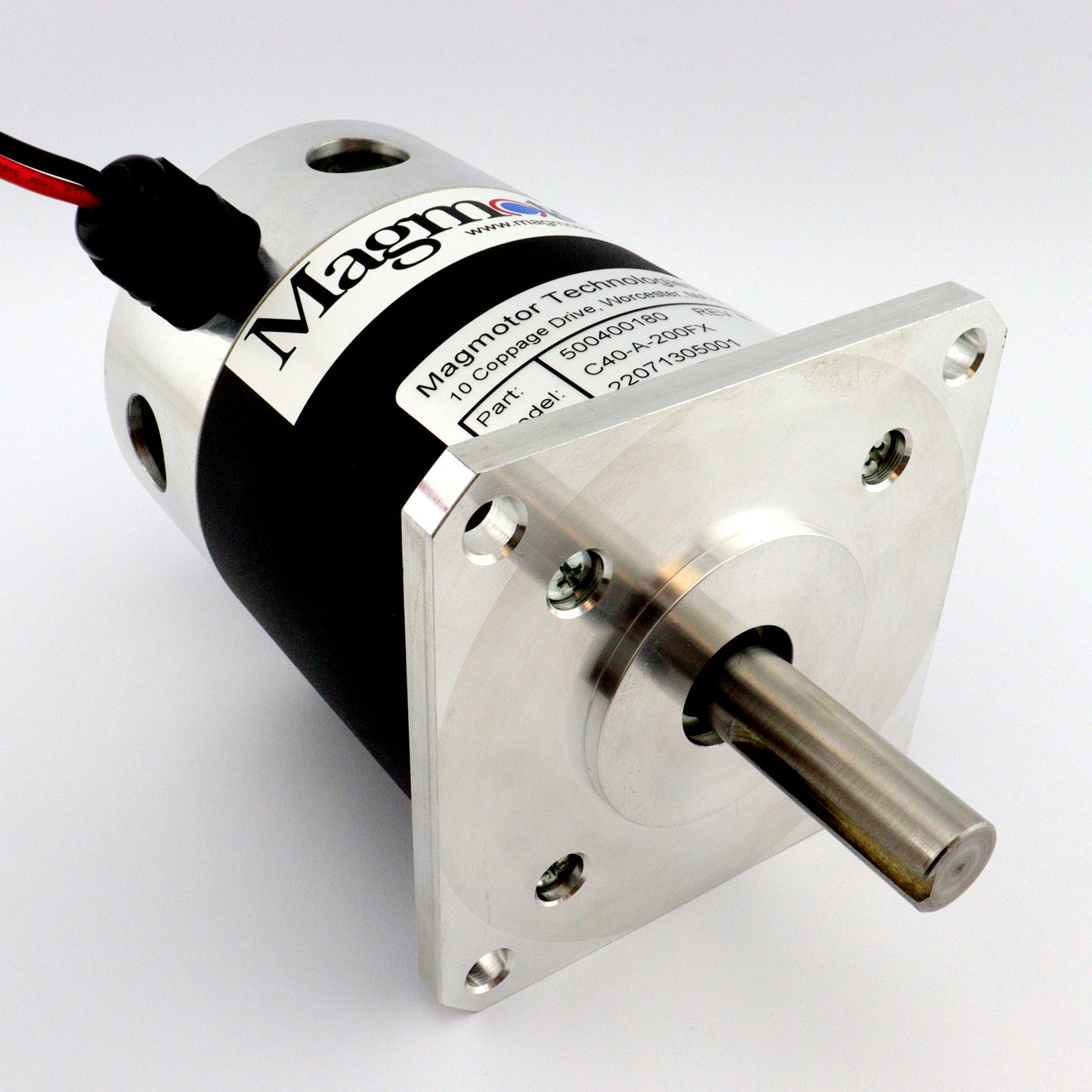

500400180 - BRUSHED MOTOR - 12 TO 36 VDC - 100 TO 162 OZ-IN CONT TORQUE - C40-A-200FX

500400180 - BRUSHED MOTOR - 12 TO 36 VDC - 100 TO 162 OZ-IN CONT TORQUE - C40-A-200FX

Regular price $508.00
Regular price Sale price $508.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button

DC Motor Specifications:

  • 4 Pole - Brushed DC Motor
  • NEMA 42 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 13.3+/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 18.0 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 692 rpm @ 12VDC with a continuous torque of 162 oz-in
  • Capable of operating at 1178 rpm @ 18VDC with a continuous torque of 135 oz-in
  • Capable of operating at 1662 rpm @ 24VDC with a continuous torque of 110 oz-in
  • Capable of operating at 2577 rpm @ 36VDC with a continuous torque of 100 oz-in
