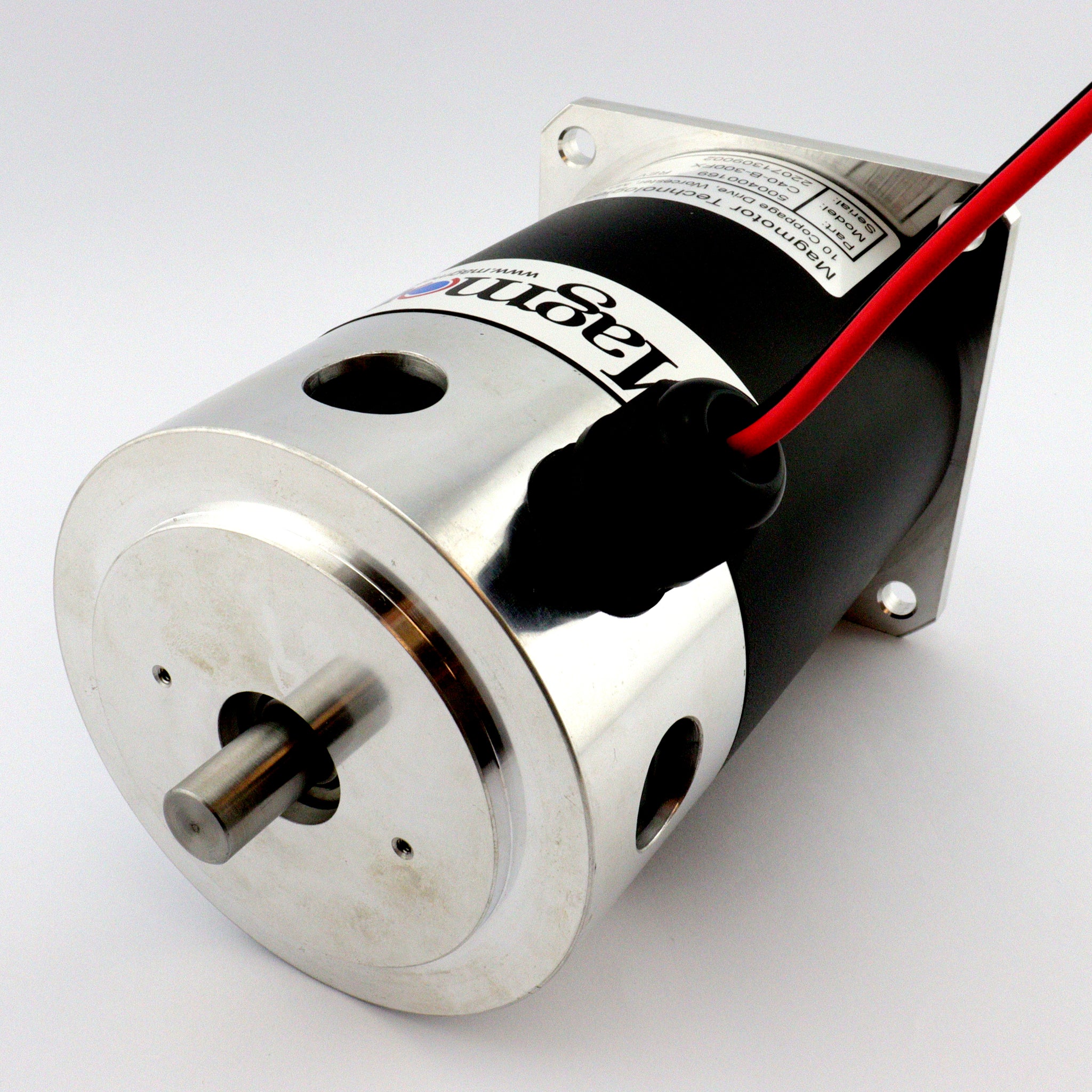

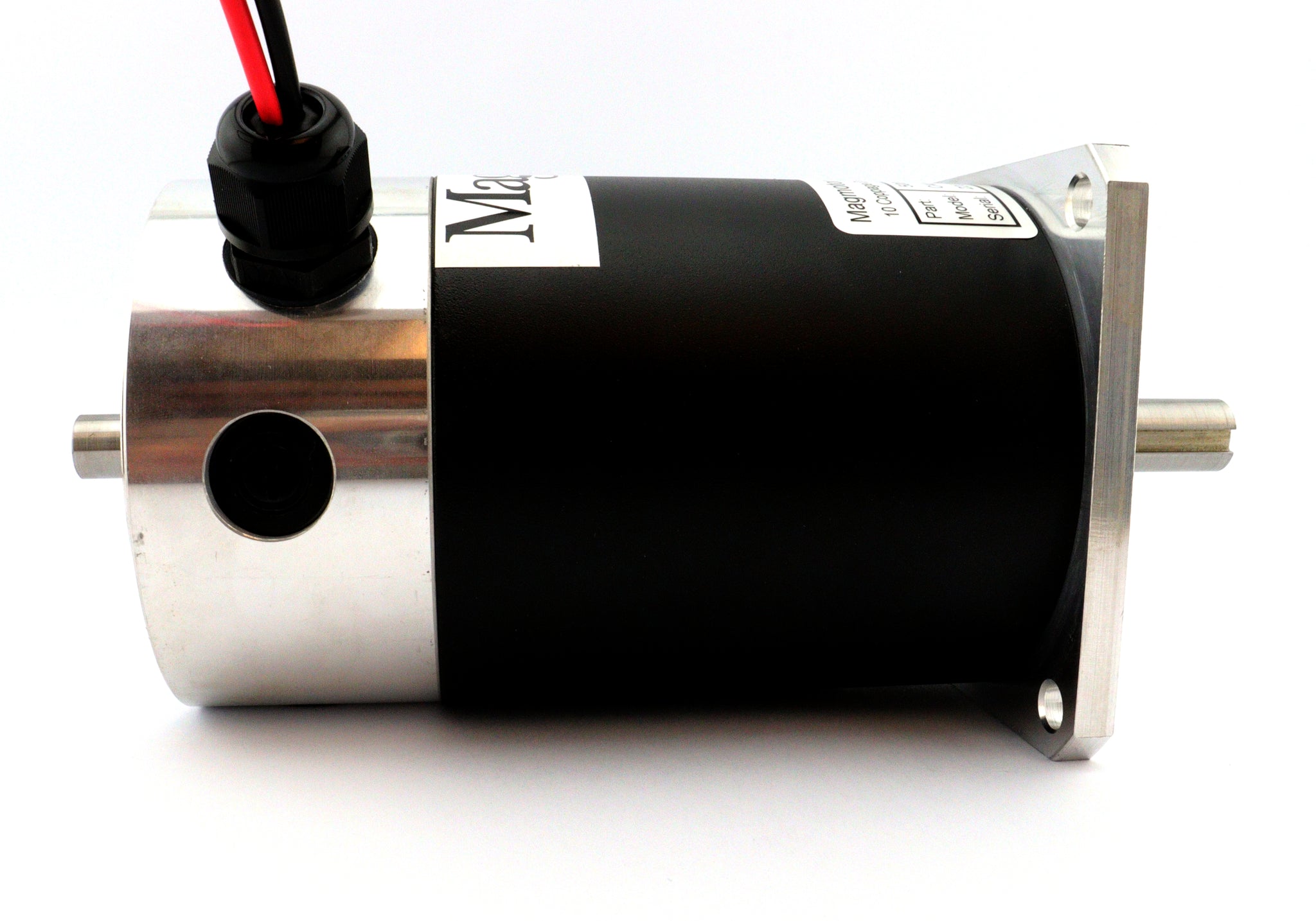

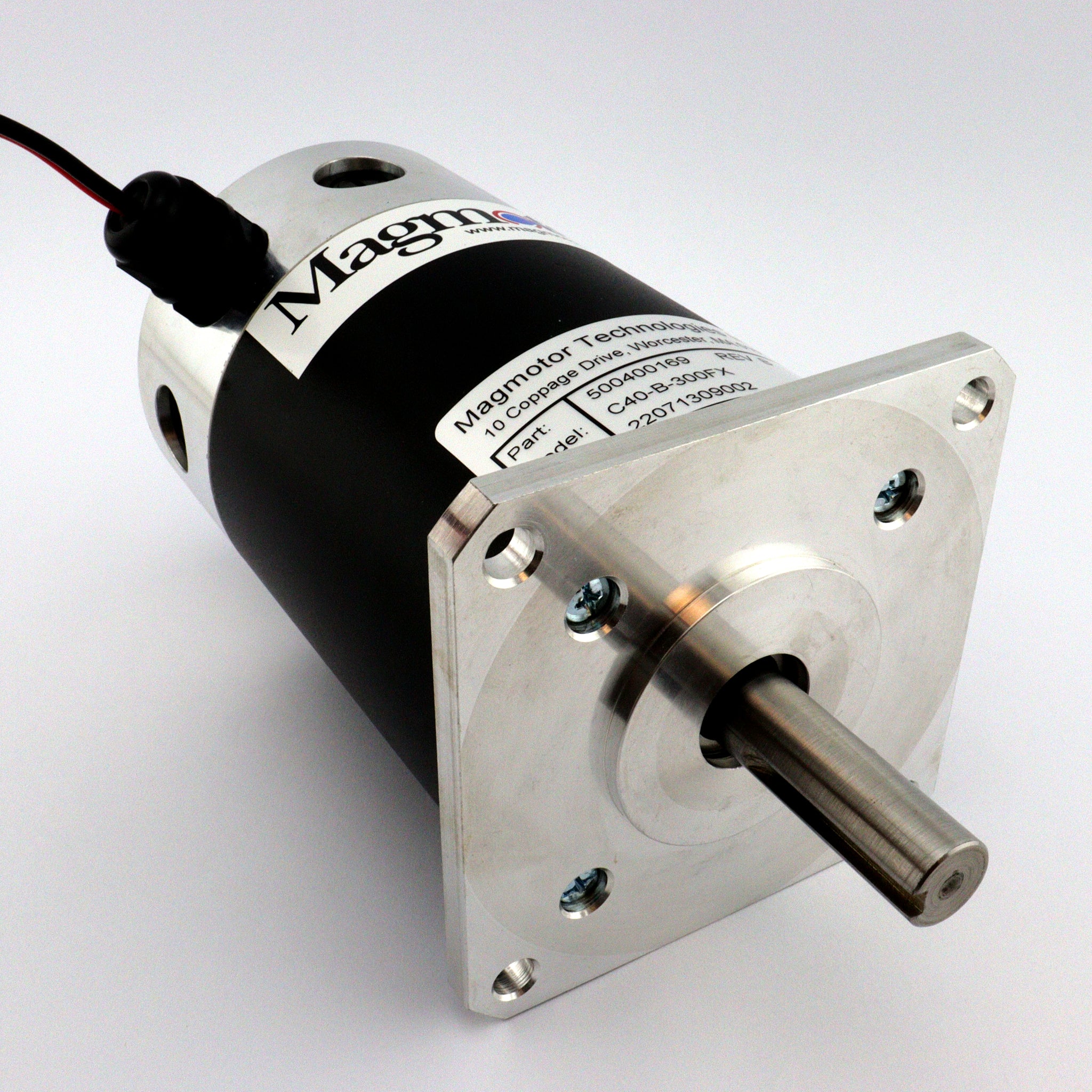

500400169 - BRUSHED MOTOR - 24 TO 60 VDC - 120 TO 272 OZ-IN CONT TORQUE - C40-B-300FX

500400169 - BRUSHED MOTOR - 24 TO 60 VDC - 120 TO 272 OZ-IN CONT TORQUE - C40-B-300FX

Regular price $571.00
Regular price Sale price $571.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button

DC Motor Specifications:

  • 4 Pole - Brushed DC Motor
  • NEMA 42 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 22.5+/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 30.4 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 868 rpm @ 24VDC with a continuous torque of 272 oz-in
  • Capable of operating at 2000 rpm @ 48VDC with a continuous torque of 184 oz-in
  • Capable of operating at 2580 rpm @ 60VDC with a continuous torque of 120 oz-in
