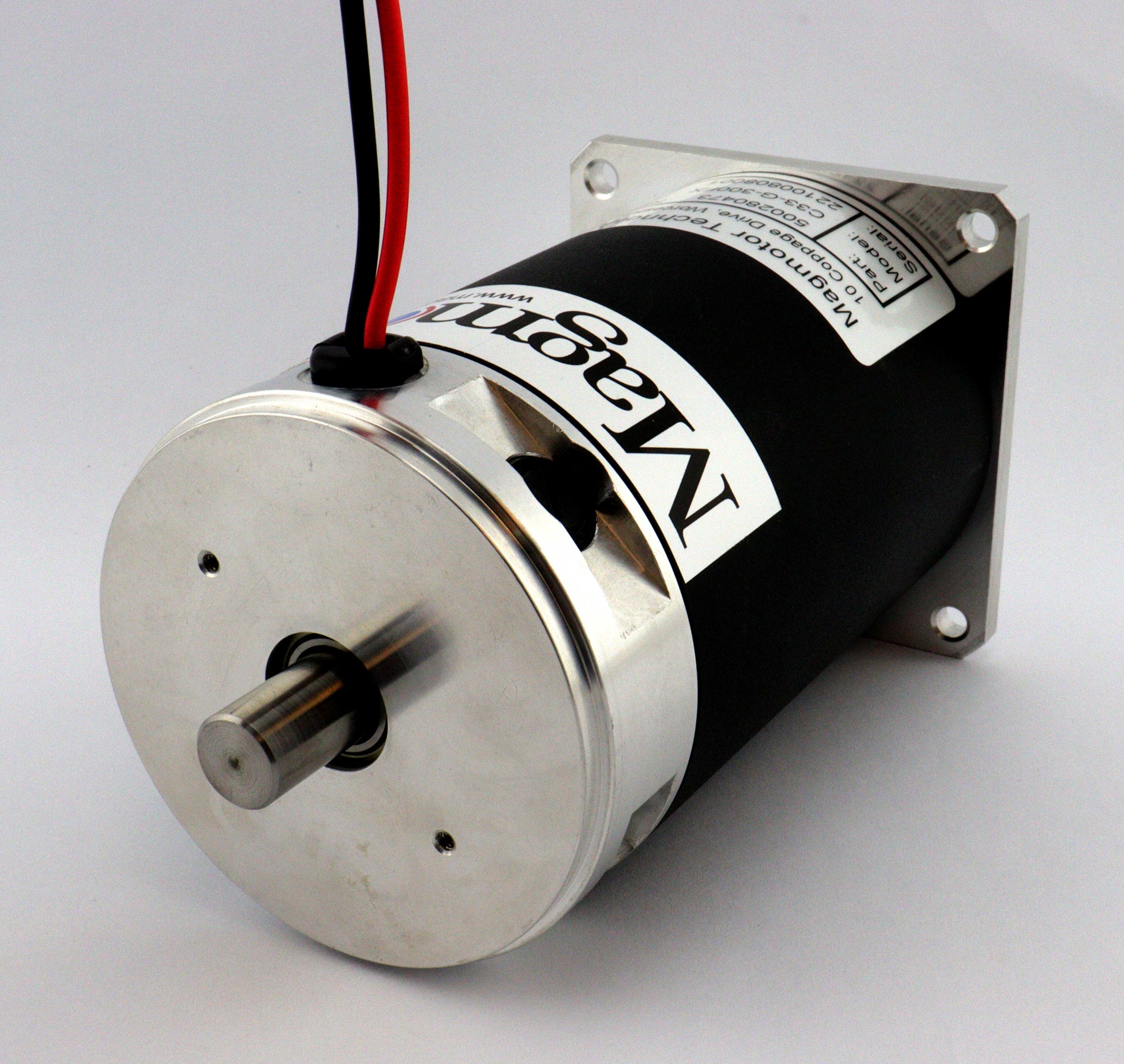

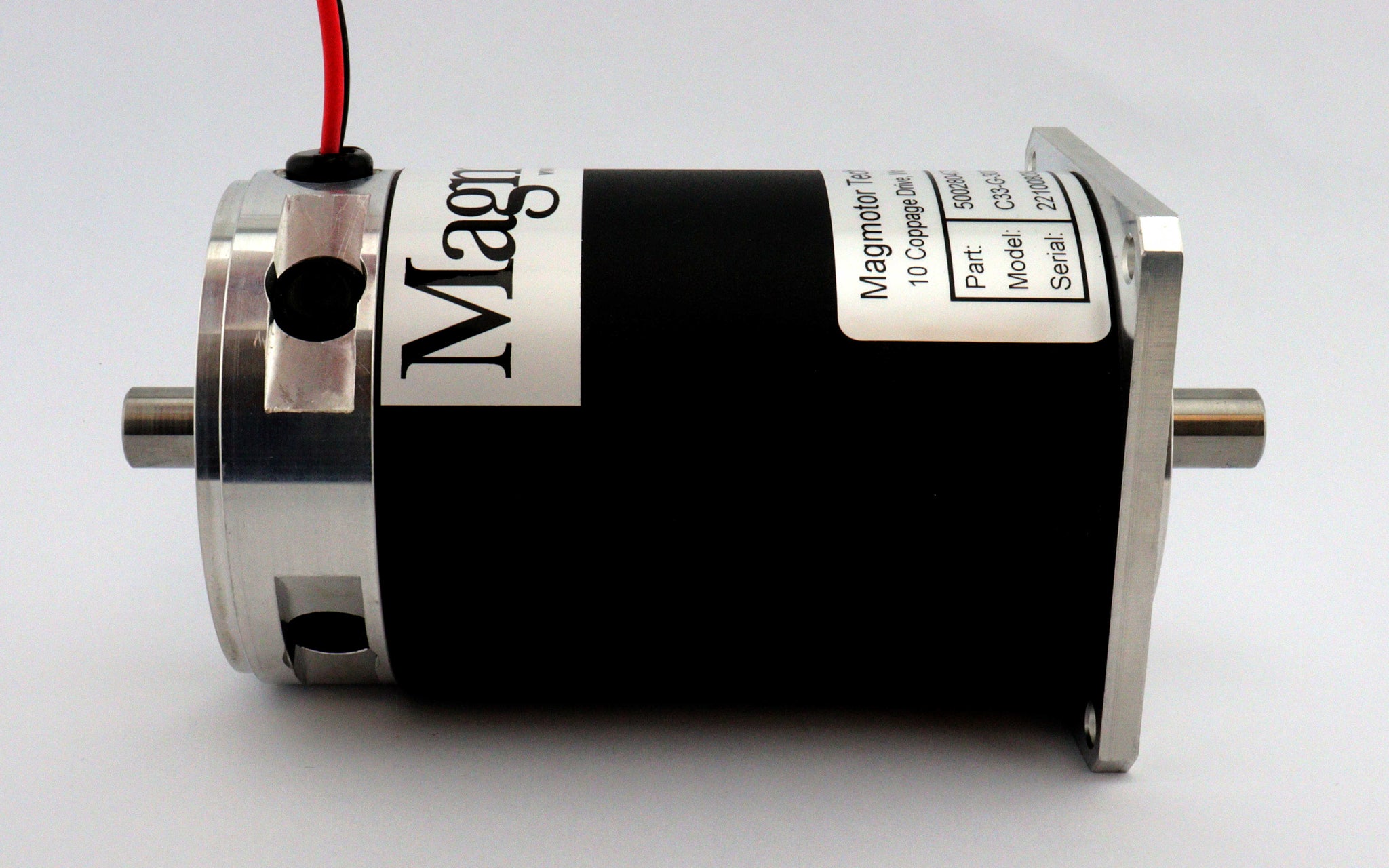

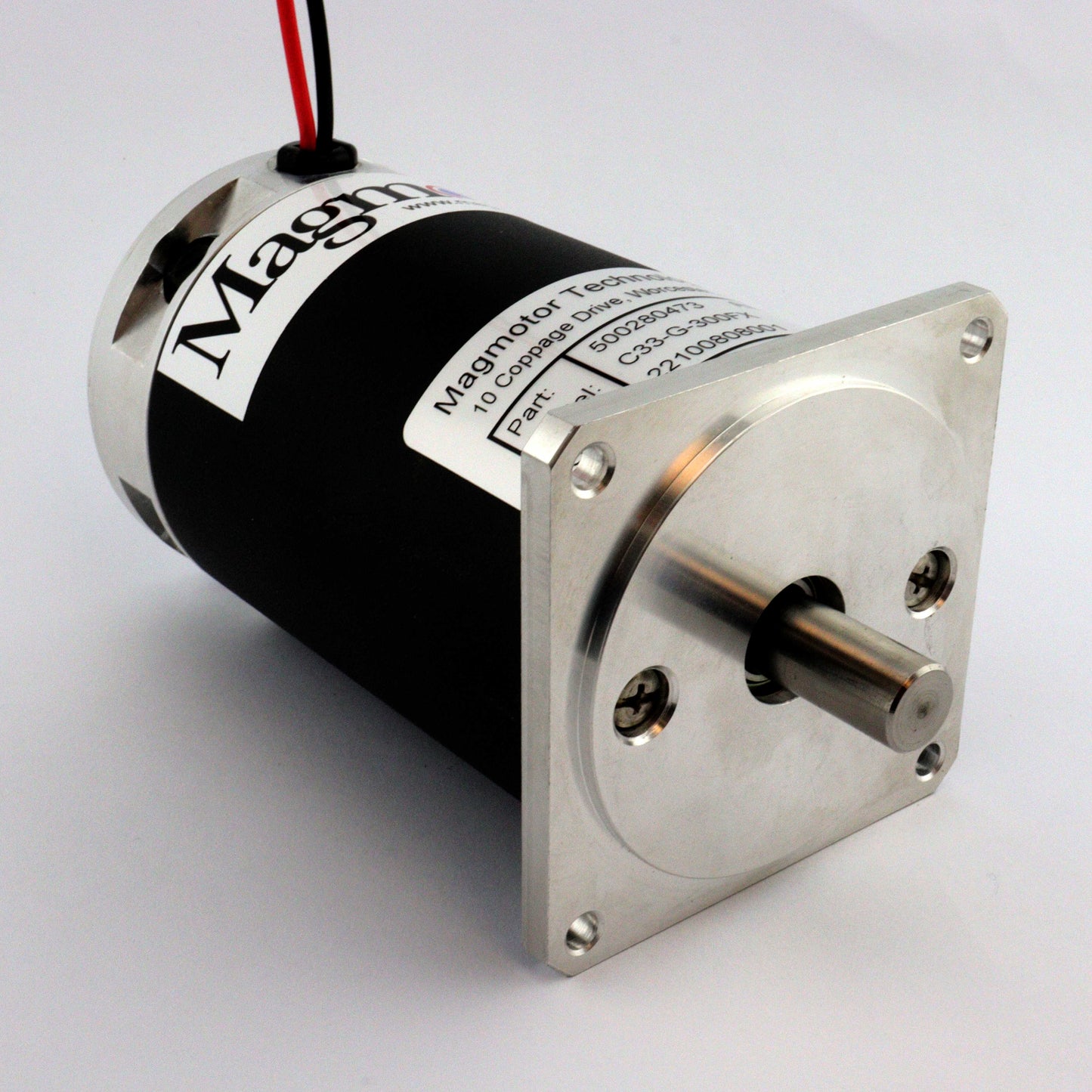

500280473 - BRUSHED MOTOR - 48 to 90 VDC - 42 to 99 oz-in CONT TORQUE - C33-G-300FX
500280473 - BRUSHED MOTOR - 48 to 90 VDC - 42 to 99 oz-in CONT TORQUE - C33-G-300FX
Regular price
$434.00
Regular price
Sale price
$434.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
DOWNLOADS:
DC Motor Specifications:
- 4 Pole - Brushed DC Motor
- NEMA 34 Mounting
- Encoder Ready
-
Voltage Constant (Ke) = 21.2 +/- 10% VOLTS/KRPM
- Torque Constant (Kt) = 28.7 +/- 10% OZ-IN/AMP
- REACH, RoHS and CE Compliant
Example Performance Ranges:
- Capable of operating at 2020 rpm @ 48VDC with a continuous torque of 99 oz-in
- Capable of operating at 3216 rpm @ 72VDC with a continuous torque of 73 oz-in
- Capable of operating at 4142 rpm @ 90VDC with a continuous torque of 42 oz-in
