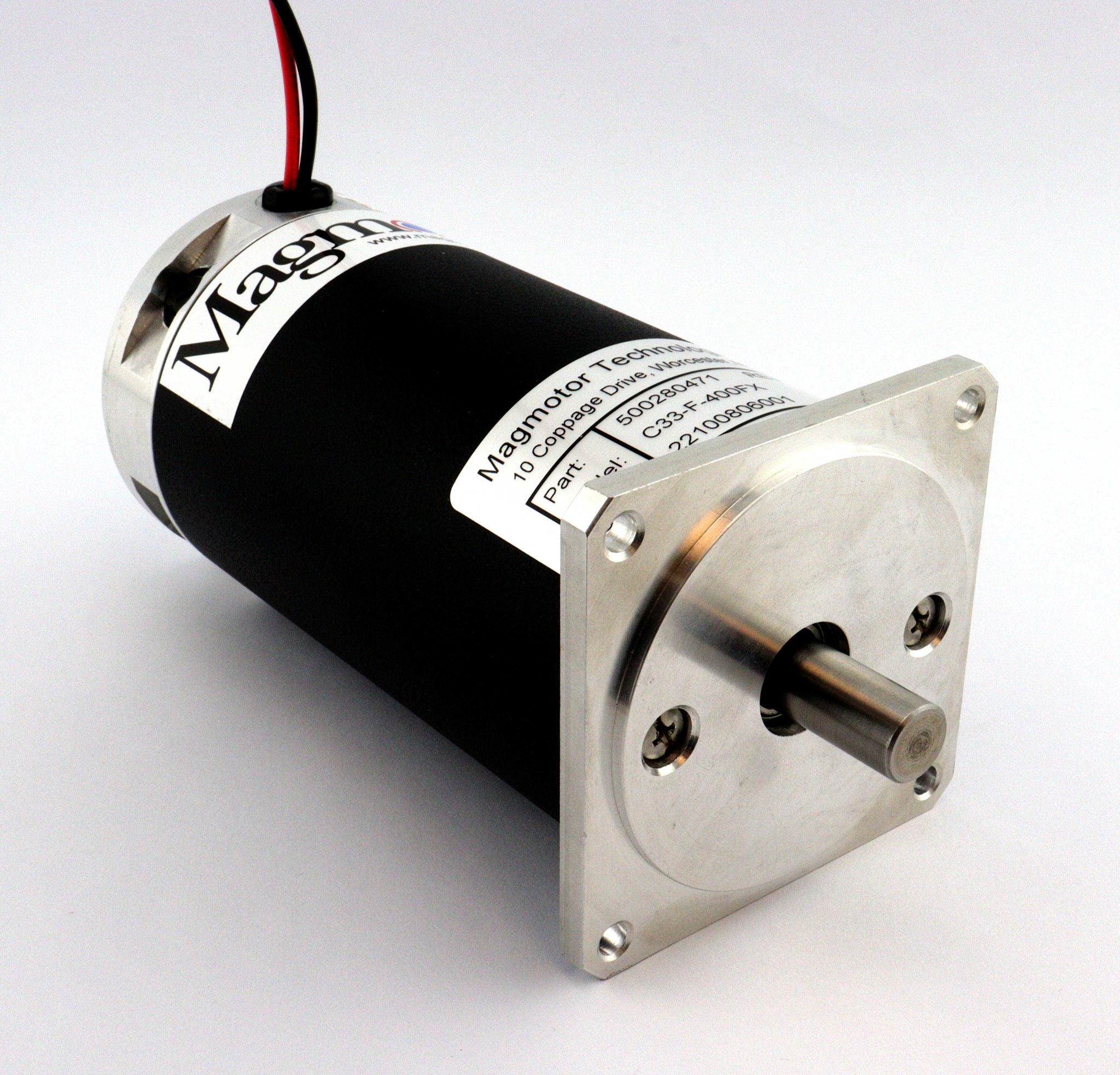

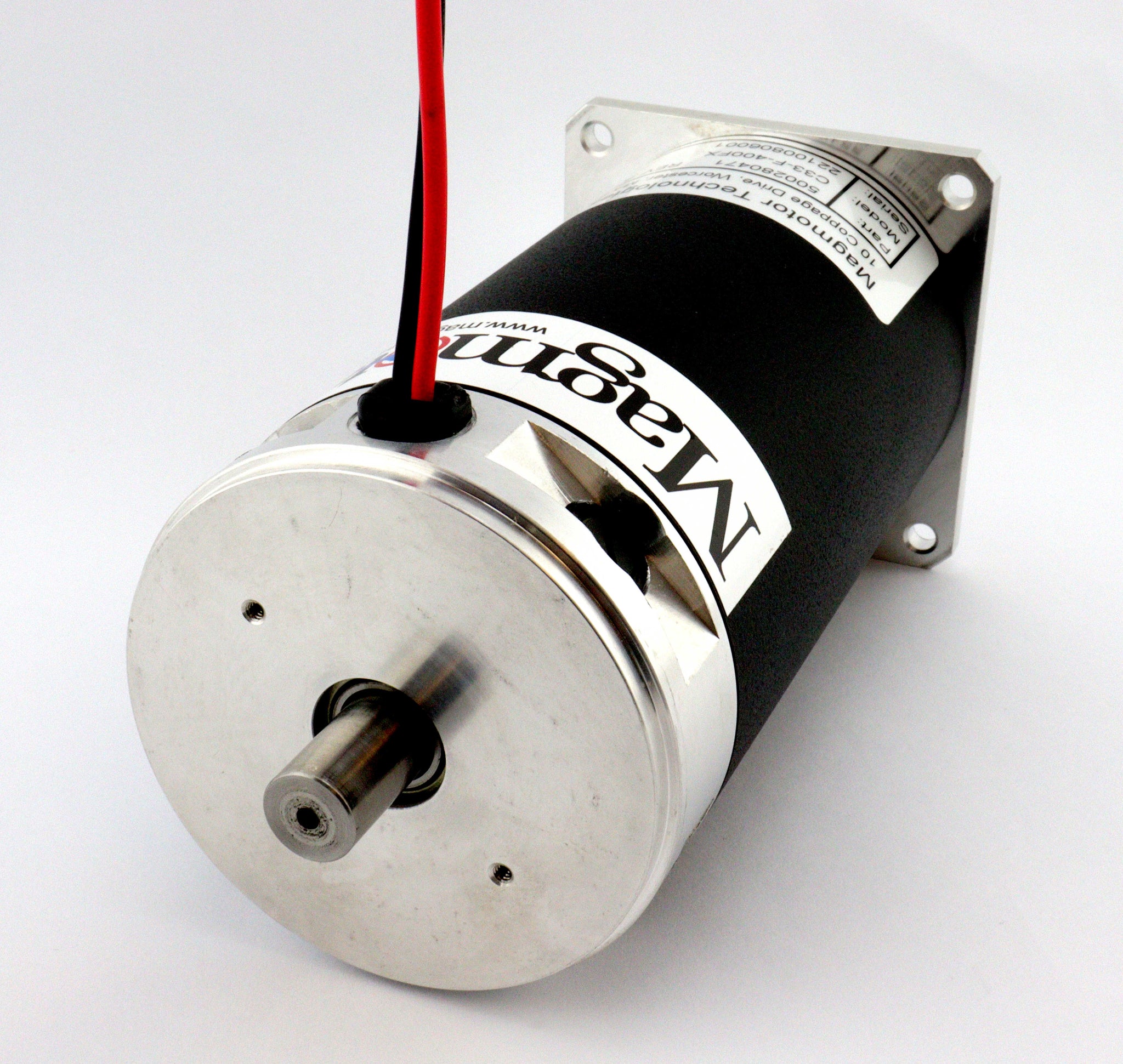

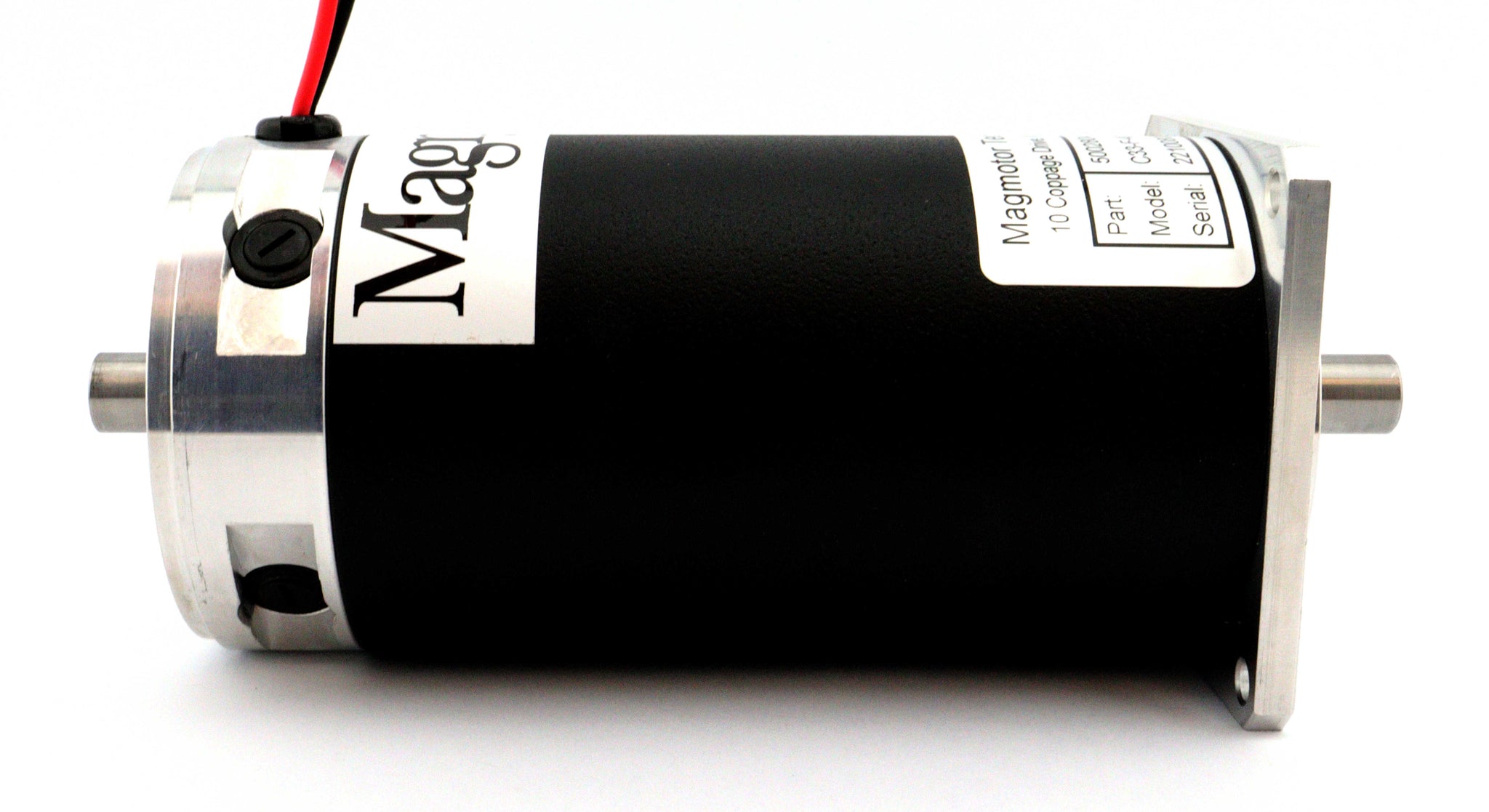

500280471 - BRUSHED MOTOR - 48 to 108 VDC - 55 to 135 oz-in CONT TORQUE - C33-F-400FX

500280471 - BRUSHED MOTOR - 48 to 108 VDC - 55 to 135 oz-in CONT TORQUE - C33-F-400FX

Regular price $449.00
Regular price Sale price $449.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button


DC Motor Specifications:

  • 4 Pole - Brushed DC Motor
  • NEMA 34 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 22.2 +/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 30.0 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 1897 rpm @ 48VDC with a continuous torque of 135 oz-in
  • Capable of operating at 3025 rpm @ 72VDC with a continuous torque of 111 oz-in
  • Capable of operating at 4169 rpm @ 96VDC with a continuous torque of 79 oz-in
  • Capable of operating at 4757 rpm @ 108VDC with a continuous torque of 55 oz-in
