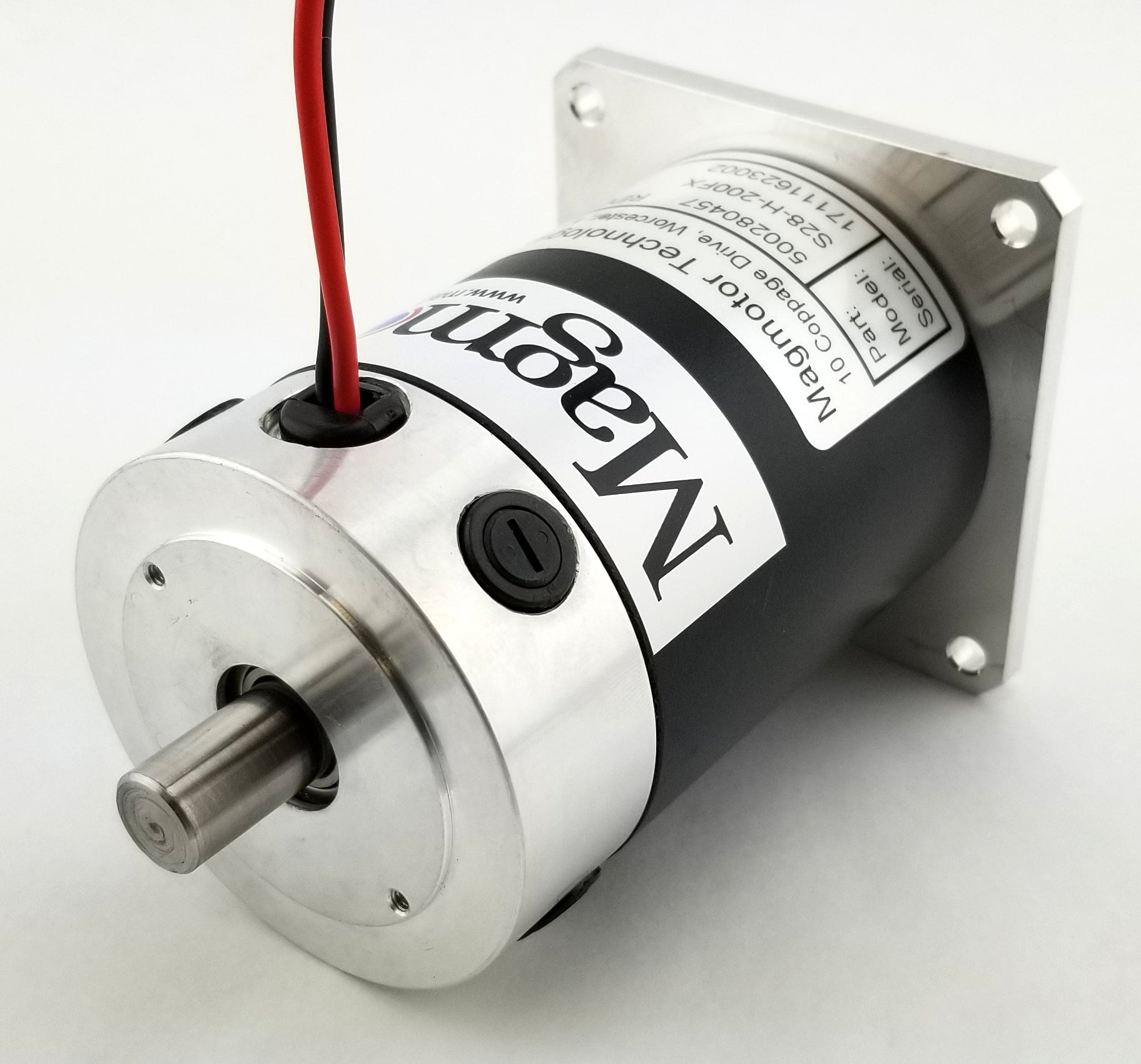

• Magmotor S28-H-200FX 36 to 72 Volt 4 Pole Brushed Motor 500280457 Front View
  • Magmotor S28-H-200FX 36 to 72 Volt 4 Pole Brushed Motor 500280457 Rear View

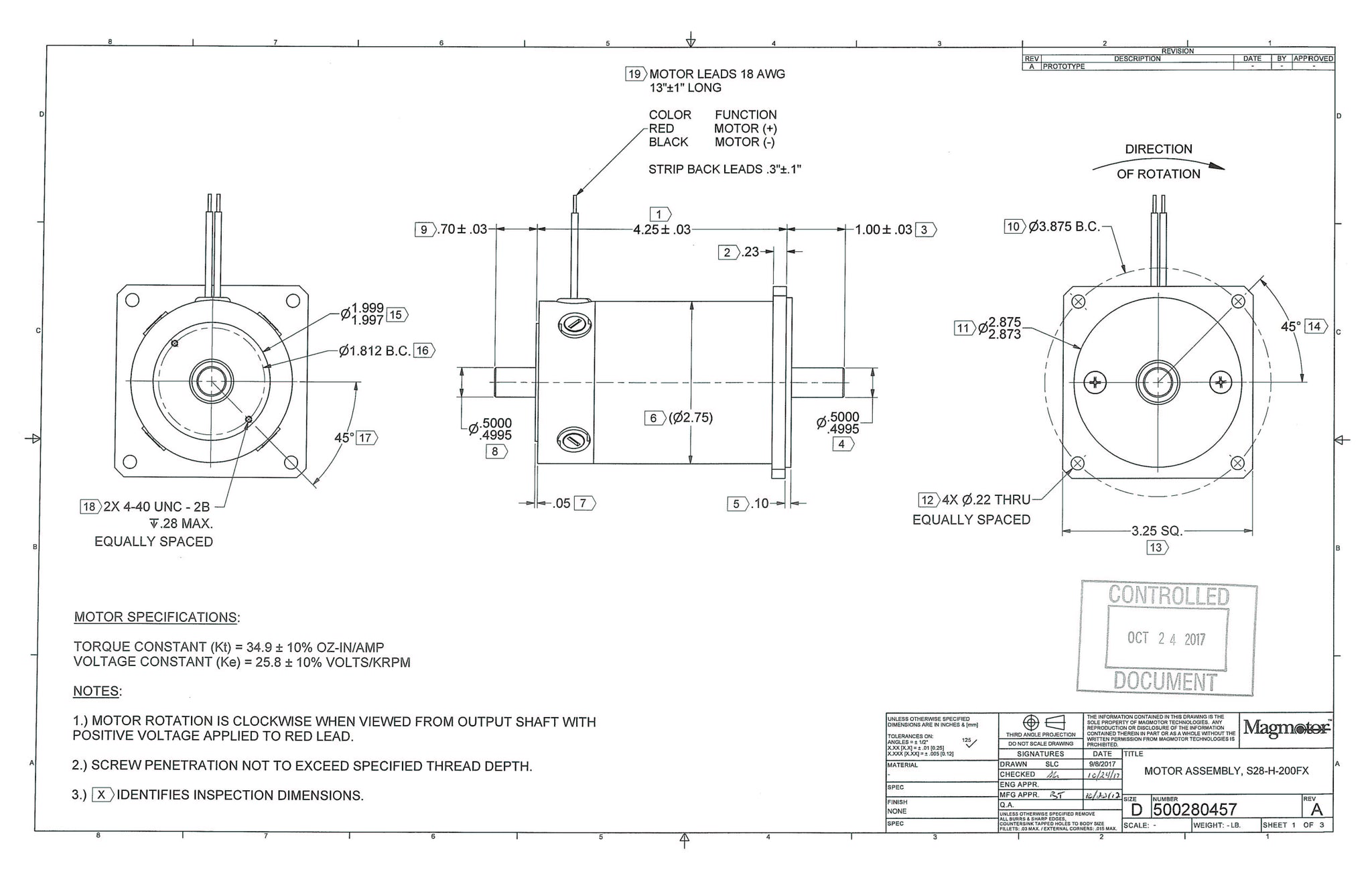

  • Magmotor S28-H-200FX 36 to 72 Volt 4 Pole Brushed Motor Drawing

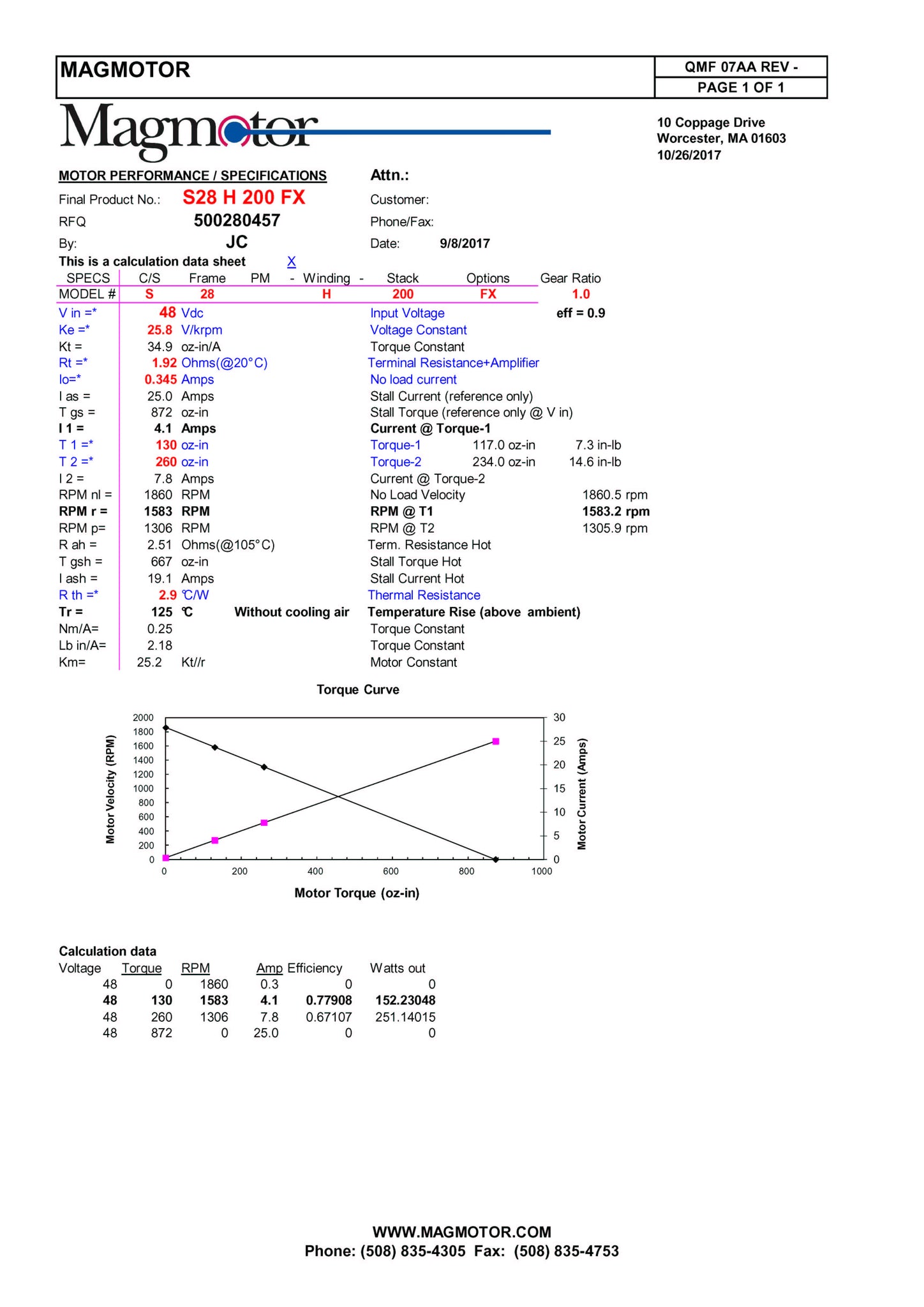

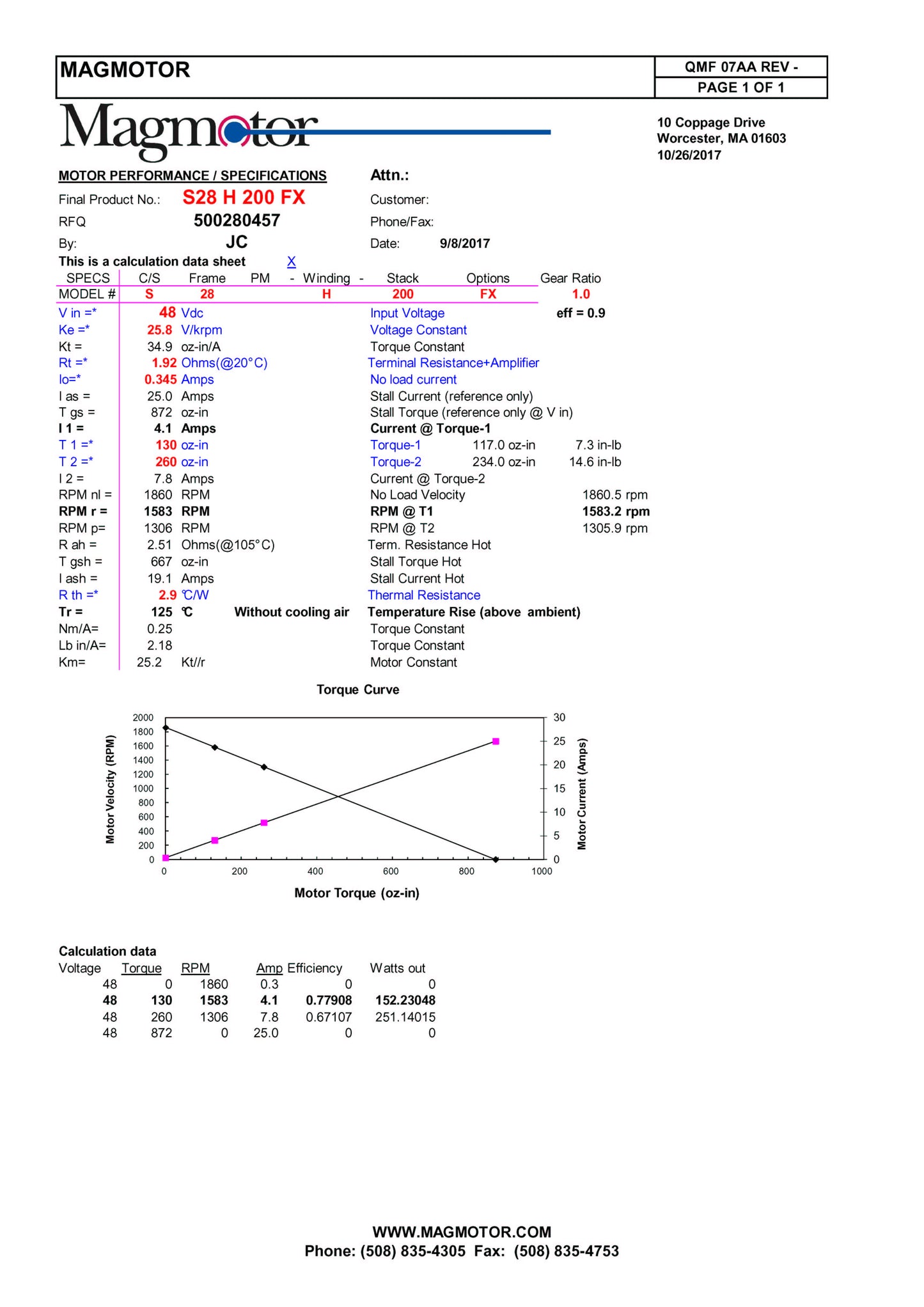

  • Magmotor S28-H-200FX 36 to 72 Volt 4 Pole Brushed Motor Performance Sheet
1 4

500280457 - BRUSHED MOTOR - 36 to 72 VDC - 50 to 110 oz-in CONT TORQUE - S28-H-200FX

500280457 - BRUSHED MOTOR - 36 to 72 VDC - 50 to 110 oz-in CONT TORQUE - S28-H-200FX

$473.00
$473.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button



DC Motor Specifications:

  • 4 Pole - Brushed DC Motor
  • NEMA 34 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 25.8+/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 34.9 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 1230 rpm @ 36VDC with a continuous torque of 105 oz-in
  • Capable of operating at 1730 rpm @ 48VDC with a continuous torque of 86 oz-in
  • Capable of operating at 2225 rpm @ 60VDC with a continuous torque of 65 oz-in
  • Capable of operating at 2720 rpm @ 72VDC with a continuous torque of 55 oz-in
