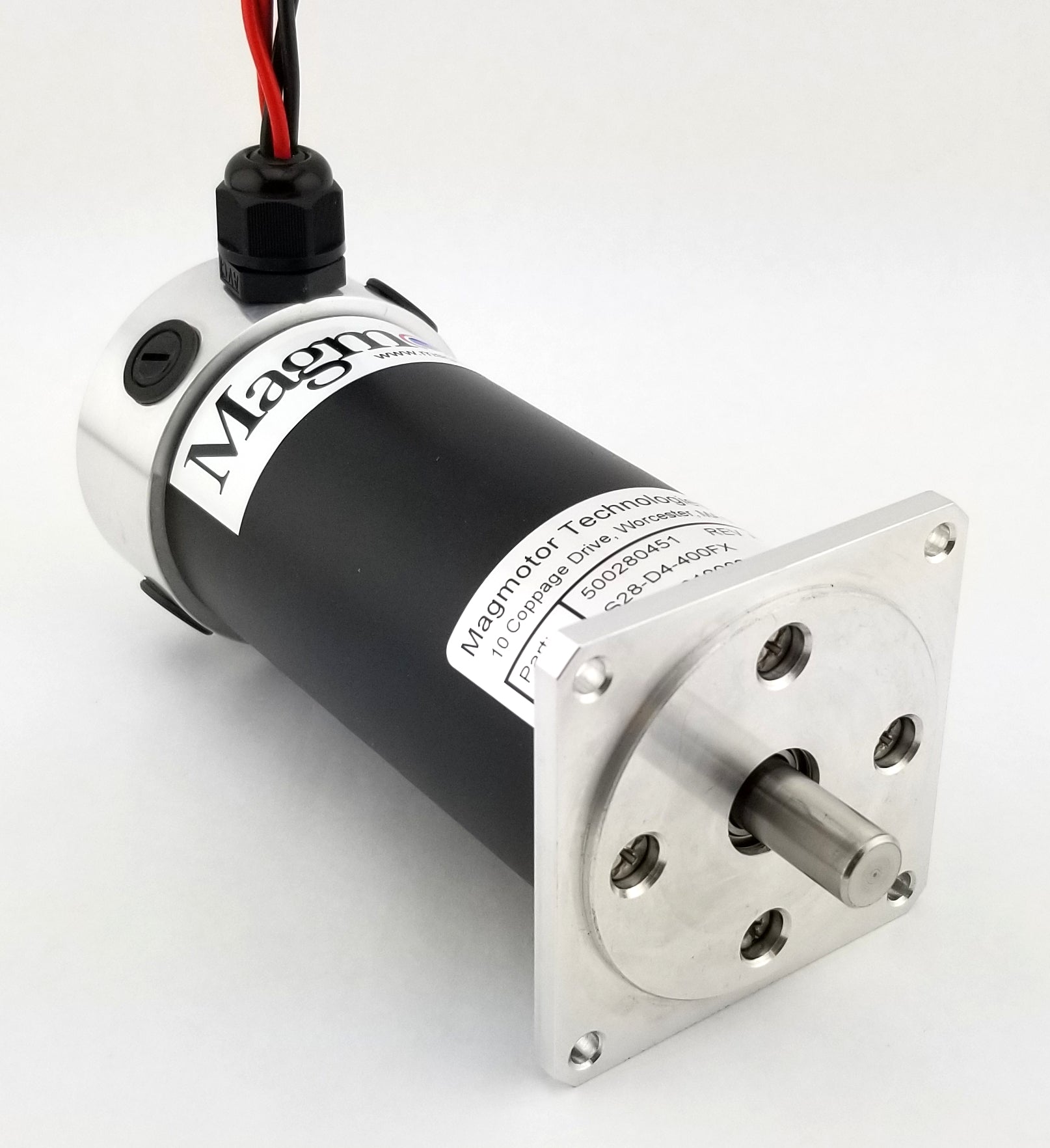

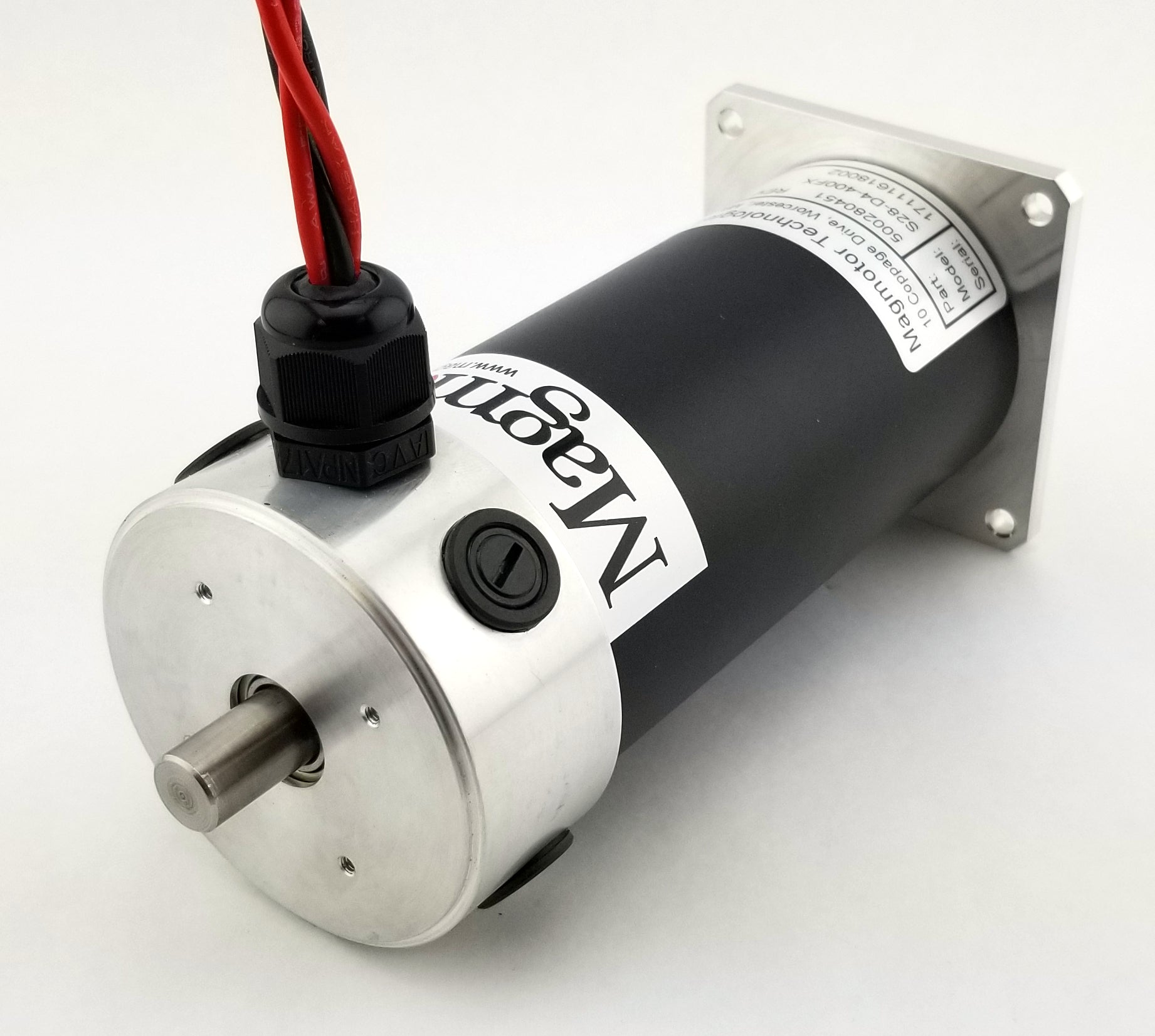

500280451 - BRUSHED MOTOR - 12 to 30 VDC - 140 to 150 oz-in CONT TORQUE - S28-D4-400FX

500280451 - BRUSHED MOTOR - 12 to 30 VDC - 140 to 150 oz-in CONT TORQUE - S28-D4-400FX

Regular price $588.00
Regular price Sale price $588.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

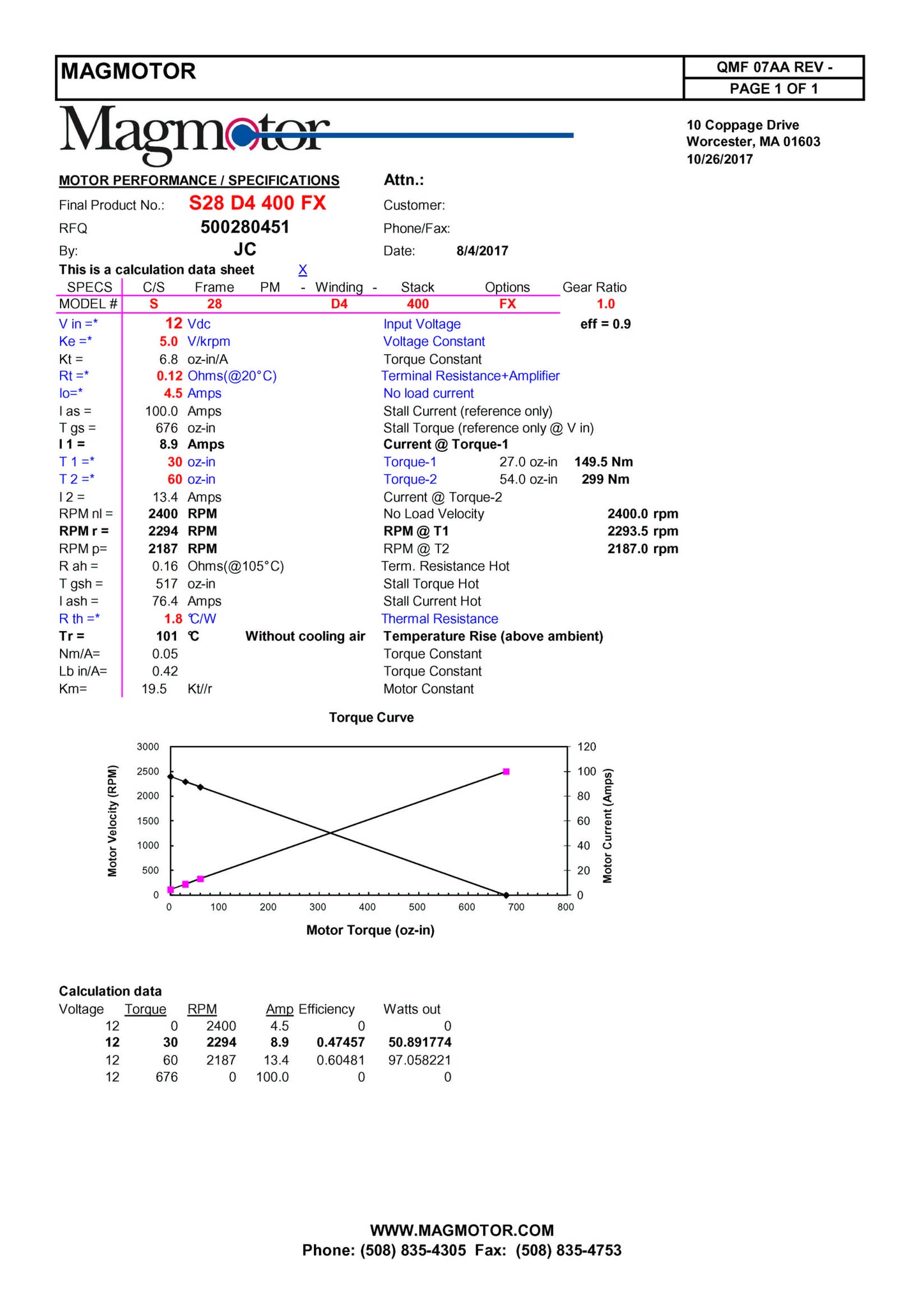

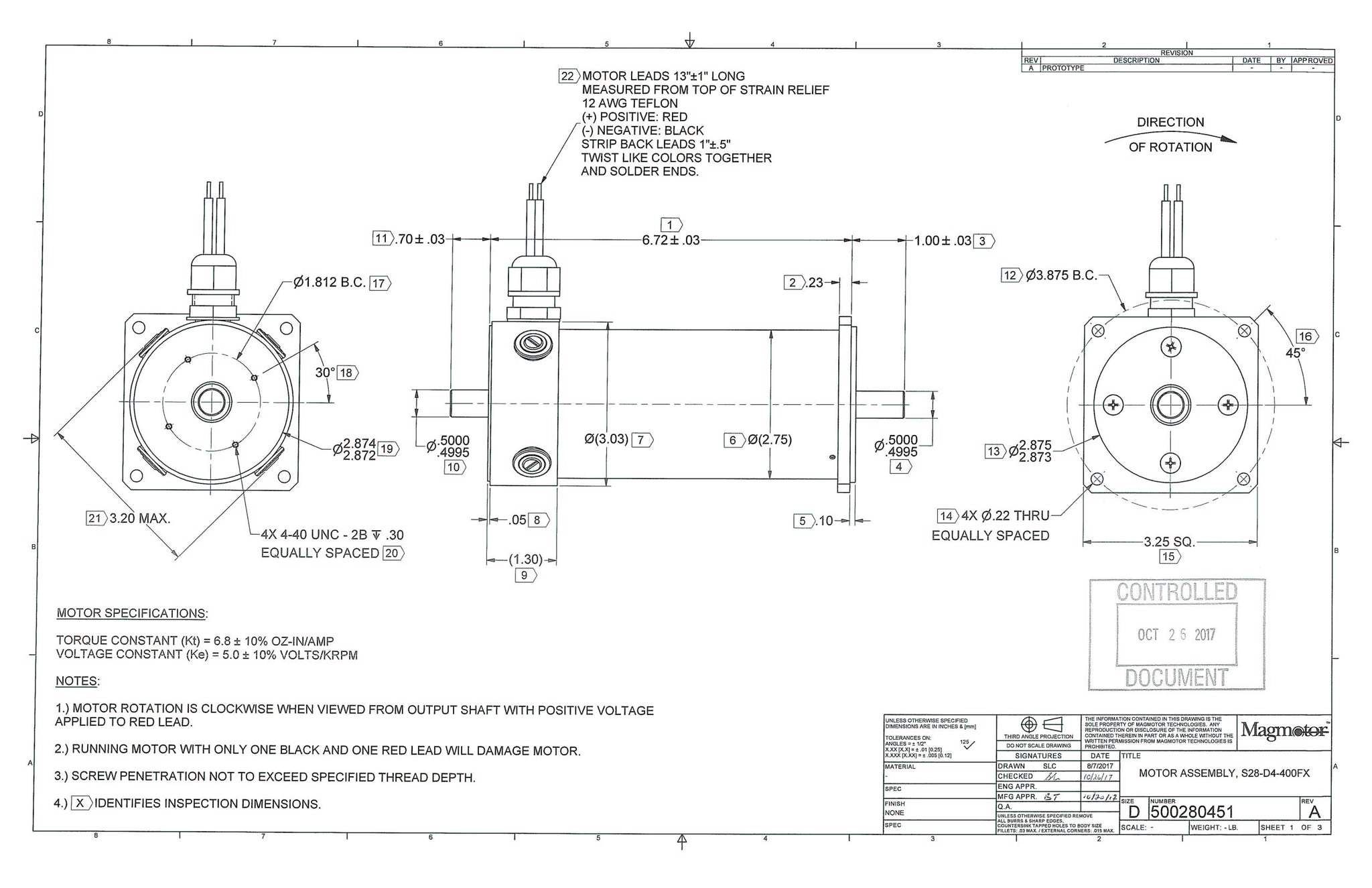

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button


DC Motor Specifications:

  • 4 Pole - Brushed DC Motor
  • NEMA 34 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 5.0 +/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 6.8 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 2145 rpm @ 12VDC with a continuous torque of 145 oz-in
  • Capable of operating at 3337 rpm @ 18VDC with a continuous torque of 148 oz-in
  • Capable of operating at 4543 rpm @ 24VDC with a continuous torque of 145 oz-in
  • Capable of operating at 5735 rpm @ 30VDC with a continuous torque of 150 oz-in
