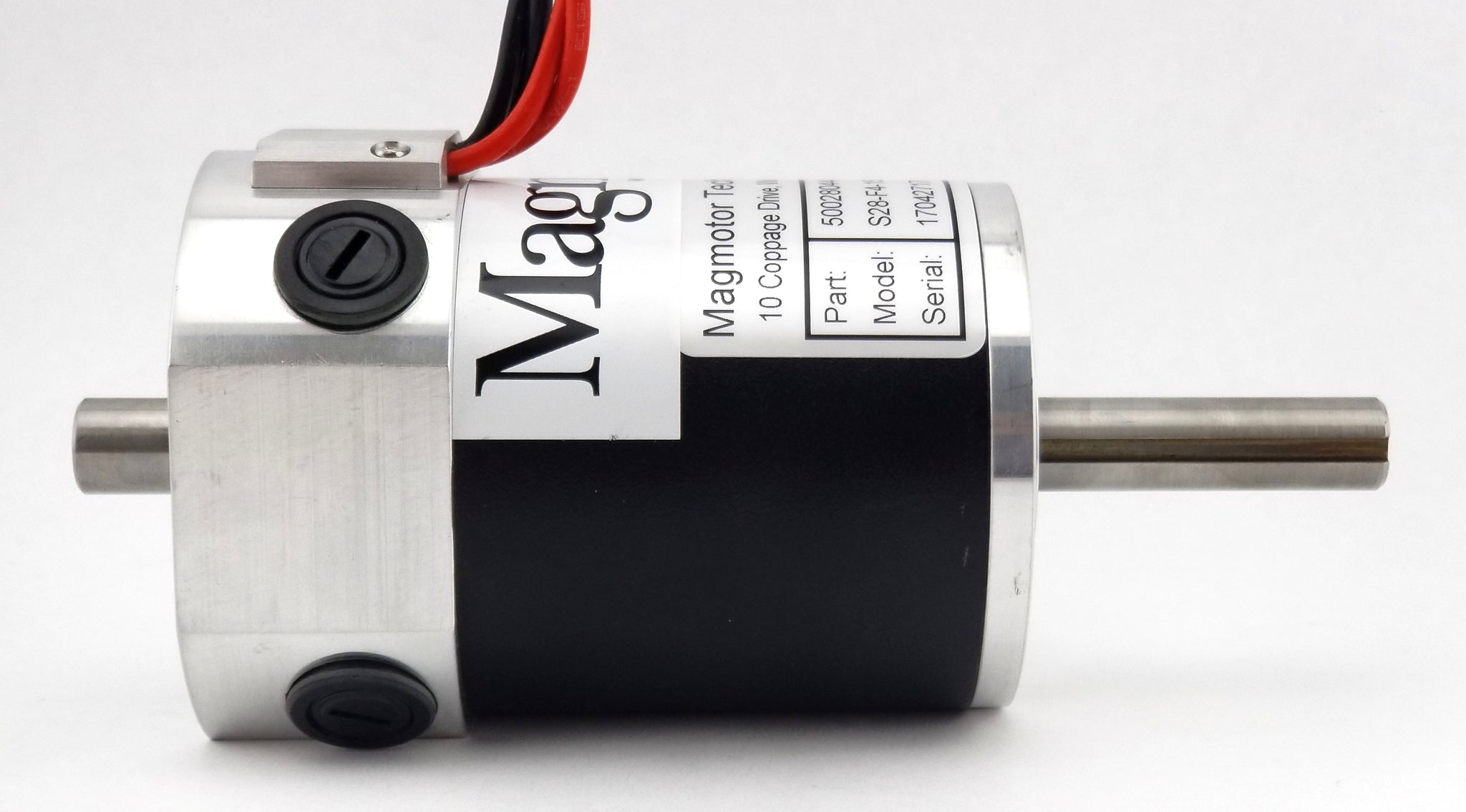

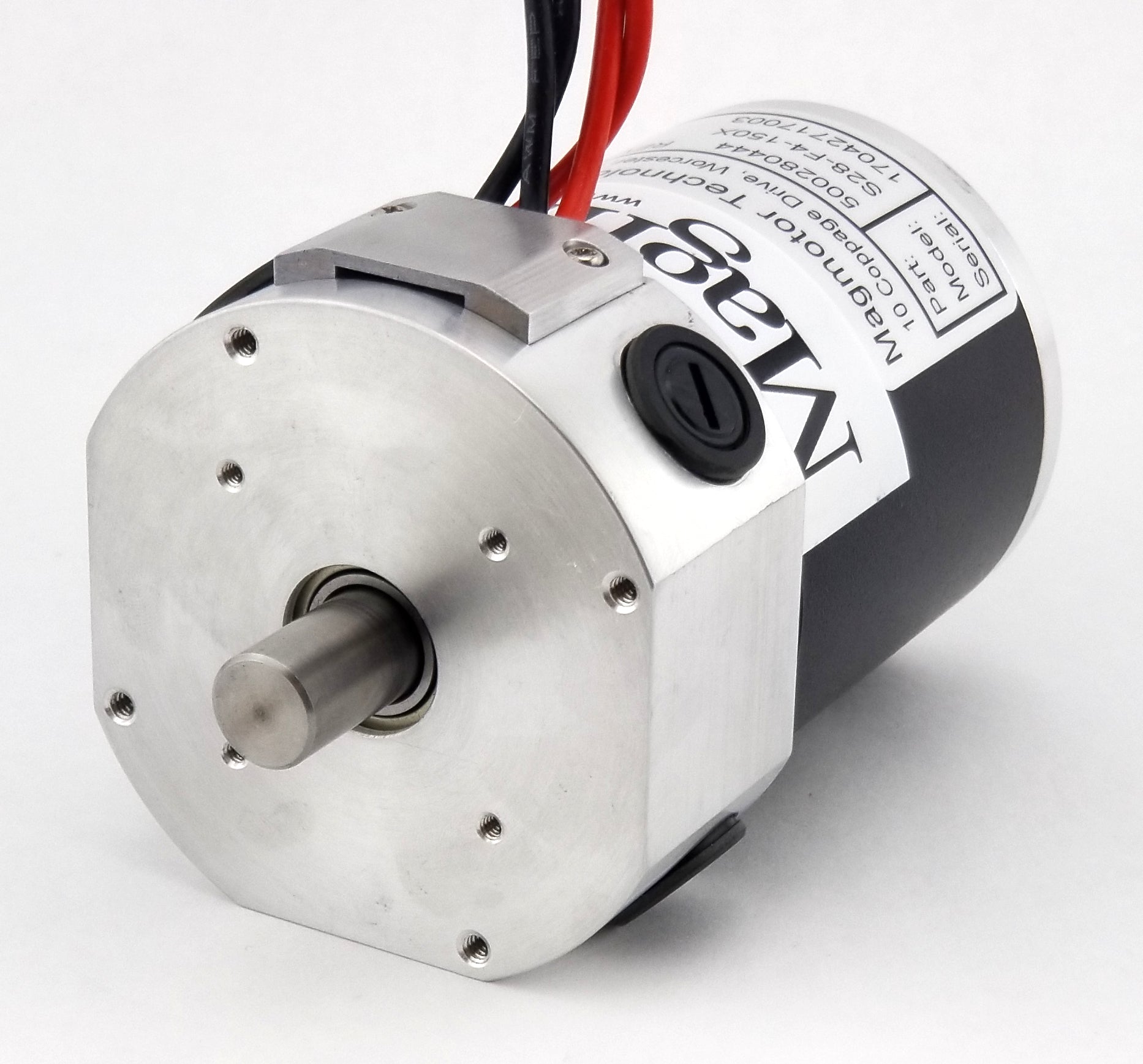

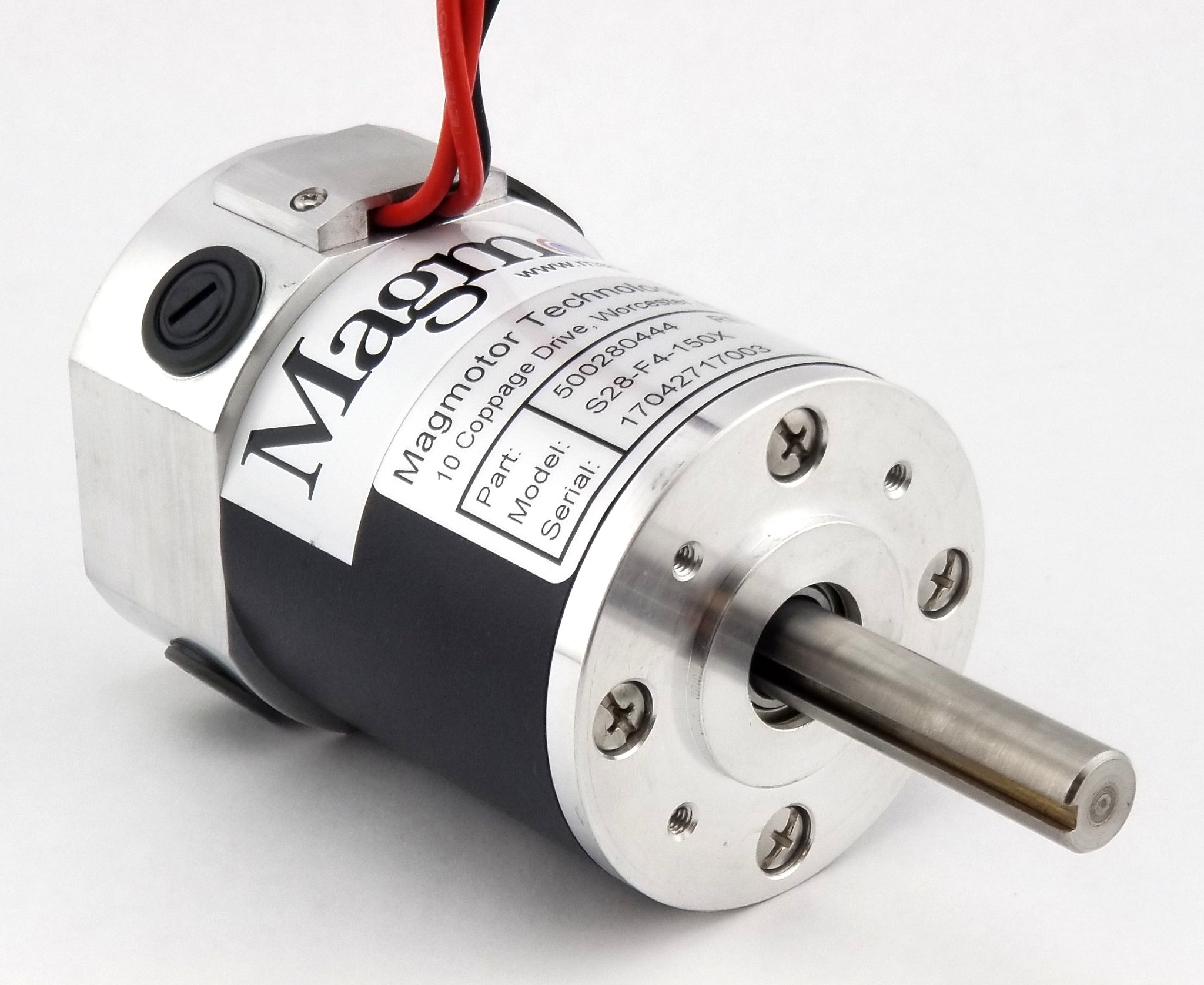

500280444 - BRUSHED MOTOR - 12 to 24 VDC - COMBAT - S28-F4-150X

500280444 - BRUSHED MOTOR - 12 to 24 VDC - COMBAT - S28-F4-150X

Regular price $359.00
Regular price Sale price $359.00
Sale Sold out
Shipping calculated at checkout.

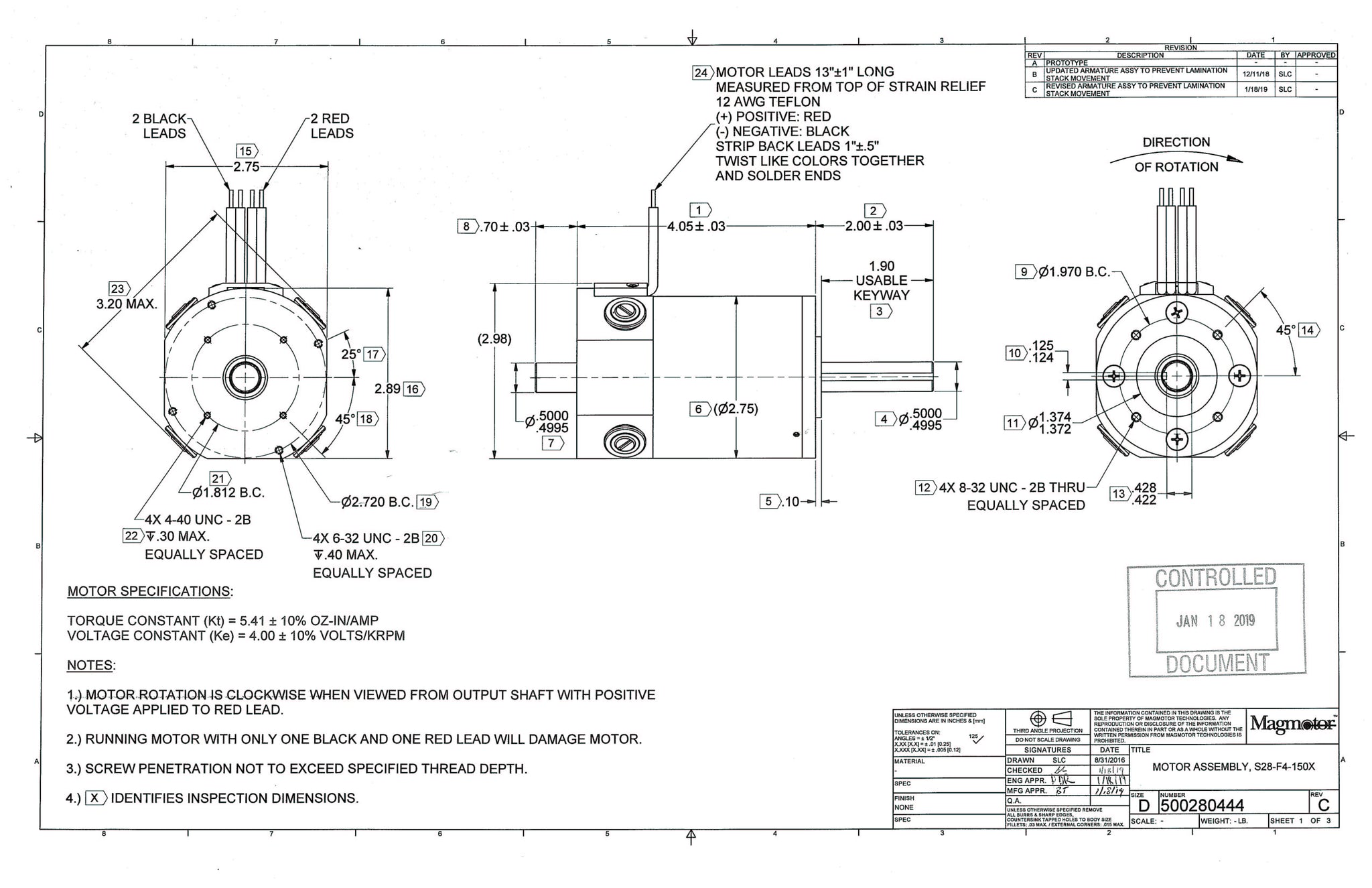

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button
 Designed for tight fit applications

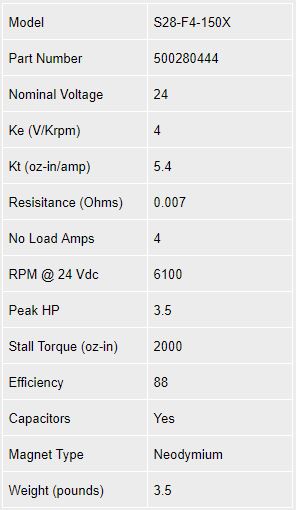

Model S28-F4-150X
Part Number 500280444
Nominal Voltage 24
Ke (V/Krpm) 4
Kt (oz-in/amp) 5.4
Resisitance (Ohms) 0.007
No Load Amps 4
RPM @ 24 Vdc 6100
Peak HP 3.5
Stall Torque (oz-in) 2000
Efficiency 88
Capacitors Yes
Magnet Type Neodymium
Weight (pounds) 3.5

The specifications are for 24 volts.  The motors can also be used at lower voltages, however the rpm and torque values will be reduced proportionally.  The motors can also be used at higher voltages, but shorter duty cycles must be maintained to avoid motor failure.

Our motors are warranted to be free from manufacturing defects, and fully operational when you receive them.  Magmotor gives no other warranty, either expressed or implied. Warranties are not transferable.  In no event shall Magmotor's liability exceed the buyer's purchase price, nor shall Magmotor be liable for any indirect or consequential damages.

DC Motor Specifications:

  • 4 Pole - Brushed DC Motor
  • REACH, RoHS and CE Compliant
