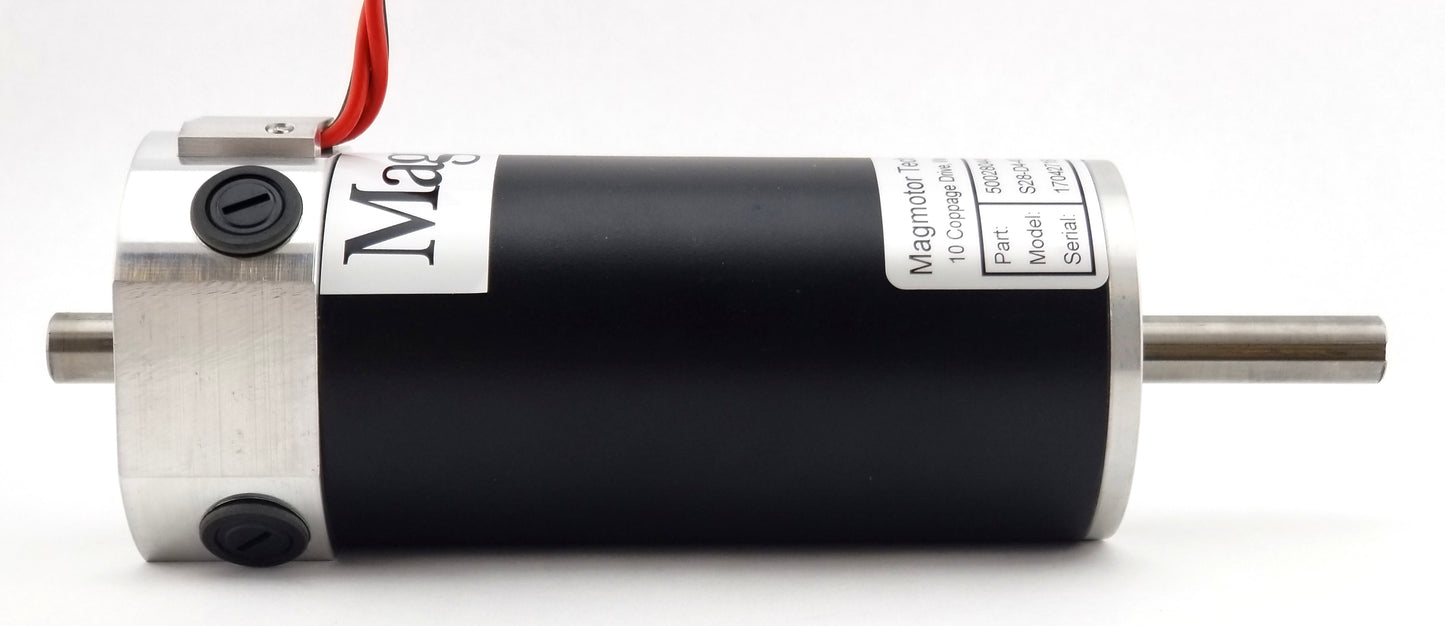

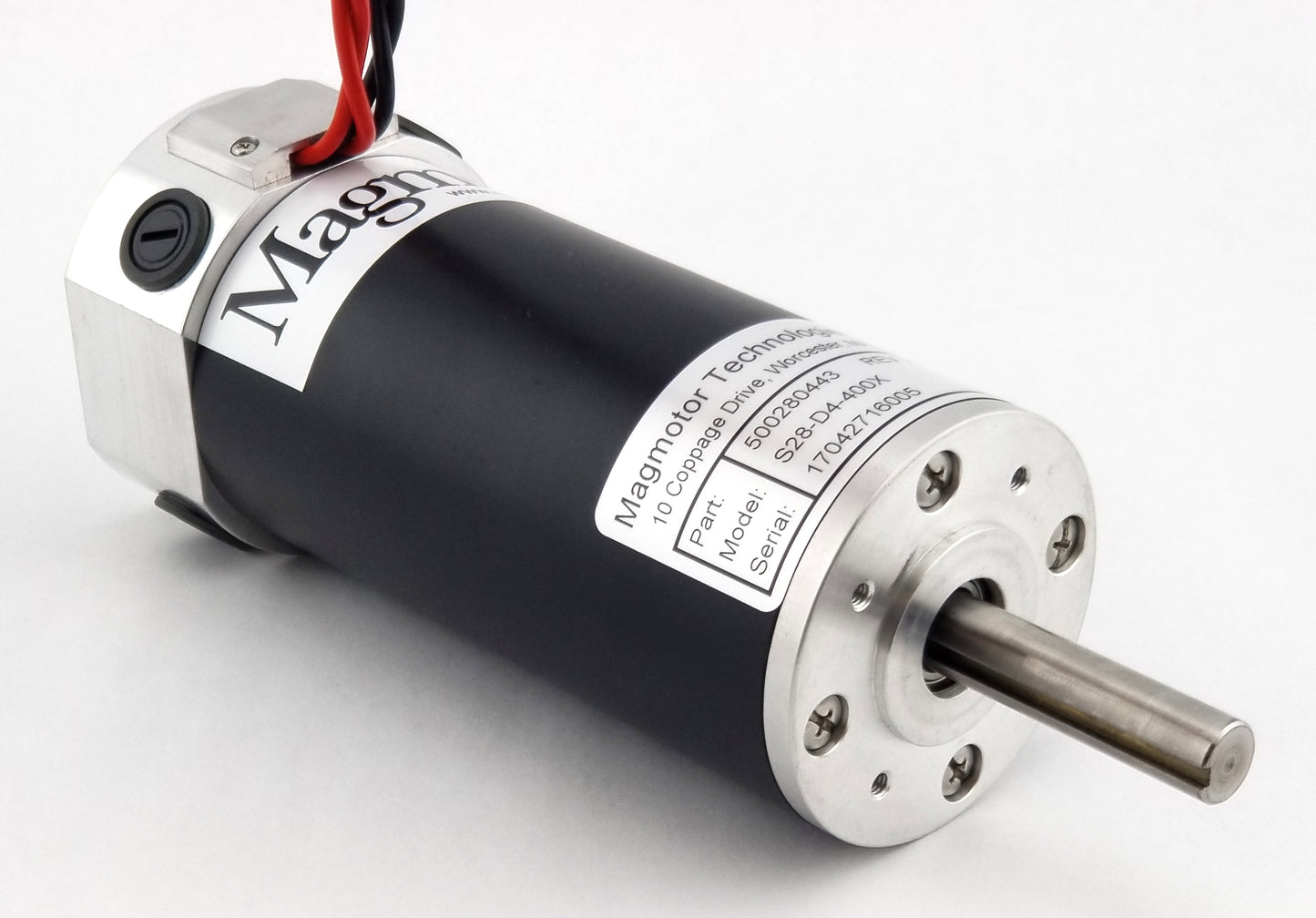

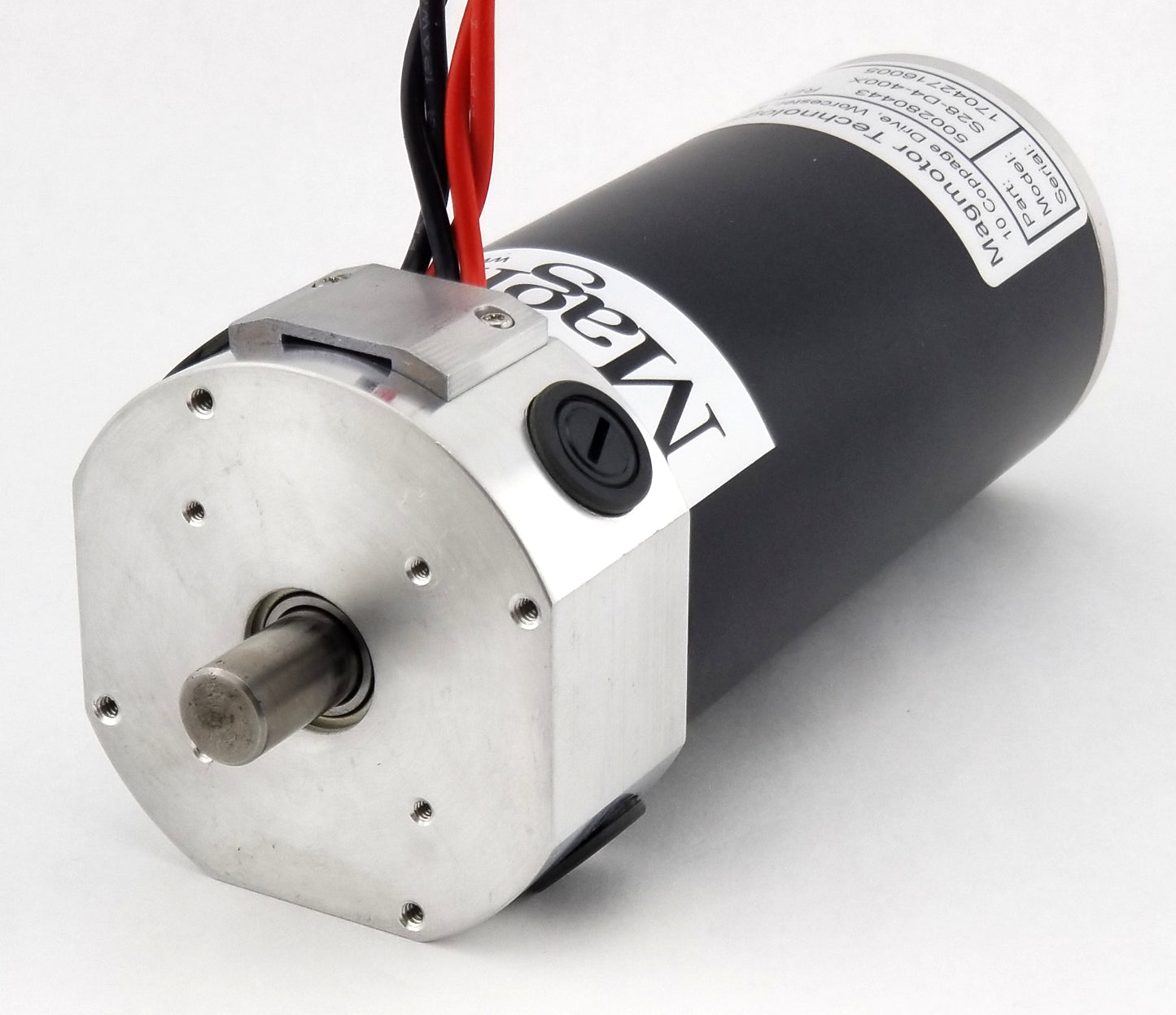

500280443 - BRUSHED MOTOR - 12 to 30 VDC - COMBAT - S28-D4-400X

500280443 - BRUSHED MOTOR - 12 to 30 VDC - COMBAT - S28-D4-400X

Regular price $466.00
Regular price Sale price $466.00
Sale Sold out
Shipping calculated at checkout.

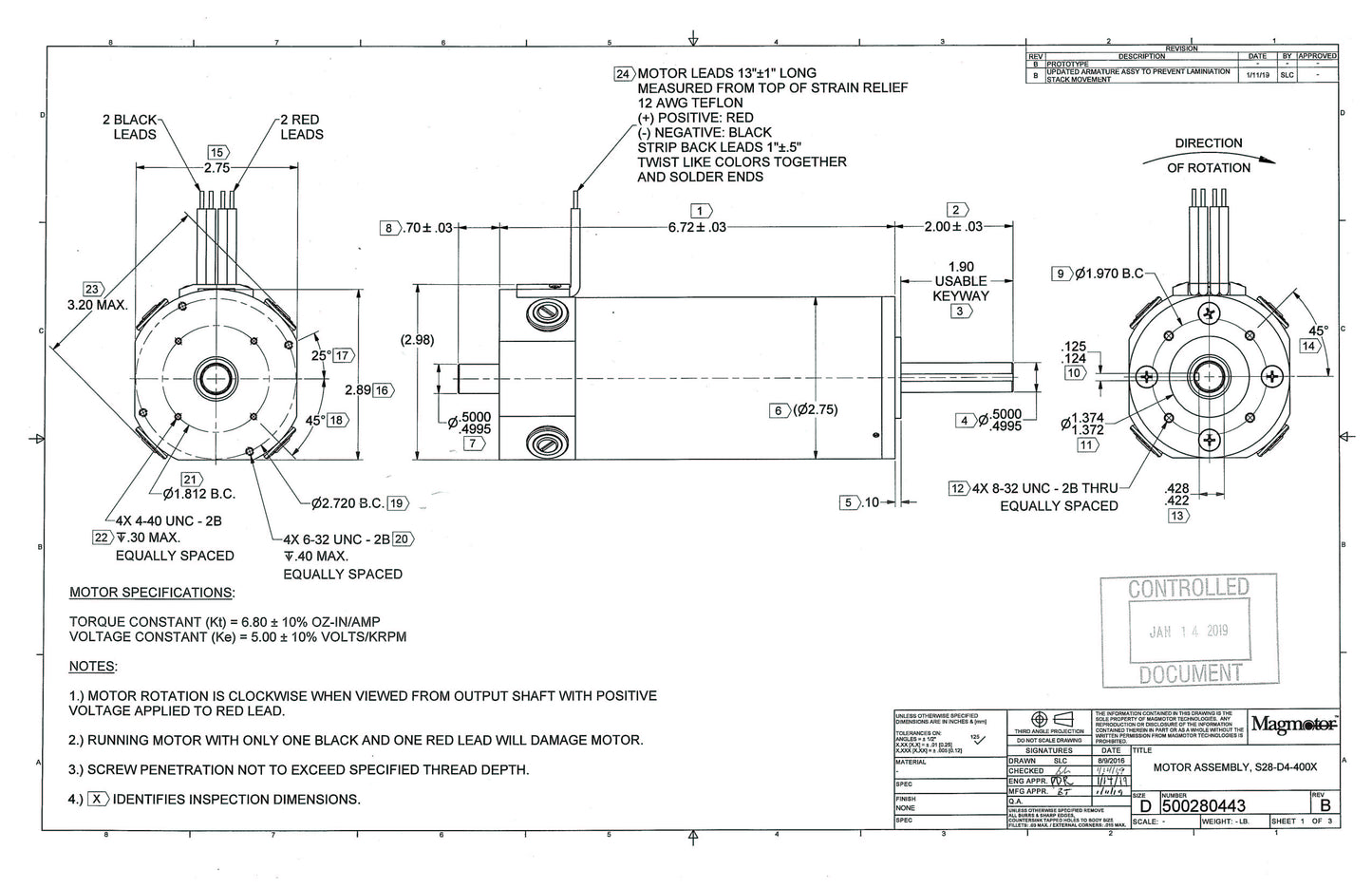

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button

 Designed for tight fit applications

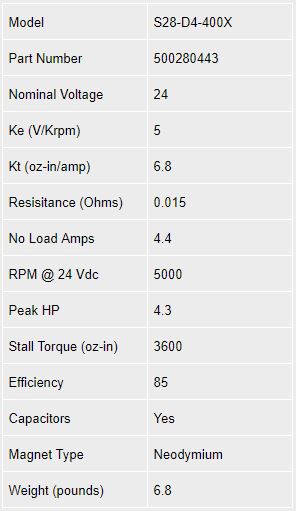

Model S28-D4-400X
Part Number 500280443
Nominal Voltage 24
Ke (V/Krpm) 5
Kt (oz-in/amp) 6.8
Resisitance (Ohms) 0.015
No Load Amps 4.4
RPM @ 24 Vdc 5000
Peak HP 4.3
Stall Torque (oz-in) 3600
Efficiency 85
Capacitors Yes
Magnet Type Neodymium
Weight (pounds) 6.8


The specifications are for 24 volts.  The motors can also be used at lower voltages, however the rpm and torque values will be reduced proportionally.  The motors can also be used at higher voltages, but shorter duty cycles must be maintained to avoid motor failure.

Our motors are warranted to be free from manufacturing defects, and fully operational when you receive them.  Magmotor gives no other warranty, either expressed or implied. Warranties are not transferable.  In no event shall Magmotor's liability exceed the buyer's purchase price, nor shall Magmotor be liable for any indirect or consequential damages.

DC Motor Specifications:

  • 4 Pole - Brushed DC Motor
  • REACH, RoHS and CE Compliant
