500280343 - BRUSHED MOTOR -12 to 30 VDC - 66 to 110 oz-in CONT TORQUE - S28-E-200FX
500280343 - BRUSHED MOTOR -12 to 30 VDC - 66 to 110 oz-in CONT TORQUE - S28-E-200FX
Regular price
$473.00
Regular price
Sale price
$473.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- 4 Pole - Brushed DC Motor
- NEMA 34 Mounting
- Encoder Ready
-
Voltage Constant (Ke) = 13.0 +/- 10% VOLTS/KRPM
- Torque Constant (Kt) = 17.5 +/- 10% OZ-IN/AMP
- REACH, RoHS and CE Compliant
Example Performance Ranges:
- Capable of operating at 693 rpm @ 12VDC with a continuous torque of 105 oz-in
- Capable of operating at 1188 rpm @ 18VDC with a continuous torque of 90 oz-in
- Capable of operating at 1690 rpm @ 24VDC with a continuous torque of 72 oz-in
- Capable of operating at 2163 rpm @ 30VDC with a continuous torque of 66 oz-in
Share
![Magmotor S28-E-200FX 12 to 30 Volt 4 Pole Brushed Motor 500280343 Front View](http://magmotorstore.com/cdn/shop/products/magmotor-500280343-s28-e-200fx-brushed-servo-01.jpg?v=1626722499&width=1445)
![Magmotor S28-E-200FX 12 to 30 Volt 4 Pole Brushed Motor 500280343 Rear View](http://magmotorstore.com/cdn/shop/products/magmotor-500280343-s28-e-200fx-brushed-servo-02.jpg?v=1626722546&width=1445)

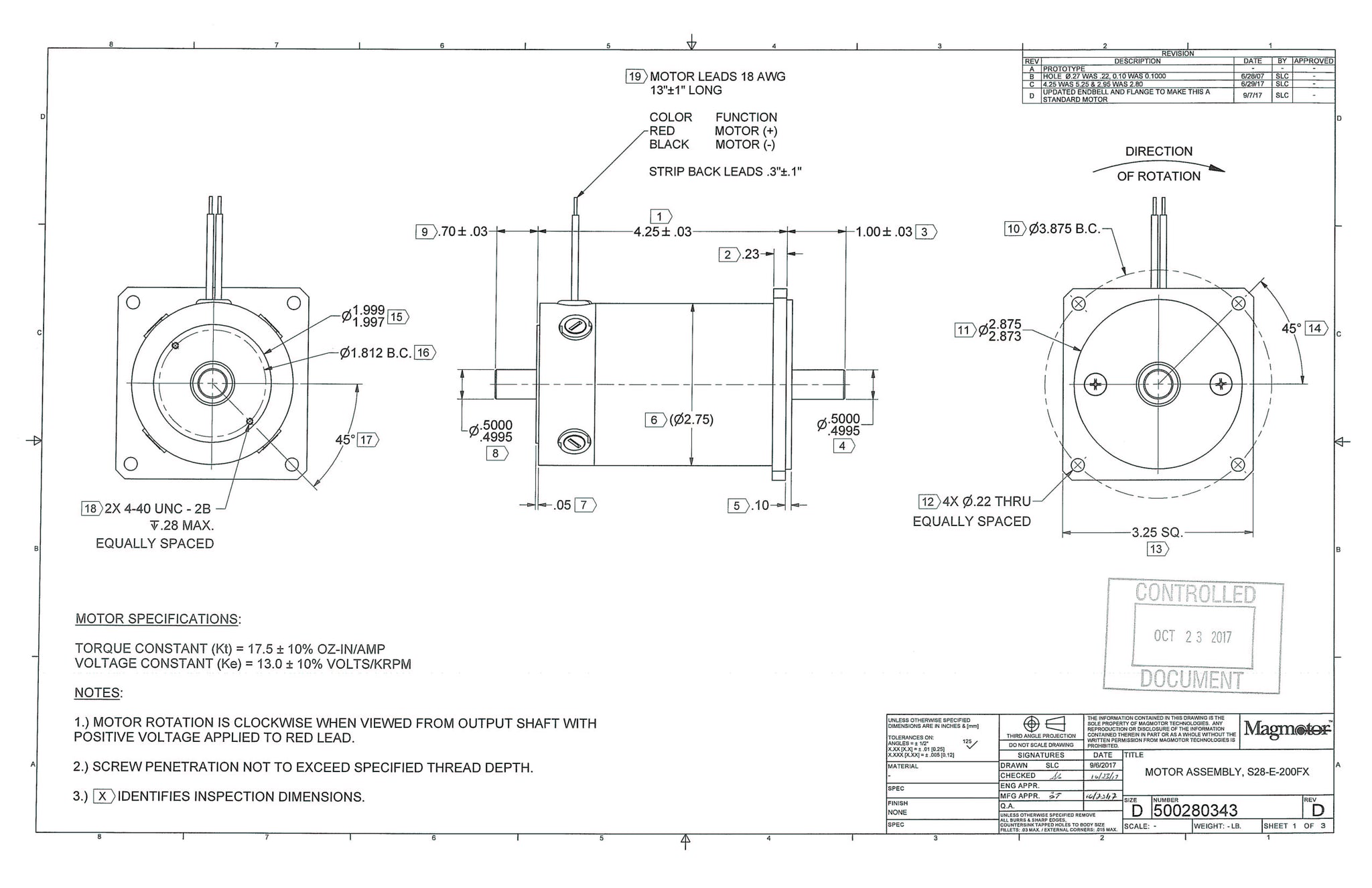

![Magmotor S28-E-200FX 12 to 30 Volt 4 Pole Brushed Motor Drawing](http://magmotorstore.com/cdn/shop/products/500280343revd-drawing-motor-brushed-servo.jpg?v=1626722565&width=1445)

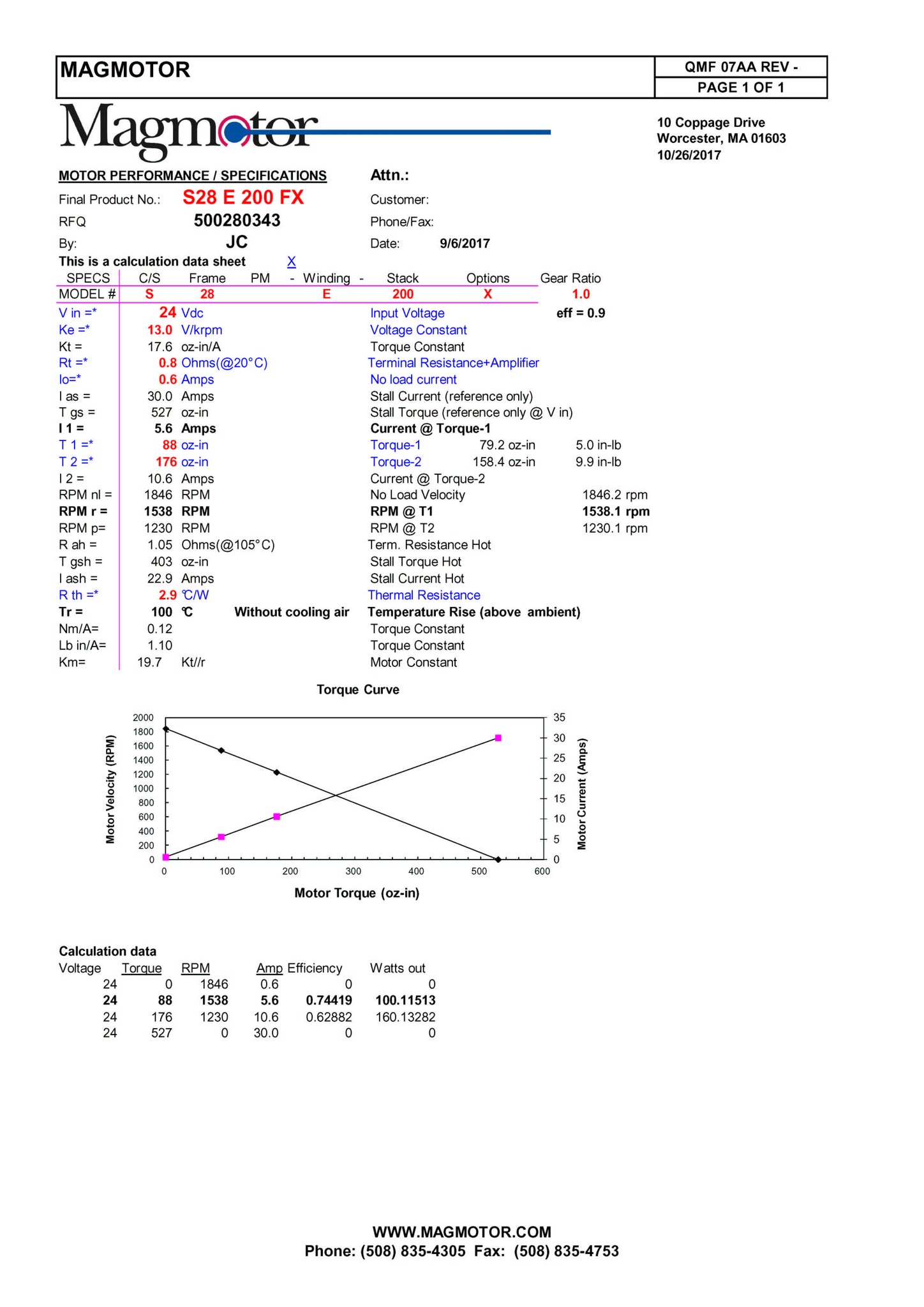

![Magmotor S28-E-200FX 12 to 30 Volt 4 Pole Brushed Motor Performance Sheet](http://magmotorstore.com/cdn/shop/products/500280343revd-perfcurve-motor-brushed-servo.jpg?v=1626722616&width=1445)
