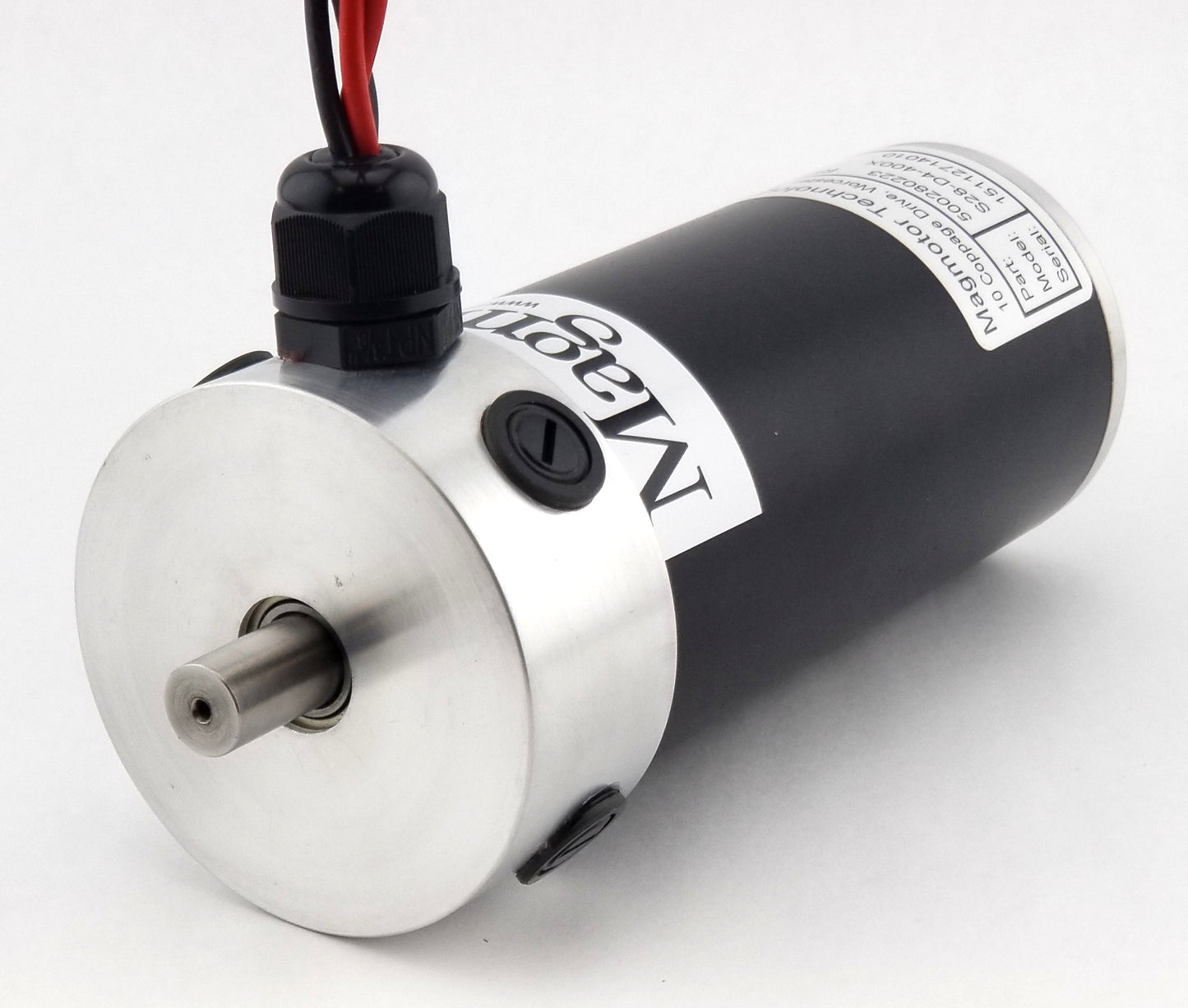

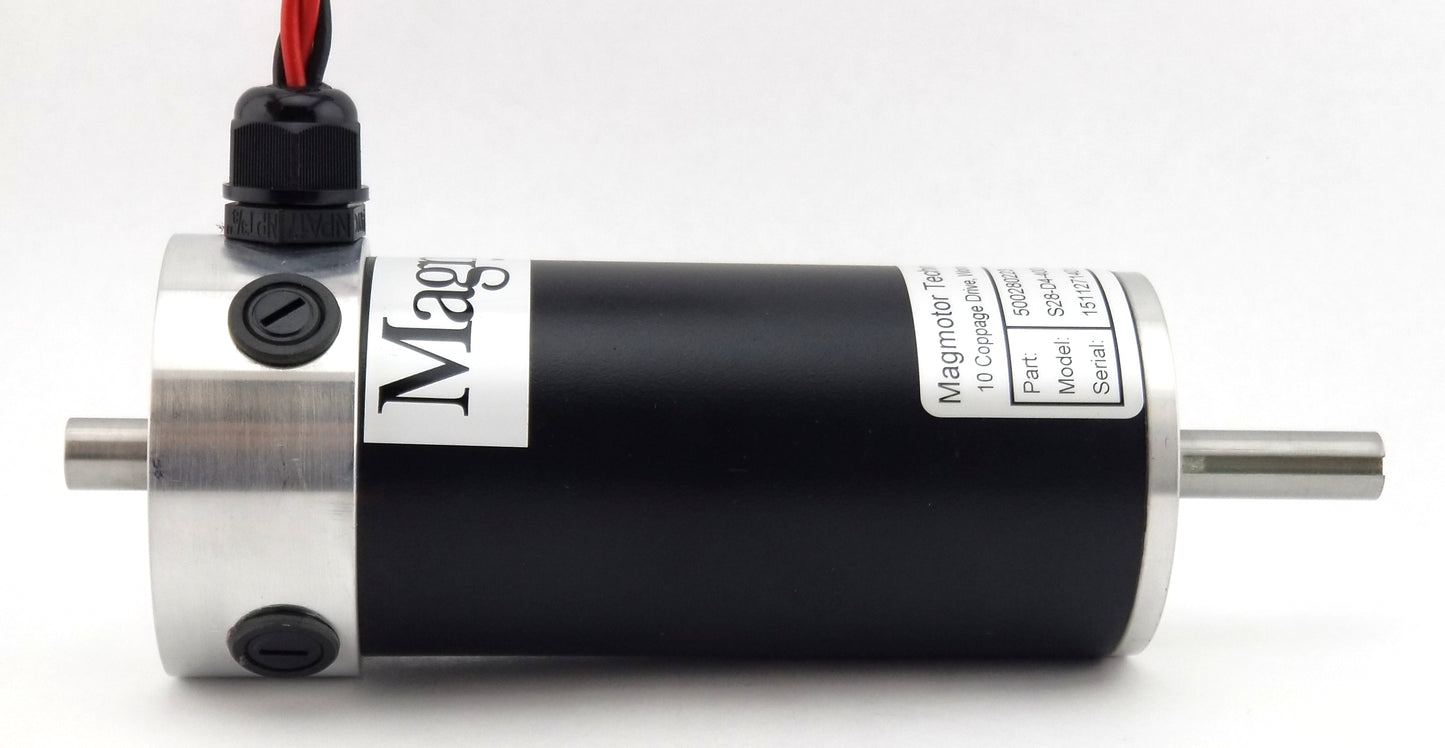

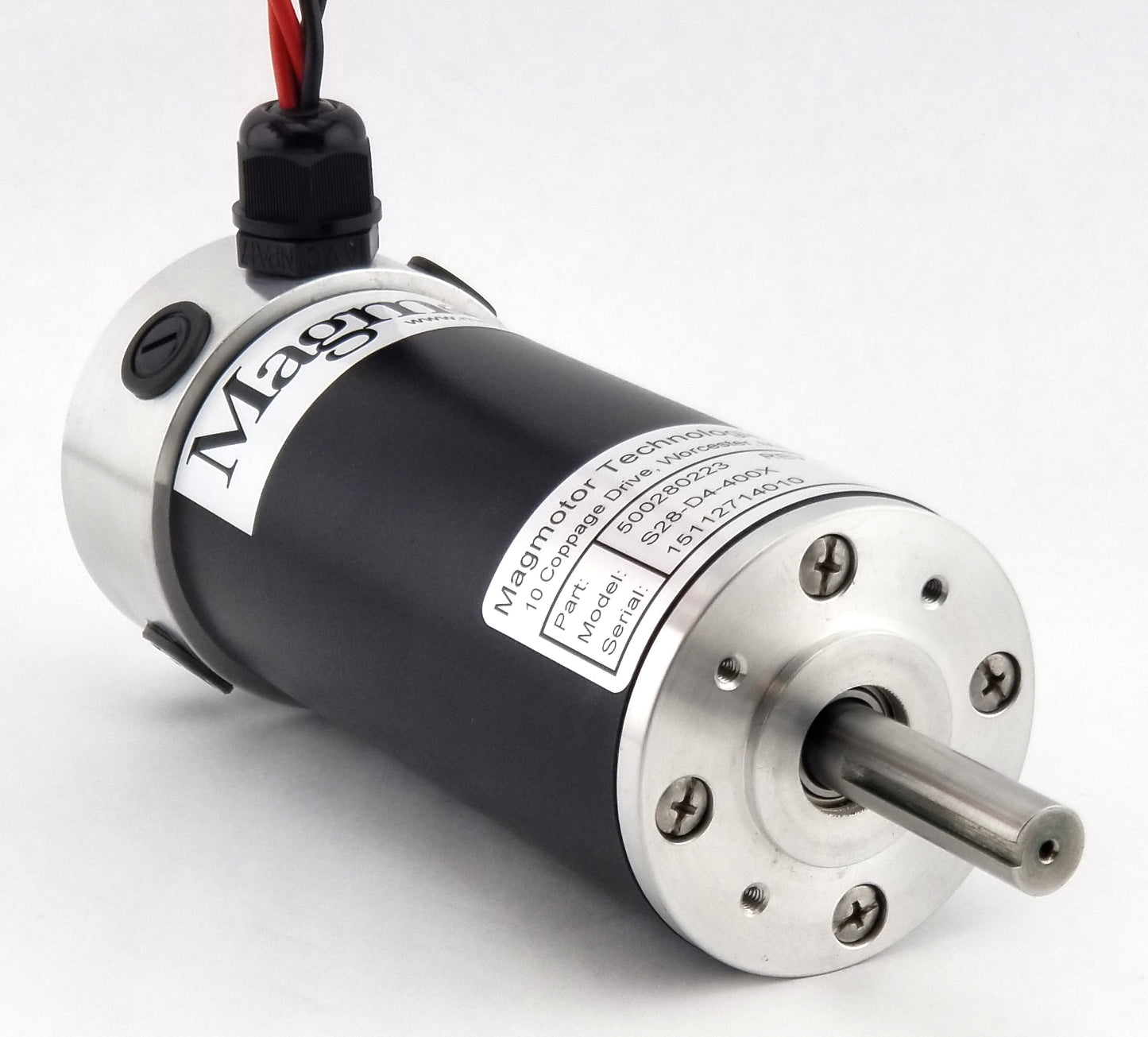

500280223 - BRUSHED MOTOR - 12 to 30 VDC - COMBAT - S28-D4-400X
500280223 - BRUSHED MOTOR - 12 to 30 VDC - COMBAT - S28-D4-400X
Regular price
$460.00
Regular price
Sale price
$460.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
DOWNLOADS:

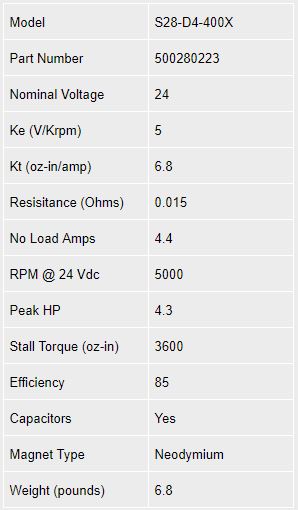

| Model | S28-D4-400X |
| Part Number | 500280223 |
| Nominal Voltage | 24 |
| Ke (V/Krpm) | 5 |
| Kt (oz-in/amp) | 6.8 |
| Resisitance (Ohms) | 0.015 |
| No Load Amps | 4.4 |
| RPM @ 24 Vdc | 5000 |
| Peak HP | 4.3 |
| Stall Torque (oz-in) | 3600 |
| Efficiency | 85 |
| Capacitors | Yes |
| Magnet Type | Neodymium |
| Weight (pounds) | 6.8 |
The specifications are for 24 volts. The motors can also be used at lower voltages, however the rpm and torque values will be reduced proportionally. The motors can also be used at higher voltages, but shorter duty cycles must be maintained to avoid motor failure.
Our motors are warranted to be free from manufacturing defects, and fully operational when you receive them. Magmotor gives no other warranty, either expressed or implied. Warranties are not transferable. In no event shall Magmotor's liability exceed the buyer's purchase price, nor shall Magmotor be liable for any indirect or consequential damages.
DC Motor Specifications:
- 4 Pole - Brushed DC Motor
- REACH, RoHS and CE Compliant
