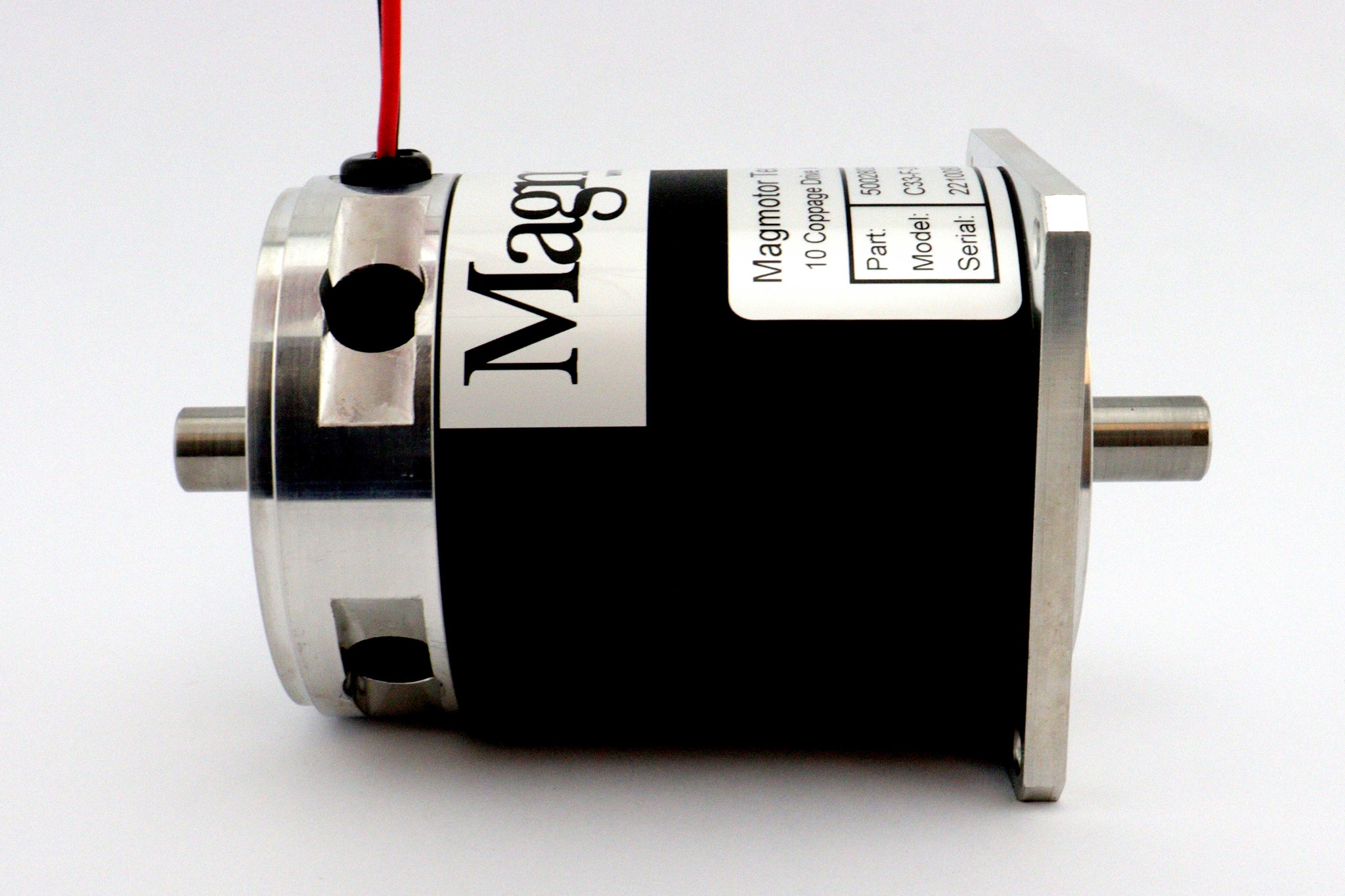

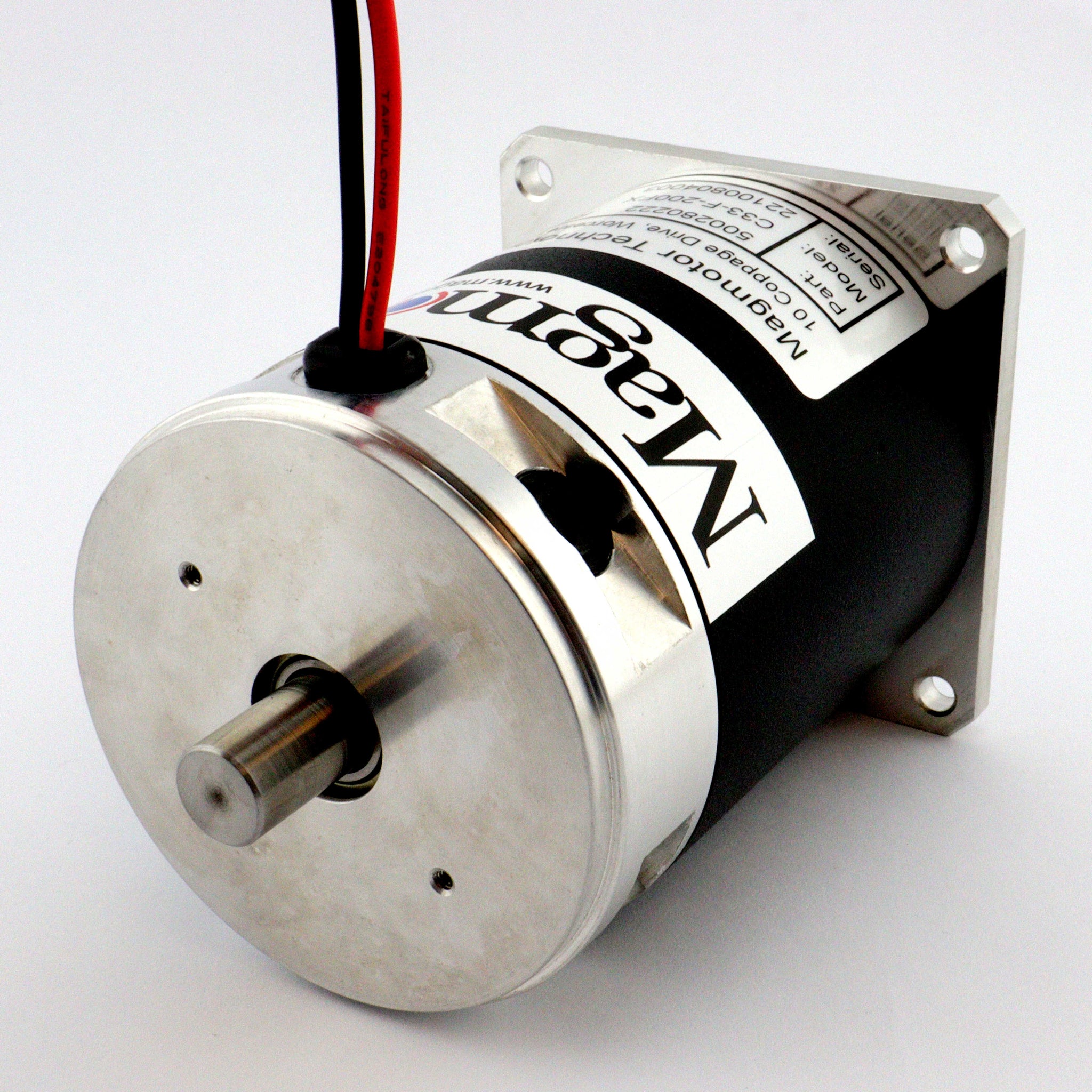

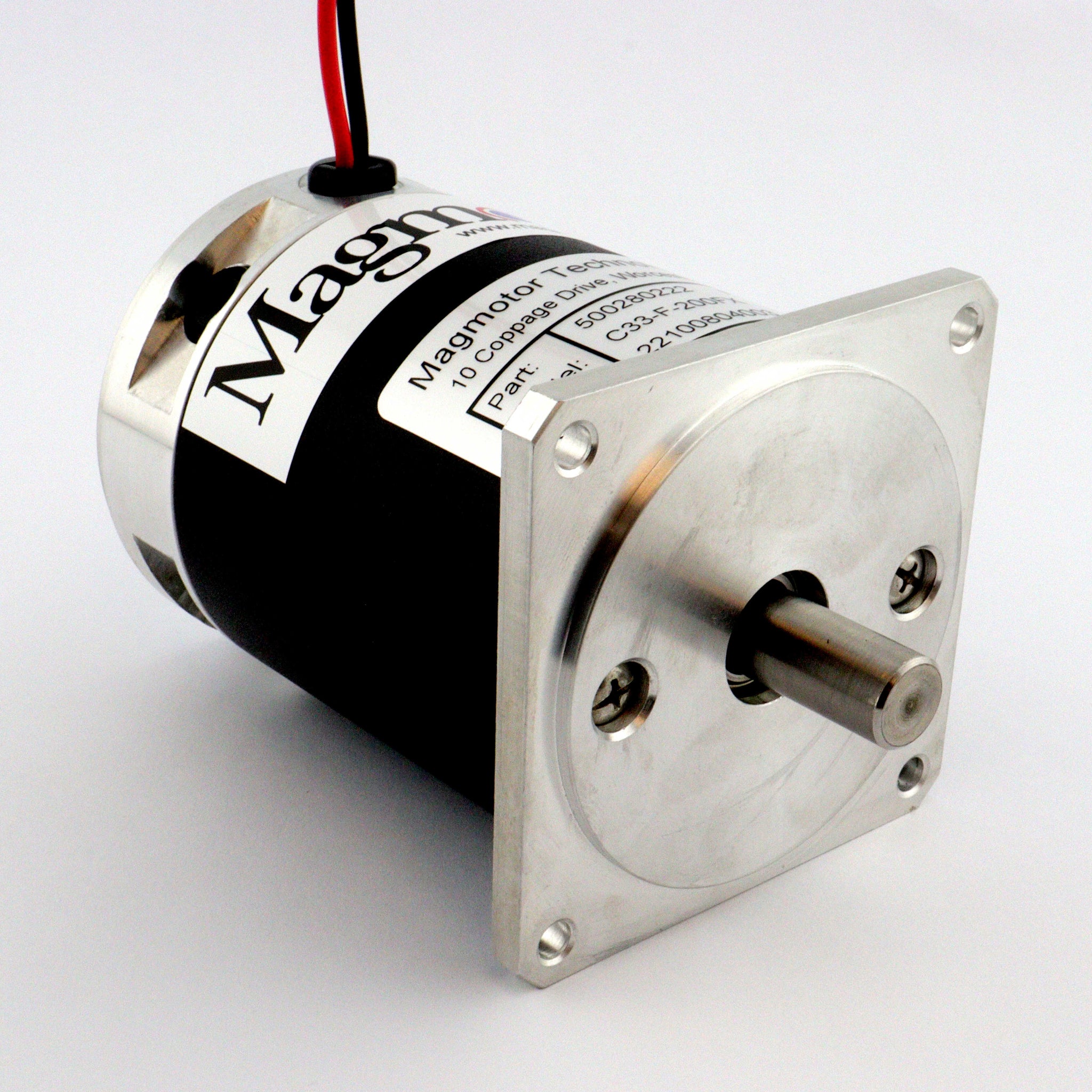

500280222 - BRUSHED MOTOR - 24 to 54 VDC - 25 to 71 oz-in CONT TORQUE - C33-F-200FX

500280222 - BRUSHED MOTOR - 24 to 54 VDC - 25 to 71 oz-in CONT TORQUE - C33-F-200FX

Regular price $372.00
Regular price Sale price $372.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button


DC Motor Specifications:

  • 4 Pole - Brushed DC Motor
  • NEMA 34 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 12.1 +/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 16.4 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 1679 rpm @ 24VDC with a continuous torque of 71 oz-in
  • Capable of operating at 2731 rpm @ 36VDC with a continuous torque of 57 oz-in
  • Capable of operating at 3804 rpm @ 48VDC with a continuous torque of 38 oz-in
  • Capable of operating at 4355 rpm @ 54VDC with a continuous torque of 25 oz-in
