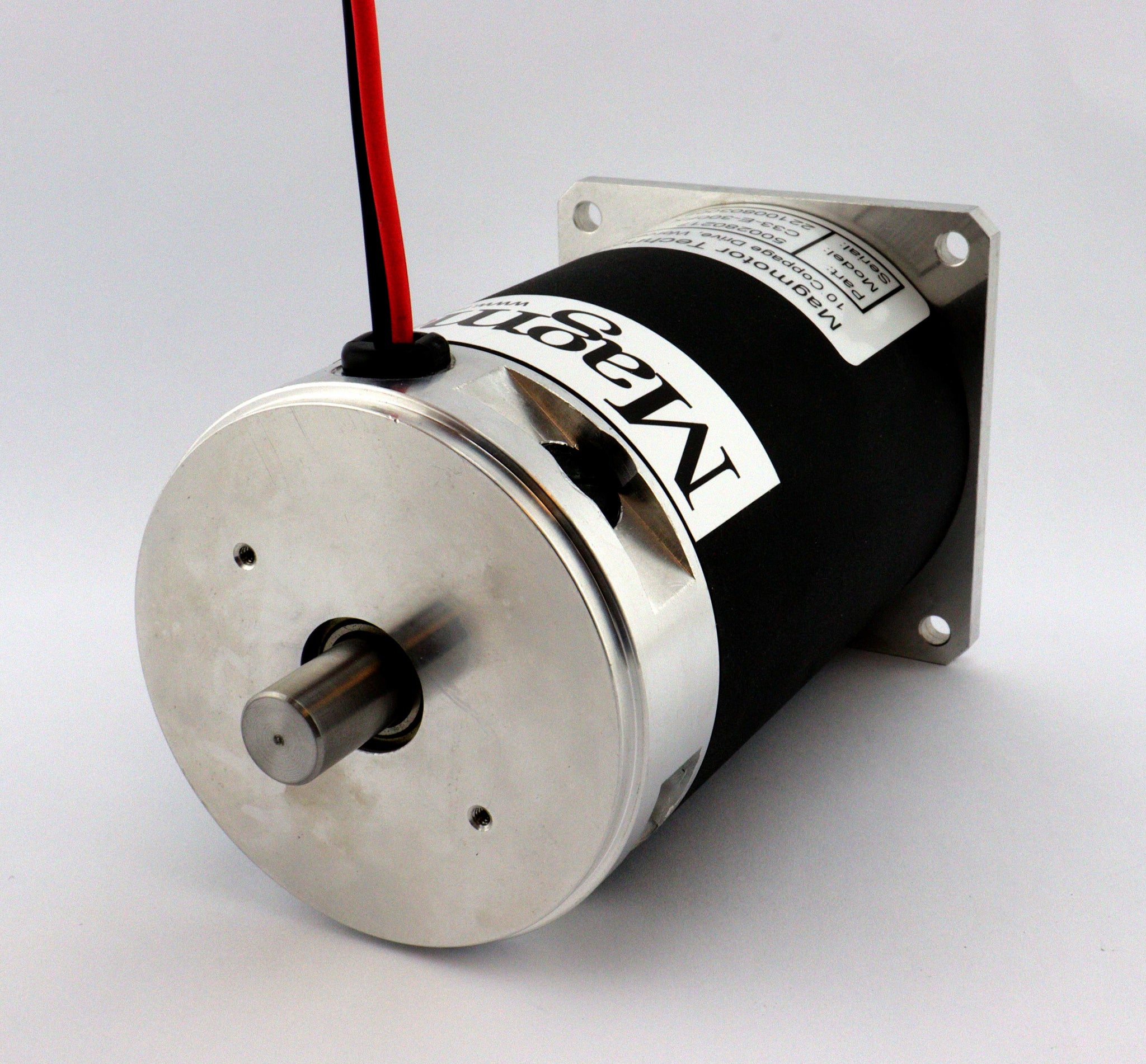

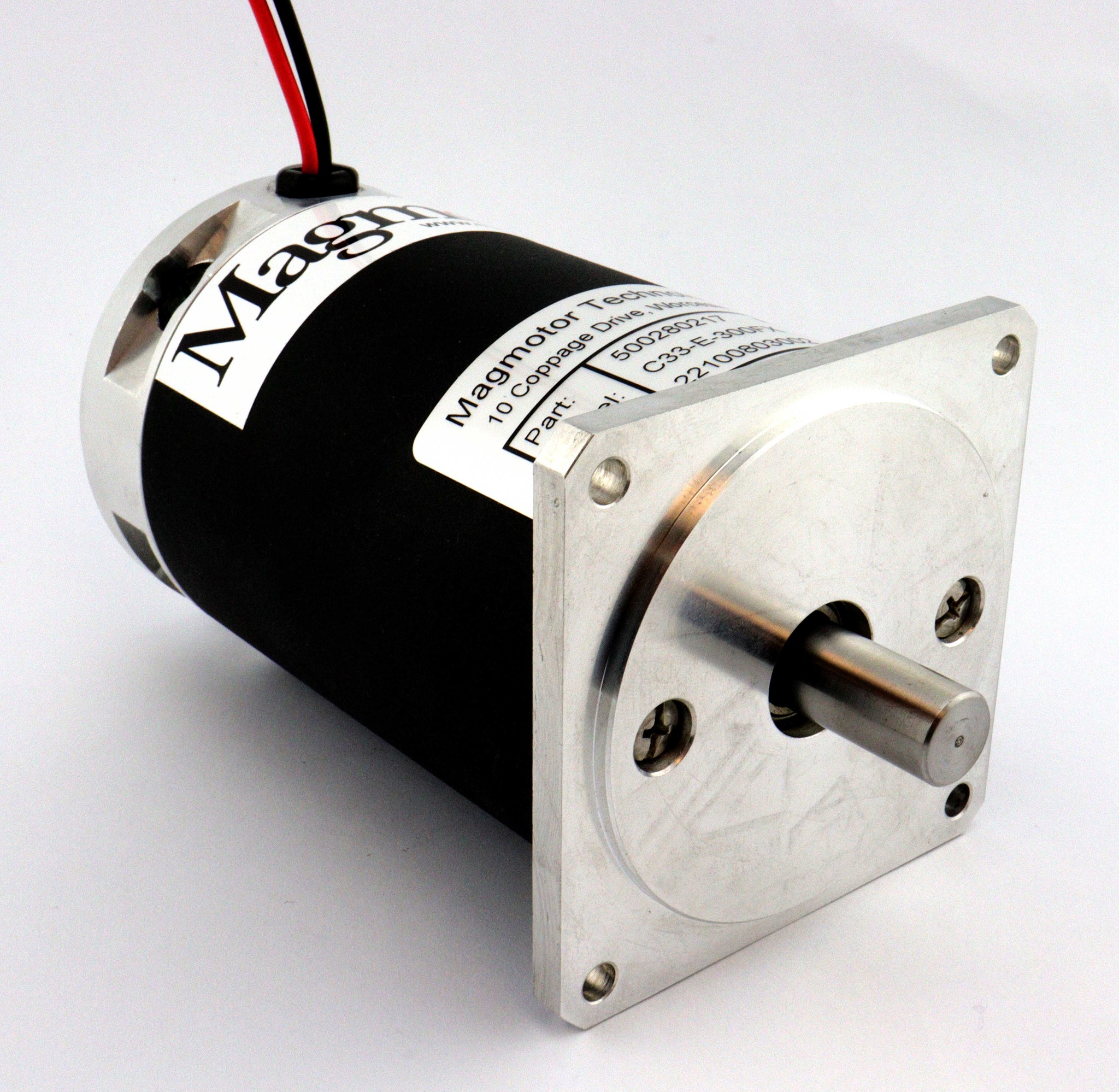

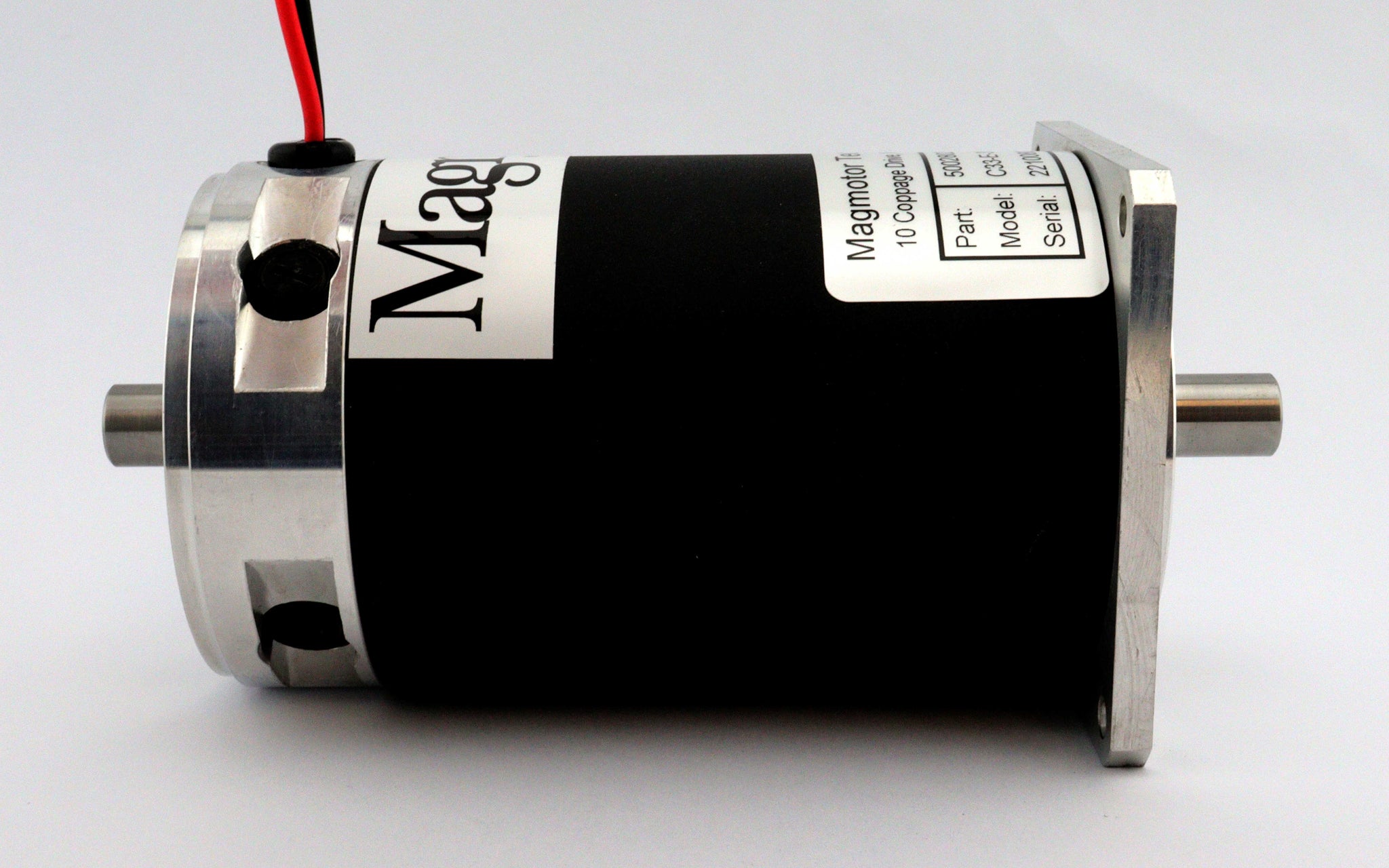

500280217 - BRUSHED MOTOR - 30 to 60 VDC - 47 to 94 oz-in CONT TORQUE - C33-E-300FX

500280217 - BRUSHED MOTOR - 30 to 60 VDC - 47 to 94 oz-in CONT TORQUE - C33-E-300FX

Regular price $434.00
Regular price Sale price $434.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button


DC Motor Specifications:

  • 4 Pole - Brushed DC Motor
  • NEMA 34 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 13.3 +/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 18.0 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 1969 rpm @ 30VDC with a continuous torque of 94 oz-in
  • Capable of operating at 2920 rpm @ 42VDC with a continuous torque of 78 oz-in
  • Capable of operating at 3880 rpm @ 54VDC with a continuous torque of 59 oz-in
  • Capable of operating at 4368 rpm @ 60VDC with a continuous torque of 47 oz-in
