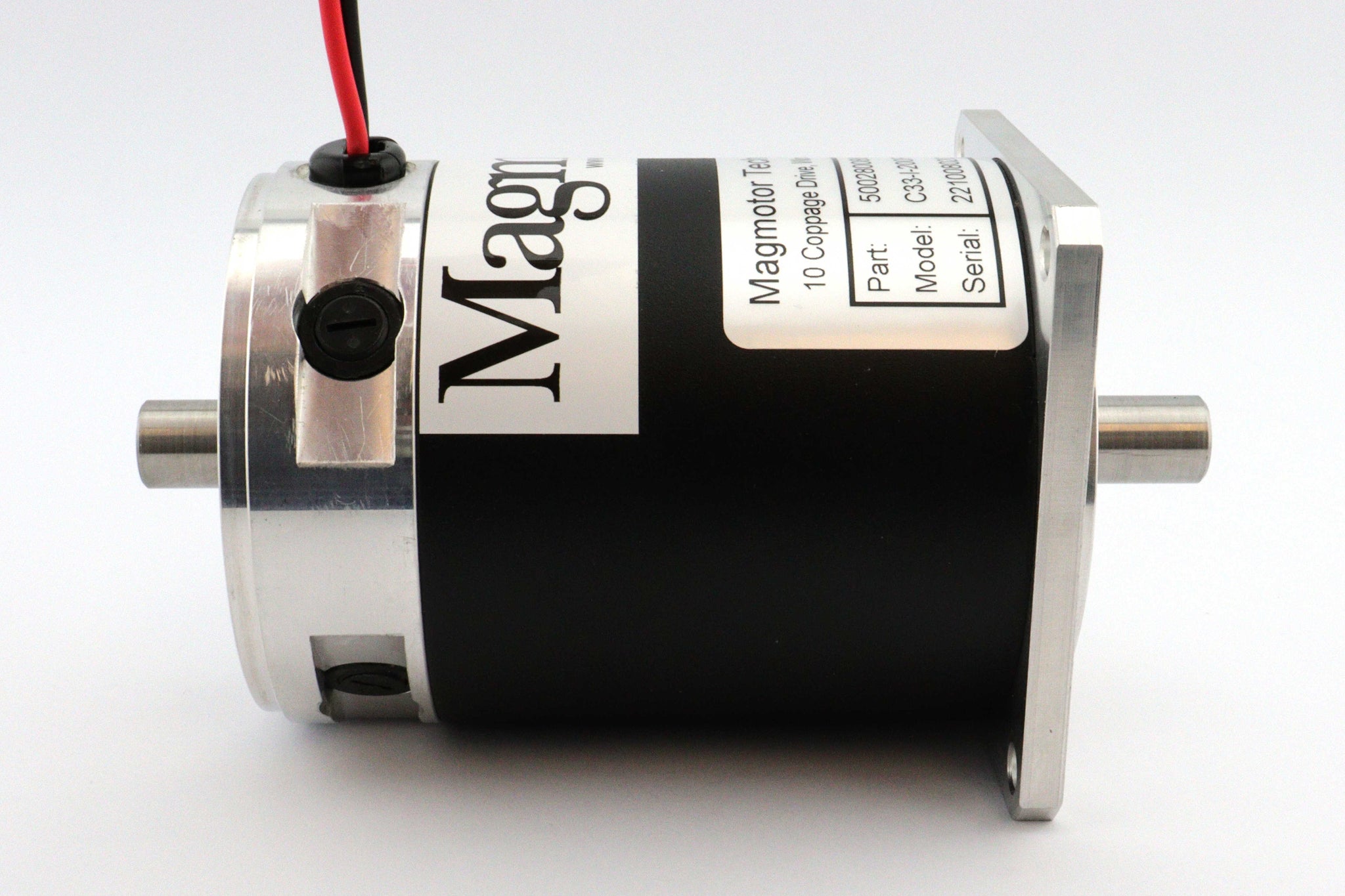

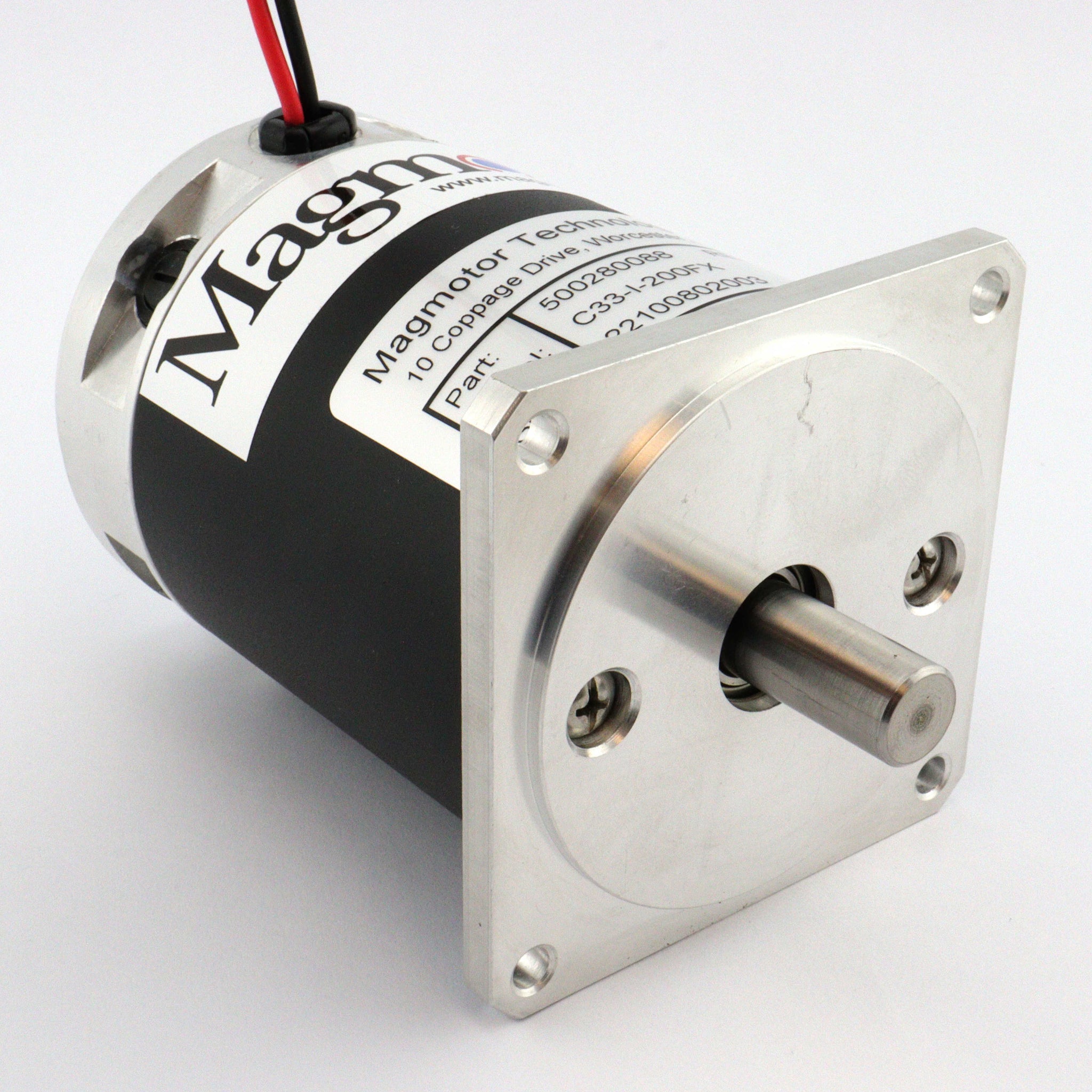

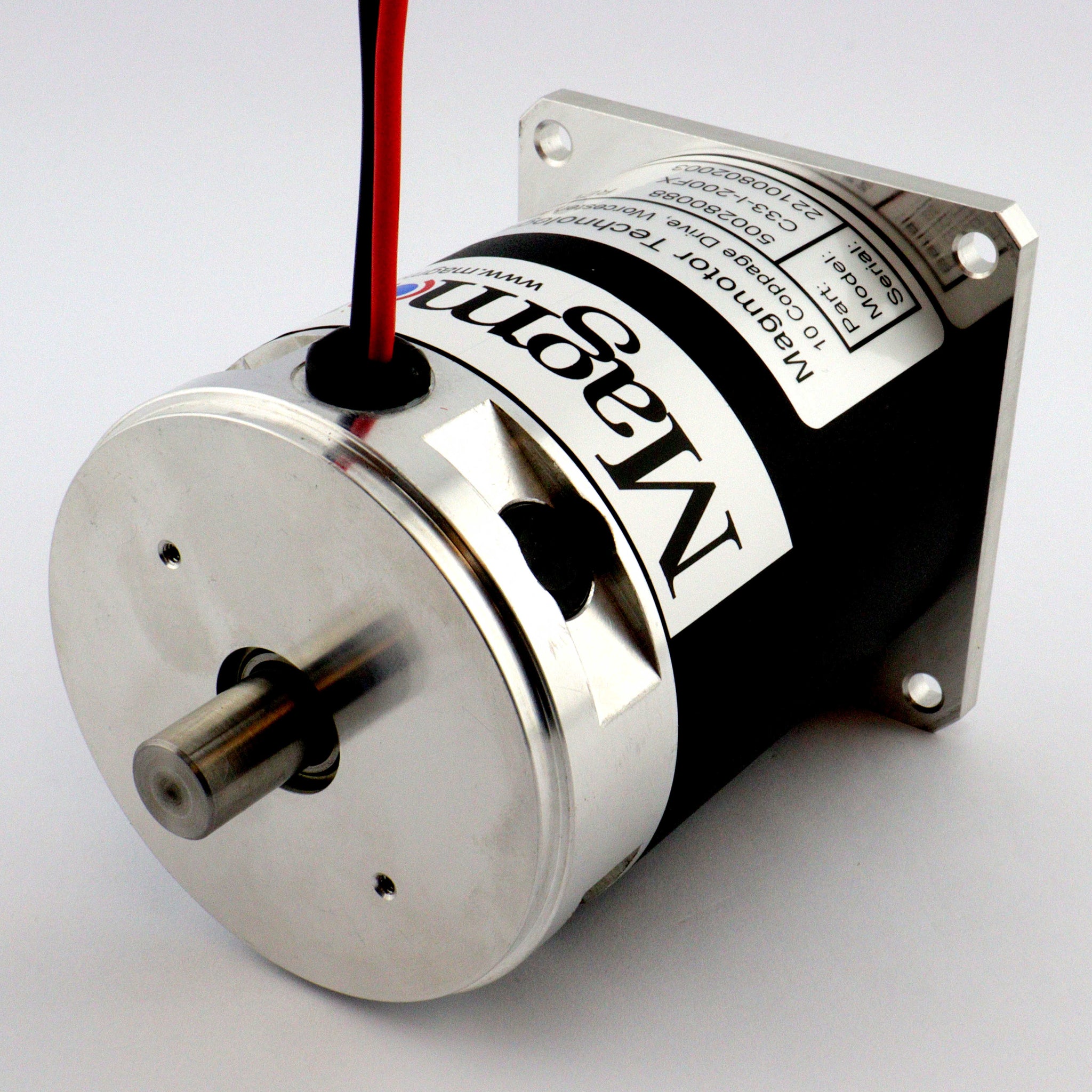

500280088 - BRUSHED MOTOR - 48 to 96 VDC - 35 to 82 oz-in CONT TORQUE - C33-I-200FX

500280088 - BRUSHED MOTOR - 48 to 96 VDC - 35 to 82 oz-in CONT TORQUE - C33-I-200FX

Regular price $372.00
Regular price Sale price $372.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button


DC Motor Specifications:

  • 4 Pole - Brushed DC Motor
  • NEMA 34 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 31.4+/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 23.2 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 1820 rpm @ 48VDC with a continuous torque of 82 oz-in
  • Capable of operating at 2365 rpm @ 60VDC with a continuous torque of 73 oz-in
  • Capable of operating at 2912 rpm @ 72VDC with a continuous torque of 63 oz-in
  • Capable of operating at 3469 rpm @ 84VDC with a continuous torque of 50 oz-in
  • Capable of operating at 4032 rpm @ 96VDC with a continuous torque of 35 oz-in
