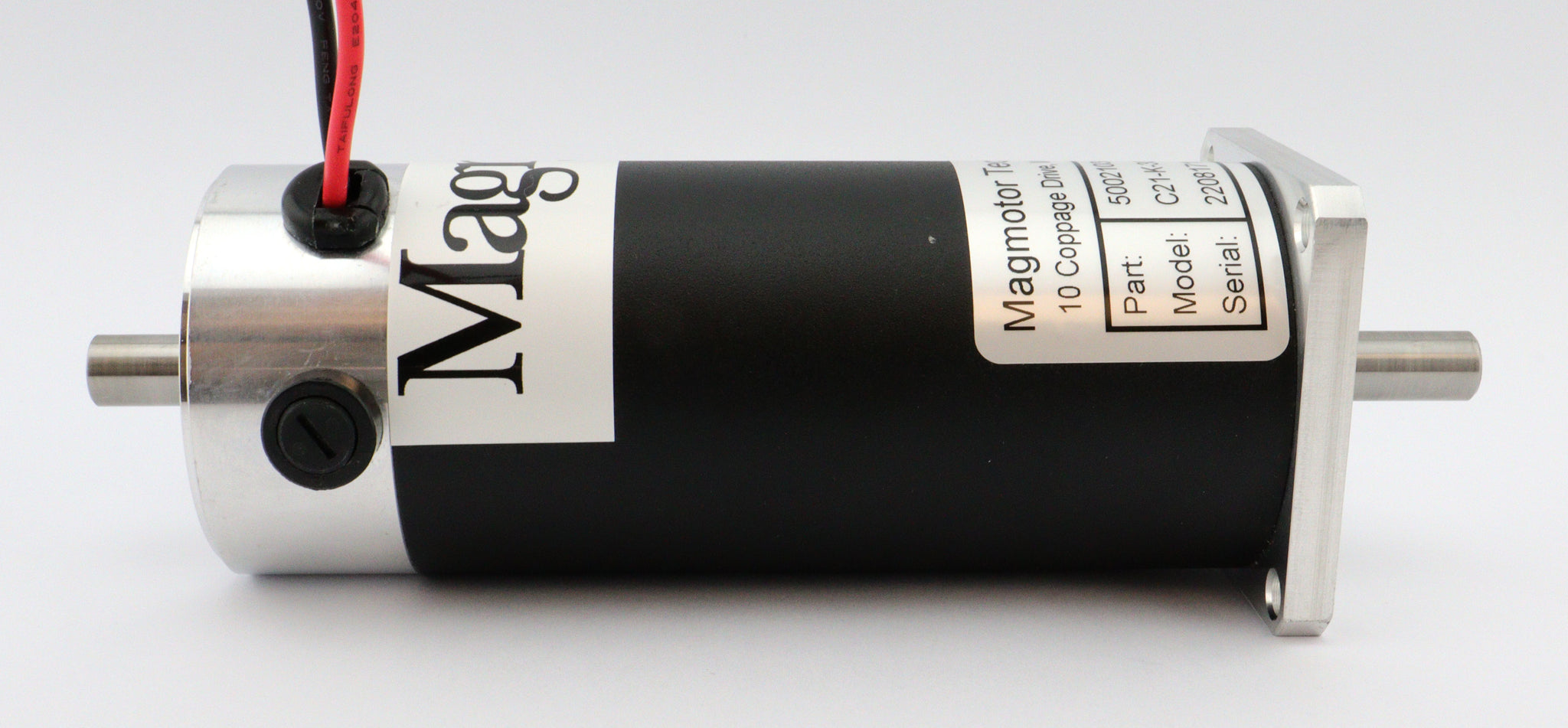

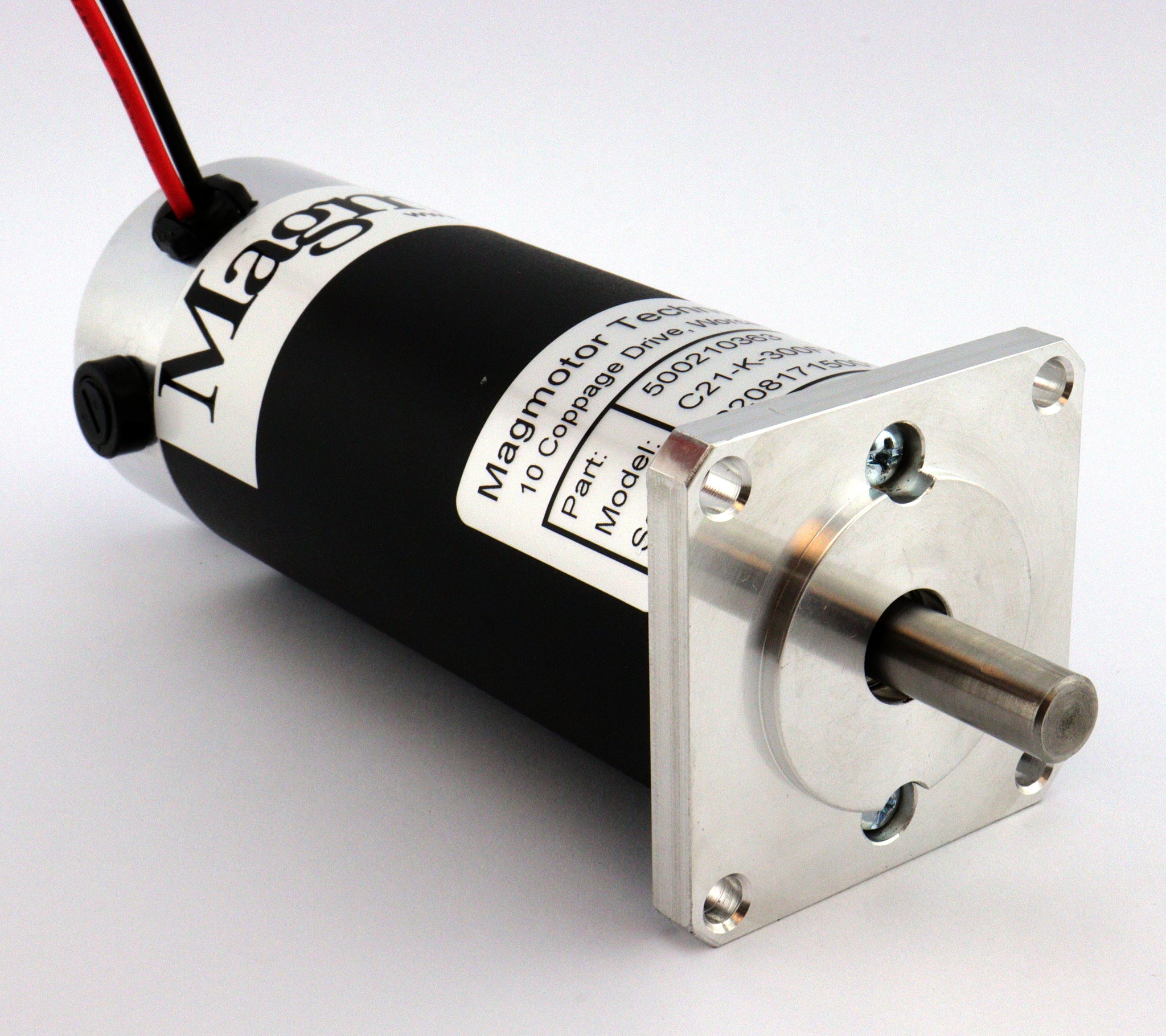

500210363 - BRUSHED MOTOR - 60 to 150 VDC - 37 to 44 oz-in CONT TORQUE - C21-K-300FX

500210363 - BRUSHED MOTOR - 60 to 150 VDC - 37 to 44 oz-in CONT TORQUE - C21-K-300FX

Regular price $286.00
Regular price Sale price $286.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button


DC Motor Specifications:

  • 2 Pole - Brushed DC Motor
  • NEMA 23 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 41.0+/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 55.4 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 921 rpm @ 60VDC with a continuous torque of 44 oz-in
  • Capable of operating at 1678 rpm @ 90VDC with a continuous torque of 42 oz-in
  • Capable of operating at 2446 rpm @ 120VDC with a continuous torque of 39 oz-in
  • Capable of operating at 3203 rpm @ 150VDC with a continuous torque of 37 oz-in
