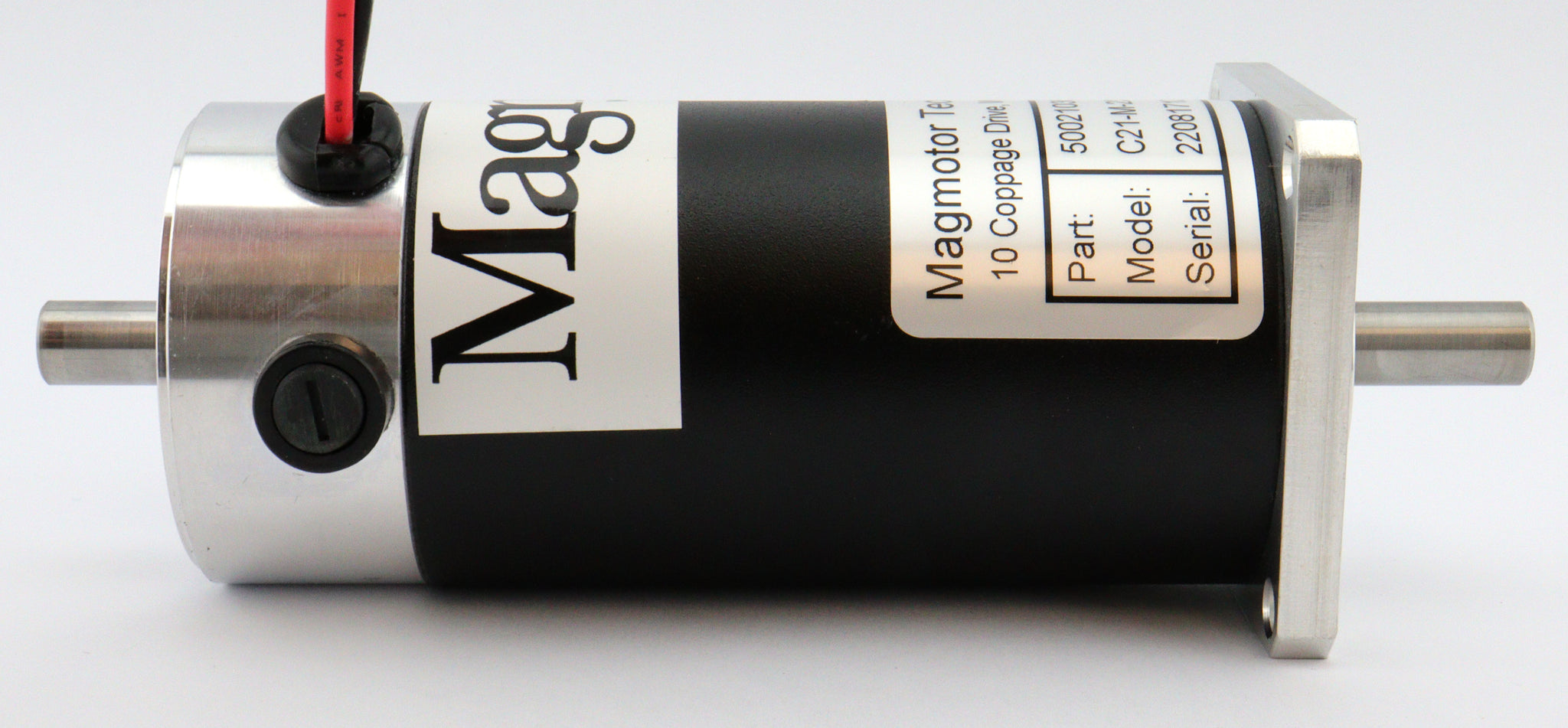

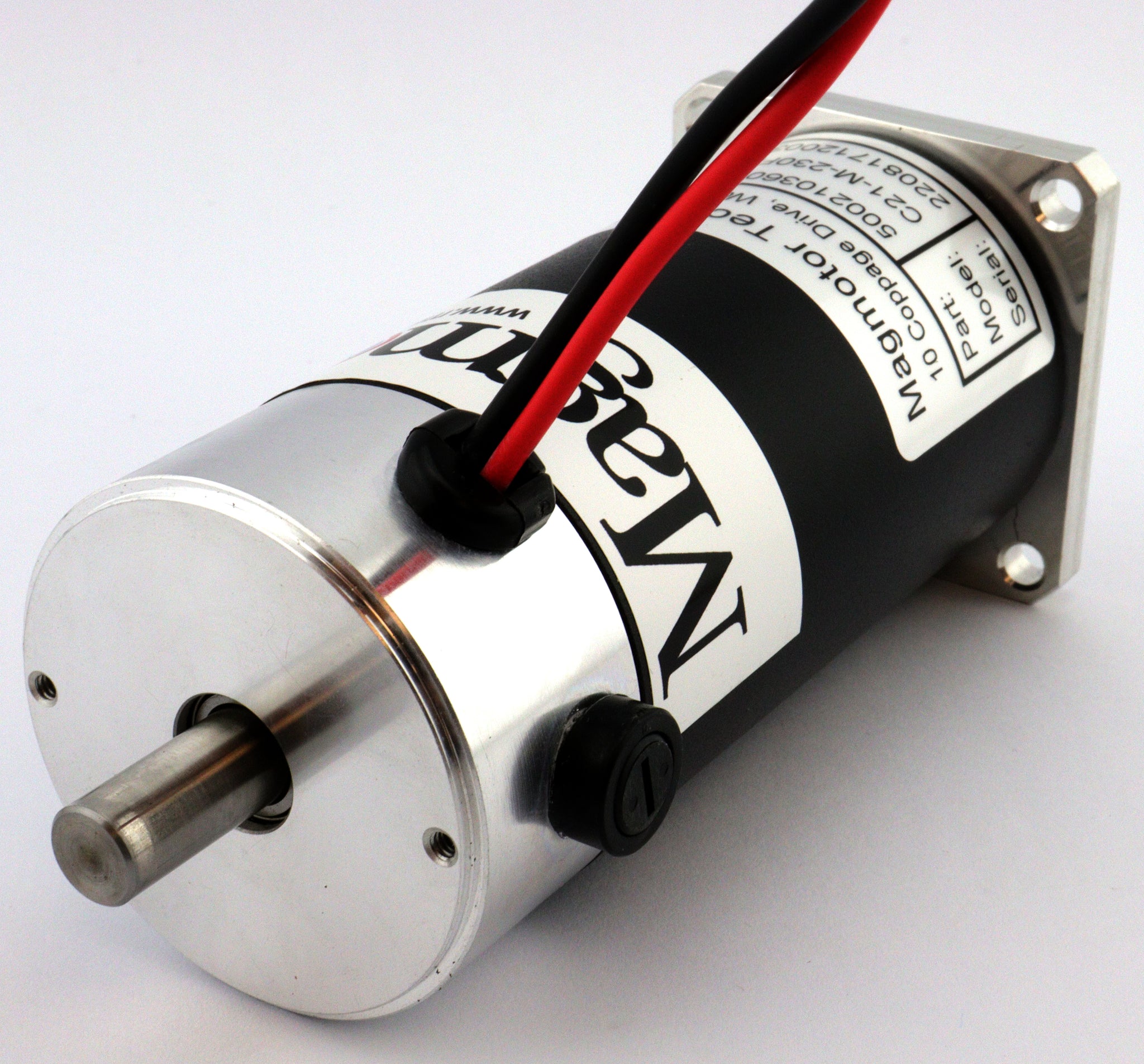

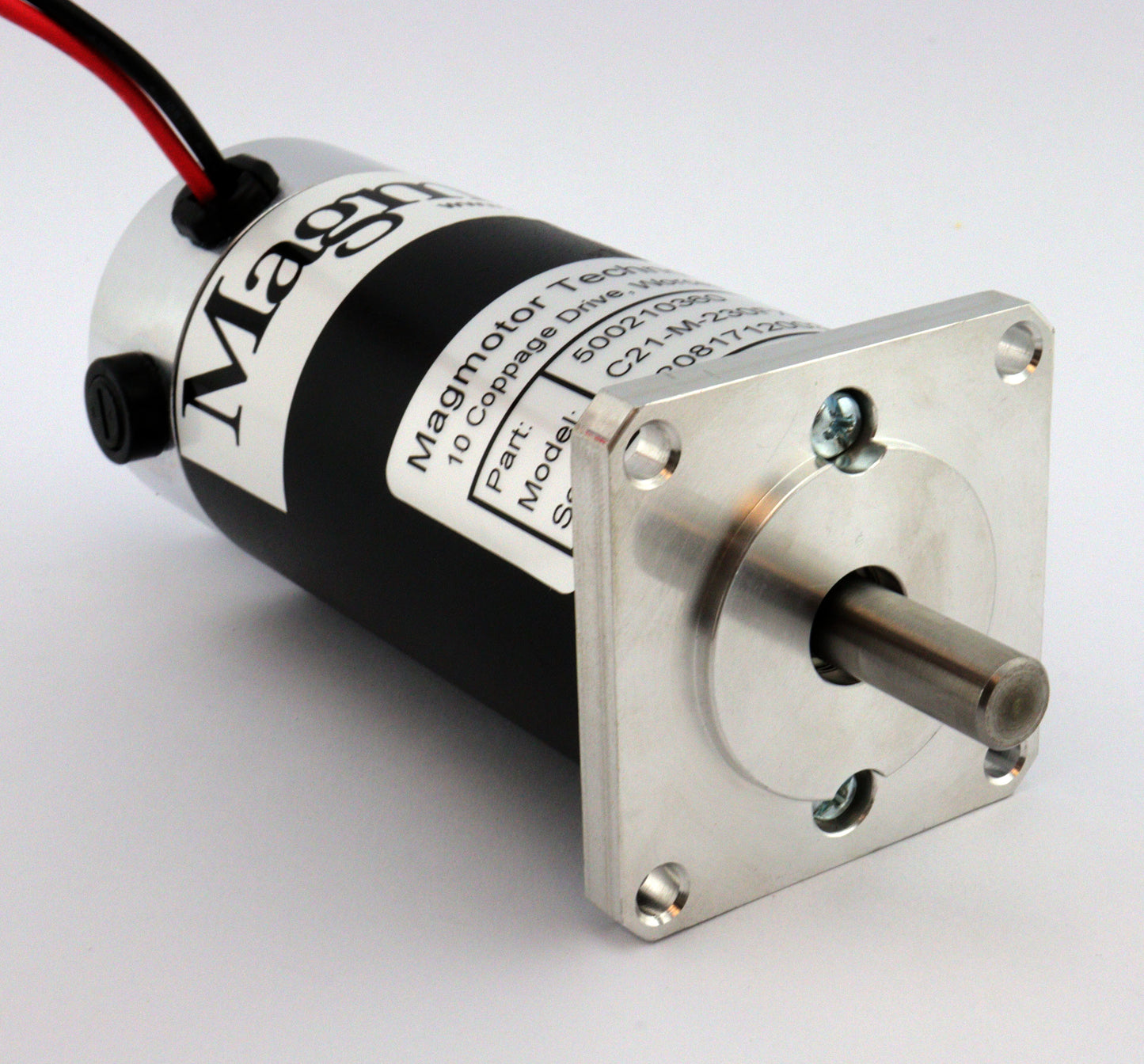

500210360 - BRUSHED MOTOR - 60 to 150 VDC - 32 to 38 oz-in CONT TORQUE - C21-M-230FX

500210360 - BRUSHED MOTOR - 60 to 150 VDC - 32 to 38 oz-in CONT TORQUE - C21-M-230FX

Regular price $273.00
Regular price Sale price $273.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button


DC Motor Specifications:

  • 2 Pole - Brushed DC Motor
  • NEMA 23 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 50.5+/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 68.3 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 560 rpm @ 60VDC with a continuous torque of 38 oz-in
  • Capable of operating at 1187 rpm @ 90VDC with a continuous torque of 36 oz-in
  • Capable of operating at 1814 rpm @ 120VDC with a continuous torque of 34 oz-in
  • Capable of operating at 2441 rpm @ 150VDC with a continuous torque of 32 oz-in
