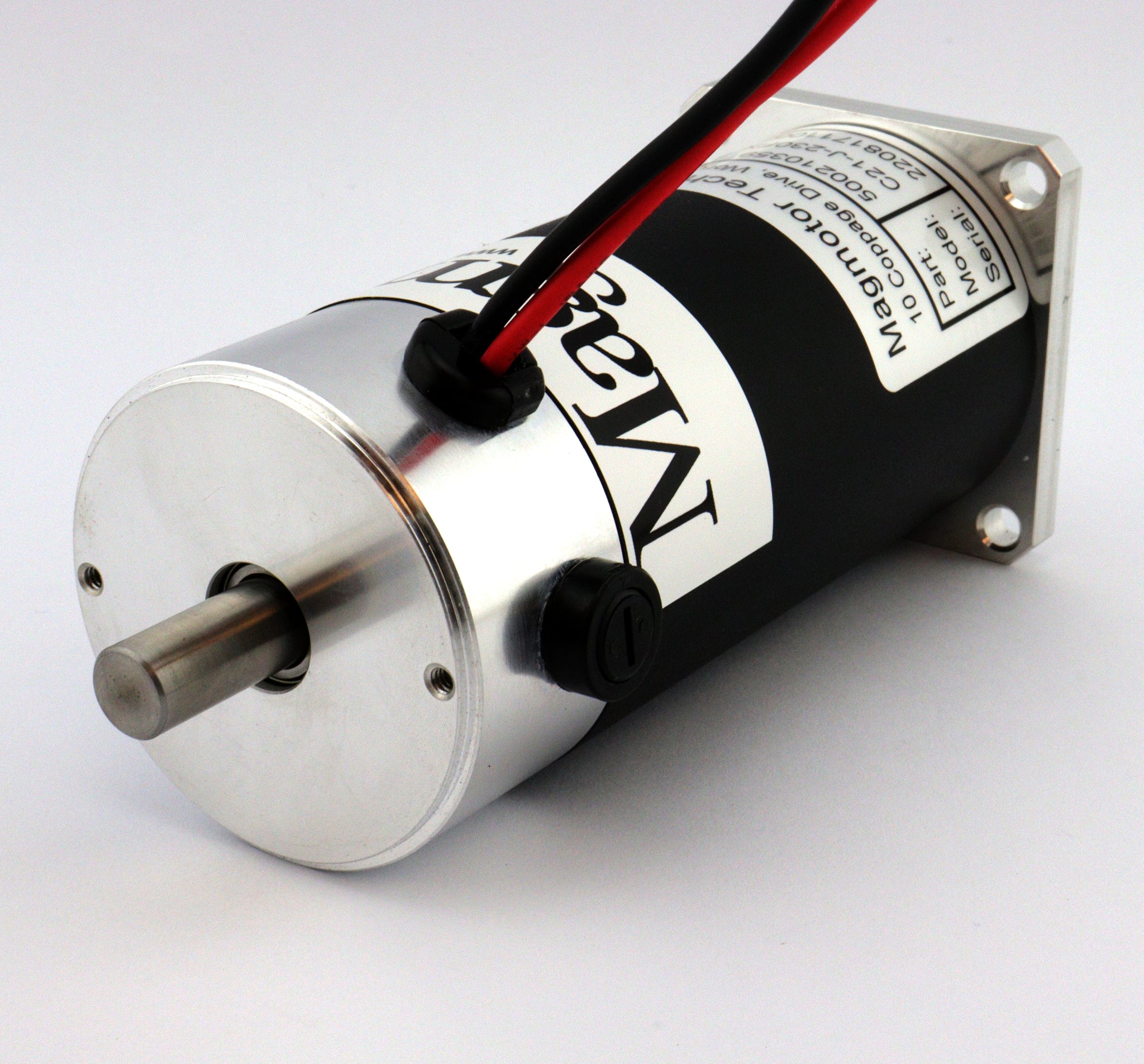

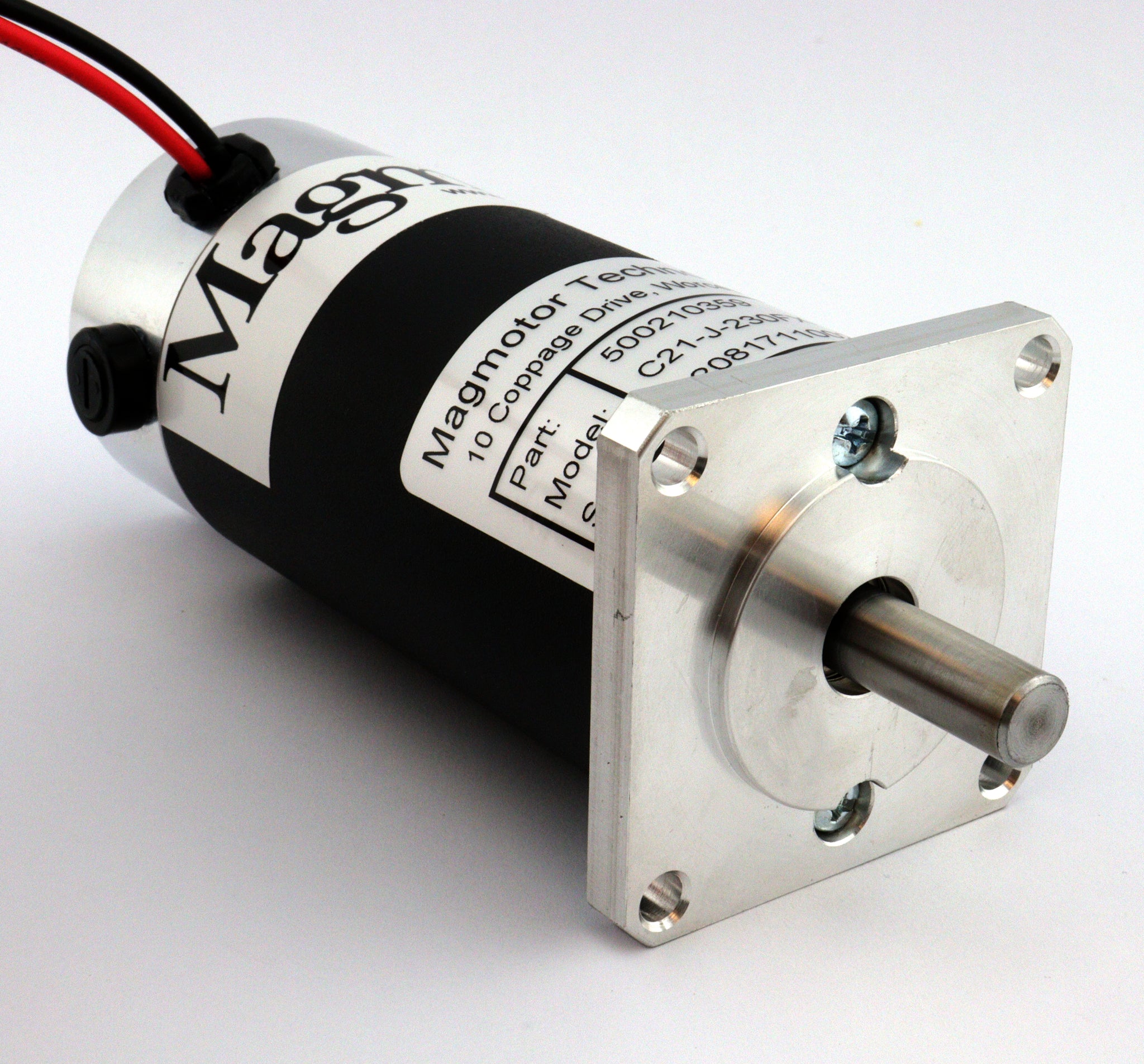

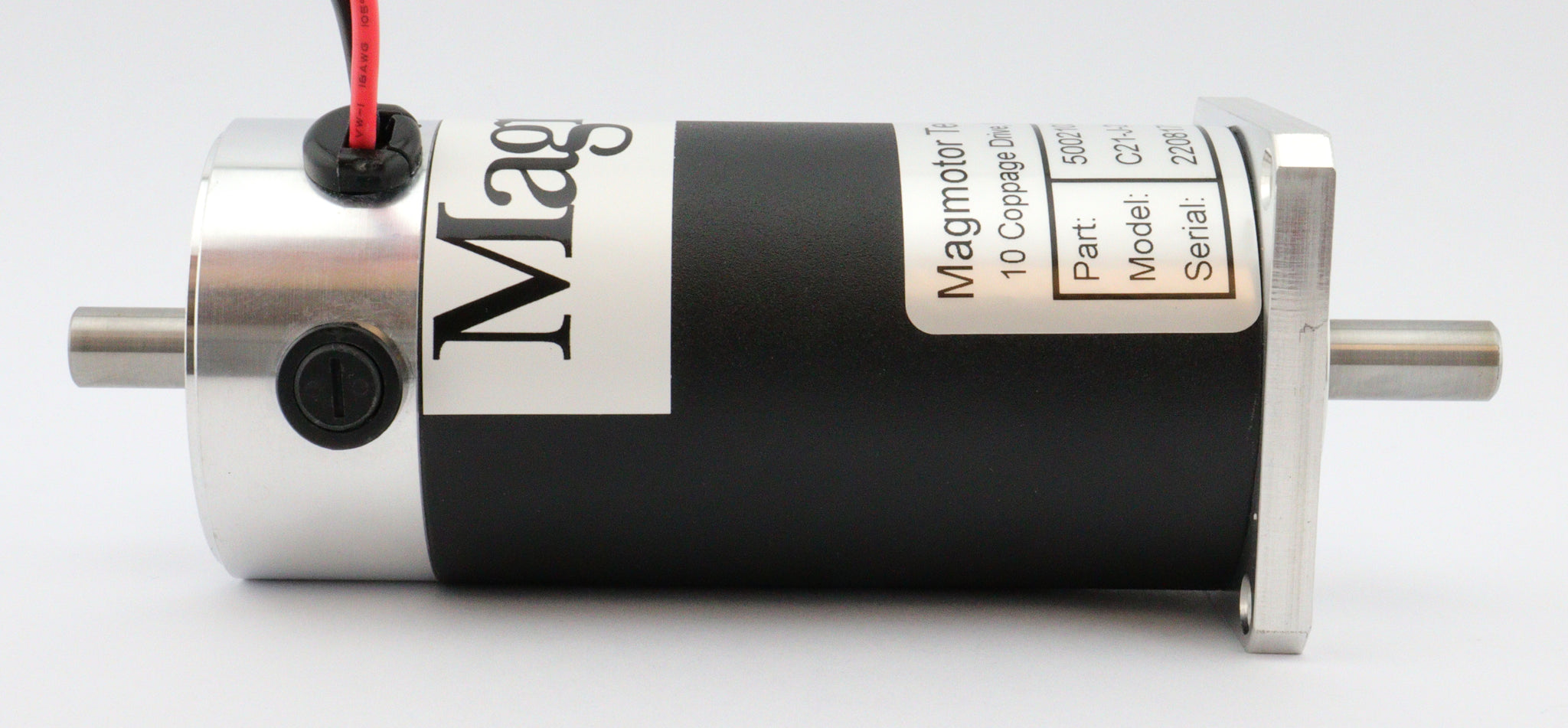

500210359 - BRUSHED MOTOR - 36 to 120 VDC - 23 to 33 oz-in CONT TORQUE - C21-J-230FX

DOWNLOADS:



DC Motor Specifications:

• 2 Pole - Brushed DC Motor
• NEMA 23 Mounting
• Encoder Ready
• Voltage Constant (Ke) = 26.1+/- 10% VOLTS/KRPM

• Torque Constant (Kt) = 35.3 +/- 10% OZ-IN/AMP
• REACH, RoHS and CE Compliant

Example Performance Ranges:

• Capable of operating at 802 rpm @ 36VDC with a continuous torque of 38 oz-in
• Capable of operating at 1782 rpm @ 60VDC with a continuous torque of 34 oz-in
• Capable of operating at 3008 rpm @ 90VDC with a continuous torque of 29 oz-in
• Capable of operating at 4248 rpm @ 120VDC with a continuous torque of 23 oz-in
