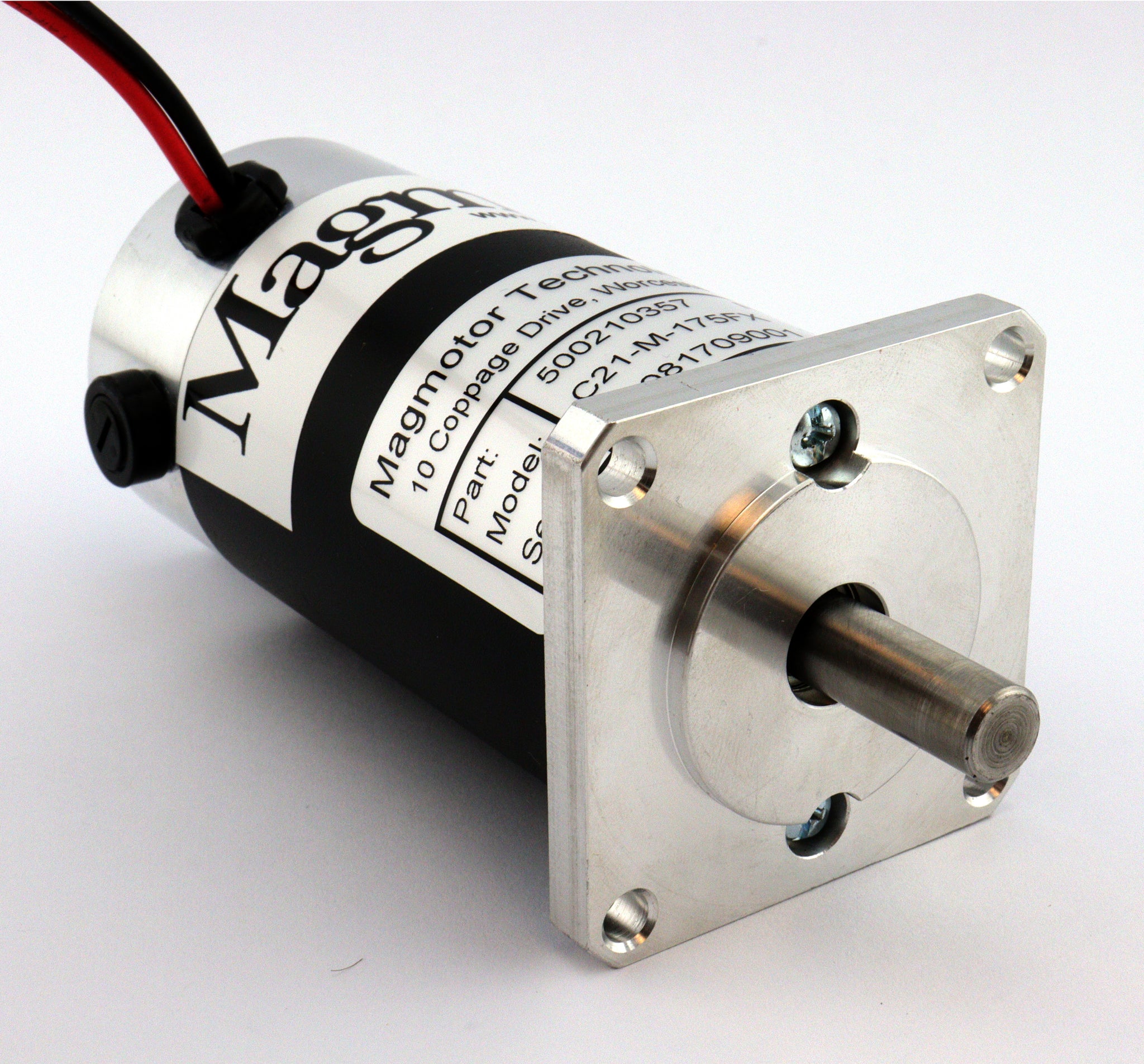

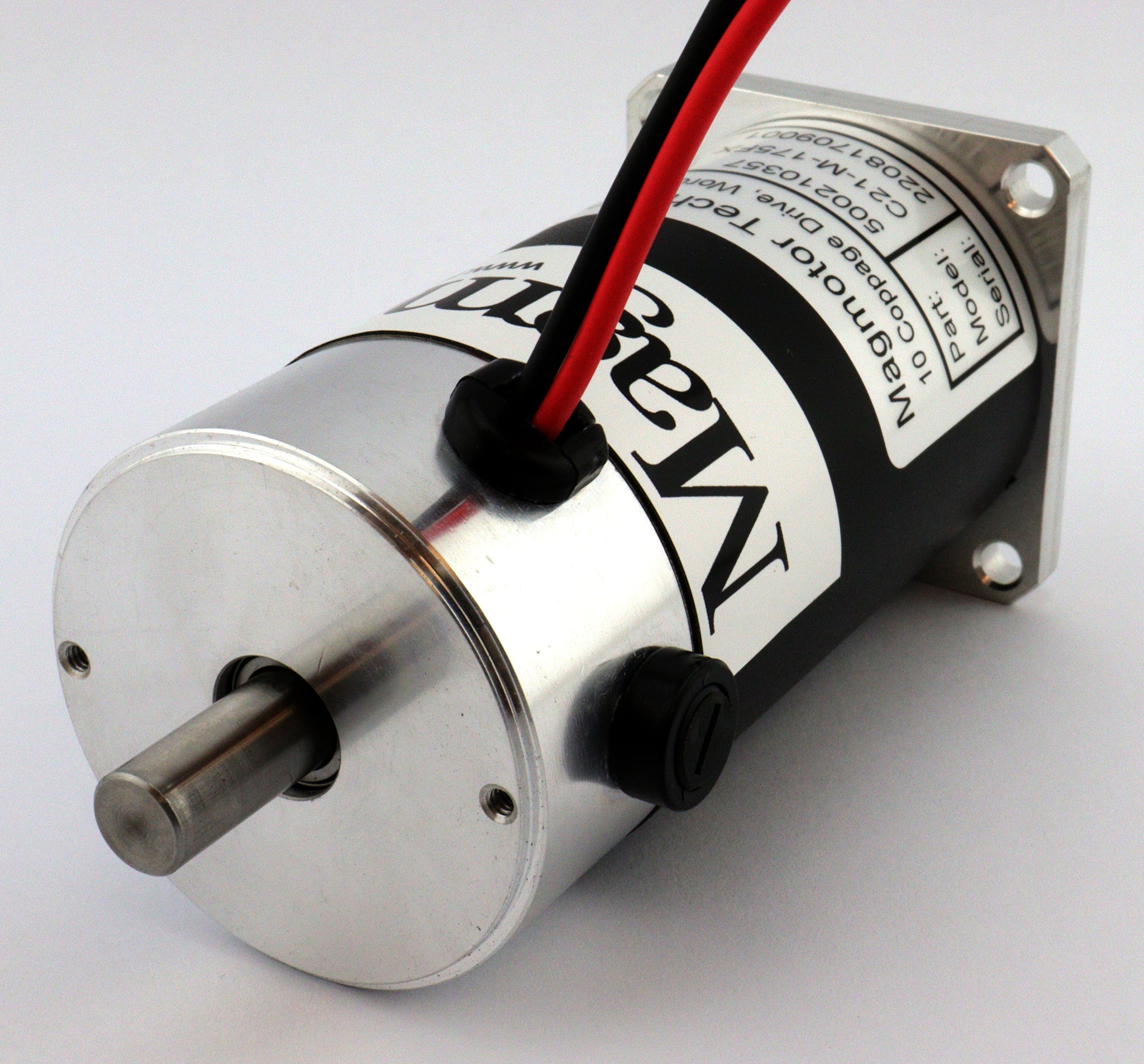

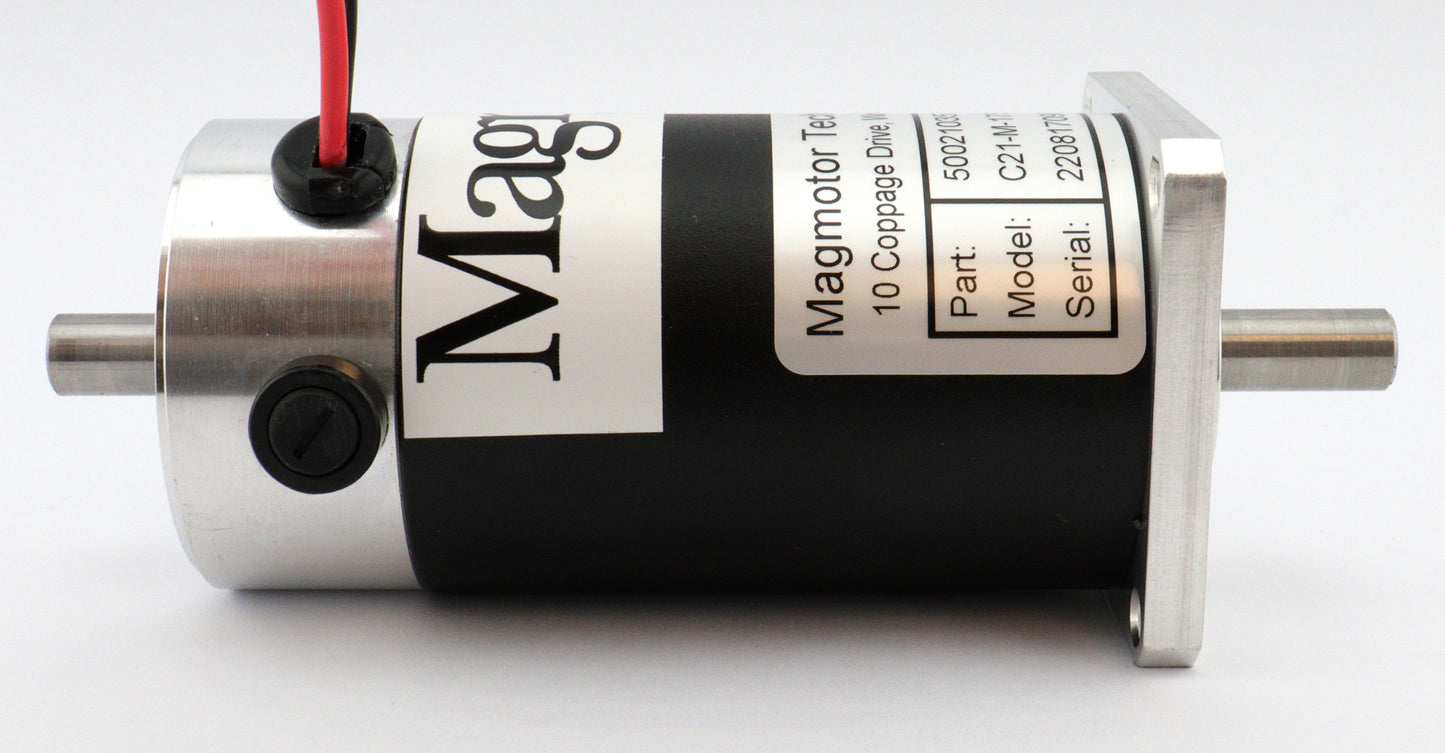

500210357 - BRUSHED MOTOR - 60 to 120 VDC - 20 to 26 oz-in CONT TORQUE - C21-M-175FX
500210357 - BRUSHED MOTOR - 60 to 120 VDC - 20 to 26 oz-in CONT TORQUE - C21-M-175FX
500210357 - BRUSHED MOTOR - 60 to 120 VDC - 20 to 26 oz-in CONT TORQUE - C21-M-175FX

500210357 - BRUSHED MOTOR - 60 to 120 VDC - 20 to 26 oz-in CONT TORQUE - C21-M-175FX

Shipping calculated at checkout.

DOWNLOADS:

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button


DC Motor Specifications:

  • 2 Pole - Brushed DC Motor
  • NEMA 23 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 42.0+/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 56.8 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 810 rpm @ 60VDC with a continuous torque of 26 oz-in
  • Capable of operating at 1595 rpm @ 90VDC with a continuous torque of 23 oz-in
  • Capable of operating at 2381 rpm @ 120VDC with a continuous torque of 20 oz-in
