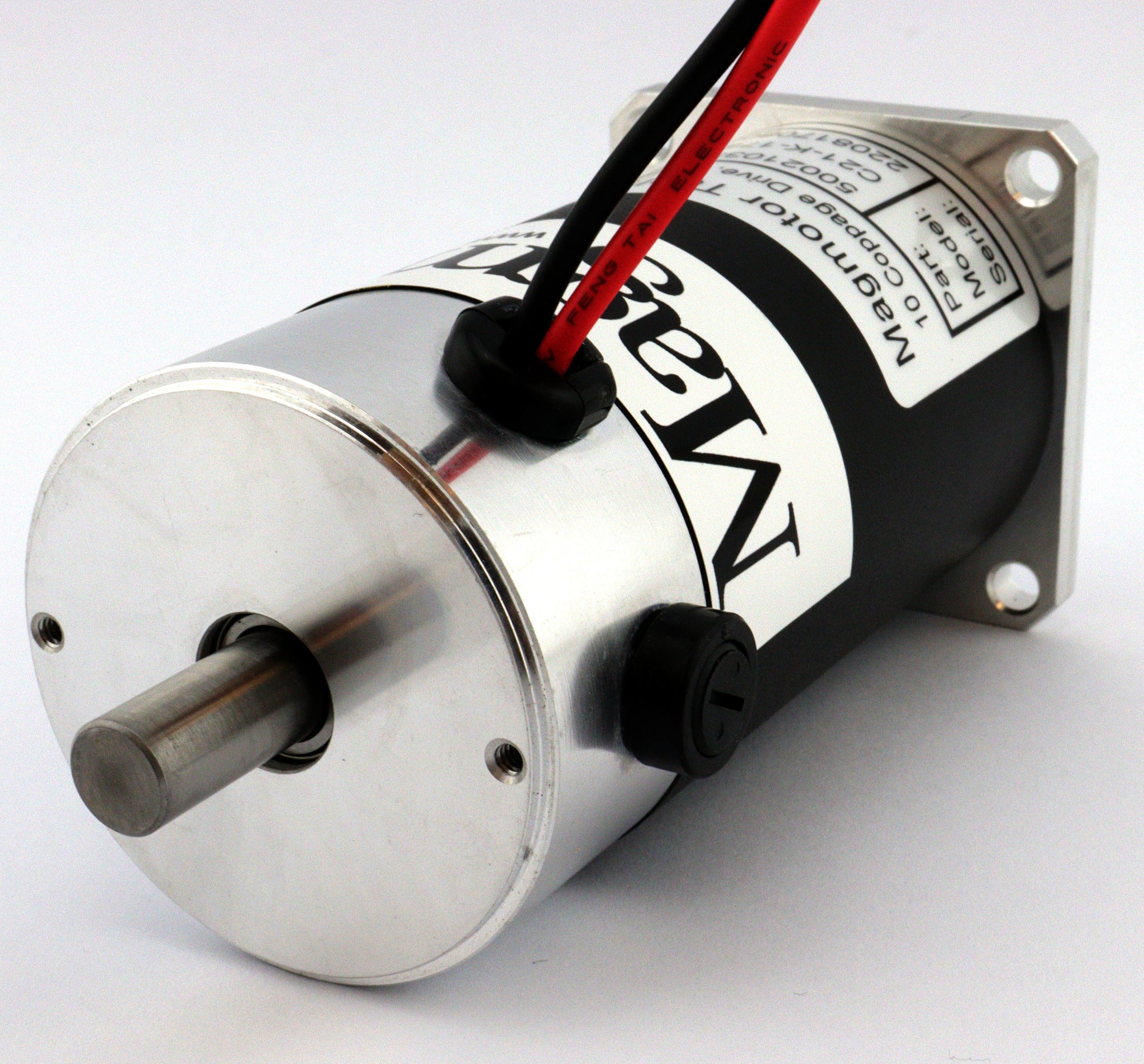

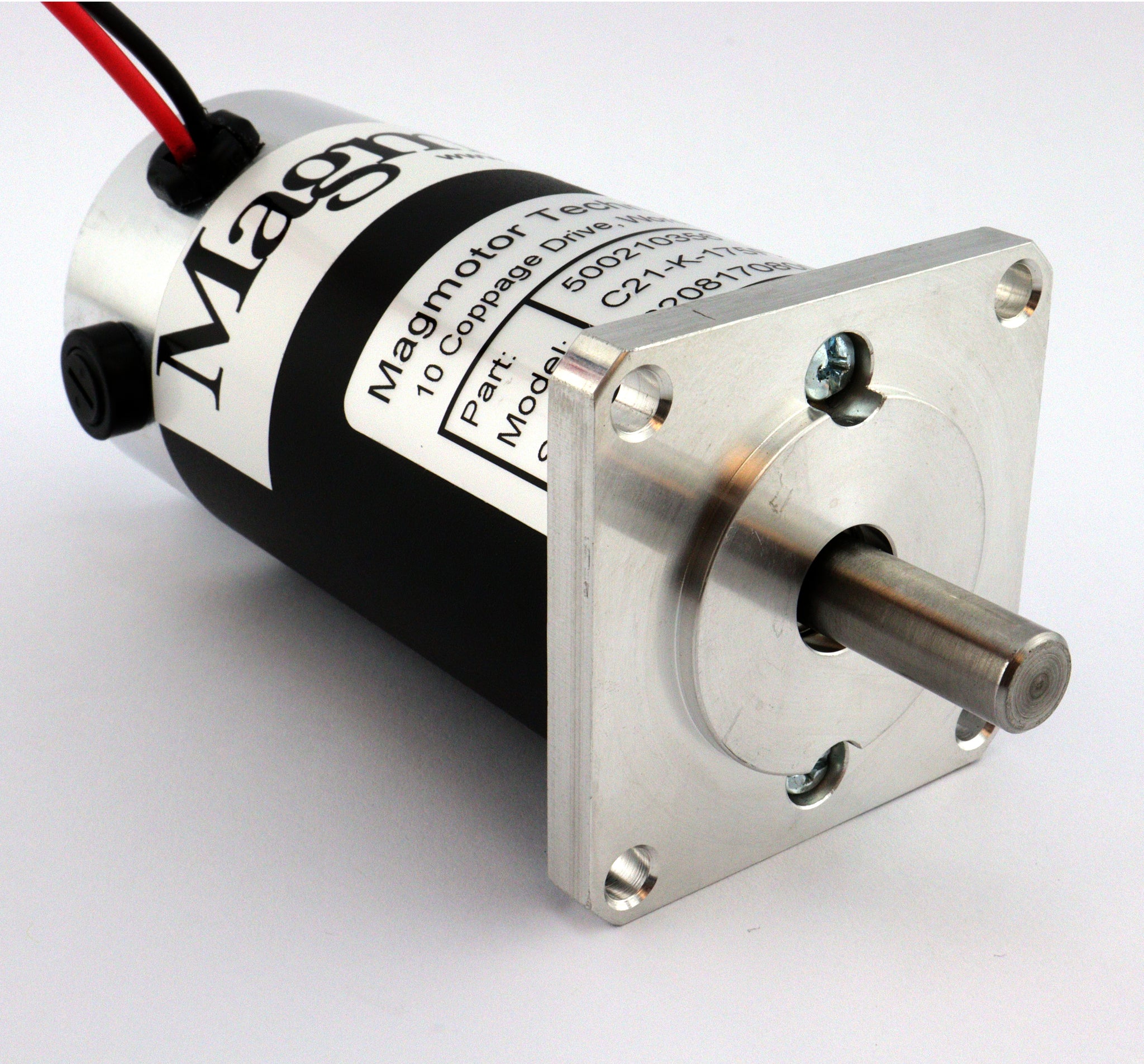

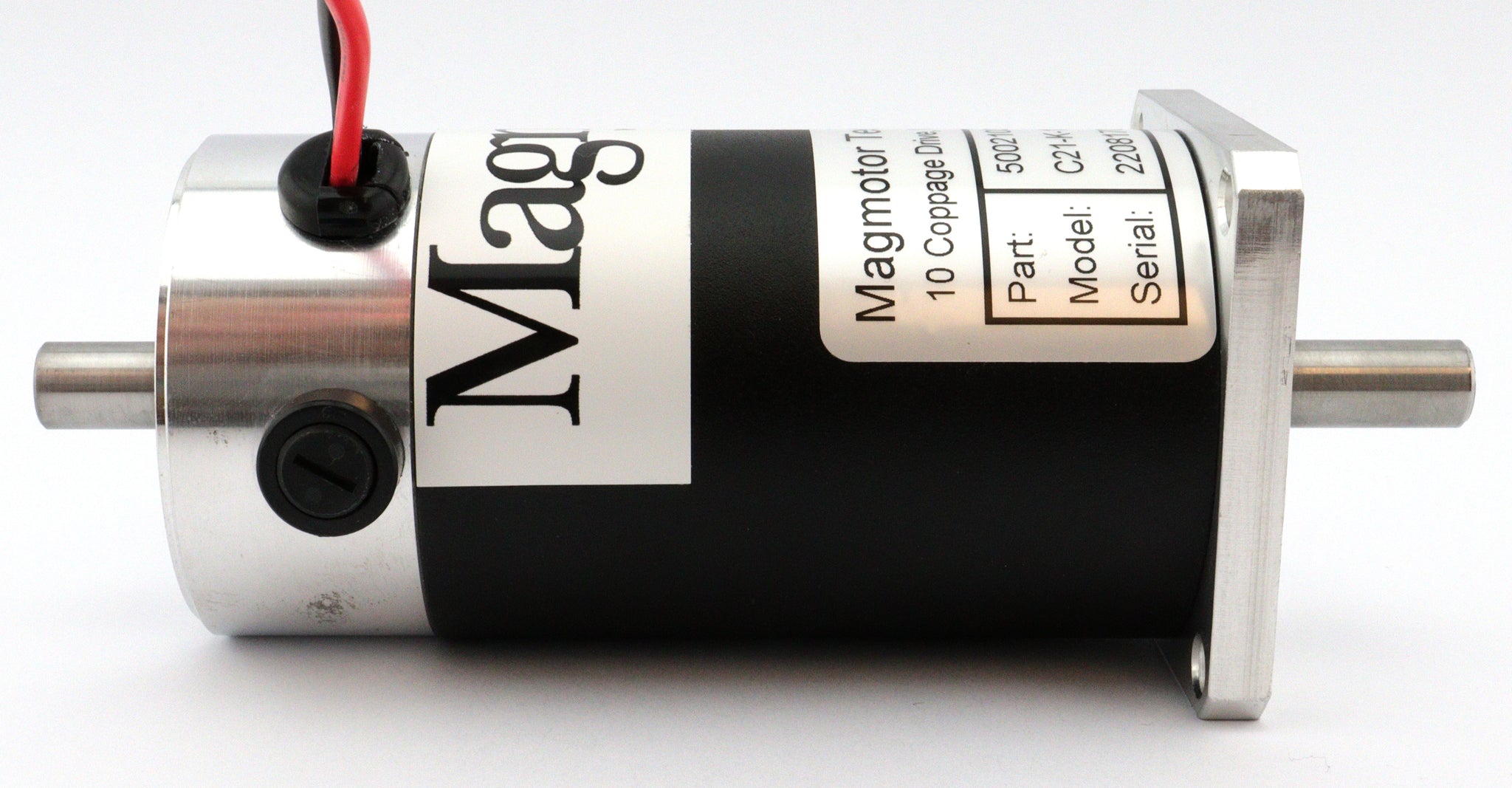

500210356 - BRUSHED MOTOR - 36 to 72 VDC - 24 to 29 oz-in CONT TORQUE - C21-K-175FX

500210356 - BRUSHED MOTOR - 36 to 72 VDC - 24 to 29 oz-in CONT TORQUE - C21-K-175FX

Regular price $260.00
Regular price Sale price $260.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button


DC Motor Specifications:

  • 2 Pole - Brushed DC Motor
  • NEMA 23 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 27.0+/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 36.5 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 716 rpm @ 36VDC with a continuous torque of 29 oz-in
  • Capable of operating at 1203 rpm @ 48VDC with a continuous torque of 27 oz-in
  • Capable of operating at 1668 rpm @ 60VDC with a continuous torque of 26 oz-in
  • Capable of operating at 2155 rpm @ 72VDC with a continuous torque of 24 oz-in
