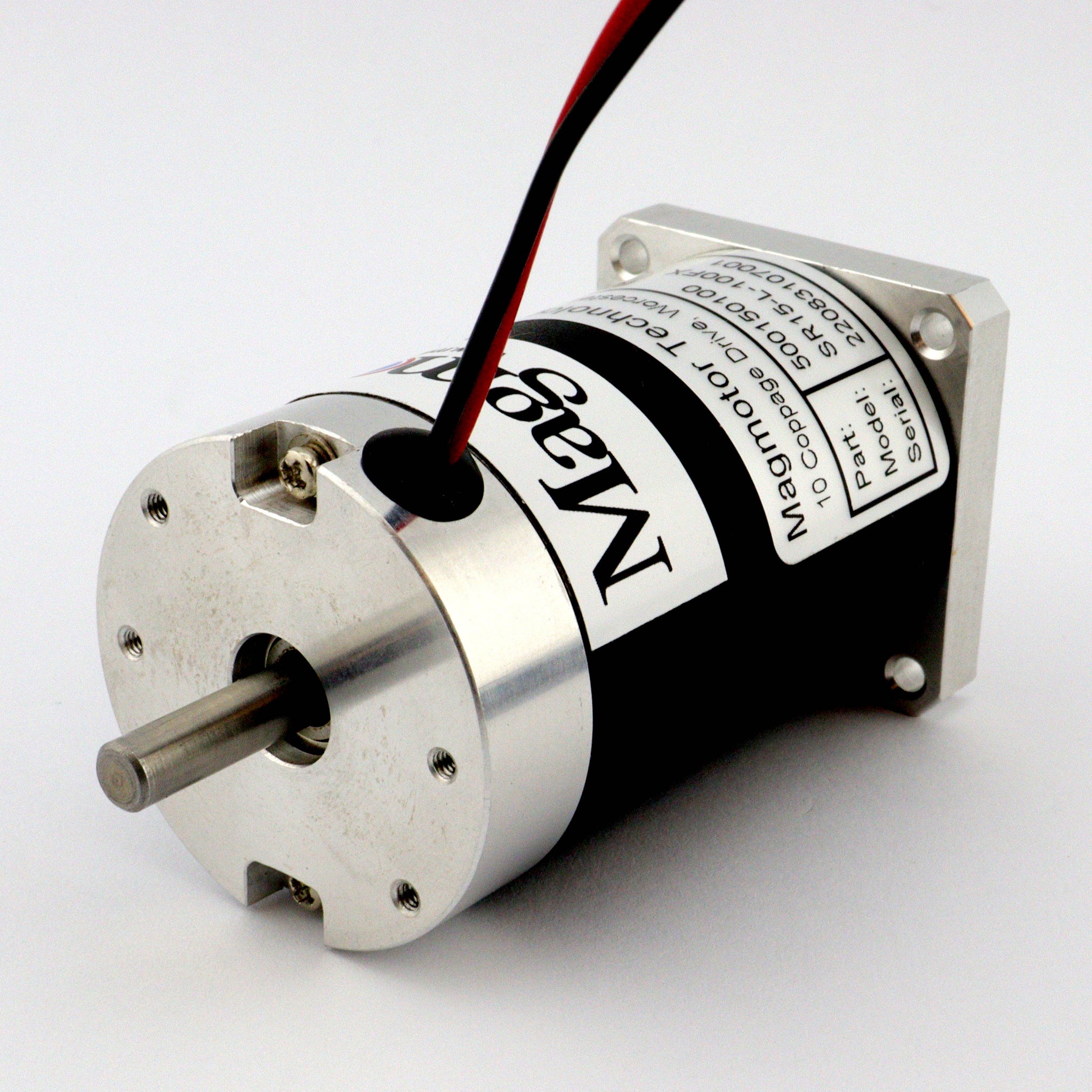

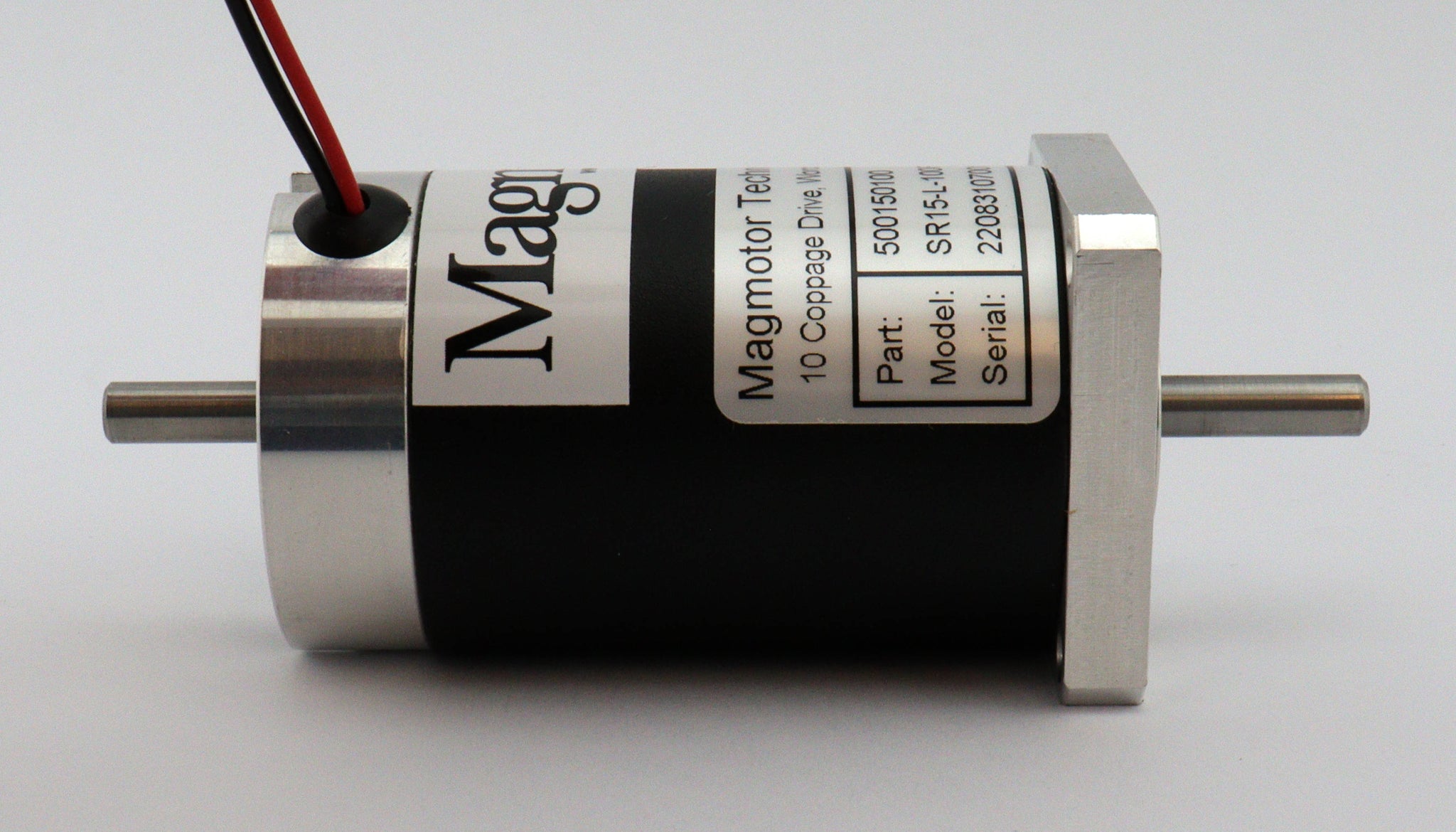

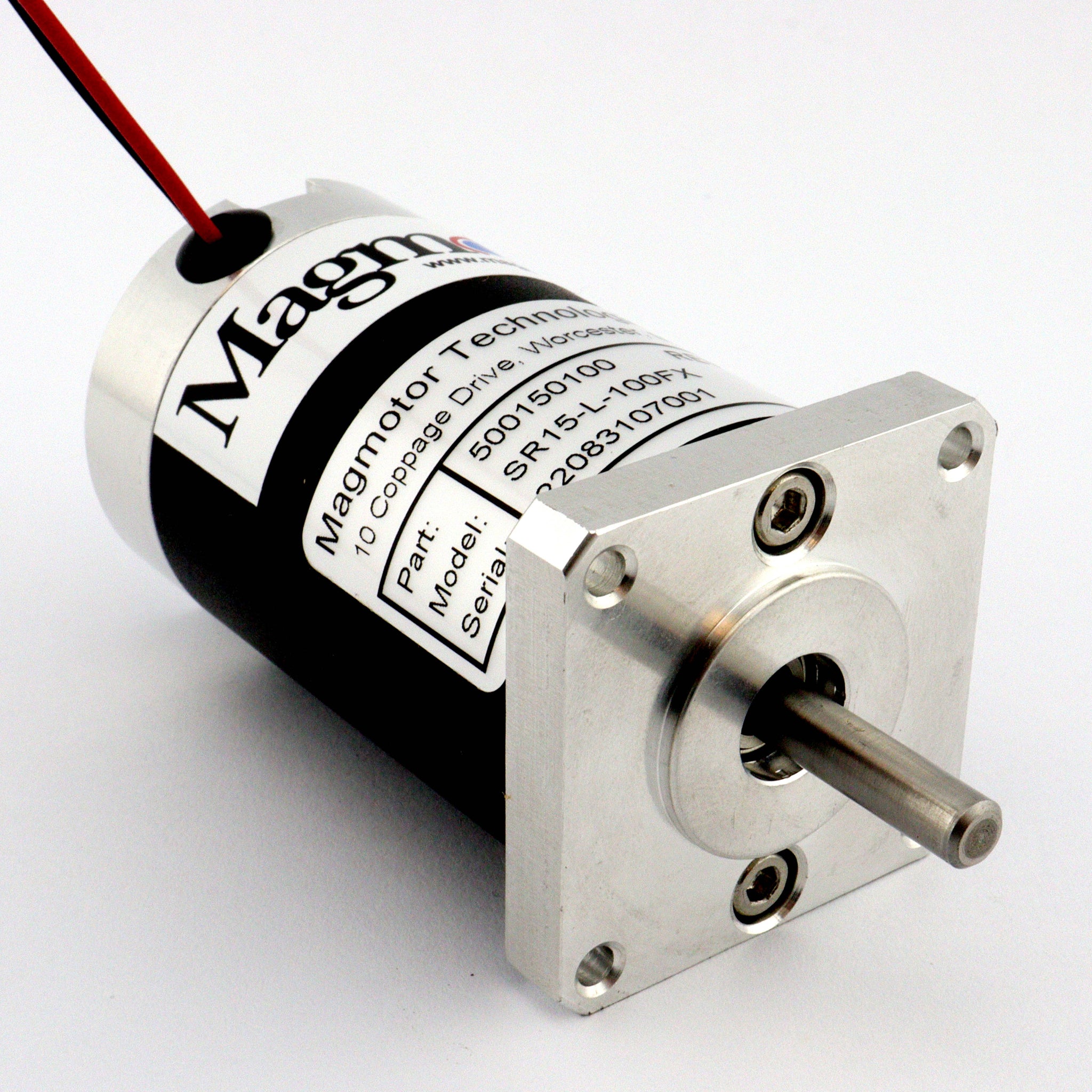

500150100 - BRUSHED MOTOR - 6 to 12 VDC - 10 to 12 oz-in CONT TORQUE - SR15-L-100FX

500150100 - BRUSHED MOTOR - 6 to 12 VDC - 10 to 12 oz-in CONT TORQUE - SR15-L-100FX

Regular price $237.00
Regular price Sale price $237.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button


DC Motor Specifications:

  • 4 Pole - Brushed DC Motor
  • NEMA 17 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 2.3+/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 3.1 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 1367 rpm @ 6VDC with a continuous torque of 12 oz-in
  • Capable of operating at 2775 rpm @ 9VDC with a continuous torque of 11 oz-in
  • Capable of operating at 4183 rpm @ 12VDC with a continuous torque of 10 oz-in
