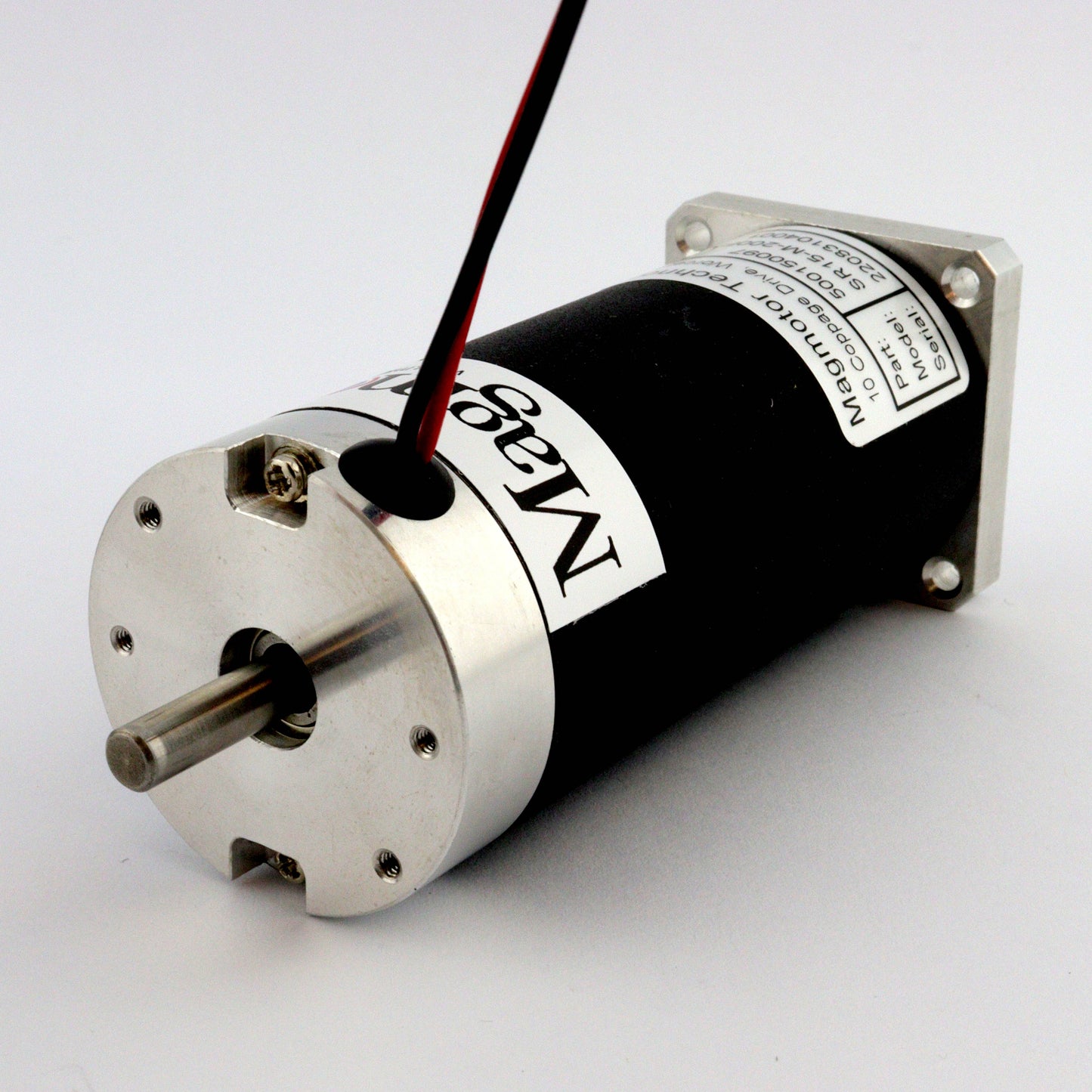

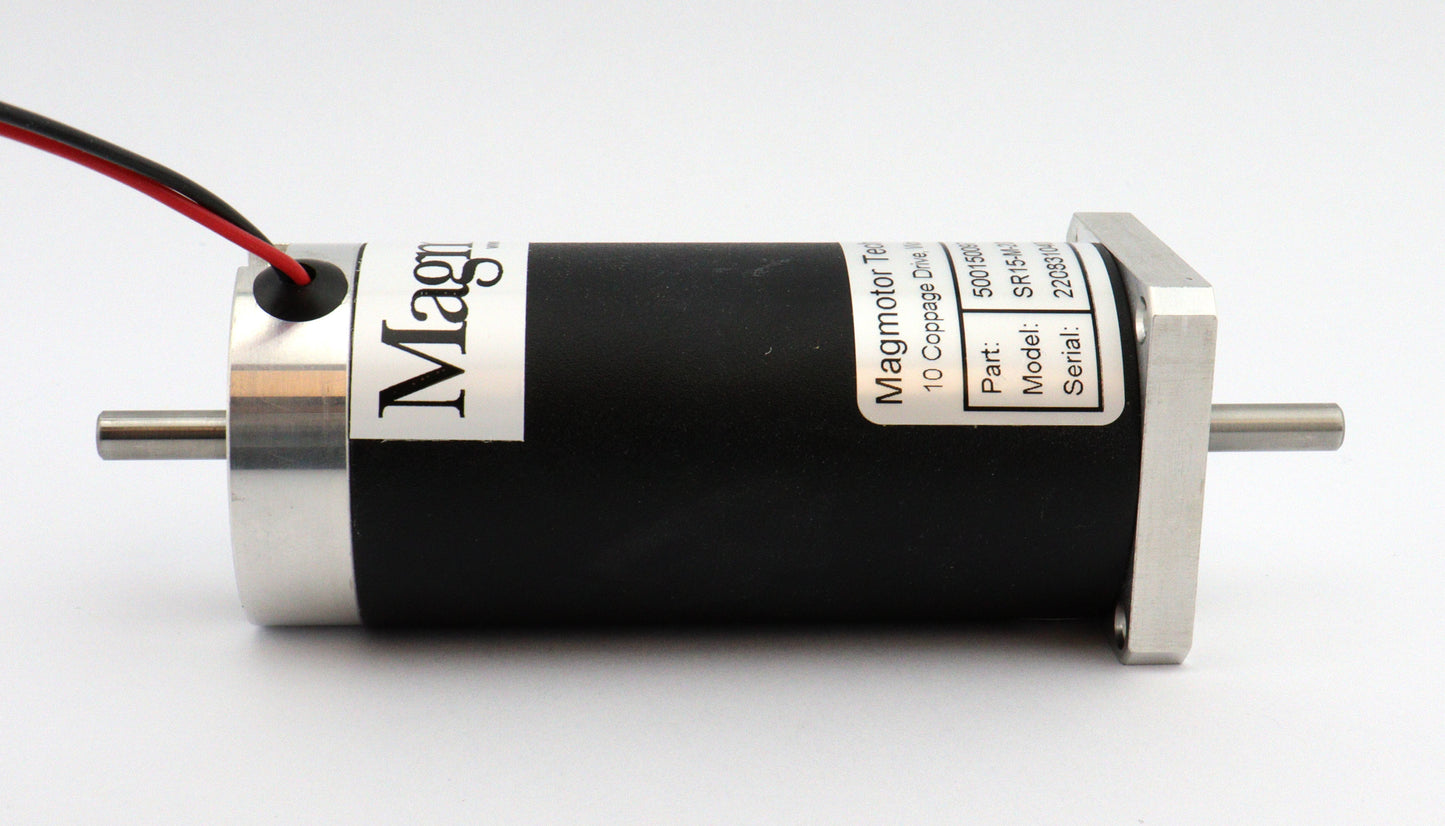

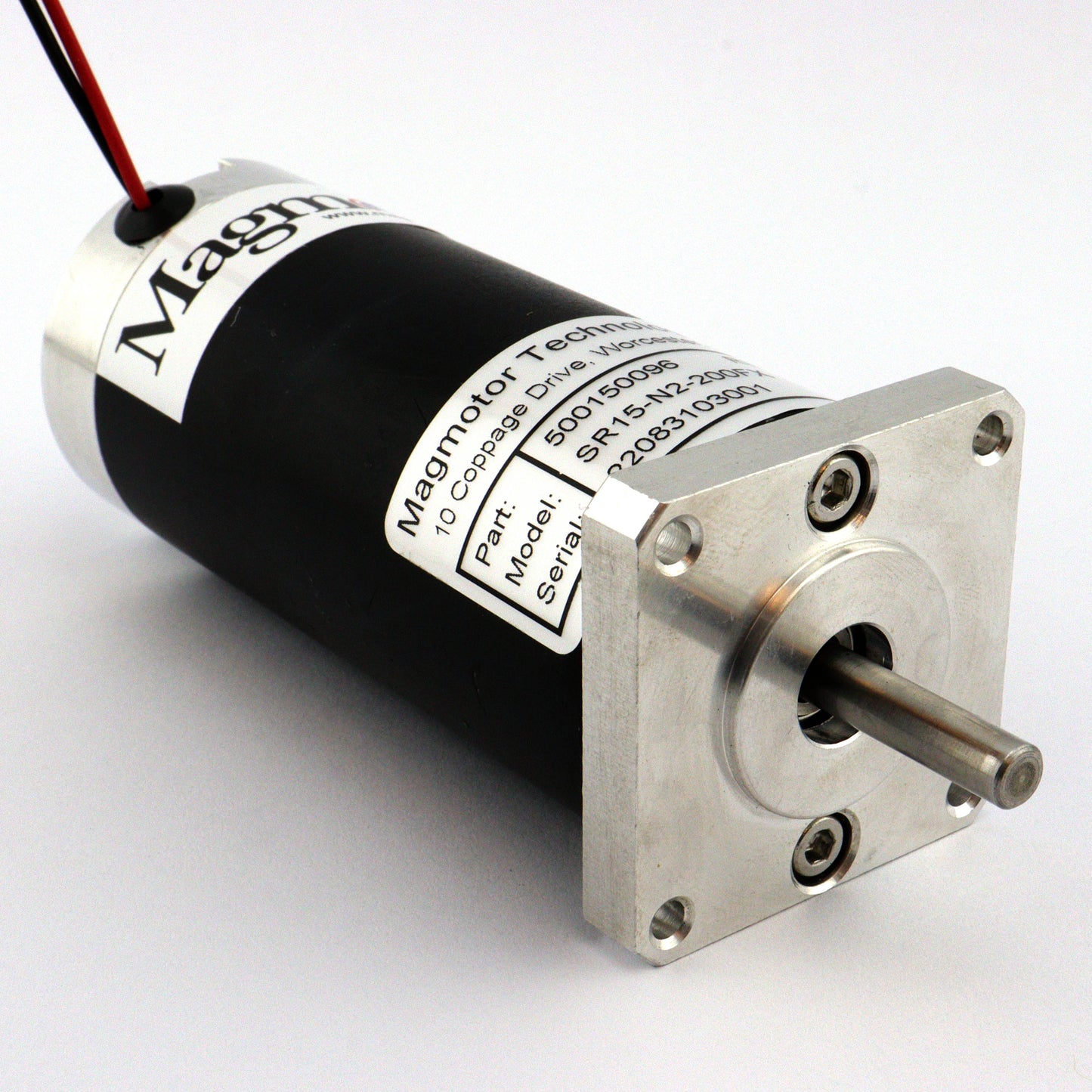

500150097 - BRUSHED MOTOR - 9 to 24 VDC - 17 to 19 oz-in CONT TORQUE - SR15-M-200FX

DOWNLOADS:



DC Motor Specifications:

• 4 Pole - Brushed DC Motor
• NEMA 17 Mounting
• Encoder Ready
• Voltage Constant (Ke) = 5.2+/- 10% VOLTS/KRPM

• Torque Constant (Kt) = 7.0 +/- 10% OZ-IN/AMP
• REACH, RoHS and CE Compliant

Example Performance Ranges:

• Capable of operating at 536 rpm @ 9VDC with a continuous torque of 19 oz-in
• Capable of operating at 1113 rpm @ 12VDC with a continuous torque of 19 oz-in
• Capable of operating at 2329 rpm @ 18VDC with a continuous torque of 18 oz-in
• Capable of operating at 3546 rpm @ 24VDC with a continuous torque of 17 oz-in
