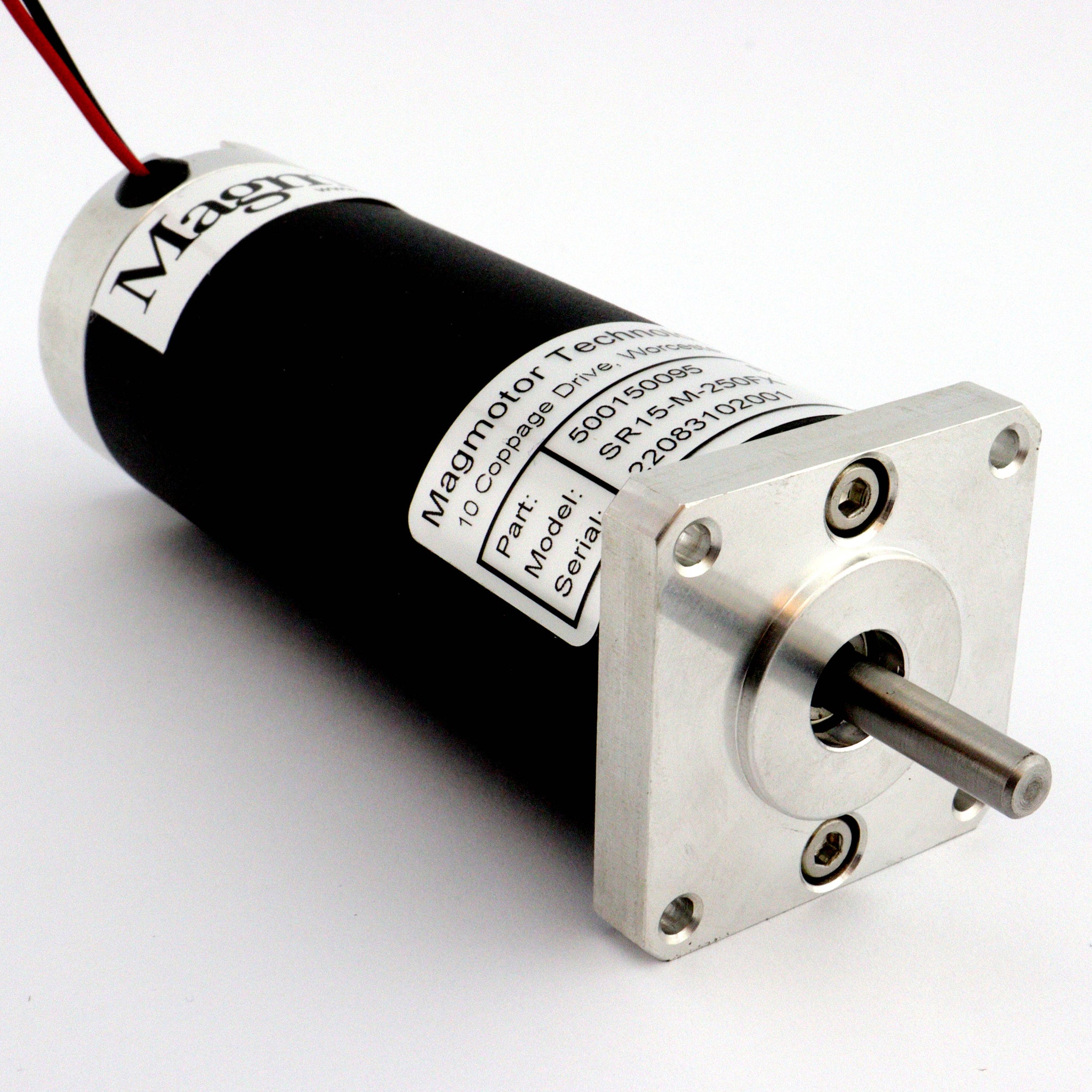

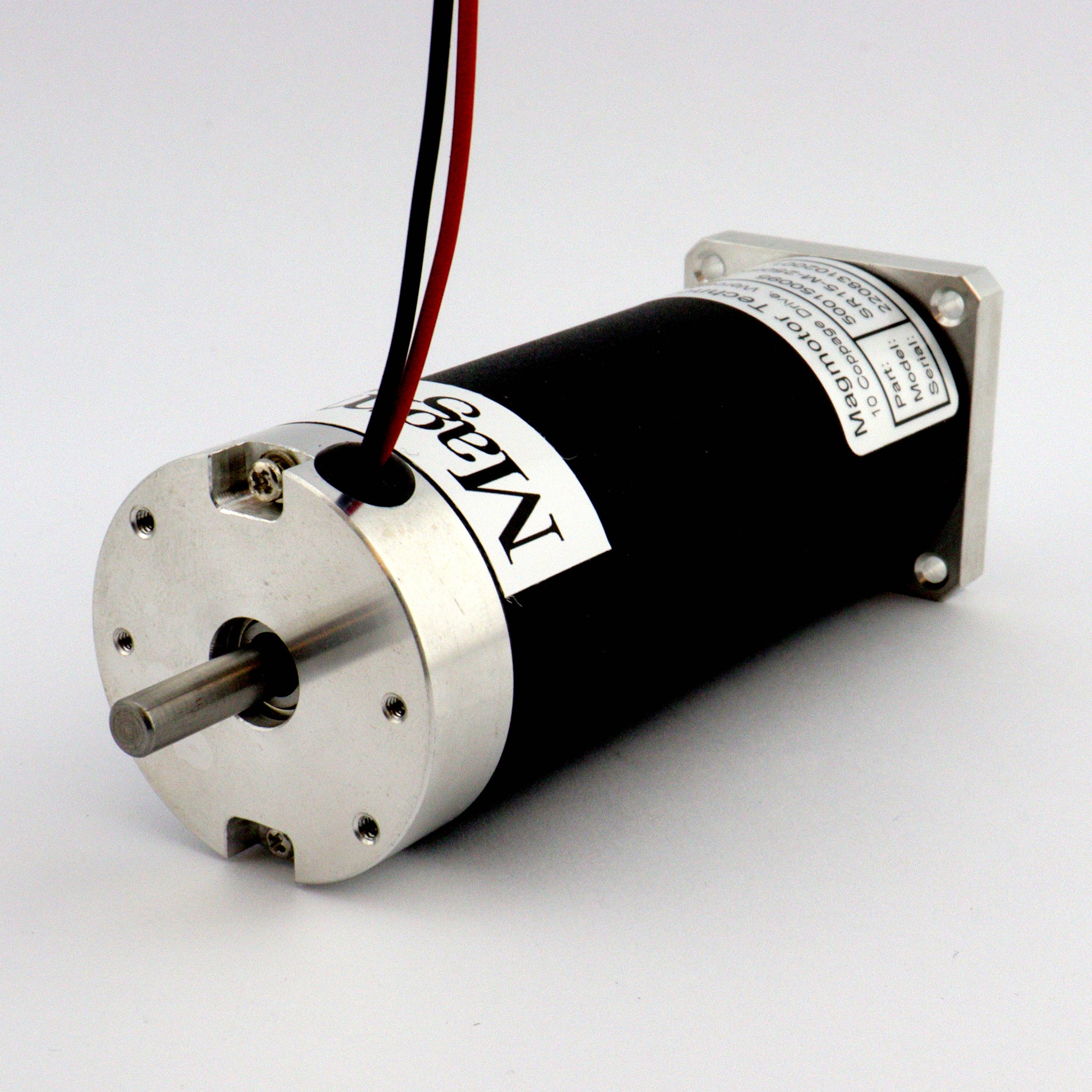

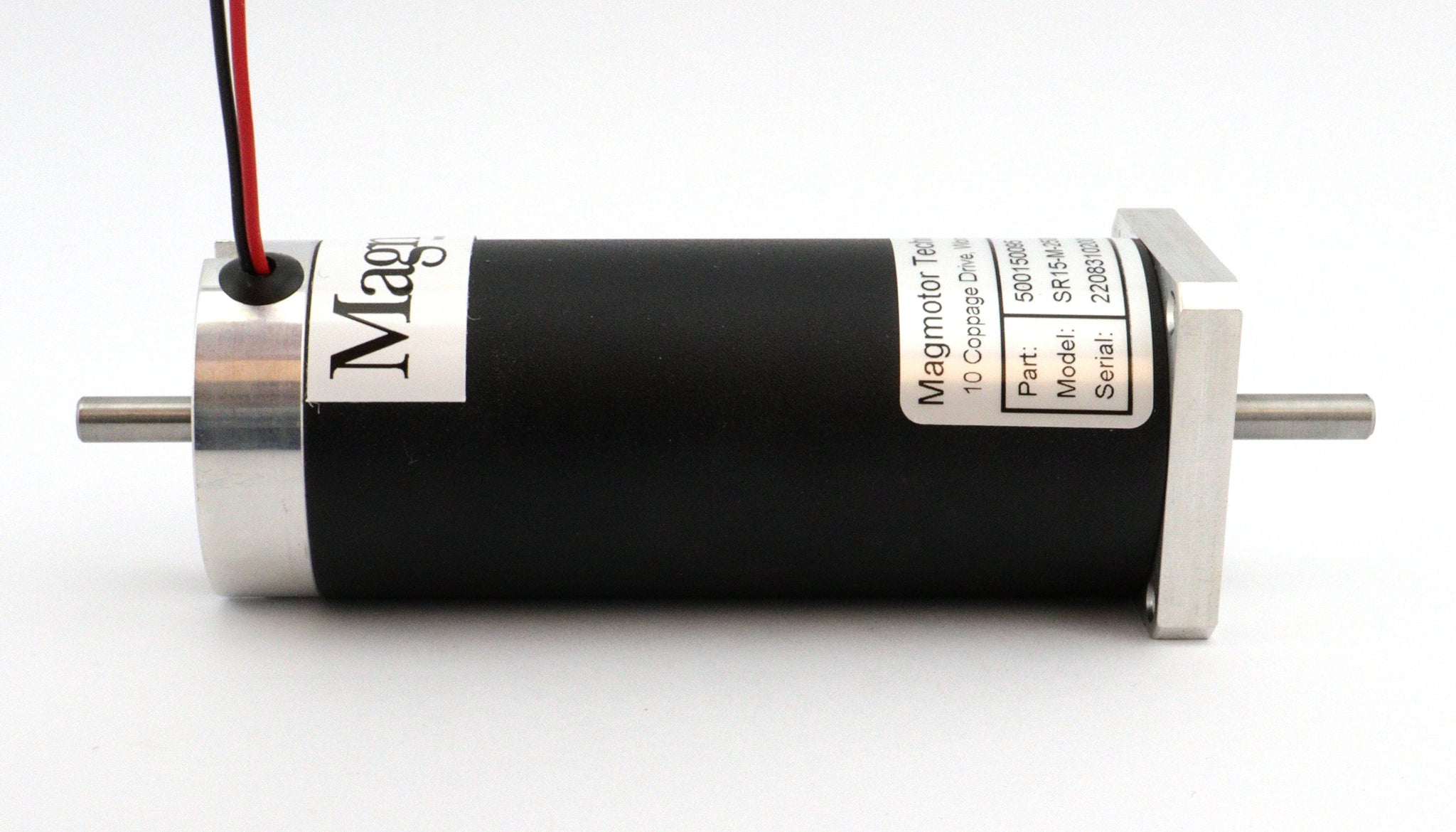

500150095 - BRUSHED MOTOR - 12 to 30 VDC - 22 to 25 oz-in CONT TORQUE - SR15-M-250FX

500150095 - BRUSHED MOTOR - 12 to 30 VDC - 22 to 25 oz-in CONT TORQUE - SR15-M-250FX

Regular price $269.00
Regular price Sale price $269.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button


DC Motor Specifications:

  • 4 Pole - Brushed DC Motor
  • NEMA 17 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 6.3+/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 8.5 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 680 rpm @ 12VDC with a continuous torque of 25 oz-in
  • Capable of operating at 1681 rpm @ 18VDC with a continuous torque of 24 oz-in
  • Capable of operating at 2683 rpm @ 24VDC with a continuous torque of 23 oz-in
  • Capable of operating at 3684 rpm @ 30VDC with a continuous torque of 22 oz-in
