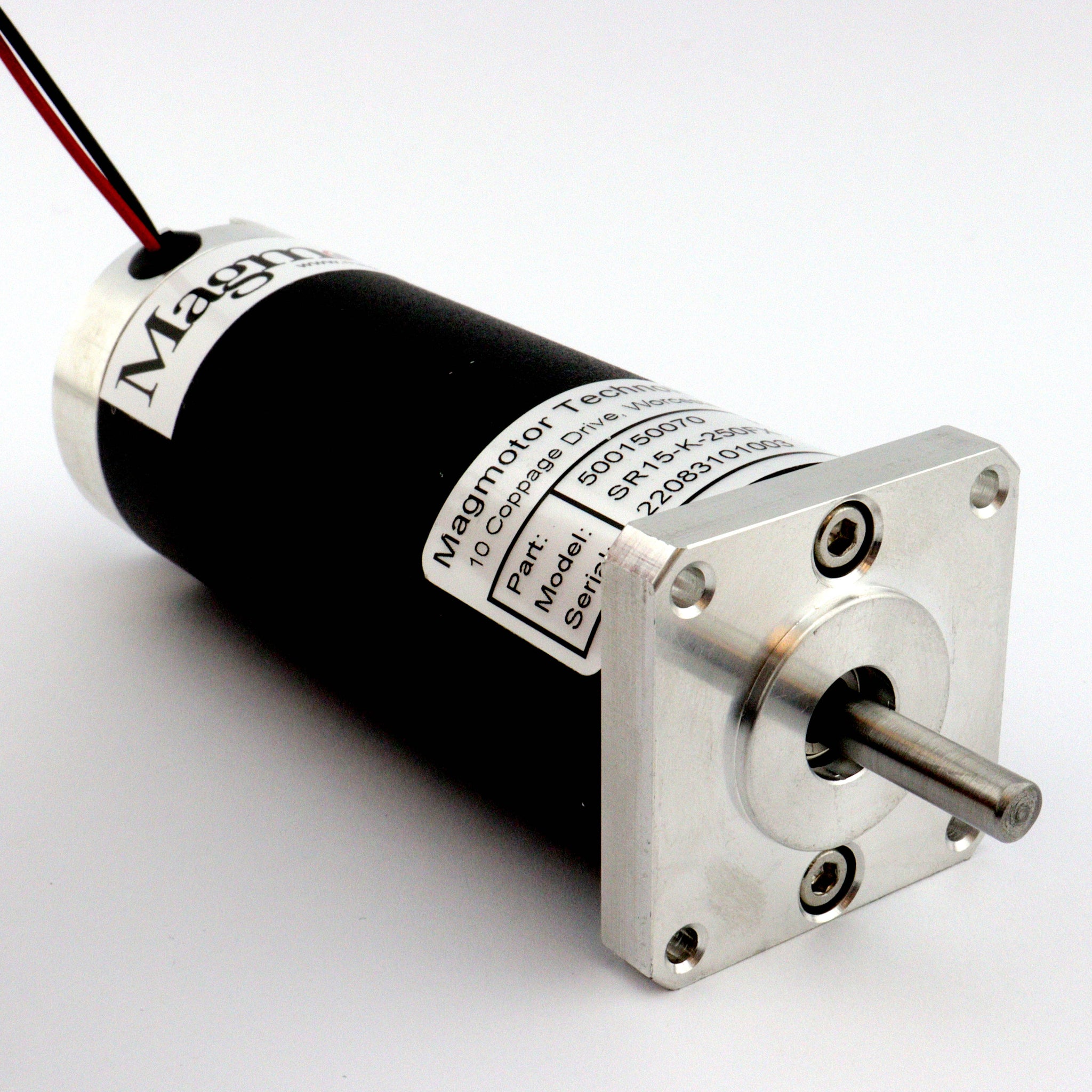

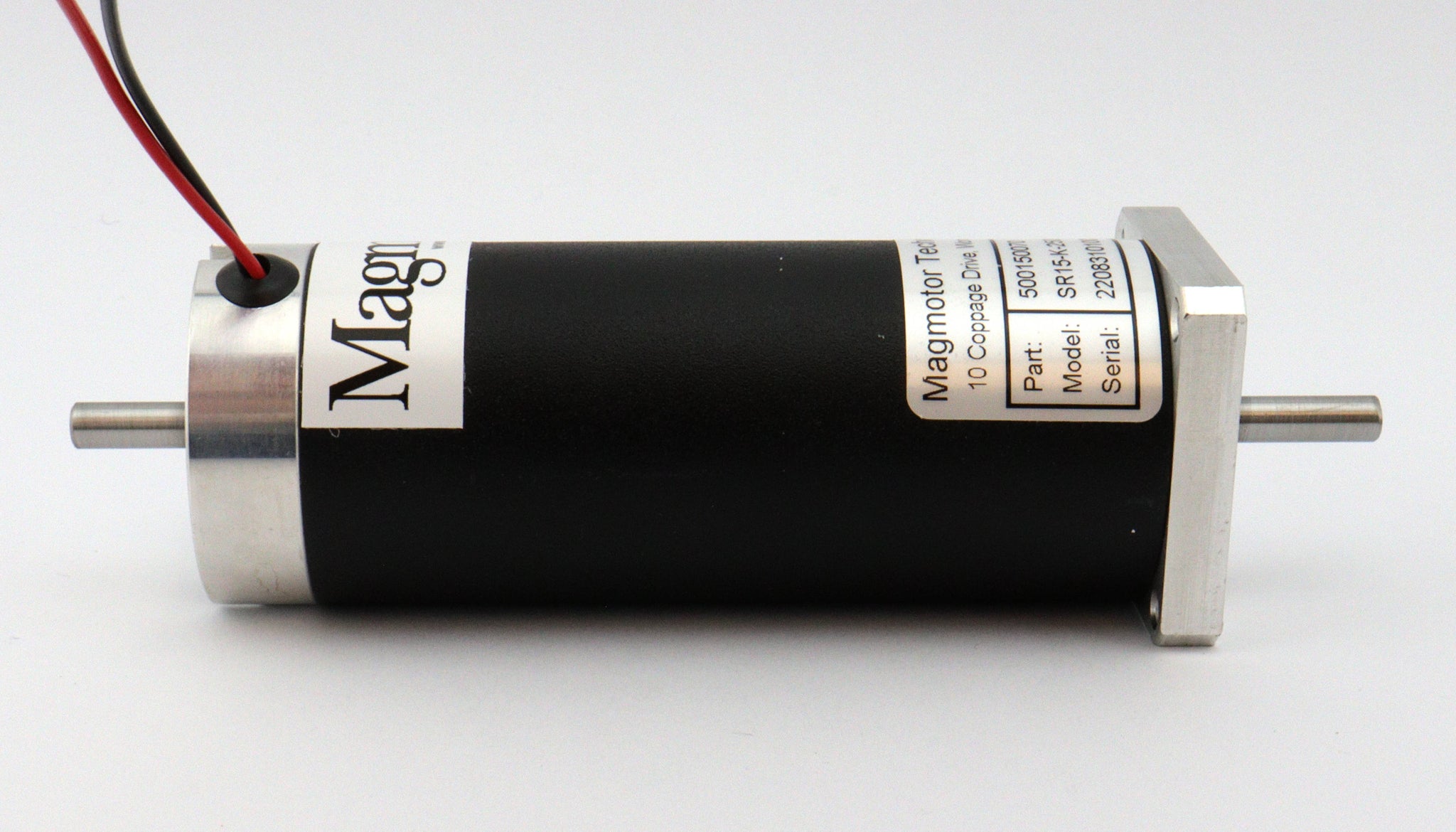

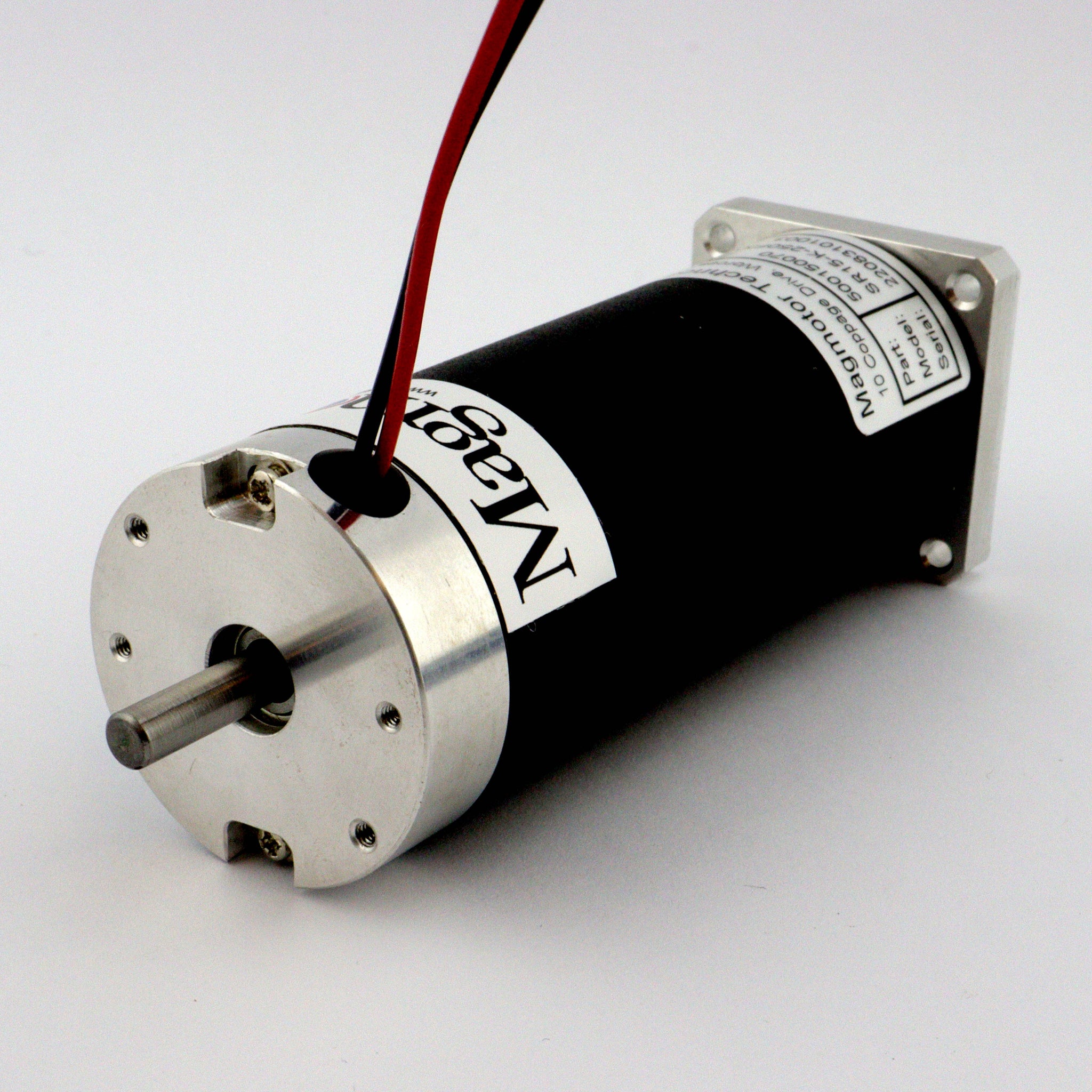

500150070 - BRUSHED MOTOR - 9 to 18 VDC - 22 to 25 oz-in CONT TORQUE - SR15-K-250FX

500150070 - BRUSHED MOTOR - 9 to 18 VDC - 22 to 25 oz-in CONT TORQUE - SR15-K-250FX

Regular price $273.00
Regular price Sale price $273.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button


DC Motor Specifications:

  • 4 Pole - Brushed DC Motor
  • NEMA 17 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 4.0+/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 5.4 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 1037 rpm @ 9VDC with a continuous torque of 25 oz-in
  • Capable of operating at 1835 rpm @ 12VDC with a continuous torque of 24 oz-in
  • Capable of operating at 3432 rpm @ 18VDC with a continuous torque of 22 oz-in
