730420099 - BRUSHLESS MOTOR - 36 to 72 VDC - 950 to 1120 oz-in CONT TORQUE - BFA42-5F-300FE

730420099 - BRUSHLESS MOTOR - 36 to 72 VDC - 950 to 1120 oz-in CONT TORQUE - BFA42-5F-300FE

Regular price $1,141.00
Regular price Sale price $1,141.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

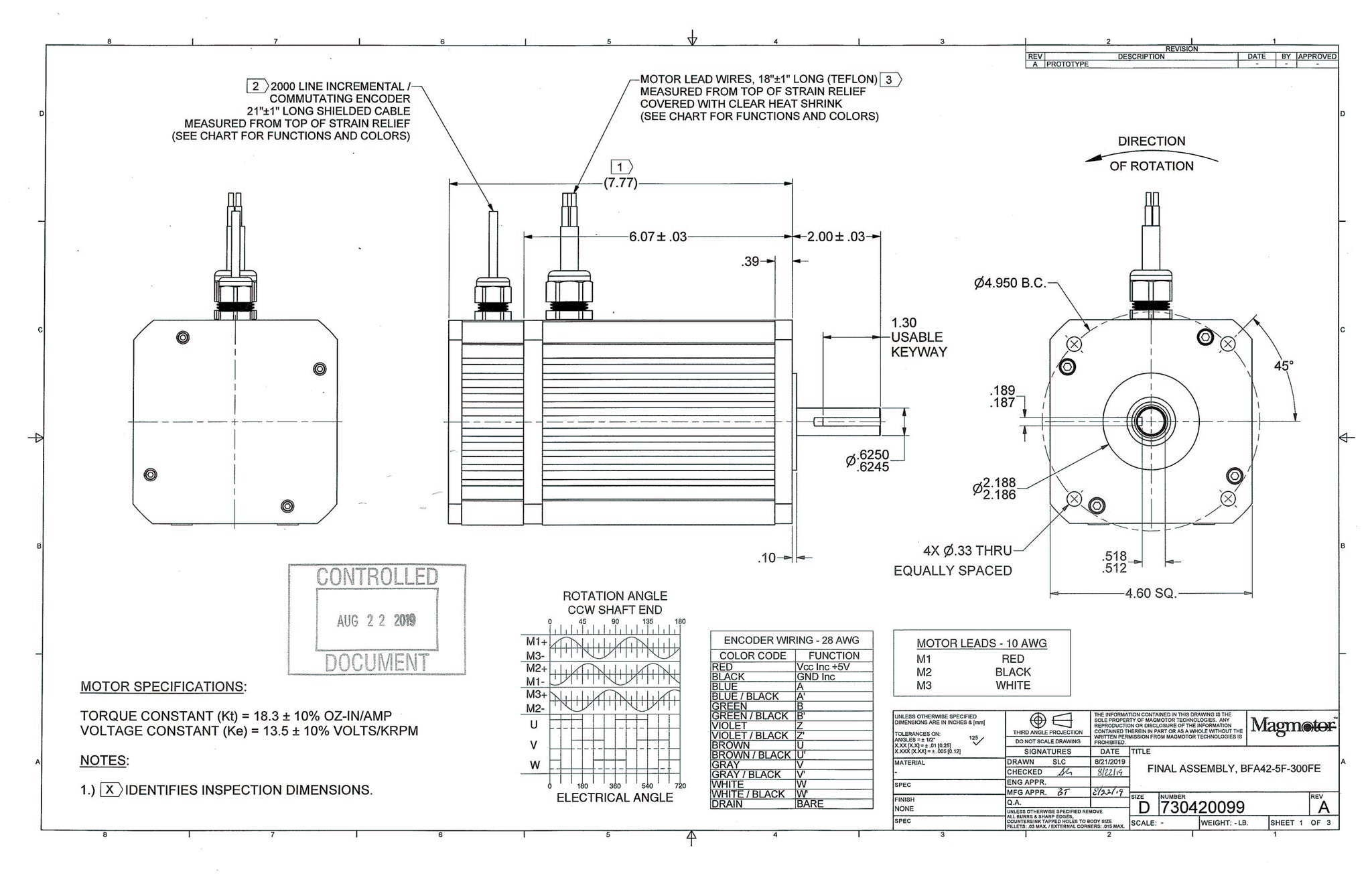

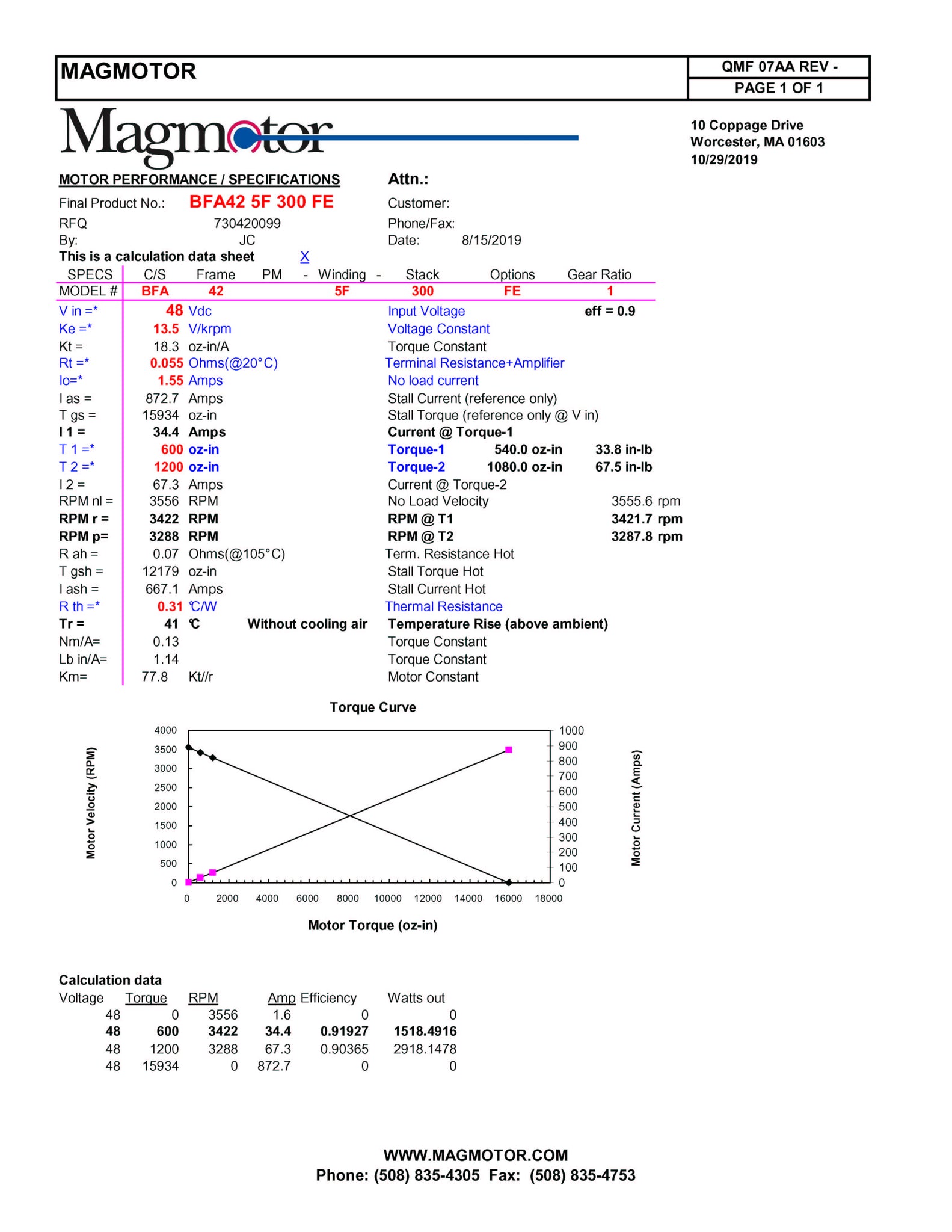

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button

DC Motor Specifications:

  • Sold with a 2000 Line Commutation Encoder Installed with Cover
  • 8 Pole - Brushless DC Motor
  • NEMA 42 Mounting
  • Voltage Constant (Ke) = 13.5 +/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 18.3 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 2417 rpm @ 36VDC with a continuous torque of 1120 oz-in
  • Capable of operating at 3320 rpm @ 48VDC with a continuous torque of 1050 oz-in
  • Capable of operating at 4220 rpm @ 60VDC with a continuous torque of 1000 oz-in
  • Capable of operating at 5120 rpm @ 72VDC with a continuous torque of 950 oz-in
