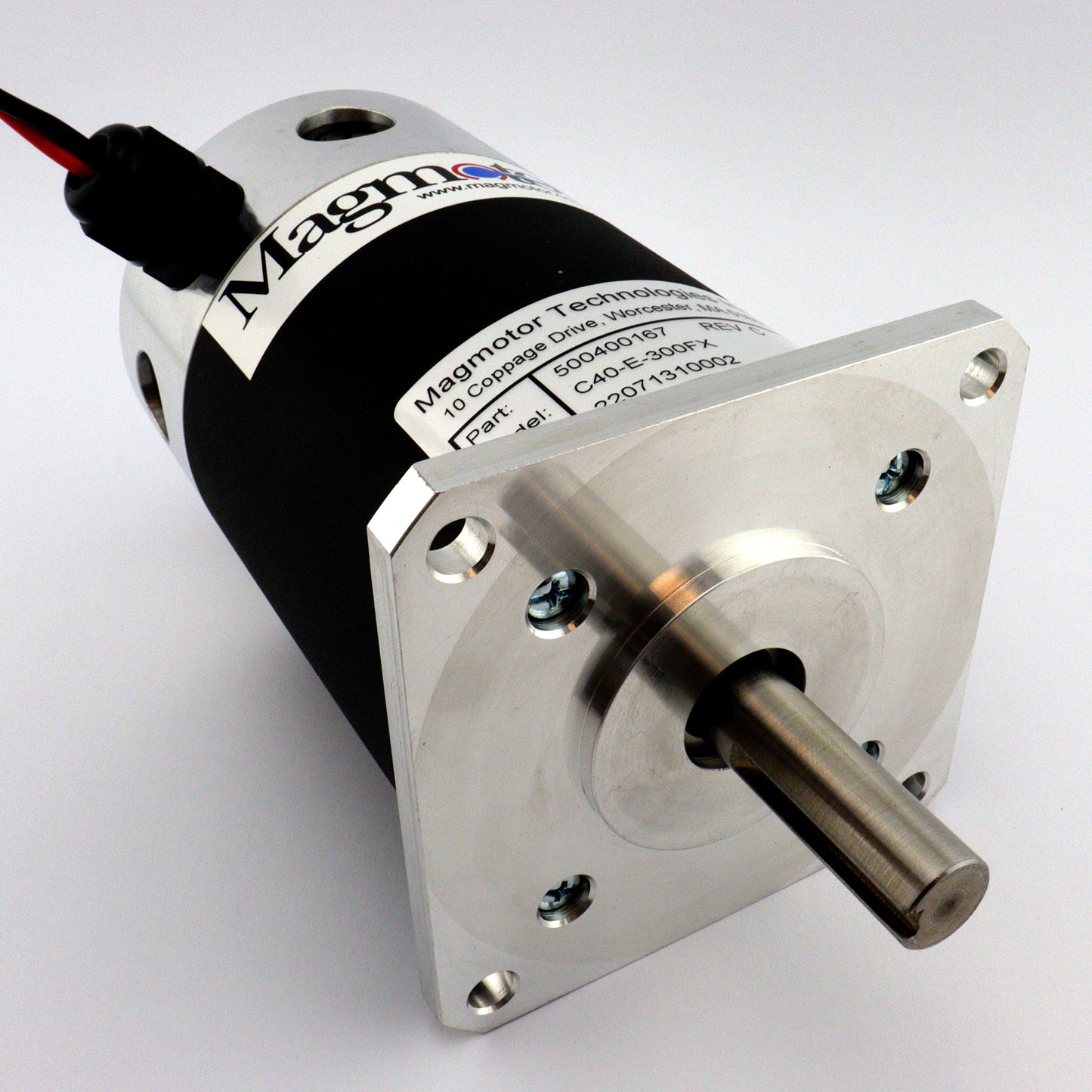

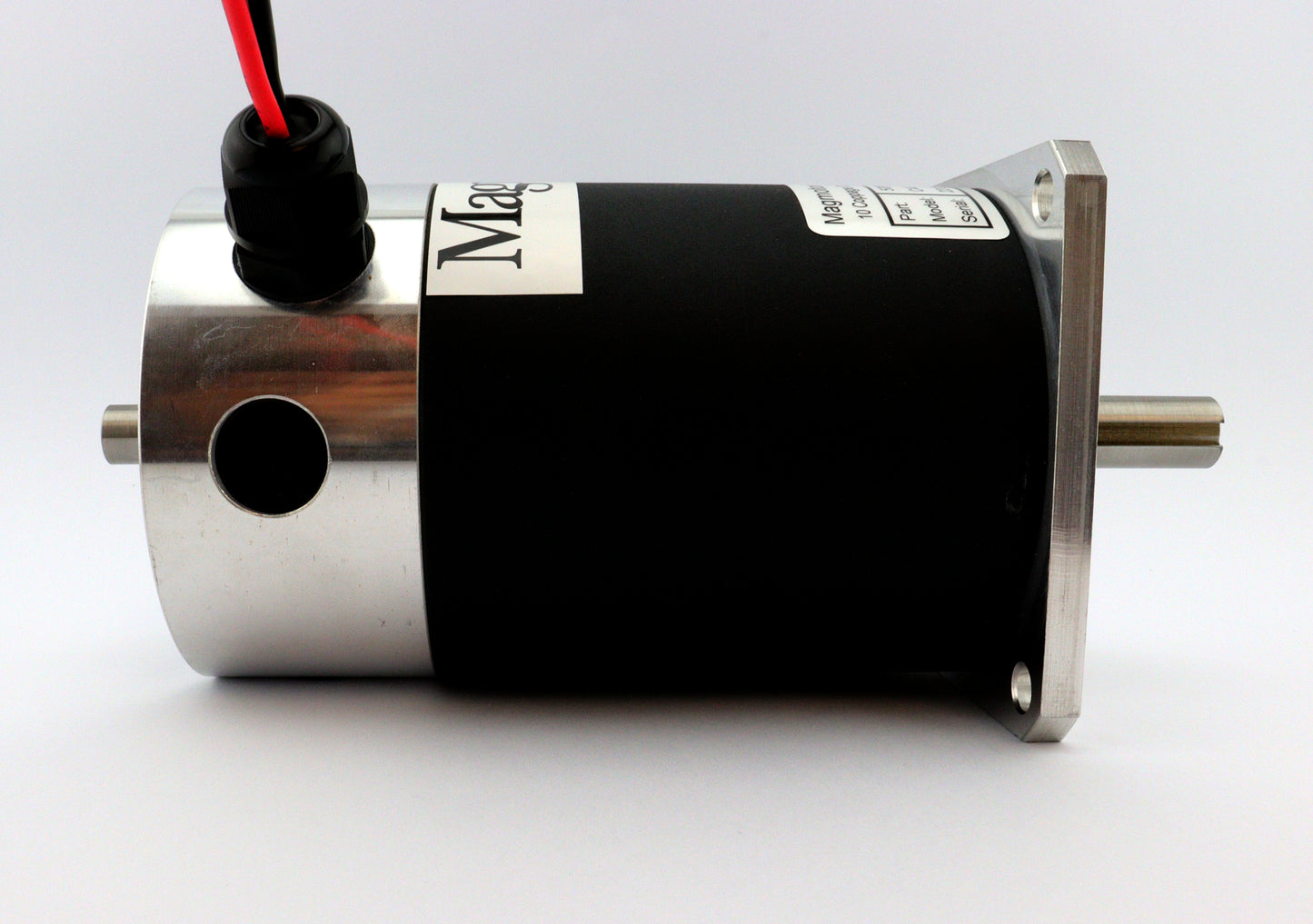

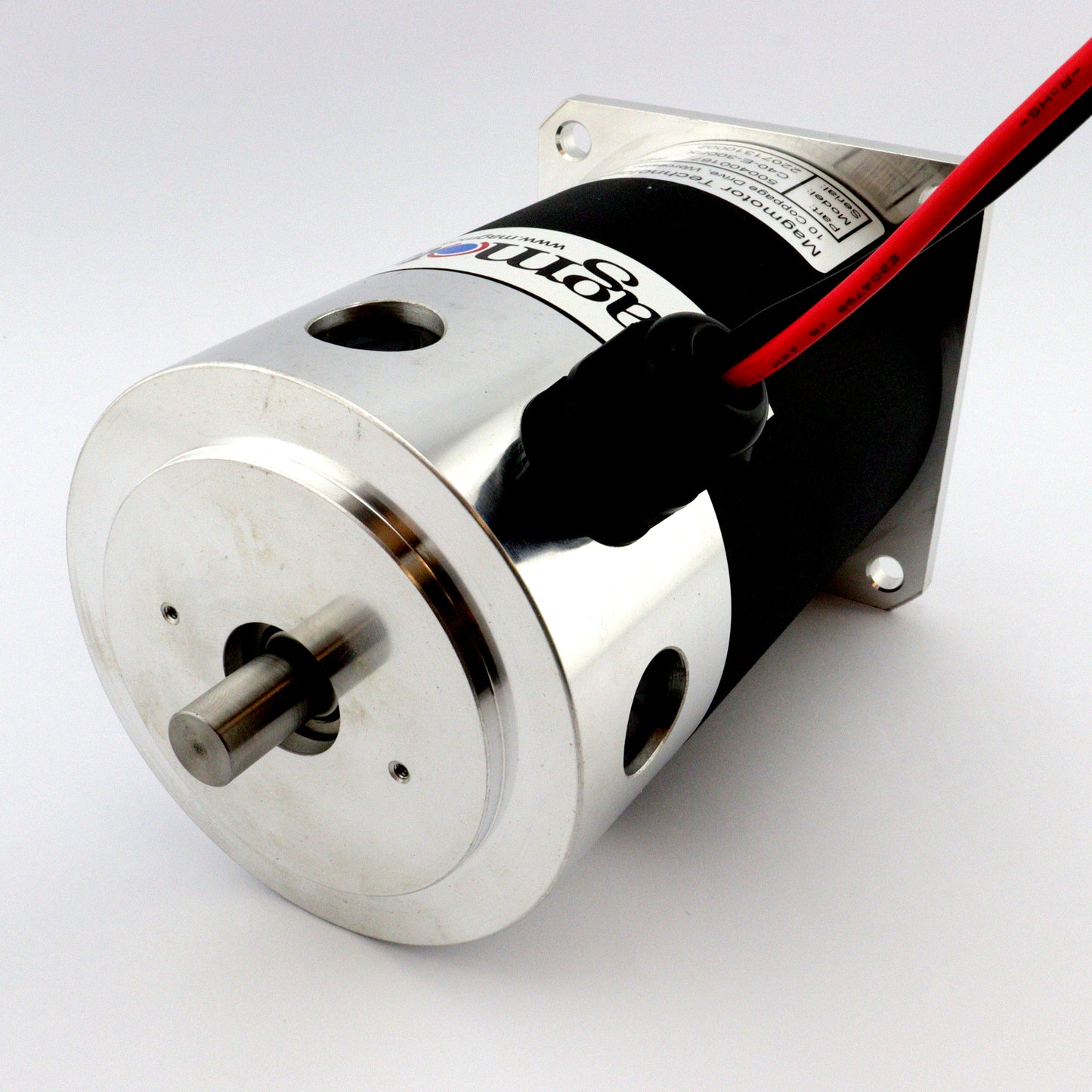

500400167 - BRUSHED MOTOR - 36 to 120 VDC - 150 to 300 OZ-IN CONT TORQUE - C40-E-300FX

500400167 - BRUSHED MOTOR - 36 to 120 VDC - 150 to 300 OZ-IN CONT TORQUE - C40-E-300FX

Regular price $614.00
Regular price Sale price $614.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button

DC Motor Specifications:

  • 4 Pole - Brushed DC Motor
  • NEMA 42 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 43.0+/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 58.2 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 645 rpm @ 36VDC with a continuous torque of 300 oz-in
  • Capable of operating at 1235 rpm @ 60VDC with a continuous torque of 250 oz-in
  • Capable of operating at 1984 rpm @ 90VDC with a continuous torque of 170 oz-in
  • Capable of operating at 2695 rpm @ 120VDC with a continuous torque of 150 oz-in
