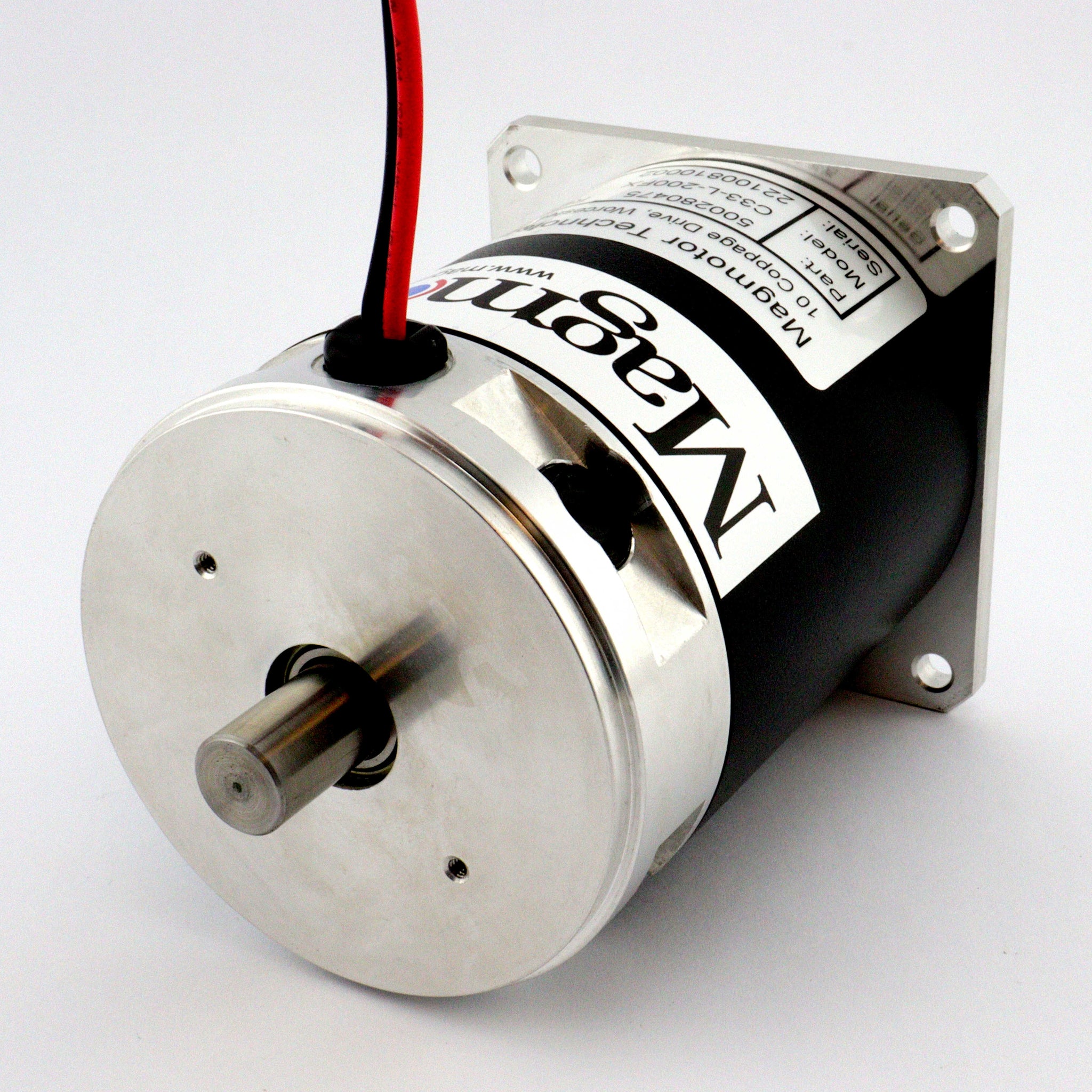

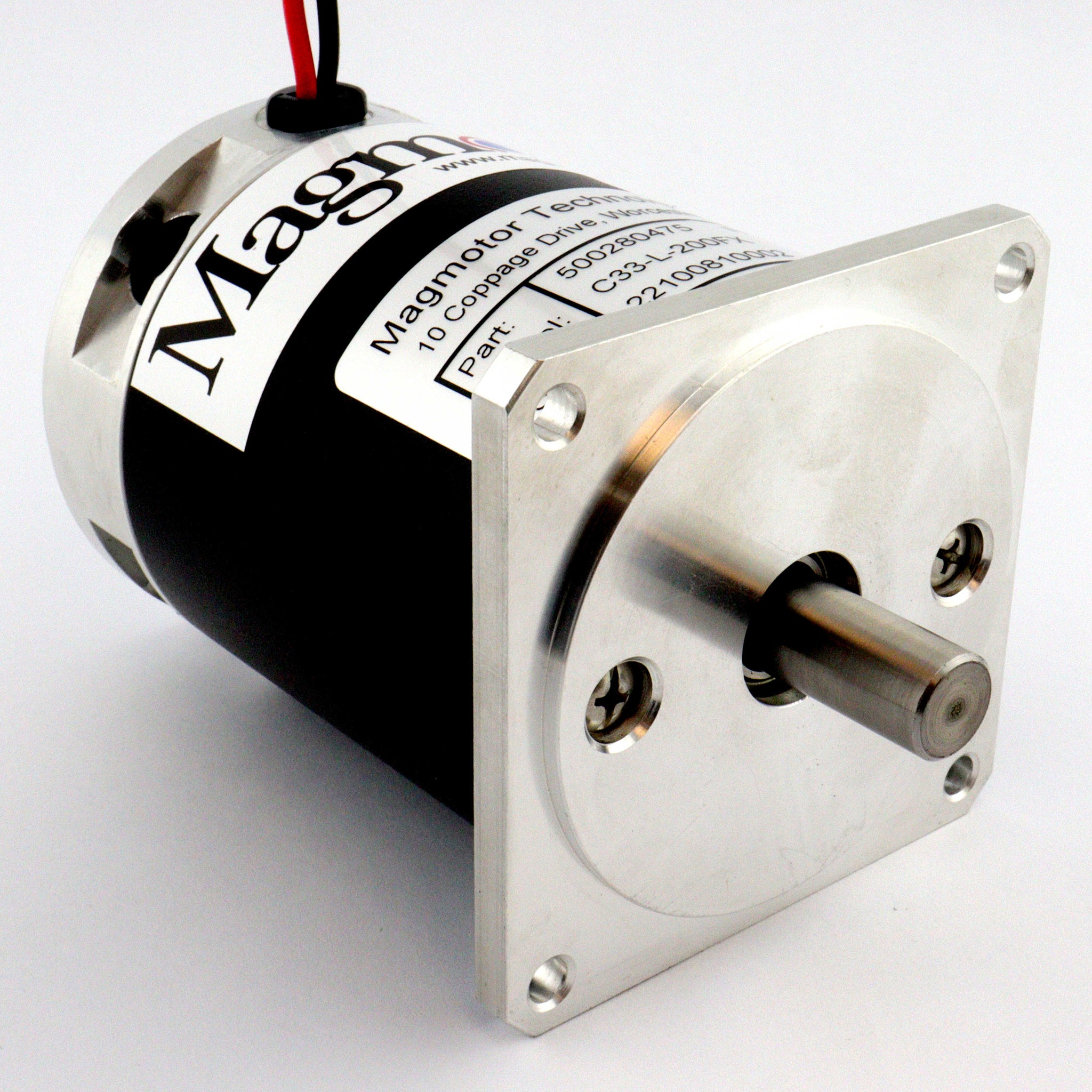

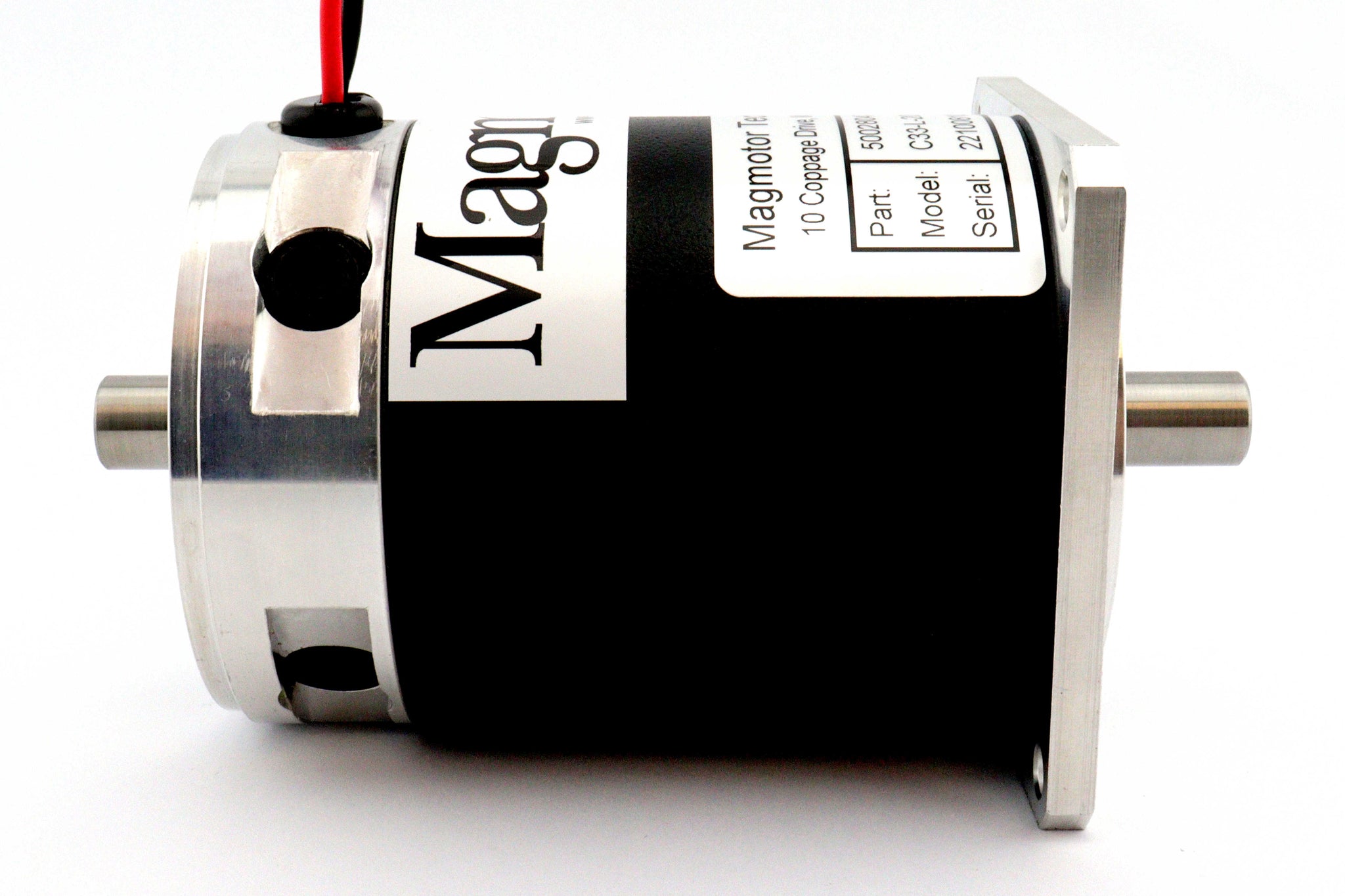

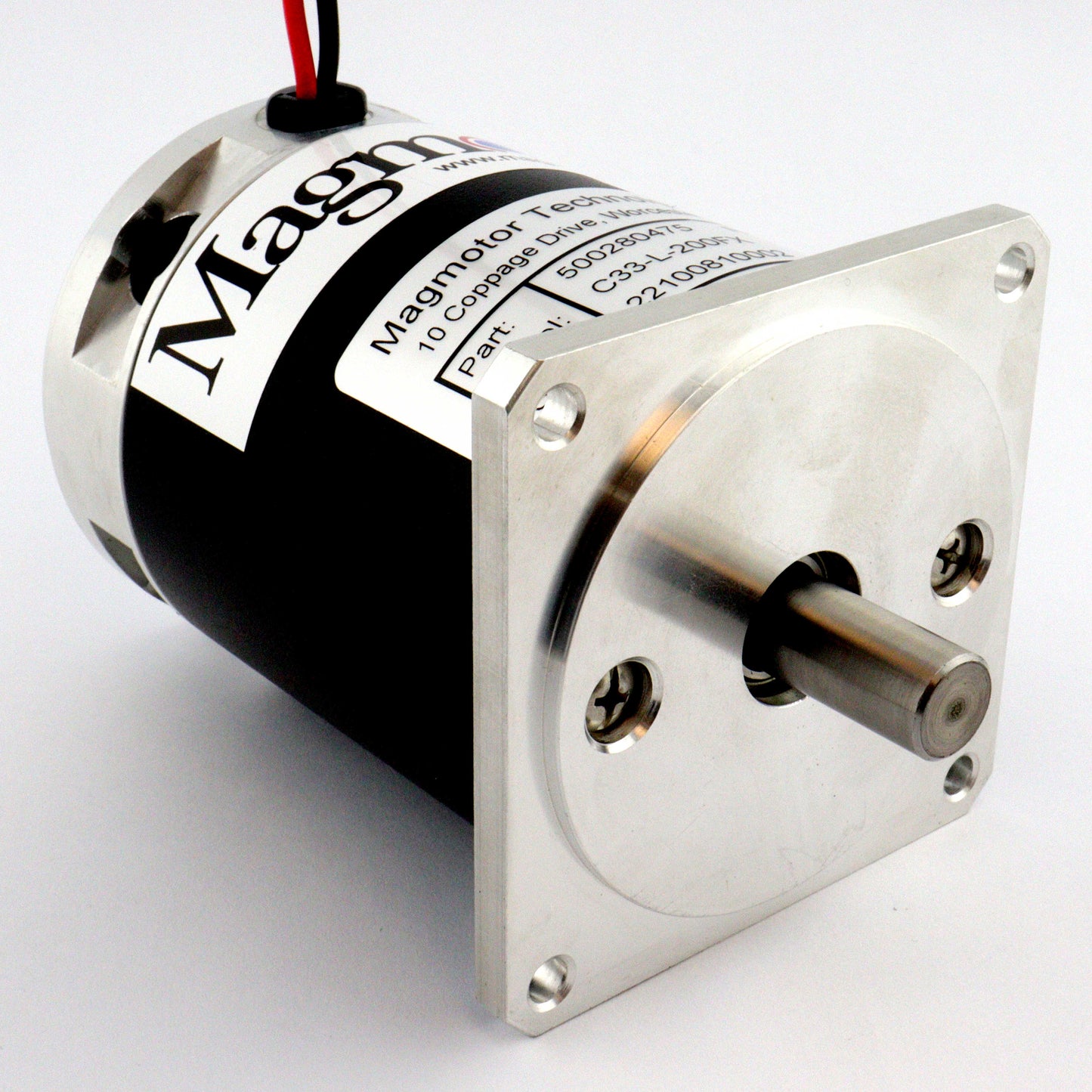

500280475 - BRUSHED MOTOR - 96 to 192 VDC - 35 to 81 oz-in CONT TORQUE - C33-L-200FX

500280475 - BRUSHED MOTOR - 96 to 192 VDC - 35 to 81 oz-in CONT TORQUE - C33-L-200FX

Regular price $385.00
Regular price Sale price $385.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button


DC Motor Specifications:

  • 4 Pole - Brushed DC Motor
  • NEMA 34 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 63.0 +/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 46.6 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 1808 rpm @ 96VDC with a continuous torque of 81 oz-in
  • Capable of operating at 2351 rpm @ 120VDC with a continuous torque of 72 oz-in
  • Capable of operating at 2897 rpm @ 144VDC with a continuous torque of 62 oz-in
  • Capable of operating at 3449 rpm @ 168VDC with a continuous torque of 50 oz-in
  • Capable of operating at 4011 rpm @ 192VDC with a continuous torque of 35 oz-in
