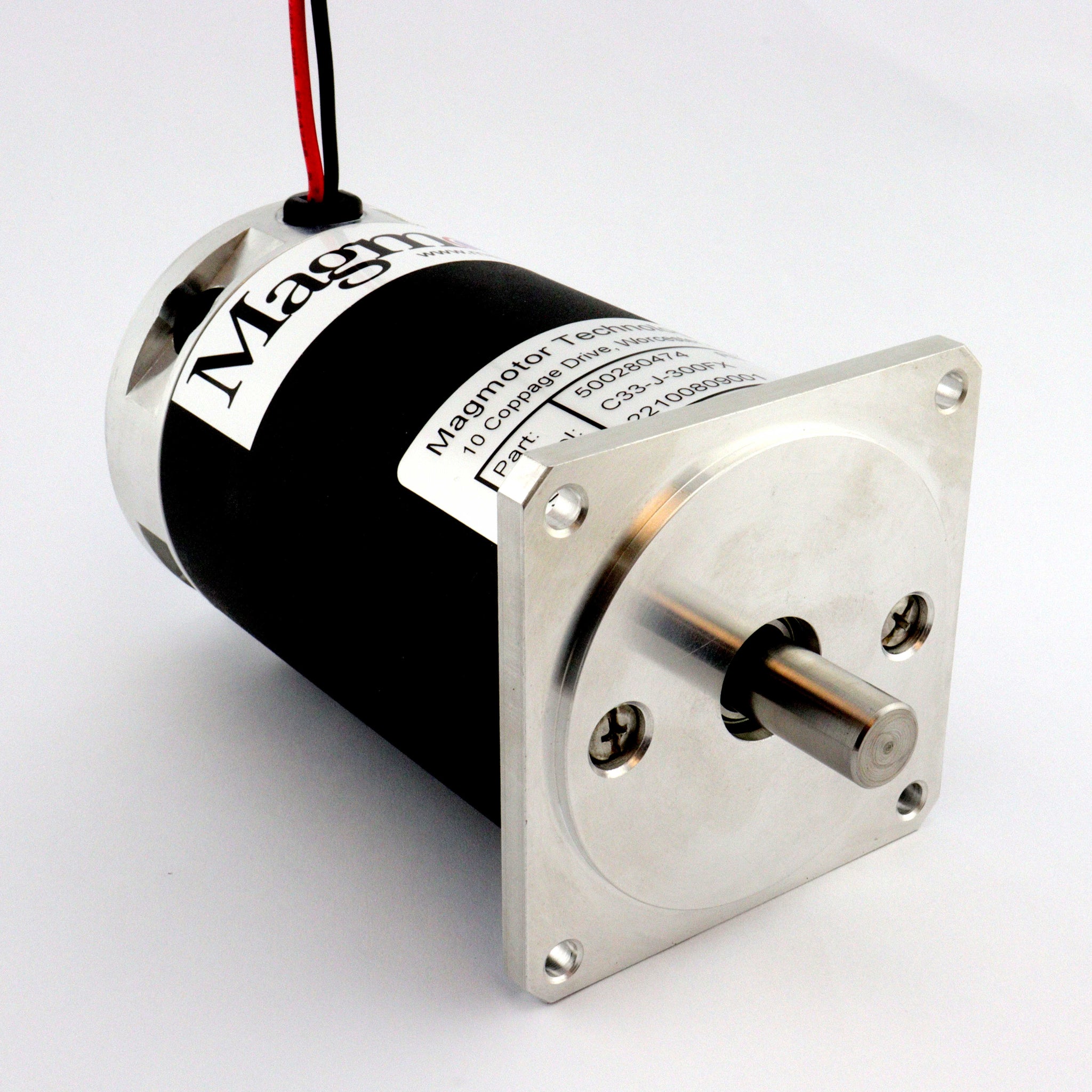

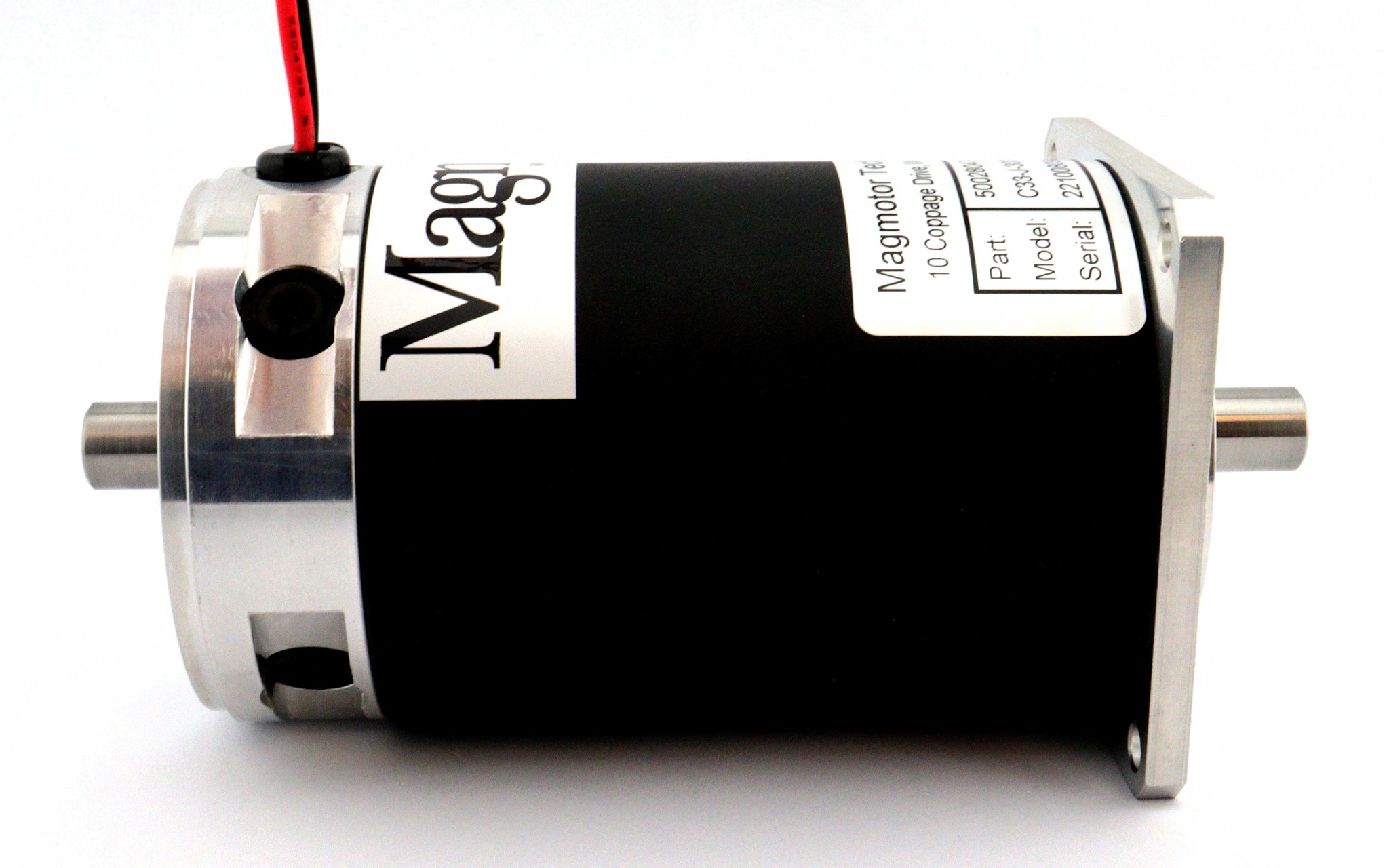

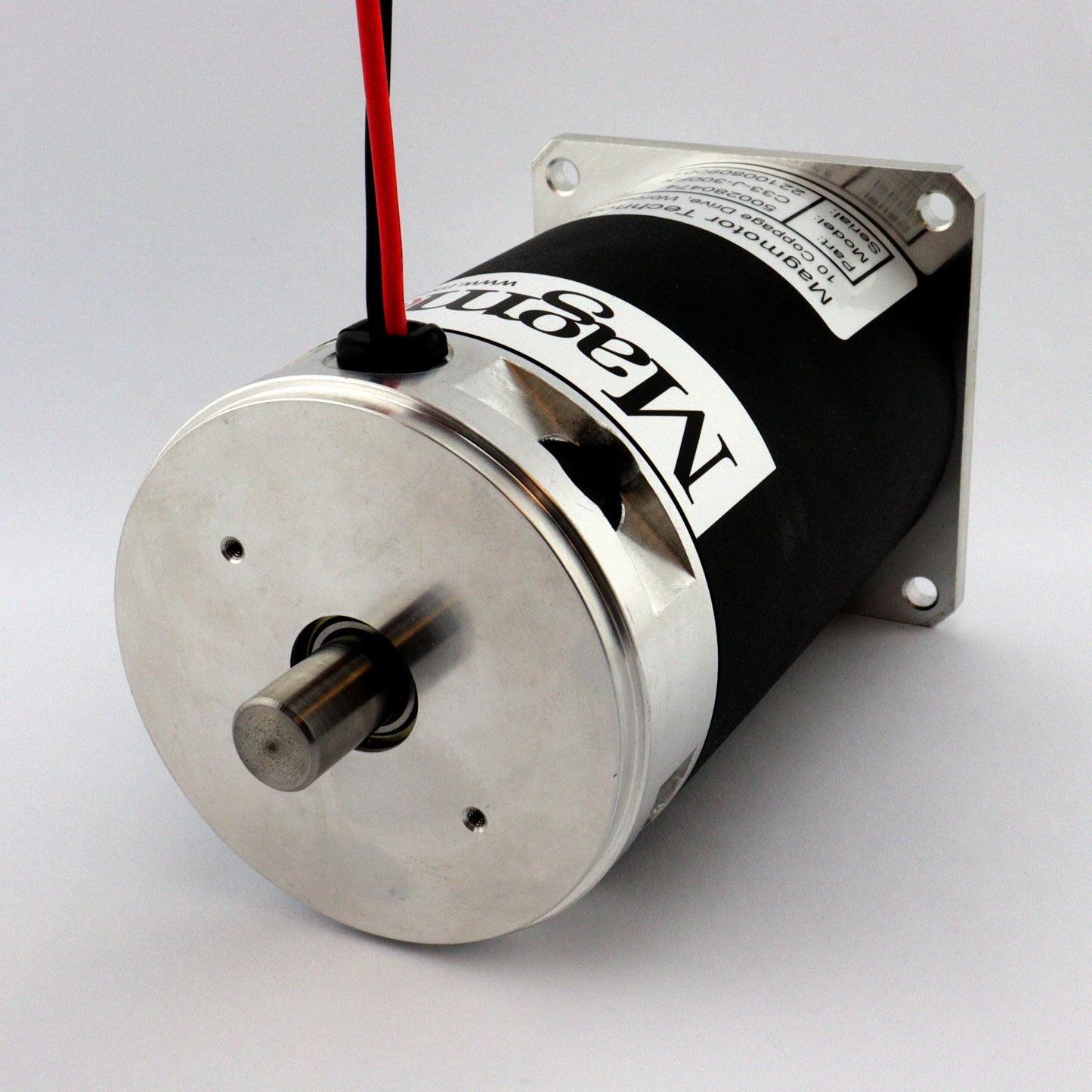

500280474 - BRUSHED MOTOR - 96 to 174 VDC - 55 to 102 oz-in CONT TORQUE - C33-J-300FX

500280474 - BRUSHED MOTOR - 96 to 174 VDC - 55 to 102 oz-in CONT TORQUE - C33-J-300FX

Regular price $434.00
Regular price Sale price $434.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button


DC Motor Specifications:

  • 4 Pole - Brushed DC Motor
  • NEMA 34 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 42.7 +/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 57.7 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 2000 rpm @ 96VDC with a continuous torque of 102 oz-in
  • Capable of operating at 2591 rpm @ 120VDC with a continuous torque of 90 oz-in
  • Capable of operating at 3187 rpm @ 144VDC with a continuous torque of 76 oz-in
  • Capable of operating at 3941 rpm @ 174VDC with a continuous torque of 55 oz-in
