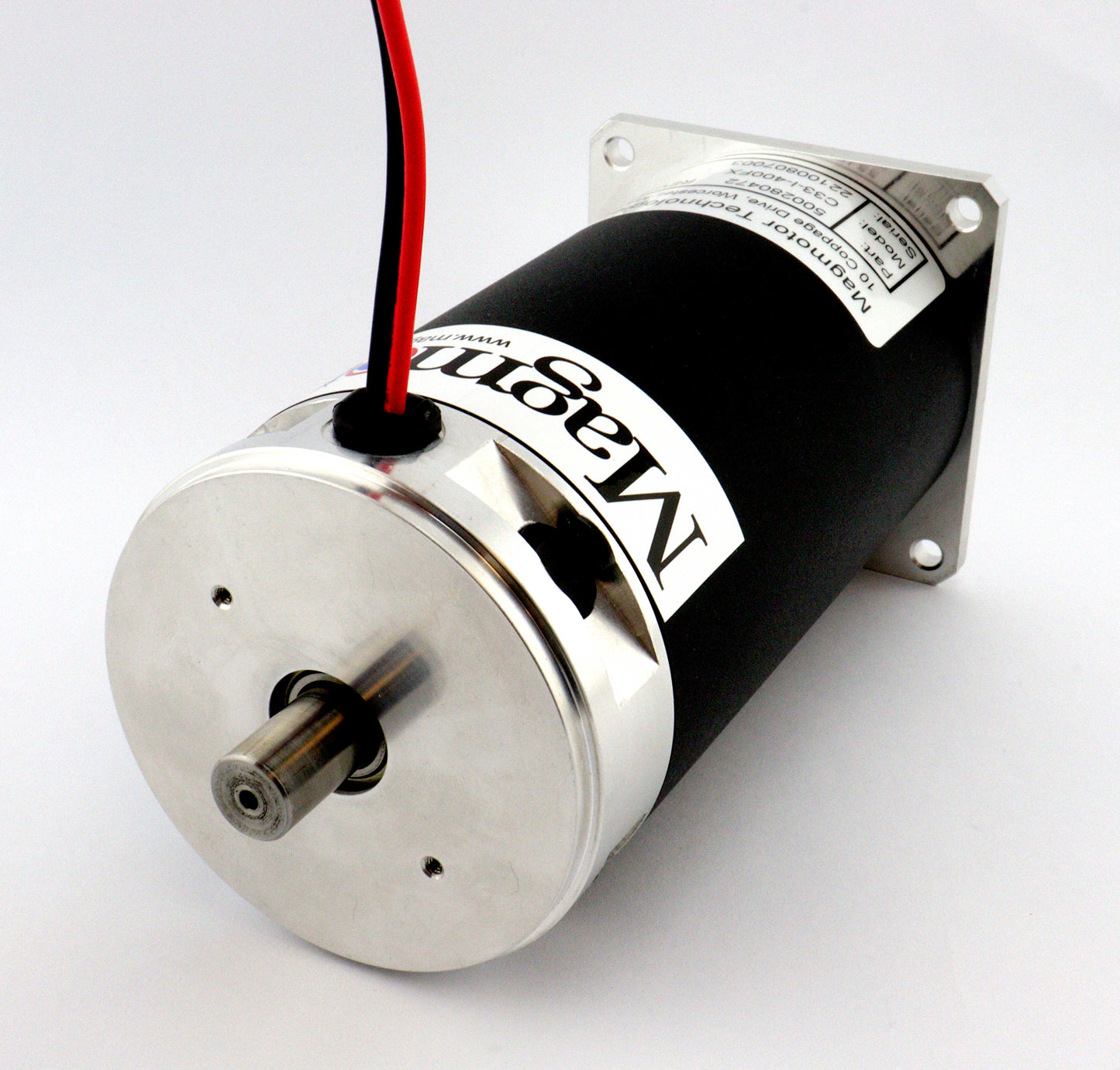

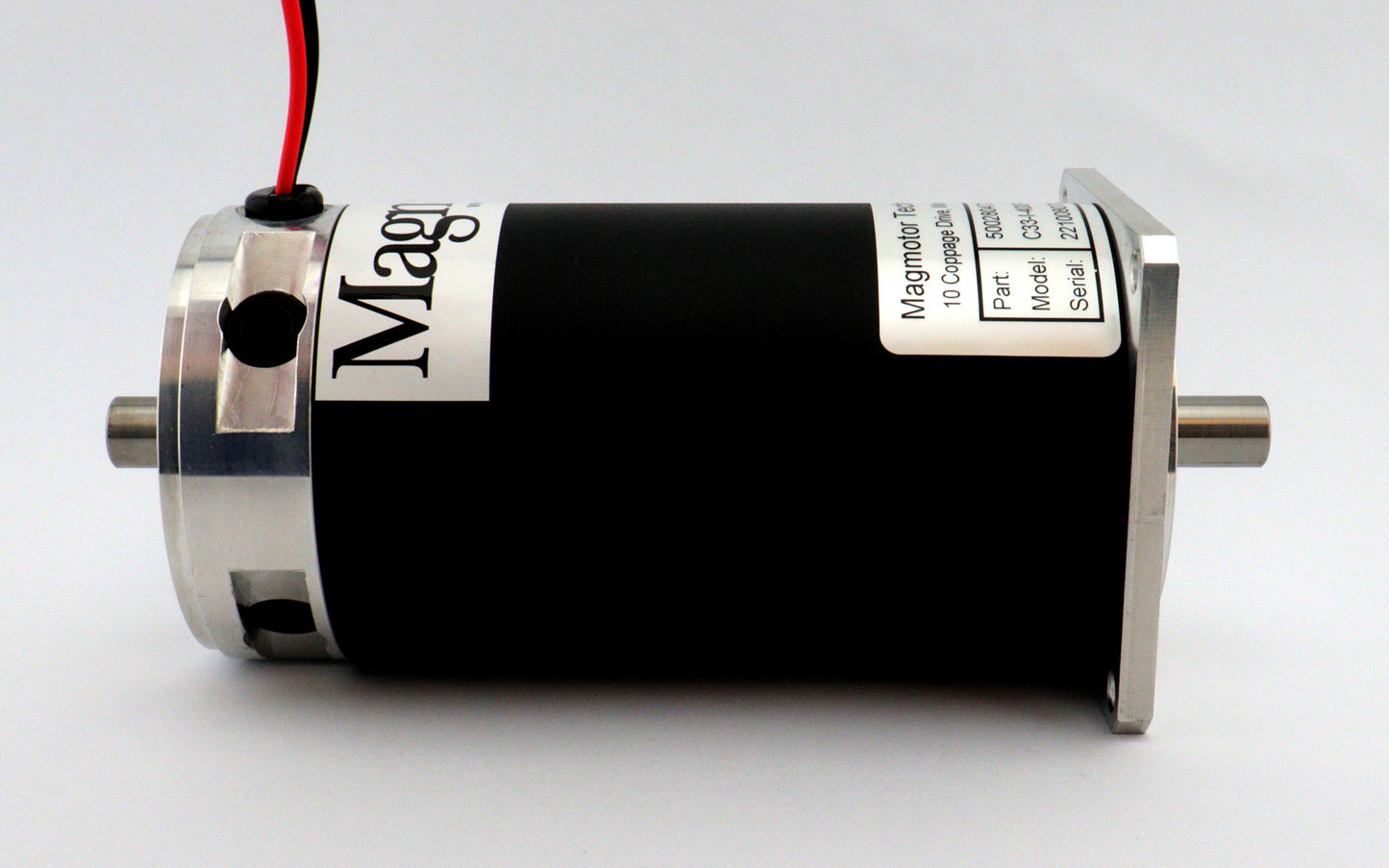

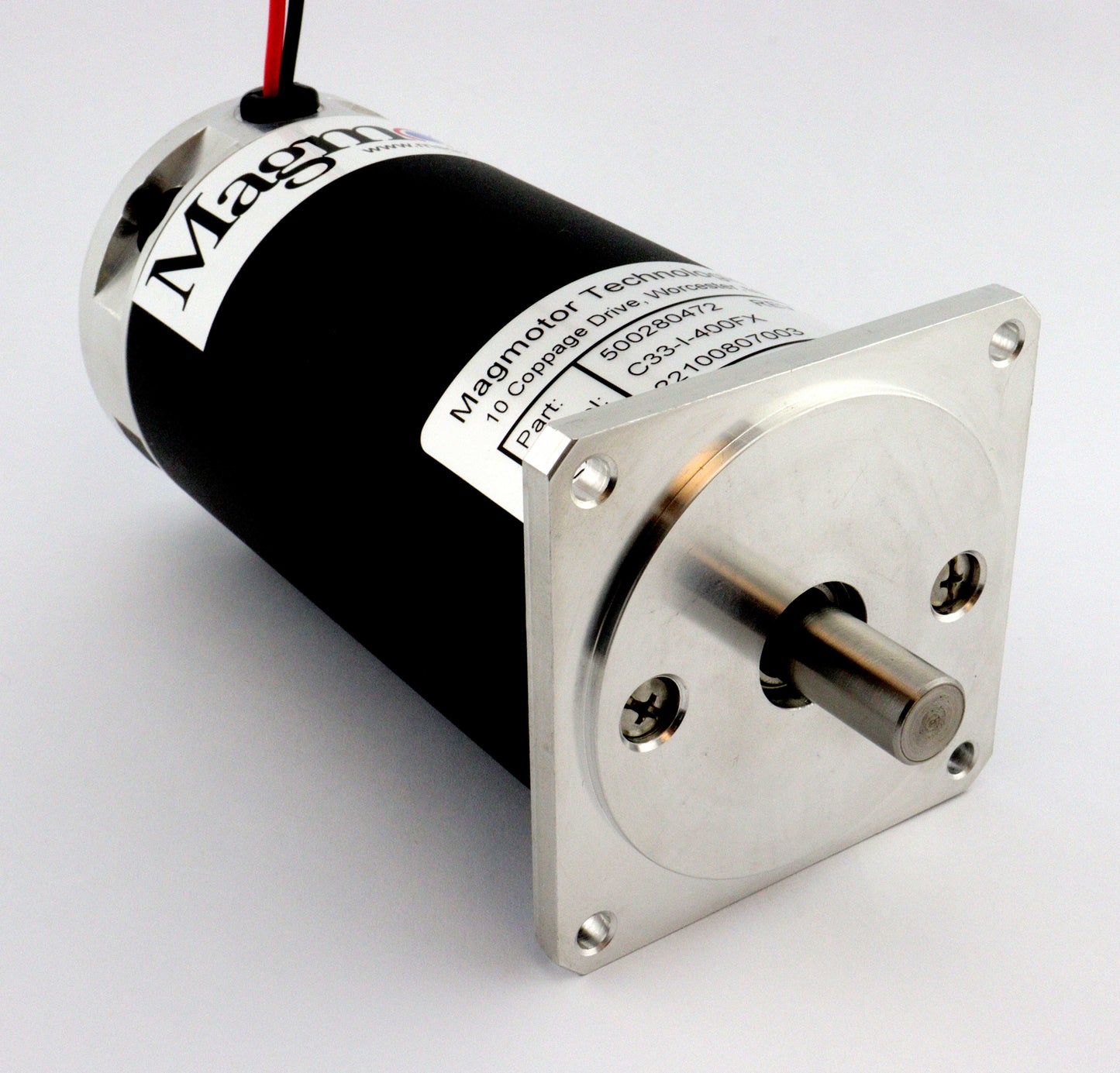

500280472 - BRUSHED MOTOR - 96 to 228 VDC - 70 to 154 oz-in CONT TORQUE - C33-I-400FX

500280472 - BRUSHED MOTOR - 96 to 228 VDC - 70 to 154 oz-in CONT TORQUE - C33-I-400FX

Regular price $477.00
Regular price Sale price $477.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button


DC Motor Specifications:

  • 4 Pole - Brushed DC Motor
  • NEMA 34 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 44.6 +/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 60.3 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 1903 rpm @ 96VDC with a continuous torque of 154 oz-in
  • Capable of operating at 2460 rpm @ 120VDC with a continuous torque of 142 oz-in
  • Capable of operating at 3018 rpm @ 144VDC with a continuous torque of 130 oz-in
  • Capable of operating at 3579 rpm @ 168VDC with a continuous torque of 116 oz-in
  • Capable of operating at 4143 rpm @ 192VDC with a continuous torque of 100 oz-in
  • Capable of operating at 4999 rpm @ 228VDC with a continuous torque of 70 oz-in
