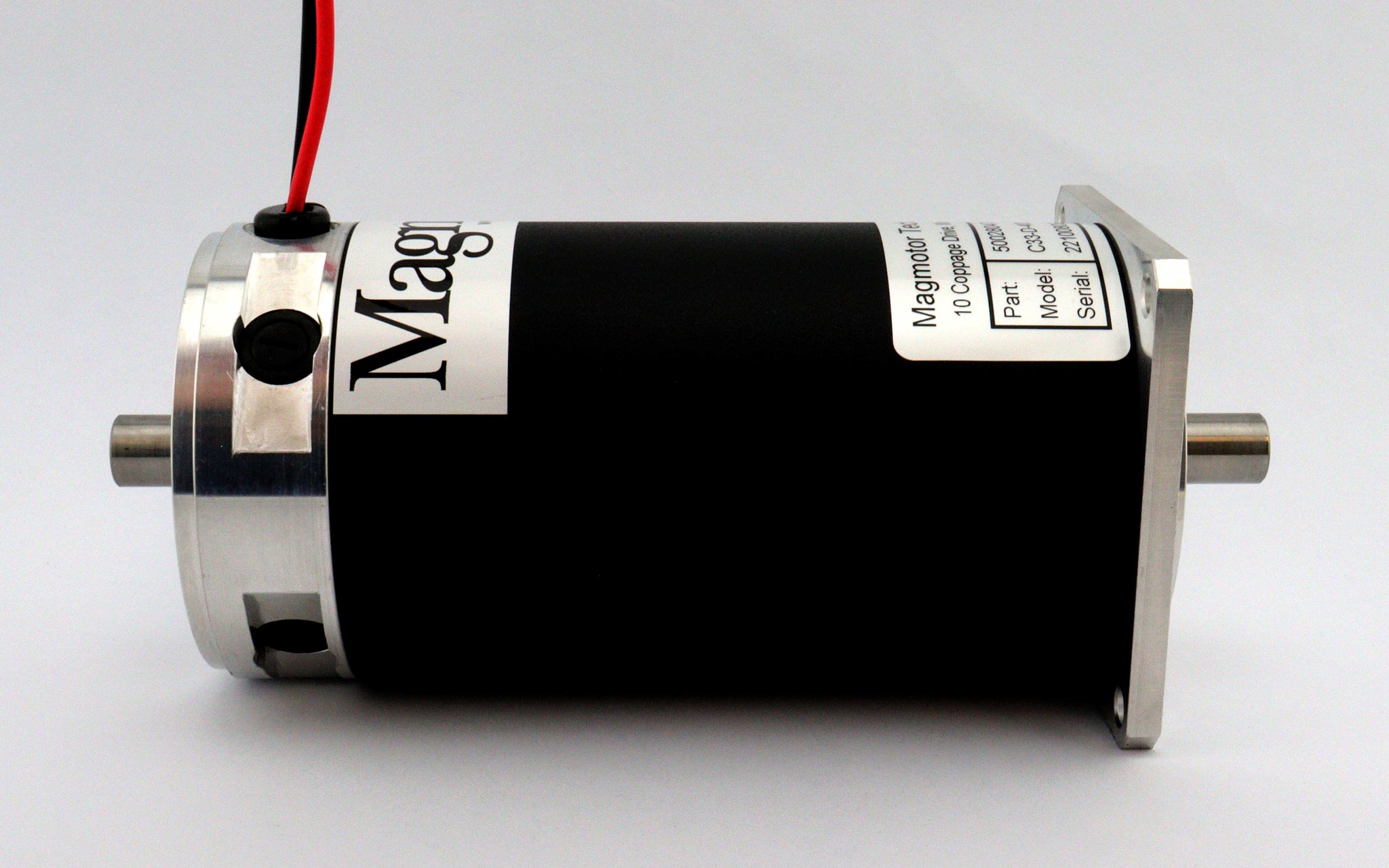

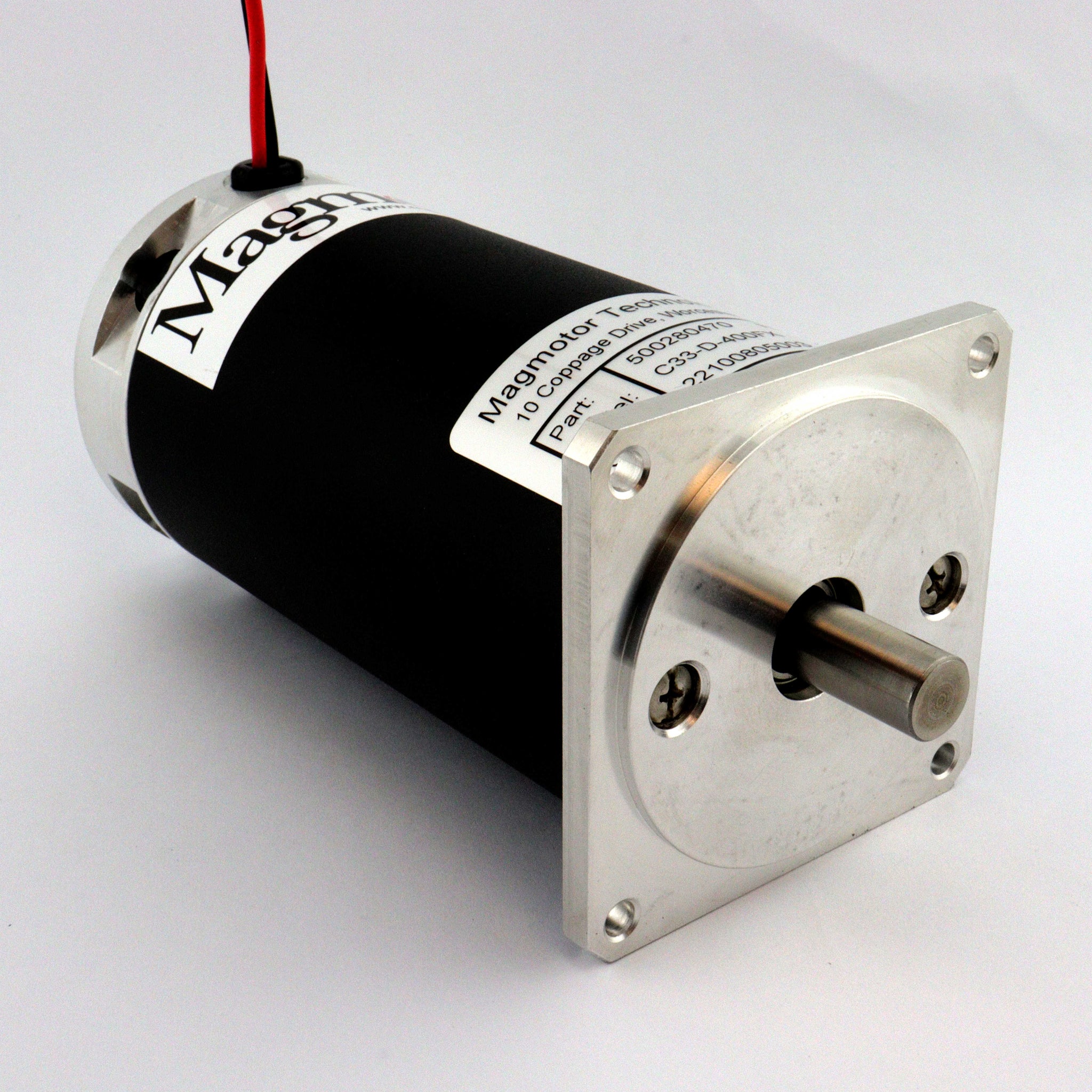

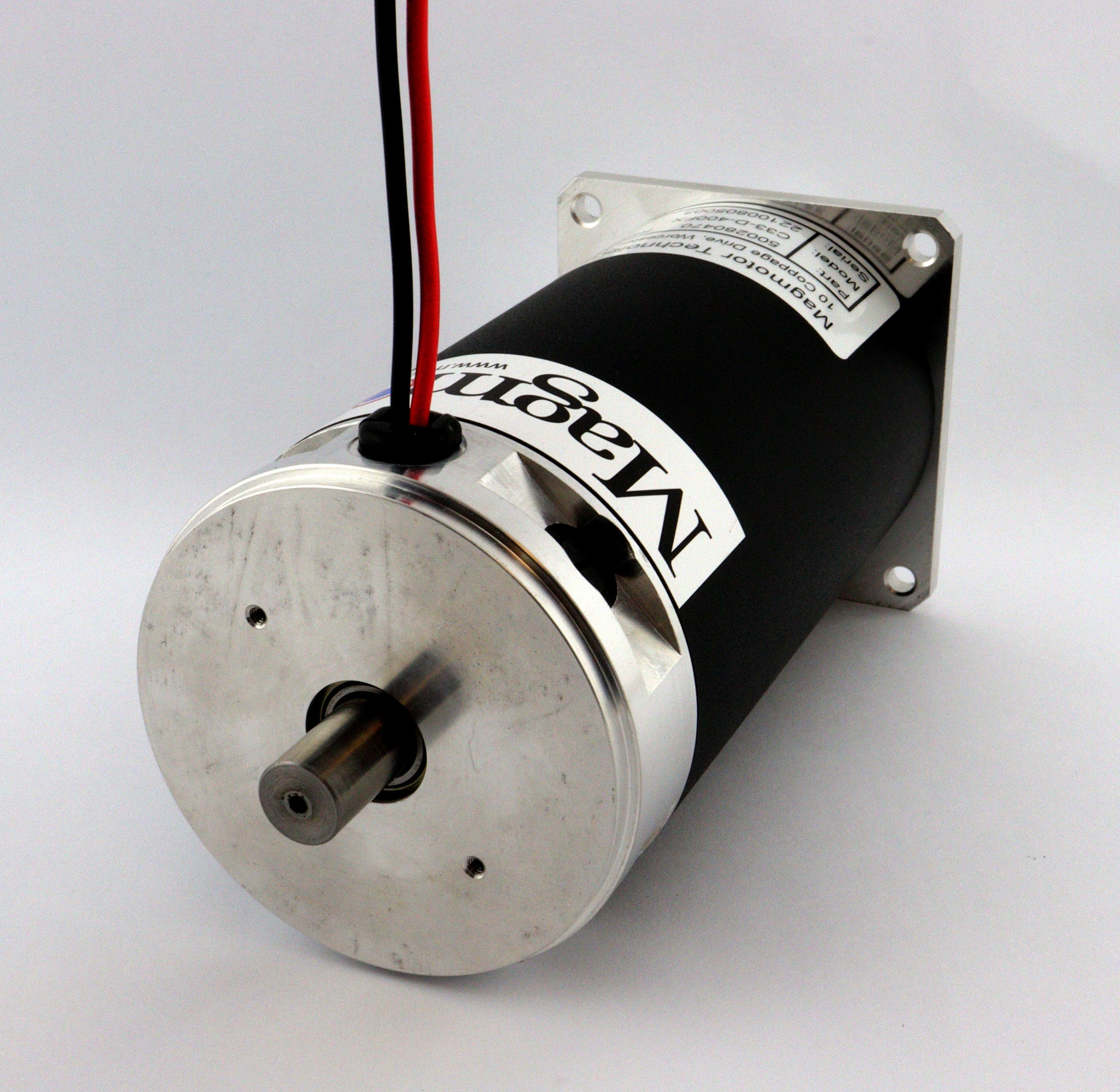

500280470 - BRUSHED MOTOR - 30 to 66 VDC - 55 to 134 oz-in CONT TORQUE - C33-D-400FX

500280470 - BRUSHED MOTOR - 30 to 66 VDC - 55 to 134 oz-in CONT TORQUE - C33-D-400FX

Regular price $477.00
Regular price Sale price $477.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button


DC Motor Specifications:

  • 4 Pole - Brushed DC Motor
  • NEMA 34 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 14.1 +/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 19.1 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 1864 rpm @ 30VDC with a continuous torque of 134 oz-in
  • Capable of operating at 2754 rpm @ 42VDC with a continuous torque of 114 oz-in
  • Capable of operating at 3652 rpm @ 54VDC with a continuous torque of 90 oz-in
  • Capable of operating at 4572 rpm @ 66VDC with a continuous torque of 55 oz-in
